The utility model discloses a novel lighting down lamp with good waterproof performance, which comprises a mounting bracket and a down lamp main body, wherein a connecting rod is arranged at the bottom of the mounting bracket, one end of the connecting rod is fixed with the mounting bracket, the other end of the connecting rod is provided with a rotating shaft, a mounting groove is formed in the top of the down lamp main body, rotating shaft holes which can be matched with the rotating shaft are formed in two side walls of the mounting groove, the down lamp main body is movably mounted below the mounting bracket through the connecting rod, the down lamp main body is mounted with a wall body through the mounting bracket, the down lamp main body is not directly connected to the wall body, the probability that water on the wall body can directly enter the down lamp main body is reduced, the down lamp main body is further provided with a waterproof cover, and the waterproof cover can be directly sleeved on a wiring hole of the down lamp main body after the wire is connected, so that the water is prevented from entering the down lamp main body.

Description

Novel illumination down lamp that waterproof performance is good

Technical Field

The utility model relates to the field of down lamps, in particular to a novel lighting down lamp with good waterproof performance.

Background

The down lamp is generally a lamp which is provided with a screw lamp holder and can be directly provided with an incandescent lamp or an energy-saving lamp. The down lamp is a lighting lamp embedded in a ceiling and emitting light downward. The ceiling lamp has the advantages that the overall unity and perfection of architectural decoration can be kept, the perfect unity of ceiling art cannot be damaged due to the arrangement of the lamp, the space of the ceiling lamp is not occupied, the soft atmosphere of the space can be increased, and if a warm feeling is created, a plurality of ceiling lamps can be installed in a trial manner, so that the space oppression is reduced. Generally, the coffee machine is used in hotels, families and coffee houses more. The existing down lamp is poor in waterproof effect, and liquid can easily enter the down lamp, so that the service life of the down lamp is hidden.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the problems in the prior art, provides a novel lighting down lamp with good waterproof performance, and can effectively solve the problems in the background technology.

In order to achieve the purpose, the technical scheme of the utility model is as follows: the utility model provides a novel illumination down lamp that waterproof performance is good, a serial communication port, novel illumination down lamp that waterproof performance is good includes installing support and down lamp main part, the installing support bottom is provided with the connecting rod, connecting rod one end is fixed with the installing support, and the other end is provided with the pivot, down lamp main part top is provided with the mounting groove, mounting groove both sides wall be provided with can with pivot complex pivot hole, the down lamp main part passes through connecting rod movable mounting in the installing support below, down lamp main part top still is provided with waterproof upper shield, waterproof upper shield adopts the rubber material to cast, waterproof upper shield cup joints on the wiring hole of down lamp main part after connecing the line.

As preferred, the structure of a "T" style of calligraphy is constituteed with the connecting rod to the installing support, and the installation that is favorable to the down lamp main part of "T" style of calligraphy, the down lamp main part is cylindrical, and the cylindrical down lamp main part is comparatively smooth and is difficult for ponding.

Preferably, the down lamp main body comprises a down lamp holder and a down lamp holder, threads are arranged on the outer wall of the down lamp holder, the top of the down lamp holder is subjected to round-corner treatment, threads are also arranged on the inner wall of the down lamp holder, and the down lamp holder are fixed together through the matching of the threads

Preferably, the down lamp holder and the down lamp cap can be fixed through the matching of screws and threaded holes, and can also be fixed through the matching of latches.

Preferably, the LED light source is arranged in the lamp holder of the down lamp, a light-transmitting plate is arranged on the lamp holder of the down lamp, and the light-transmitting plate is cast by an acrylic material.

Preferably, the side wall and the top of the lamp holder of the down lamp are provided with a plurality of groups of radiating holes, the radiating holes are uniformly distributed on the side wall and the top of the lamp holder of the down lamp, and dustproof filter screens are arranged inside the radiating holes.

Preferably, the mounting bracket is provided with at least four threaded holes, and the threaded holes are provided with screws which can be matched.

Compared with the prior art, the utility model has the following beneficial effects:

1. the down lamp main body is installed on the wall body through the installation support, and the down lamp main body is not directly installed on the wall body, so that the probability that water on the wall body can directly enter the down lamp main body is reduced.

2. The utility model is provided with the waterproof sleeve cover, and the waterproof sleeve cover can be directly sleeved on the wiring hole of the down lamp main body after the wiring is finished, so that water is prevented from entering the down lamp main body.

3. The cylindrical down lamp has the advantages that the surface of the down lamp body is smooth and is not easy to accumulate water, the top of the lamp holder of the down lamp is subjected to round angle treatment, and the lamp holder of the down lamp subjected to round angle treatment has stronger water drainage capacity.

4. The lamp holder of the down lamp is provided with the plurality of heat dissipation holes, so that the heat dissipation area of the down lamp is increased, and the service life of the down lamp is prolonged.

Drawings

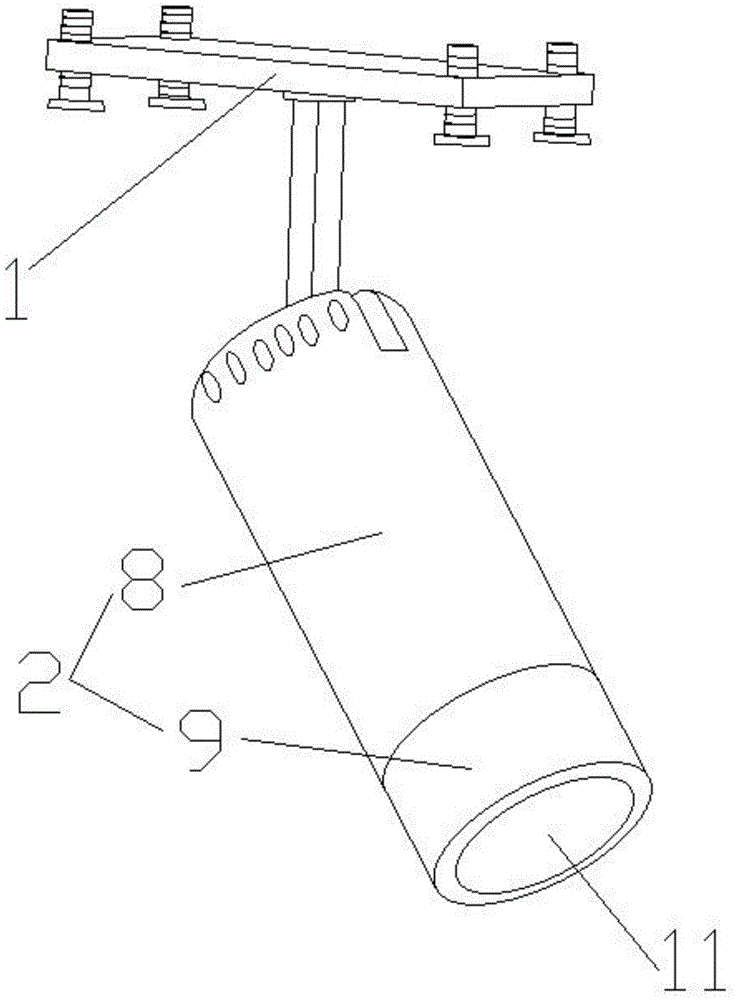

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the mounting bracket structure of the present invention;

FIG. 3 is an exploded view of the body of the downlight of the present invention;

fig. 4 is a schematic view of the top structure of the lamp holder of the downlight of the utility model.

In the figure: 1-mounting bracket, 2-down lamp main body, 3-connecting rod, 4-rotating shaft, 5-mounting groove, 6-rotating shaft hole, 7-waterproof cover, 8-down lamp holder, 9-down lamp cap, 10-LED light source, 11-light-transmitting plate, 12-heat-radiating hole, 13-threaded hole, 14-screw

Detailed Description

Reference will now be made in detail to the exemplary embodiments, examples of which are illustrated in the accompanying drawings. When the following description refers to the accompanying drawings, like numbers in different drawings represent the same or similar elements unless otherwise indicated. The embodiments described in the following exemplary embodiments do not represent all embodiments consistent with the present application. Rather, they are merely examples of apparatus consistent with certain aspects of the present application, as detailed in the appended claims.

The terminology used herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the application. Unless defined otherwise, technical or scientific terms used herein shall have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The use of the terms "a" or "an" and the like in the description and in the claims of this application do not denote a limitation of quantity, but rather denote the presence of at least one. "plurality" includes two, and is equivalent to at least two. The word "comprising" or "comprises", and the like, means that the element or item listed as preceding "comprising" or "includes" covers the element or item listed as following "comprising" or "includes" and its equivalents, and does not exclude other elements or items. The terms "connected" or "coupled" and the like are not restricted to physical or mechanical connections, but may include electrical connections, whether direct or indirect. As used in this specification and the appended claims, the singular forms "a", "an", and "the" are intended to include the plural forms as well, unless the context clearly indicates otherwise. It should also be understood that the term "and/or" as used herein refers to and encompasses any and all possible combinations of one or more of the associated listed items.

As shown in fig. 1-4, the novel lighting down lamp with good waterproof performance comprises a mounting bracket 1 and a down lamp main body 2, wherein a connecting rod 3 is arranged at the bottom of the mounting bracket 1, one end of the connecting rod 3 is fixed with the mounting bracket 1, the other end of the connecting rod is provided with a rotating shaft 4, a mounting groove 5 is arranged at the top of the down lamp main body 2, two side walls of the mounting groove 5 are provided with rotating shaft holes 6 which can be matched with the rotating shaft 4, the down lamp main body 2 is movably mounted below the mounting bracket 1 through the connecting rod 3, and particularly, the down lamp main body 2 is connected with the mounting bracket 1 through the connecting rod 3, so that the down lamp main body 2 is prevented from directly contacting with a wall body, and the probability that water can flow into the down lamp main body 2 is reduced; the down lamp main body 2 can also rotate 0-180 degrees on the mounting bracket 1 by the principle of the rotating shaft 4 and the rotating shaft hole 6 to adjust the illumination angle.

In this embodiment, down lamp main part 2 is cylindrical and 8 tops of down lamp stand are made the fillet and are handled. Particularly, the surface of the down lamp main body 2 is smooth and not easy to accumulate water, and the drainage capacity of the down lamp holder 8 processed by the round corners is stronger.

In this embodiment, the top of the down lamp main body 2 is further provided with a waterproof cover 7, and the waterproof cover 7 is cast by using a rubber material. Particularly, down lamp main part 2 is after the wiring is accomplished in connecing, and waterproof capping 7 can directly cup joint on the wiring hole of electric wire and down lamp main part 2, because the rubber material is comparatively soft, gap after pressing down 2 wiring with down lamp main part that can be fine gives sealedly, avoids water can enter into down lamp main part 2.

In this embodiment, down lamp main part 2 includes down lamp holder 8 and down lamp holder 9, be provided with the screw thread on the 8 outer walls of down lamp holder, also be provided with the screw thread on the 9 inner walls of down lamp holder. Particularly, down lamp stand 8 and down lamp holder 9 are together fixed through the cooperation of screw, because the screw is the connected mode of down lamp stand 8 and down lamp holder 9, also can be here through respectively beating the same screw hole of quantity on down lamp stand 8 and down lamp holder 9, then link together down lamp stand 8 and down lamp holder 9 through the cooperation of screw hole and screw.

In this embodiment, the inside LED light source 10 that is provided with of down lamp stand 8, be provided with light-passing board 11 on the down lamp holder 9, light-passing board 11 is cast by the ya keli material. Specifically, the LED light source 10 has low energy consumption, long service life, economy and environmental protection, and the light-transmitting plate 11 made of acrylic material has good light-transmitting performance and long service life.

In this embodiment, 8 lateral walls of down lamp holder and top all are provided with a plurality of sets of louvre 12, louvre 12 evenly distributed is on 8 lateral walls of down lamp holder and top, louvre 12 is inside all to be provided with dustproof filter screen. Specifically, the heat dissipation holes 12 facilitate the improvement of the heat dissipation area of the down lamp, the acceleration of the exchange speed of the air flow inside and outside the down lamp, the acceleration of the heat dissipation efficiency of electronic elements inside the down lamp, the avoidance of the problem of small heat dissipation holes and poor heat dissipation effect, and the reduction of the energy consumption of the surface mounted down lamp; dustproof filter screen is convenient for reduce the dust that gets into in the inside air in the radiating, improves the dustproof effect of down lamp, has increased the life of down lamp.

In this embodiment, the mounting bracket 1 is provided with at least four threaded holes 13, and the threaded holes 13 are all provided with screws 14 which can be matched. Specifically, the mounting bracket 1 can be fixed on a wall body through the matching of the threaded holes 13 and the screws 14 so that the barrel lamp can be used.

The foregoing shows and describes the general principles and broad features of the present invention and advantages thereof. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are given by way of illustration of the principles of the present invention, but that various changes and modifications may be made without departing from the spirit and scope of the utility model, and such changes and modifications are within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. The utility model provides a novel illumination down lamp that waterproof performance is good, a serial communication port, novel illumination down lamp that waterproof performance is good includes installing support (1) and down lamp main part (2), installing support (1) bottom is provided with connecting rod (3), connecting rod (3) one end is fixed with installing support (1), and the other end is provided with pivot (4), down lamp main part (2) top is provided with mounting groove (5), mounting groove (5) both sides wall be provided with can with pivot (4) complex pivot hole (6), down lamp main part (2) are through connecting rod (3) movable mounting in installing support (1) below, down lamp main part (2) top still is provided with waterproof upper shield (7).

2. The novel lighting down lamp with good waterproof performance as claimed in claim 1, wherein the down lamp main body (2) comprises a down lamp holder (8) and a down lamp cap (9), threads are arranged on the outer wall of the down lamp holder (8), the top of the down lamp holder (8) is subjected to fillet processing, threads are also arranged on the inner wall of the down lamp cap (9), and the down lamp holder (8) and the down lamp cap (9) are fixed together through the matching of the threads.

3. The novel lighting down lamp with good waterproof performance as claimed in claim 2, wherein an LED light source (10) is arranged inside a lamp holder (8) of the down lamp, and a light-transmitting plate (11) is arranged on a lamp cap (9) of the down lamp.

4. A novel illuminating down lamp with good waterproof performance according to claim 3, characterized in that a plurality of groups of heat dissipation holes (12) are arranged on the side wall and the top of the down lamp holder (8), and the heat dissipation holes (12) are uniformly distributed on the side wall and the top of the down lamp holder (8).

5. The novel lighting down lamp with good waterproof performance as claimed in claim 4, wherein a dustproof filter screen is arranged inside each heat dissipation hole (12).

6. The novel lighting down lamp with good waterproof performance according to claim 1, wherein the mounting bracket (1) is provided with at least four threaded holes (13), and the threaded holes (13) are all provided with matched screws (14).
