CN216644135U

CN216644135U - But rotation regulation's line lamp

Info

Publication number: CN216644135U
Application number: CN202220154657.3U
Authority: CN
Inventors: 刘政
Original assignee: Guangdong Chijiu Lighting Co ltd
Current assignee: Guangdong Chijiu Lighting Co ltd
Priority date: 2022-01-20
Filing date: 2022-01-20
Publication date: 2022-05-31
Anticipated expiration: 2032-01-20

Abstract

The utility model discloses a rotatably adjustable line lamp, which comprises a bottom frame, wherein a circular groove is formed in the middle position of the top of the bottom frame, a gear is connected to the middle position of the inner wall of the bottom frame through a bearing, a connecting rod is fixedly connected to the top of the gear, a rotary table inserted in the circular groove is fixedly connected to the top of the gear, a circular hole is formed in the middle position of the rotary table, the connecting rod penetrates through the inside of the circular hole, an H-shaped mounting frame is fixedly connected to the top of the rotary table, the inner wall of the top of the H-shaped mounting frame is attached to a line lamp body, an L-shaped rack is meshed with one side of the gear, a threaded hole is formed in one end of the L-shaped rack, and a threaded rod is connected to the inner wall of the threaded hole in a threaded manner. The utility model enables the whole line lamp to have the effect of convenient installation, and the gear, the connecting rod, the turntable, the H-shaped mounting rack and the line lamp body are driven to rotate through the meshing action of the L-shaped rack and the gear, so that the whole line lamp body has the rotating function.

Description

But rotation regulation's line lamp

Technical Field

The utility model relates to the technical field of line lamps, in particular to a line lamp capable of being rotatably adjusted.

Background

The LED line lamp series is a high-end flexible decorative lamp, and is characterized by low power consumption, long service life, high brightness, easy bending and no need of maintenance. Is particularly suitable for indoor and outdoor entertainment places, building outline sketching, billboard manufacturing and the like. The products have 12V, 24V and the like according to different requirements, the lengths of the products have 30CM, 60CM, 90CM, 120CM and the like, and the line lamps with different specifications can be customized according to the requirements of customers.

At present, the existing line lamp is generally directly fixed and installed, the position of the line lamp cannot be adjusted, namely, the line lamp cannot be rotated and adjusted, so that the use performance of the line lamp is poor, and therefore, the line lamp which can be rotated and adjusted is needed to be designed urgently to solve the problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides a line lamp capable of being rotatably adjusted.

In order to achieve the purpose, the utility model adopts the following technical scheme:

the utility model provides a but rotation regulation's line lamp, includes the underframe, the top intermediate position of underframe is opened there is the circular recess, and the bottom inner wall intermediate position of underframe is connected with the gear through the bearing, the top fixedly connected with connecting rod of gear, the carousel of the top fixedly connected with grafting in the circular recess of gear, and the intermediate position of carousel is opened there is the circular port, and the connecting rod passes the inside of circular port, the top fixedly connected with H type mounting bracket of carousel, and the wired lamp body of the top inner wall laminating of H type mounting bracket, one side meshing of gear has L type rack, and the one end of L type rack is opened threaded hole, and the inner wall threaded connection of threaded hole has the threaded rod, and the one end of threaded rod is provided with revolution mechanic.

Preferably, the other end fixedly connected with of threaded rod is spacing dish, and one side fixedly connected with bull stick of spacing dish, is connected through the bearing between the one end of bull stick and the one end inner wall of underframe.

Preferably, the tops of the two ends of the H-shaped mounting frame are both provided with mounting side holes, the cross sections of the mounting side holes are of a T-shaped structure, threaded openings are formed in the middle positions of the two sides of the linear lamp body, and the inner walls of the threaded openings and the inner walls of the mounting side holes are in threaded connection with positioning bolts.

Preferably, a guide rod is fixedly connected between the inner walls of the two ends of one side, close to the L-shaped rack, of the bottom frame, and a guide sleeve sleeved on the outer wall of the guide rod is fixedly connected to one end of the outer wall of one side of the L-shaped rack.

Preferably, the bottom both ends of underframe all fixedly connected with L type mount pad, and the bottom both ends of L type mount pad all open there is the installation base hole.

Preferably, revolution mechanic is including seting up the through-hole that is close to threaded rod one side in the underframe, and the one end fixedly connected with of threaded rod passes the commentaries on classics handle of through-hole, and the outer wall of changeing the handle passes through the bearing with the inner wall of through-hole and is connected.

Preferably, revolution mechanic is including seting up the through-hole that is close to threaded rod one side at the underframe, and one side outer wall fixedly connected with of underframe is motor just reversing, and the output shaft of motor just reversing passes the one end of through-hole and the one end fixed connection of threaded rod.

The utility model has the beneficial effects that:

1. through setting up the H type mounting bracket in line lamp body bottom, the installation side opening, underframe and L type mount pad, with the inner wall top of line lamp body joint to H type mounting bracket, make the outer wall of line lamp body coincide completely with the inner wall of H type mounting bracket, recycle installation side opening and pilot pin and fix H type mounting bracket and line lamp body, fix L type mount pad through the installation basic hole, make whole line lamp have the effect of the installation of being convenient for.

2. Through setting up the gear in the underframe, the carousel, L type rack, the screw hole, the revolution mechanic of threaded rod, when adjusting the steering angle of line lamp, the commentaries on classics in the accessible revolution mechanic rotates drive threaded rod and bull stick, utilize the screw thread effect of screw hole and threaded rod to adjust the position of L type rack in the underframe, the meshing effect through L type rack and gear drives the gear, the connecting rod, the carousel, H type mounting bracket and line lamp body rotate, make whole line lamp body have the rotation function.

Drawings

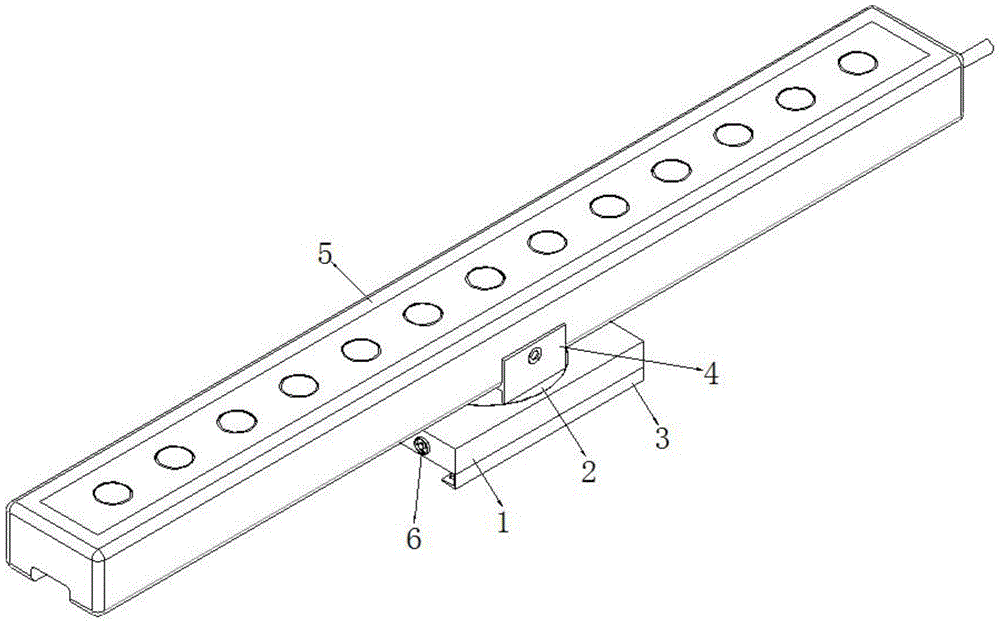

Fig. 1 is a schematic view of the overall structure of a rotatably adjustable linear lamp according to embodiment 1;

fig. 2 is a schematic structural view of an H-shaped mounting rack and a mounting side hole of a rotatably adjustable linear lamp provided in embodiment 1;

FIG. 3 is a schematic view of an L-shaped rack and pinion structure of a rotatably adjustable linear light as set forth in embodiment 1;

fig. 4 is a schematic cross-sectional view of a bottom frame of a rotatably adjustable linear lamp in accordance with embodiment 1;

fig. 5 is a schematic structural diagram of a forward and reverse rotation motor of the rotatably adjustable linear lamp according to embodiment 2.

In the figure: 1. a bottom frame; 2. a turntable; 3. an L-shaped mounting seat; 4. an H-shaped mounting rack; 5. a line lamp body; 6. turning a handle; 7. installing a base hole; 8. installing a side hole; 9. an L-shaped rack; 10. a threaded rod; 11. a gear; 12. a limiting disc; 13. a guide bar; 14. a guide sleeve; 15. a circular groove; 16. a rotating rod; 17. a circular hole; 18. a connecting rod; 19. a positive and negative rotation motor.

Detailed Description

The technical solution of the present patent will be described in further detail with reference to the following embodiments.

Reference will now be made in detail to embodiments of the present patent, examples of which are illustrated in the accompanying drawings, wherein like or similar reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary only for the purpose of explaining the present patent and are not to be construed as limiting the present patent.

In the description of this patent, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the convenience of describing the patent and for the simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be considered limiting of the patent.

In the description of this patent, it is noted that unless otherwise specifically stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can include, for example, fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Example 1

Referring to fig. 1-4, a rotatable regulation's line lamp, including underframe 1, the top intermediate position of underframe 1 is opened there is circular recess 15, and the bottom inner wall intermediate position of underframe 1 is connected with gear 11 through the bearing, the top welding of gear 11 has connecting rod 18, the top welding of gear 11 has carousel 2 of pegging graft in circular recess 15, the intermediate position of carousel 2 is opened there is circular port 17, connecting rod 18 passes the inside of circular port 17, the top welding of carousel 2 has H type mounting bracket 4, and the wired lamp body 5 of the laminating of the top inner wall of H type mounting bracket 4, one side meshing of gear 11 has L type rack 9, and the one end of L type rack 9 is opened threaded hole, the inner wall threaded connection of threaded hole has threaded rod 10, the one end of threaded rod 10 is provided with the revolution mechanic.

Furthermore, the other end of the threaded rod 10 is welded with a limiting disc 12, one side of the limiting disc 12 is welded with a rotating rod 16, and one end of the rotating rod 16 is connected with the inner wall of one end of the bottom frame 1 through a bearing.

Furthermore, the tops of the two ends of the H-shaped mounting frame 4 are respectively provided with a mounting side hole 8, the cross section of each mounting side hole 8 is of a T-shaped structure, threaded openings are formed in the middle positions of the two sides of the line lamp body 5, and the inner walls of the threaded openings and the inner walls of the mounting side holes 8 are in threaded connection with positioning bolts.

Furthermore, a guide rod 13 is welded between the inner walls of the two ends of the bottom frame 1 close to one side of the L-shaped rack 9, and a guide sleeve 14 sleeved on the outer wall of the guide rod 13 is welded at one end of the outer wall of one side of the L-shaped rack 9.

Further, L type mount pad 3 has all been welded at the bottom both ends of underframe 1, and the bottom both ends of L type mount pad 3 all opened installation base hole 7.

Further, revolution mechanic is including seting up the through-hole that is close to threaded rod 10 one side at underframe 1, and the one end welding of threaded rod 10 has the commentaries on classics of passing the through-hole to be 6, changes the outer wall of 6 and passes through the bearing with the inner wall of through-hole and be connected.

The working principle is as follows: when in use, a user clamps the line lamp body 5 on the top of the inner wall of the H-shaped mounting frame 4, so that the outer wall of the line lamp body 5 is completely matched with the inner wall of the H-shaped mounting frame 4, then the H-shaped mounting frame 4 and the line lamp body 5 are fixed by the mounting side holes 8 and the positioning bolts, the L-shaped mounting seat 3 is fixed through the mounting base hole 7, so that the whole line lamp has the effect of convenient mounting, when the steering angle of the linear lamp is adjusted, the rotating handle 6 in the rotating structure can drive the threaded rod 10 and the rotating rod 16 to rotate, the position of the L-shaped rack 9 in the bottom frame 1 is adjusted by the thread action of the threaded hole and the threaded rod 10, the gear 11, the connecting rod 18, the turntable 2, the H-shaped mounting rack 4 and the line lamp body 5 are driven to rotate through the meshing action of the L-shaped rack 9 and the gear 11, so that the whole line lamp body 5 has a rotating function.

Example 2

Referring to fig. 5, in the present embodiment, compared with embodiment 1, the rotating structure includes a through hole formed in one side of the bottom frame 1 close to the threaded rod 10, a forward and reverse rotation motor 19 is connected to an outer wall of one side of the bottom frame 1 through a bolt, and an output shaft of the forward and reverse rotation motor 19 passes through one end of the through hole and is connected to one end of the threaded rod 10 through a bolt.

The working principle is as follows: during the use, the user is when adjusting the steering angle of line lamp, and positive reverse motor 19 in the accessible revolution mechanic drives threaded rod 10 and bull stick 16 and rotates, utilizes the screw hole and threaded rod 10's screw action to adjust the position of L type rack 9 in underframe 1, drives gear 11, connecting rod 18, carousel 2, H type mounting bracket 4 and line lamp body 5 through the meshing effect of L type rack 9 and gear 11 and rotates for whole line lamp body 5 has rotation function.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.

Claims

1. The utility model provides a but wire lamp of rotary regulation, includes underframe (1), its characterized in that, the top intermediate position of underframe (1) is opened there is circular slot (15), and the bottom inner wall intermediate position of underframe (1) is connected with gear (11) through the bearing, the top fixedly connected with connecting rod (18) of gear (11), the top fixedly connected with carousel (2) of pegging graft in circular slot (15) of gear (11), the intermediate position of carousel (2) is opened circular port (17), connecting rod (18) pass the inside of circular port (17), the top fixedly connected with H type mounting bracket (4) of carousel (2), and the laminating of the top inner wall of H type mounting bracket (4) has wire lamp body (5), one side meshing of gear (11) has L type rack (9), and the one end of L type rack (9) is opened threaded hole, the inner wall threaded connection of threaded hole has threaded rod (10), one end of the threaded rod (10) is provided with a rotating structure.

2. A rotatably adjustable line lamp as claimed in claim 1, wherein the other end of the threaded rod (10) is fixedly connected with a limiting disc (12), and one side of the limiting disc (12) is fixedly connected with a rotating rod (16), and one end of the rotating rod (16) is connected with the inner wall of one end of the bottom frame (1) through a bearing.

3. The rotatably adjustable line lamp according to claim 2, wherein the tops of the two ends of the H-shaped mounting frame (4) are respectively provided with a mounting side hole (8), the cross section of each mounting side hole (8) is of a T-shaped structure, the middle positions of the two sides of the line lamp body (5) are respectively provided with a threaded hole, and the inner wall of each threaded hole and the inner wall of each mounting side hole (8) are in threaded connection with a positioning bolt.

4. A rotatably adjustable line lamp as claimed in claim 3, wherein a guide rod (13) is fixedly connected between the inner walls of the two ends of the bottom frame (1) close to one side of the L-shaped rack (9), and a guide sleeve (14) sleeved on the outer wall of the guide rod (13) is fixedly connected to one end of the outer wall of one side of the L-shaped rack (9).

5. A rotatably adjustable line lamp as claimed in claim 4, wherein the bottom frame (1) is fixedly connected with L-shaped mounting seats (3) at both ends of the bottom, and the L-shaped mounting seats (3) are provided with mounting base holes (7) at both ends of the bottom.

6. A rotatably adjustable line lamp as claimed in claim 5, wherein the rotating structure comprises a through hole formed in the bottom frame (1) on the side close to the threaded rod (10), and one end of the threaded rod (10) is fixedly connected with a rotating handle (6) passing through the through hole, and the outer wall of the rotating handle (6) is connected with the inner wall of the through hole through a bearing.

7. A rotatably adjustable line lamp as claimed in claim 5, wherein the rotating structure comprises a through hole formed on one side of the bottom frame (1) close to the threaded rod (10), a forward and reverse rotating motor (19) is fixedly connected to the outer wall of one side of the bottom frame (1), and an output shaft of the forward and reverse rotating motor (19) passes through one end of the through hole and is fixedly connected with one end of the threaded rod (10).
