CN216635124U - Tableware mould and tableware production facility - Google Patents
Tableware mould and tableware production facility Download PDFInfo
- Publication number
- CN216635124U CN216635124U CN202123173251.4U CN202123173251U CN216635124U CN 216635124 U CN216635124 U CN 216635124U CN 202123173251 U CN202123173251 U CN 202123173251U CN 216635124 U CN216635124 U CN 216635124U
- Authority
- CN
- China
- Prior art keywords
- driving
- sliding
- mounting vertical
- tableware
- mould
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Extrusion Moulding Of Plastics Or The Like (AREA)
Abstract
The utility model discloses a tableware mould and tableware production equipment, the tableware mould comprises a sliding plate, a female mould, a male mould, a first driving piece and two mounting vertical plates, the two mounting vertical plates are vertically arranged along the front and back direction and are distributed at intervals along the left and right direction, the two mounting vertical plates are a first mounting vertical plate and a second mounting vertical plate, a plurality of sliding rods are arranged between the two mounting vertical plates along the left and right direction, two ends of the sliding rods are fixedly connected with the two mounting vertical plates, the sliding plate is vertically arranged between the two mounting vertical plates along the front and back direction and is connected with the plurality of sliding rods in a sliding way, the female mould is arranged in the middle of one first mounting vertical plate close to one side of the sliding plate, the bottom wall of the female mould is provided with a feed inlet penetrating through the first mounting vertical plate, the male mould is arranged at one side of the sliding plate close to the female mould, the first driving piece is arranged on the second mounting vertical plate, and the driving end of the first driving piece is in transmission connection with the sliding plate, the first driving piece is used for driving the sliding plate to move left and right until the male die extends into the female die or moves out of the female die, and the structure is simple.
Description
Technical Field
The utility model belongs to the field of plastic product production equipment, and particularly relates to a tableware mould and tableware production equipment.
Background
At present, plastic films are usually used for preparing plastic bowls or plastic cups by hot-press molding of the tableware molds, but the preparation process is complex and the equipment investment cost is high.
SUMMERY OF THE UTILITY MODEL
In order to solve the above technical problems, an object of the present invention is to provide a tableware mold with a simple structure.
In order to achieve the purpose, the technical scheme of the utility model is as follows: a tableware mould comprises a sliding plate, a female mould, a male mould, a first driving piece and two mounting vertical plates, wherein the two mounting vertical plates are vertically arranged along the front-back direction and are distributed at intervals along the left-right direction, the two mounting vertical plates are respectively a first mounting vertical plate and a second mounting vertical plate, a plurality of sliding rods are arranged between the two mounting vertical plates along the left-right direction, two ends of each sliding rod are fixedly connected with the two mounting vertical plates, the sliding plate is vertically arranged between the two mounting vertical plates along the front-back direction and is in sliding connection with the plurality of sliding rods, the female mould is arranged in the middle of one first mounting vertical plate close to one side of the sliding plate, a feed inlet penetrating through the first mounting vertical plate is formed in the bottom wall of the female mould, the male mould is arranged at one side of the sliding plate close to the female mould, and the first driving piece is arranged on the second mounting vertical plate, and the driving end of the first driving piece is in transmission connection with the sliding plate, and the first driving piece is used for driving the sliding plate to move left and right until the male die extends into the female die or moves out of the female die.
The beneficial effects of the above technical scheme are that: so drive the slide and move about by first driving piece and so that the public mould moves about to be close to or keep away from the female mould in order to accomplish the production of tableware, this tableware mould's simple structure, and it is convenient to maintain, and production efficiency is high simultaneously.
In the above technical solution, the first driving member includes a first telescopic member and a sliding member, the sliding member is disposed between the sliding plate and the second mounting vertical plate and is slidably connected to the plurality of sliding rods, the first telescopic member is mounted on the second mounting vertical plate, and its telescopic end is in transmission connection with the sliding member, one side of the sliding plate close to the second mounting vertical plate is rotatably mounted with a plurality of first connecting rods, one side of the second mounting vertical plate close to the sliding plate is rotatably mounted with a plurality of second connecting rods, the plurality of first connecting rods and the plurality of second connecting rods are in one-to-one correspondence, each first connecting rod is rotatably connected to one end of the corresponding second connecting rod close to each other, the sliding member is rotatably mounted with a plurality of third connecting rods, the plurality of third connecting rods are in one-to, the first connecting rods form a driving end of the first driving piece, and the first telescopic piece is used for driving the sliding piece to slide left and right so as to drive the first connecting rods to drive the sliding plate to slide left and right.
The beneficial effects of the above technical scheme are that: therefore, the first telescopic piece drives the sliding piece to slide and the sliding plate is driven to move left and right by the corresponding first connecting rod, the second connecting rod and the third connecting rod, so that the speed of the male die is gradually reduced when the male die moves away from the female die, the deformation of the formed tableware is avoided, and the defective rate can be effectively reduced.
The utility model also aims to provide integrated tableware production equipment.
In order to achieve the above object, another technical solution of the present invention is as follows: the utility model provides a tableware production facility, includes extruder, blendor and as above the tableware mould, the extruder has feed inlet and extrusion opening, the lower extreme of blendor has the discharge gate, the blendor is arranged in the top of extruder, the discharge gate of blendor with the feed inlet intercommunication of extruder, the tableware mould sets up the side of extruder, just the extrusion opening of extruder with the feed inlet of master model is connected and is linked together.
The beneficial effects of the above technical scheme are that: the structure is simple, the mixer mixes materials and supplies the raw materials to the extruder, and the extruder extrudes the hot-melted raw materials to the tableware mould to complete the production of the tableware.
In the technical scheme, the mixer comprises a tank shell, a stirring mechanism and a second driving piece, wherein a notch of the tank shell faces upwards, a discharge port of the mixer is arranged at the lower end of the tank shell, the stirring mechanism is arranged on the tank shell, a stirring part of the stirring mechanism is positioned in the tank shell, and a driving end of the second driving piece is in transmission connection with the stirring mechanism.
The beneficial effects of the above technical scheme are that: the structure is simple, and the mixing effect is good.
In the technical scheme, the stirring mechanism comprises a stirring shaft and a stirring paddle, the stirring shaft is horizontally arranged in the tank shell, one end of the stirring shaft extends out of the tank shell and is in transmission connection with a second driving piece arranged outside the tank shell, and the stirring paddle is arranged in the tank shell and is arranged on the stirring shaft.
The beneficial effects of the above technical scheme are that: the structure is simple.
In the technical scheme, the extruder comprises a shell, an extrusion screw, a hopper and a driving assembly, wherein the shell is horizontally arranged along the left and right directions, and the side wall of the shell is provided with a heater, the extrusion port of the extruder is arranged at one end of the shell, the feed inlet of the extruder is arranged at one end of the upper end of the side wall of the machine shell far away from the extrusion port of the machine shell, the hopper is vertically arranged, the discharge port of the mixer is connected and communicated with the feed port of the extruder, the discharge port of the mixer is communicated with the interior of the hopper, the extrusion screw is arranged in the casing along the left-right direction, one end of the extrusion screw close to the extrusion port of the casing is a screw part of the extrusion screw, and the other end of the extrusion screw extends out of the shell and is in transmission connection with the driving assembly, and the driving assembly is used for driving the extrusion screw to rotate and move left and right in a reciprocating manner.
The beneficial effects of the above technical scheme are that: through making extrusion screw rod can coaxial rotation again axial reciprocating motion, so be favorable to more even mixing and the hot melt of material in the extruder.
In the technical scheme, the driving assembly comprises a rotating driving part and a reciprocating driving part, the driving end of the rotating driving part and the driving end of the reciprocating driving part are in transmission connection with one end, located outside the casing, of the extrusion screw, the rotating driving part is used for driving the extrusion screw to coaxially rotate, and the reciprocating driving part is used for driving one end, reciprocating in the left and right directions, of the extrusion screw.
The beneficial effects of the above technical scheme are that: the structure is simple, so that the rotary driving piece drives the extrusion screw to rotate, and the reciprocating driving piece drives the extrusion screw to reciprocate.
In the technical scheme, the rotary driving part comprises a third driving part and a driving wheel, the extrusion screw rod is located one end outside the casing is provided with a strip-shaped groove along the left-right direction, the driving wheel is slidably sleeved on the extrusion screw rod and is rotatably connected with the casing, a convex tooth extending into the strip-shaped groove is convexly arranged at the inner hole of the driving wheel, and the third driving part is in transmission connection with the driving wheel.
The beneficial effects of the above technical scheme are that: the structure is simple, so that the extrusion screw rod can rotate under the driving of the driving wheel and can move axially relative to the driving wheel.
In the technical scheme, the strip-shaped grooves are arranged in a plurality of annular and spaced distribution, the inner holes of the driving wheels are provided with a plurality of convex teeth, the convex teeth are in one-to-one correspondence with the strip-shaped grooves, and each convex tooth respectively extends into the strip-shaped grooves.
The beneficial effects of the above technical scheme are that: the structure is simple, and the stability is good.
In the technical scheme, the reciprocating driving piece is a telescopic cylinder, the reciprocating driving piece is horizontally arranged, the telescopic end of the reciprocating driving piece faces the extrusion screw and is coaxially and rotatably connected with one end, located outside the shell, of the extrusion screw, and the reciprocating driving piece extends or contracts to drive the extrusion screw to reciprocate.
The beneficial effects of the above technical scheme are that: the structure is simple, and the reciprocating driving piece does not influence the coaxial rotation of the extrusion screw.
Drawings

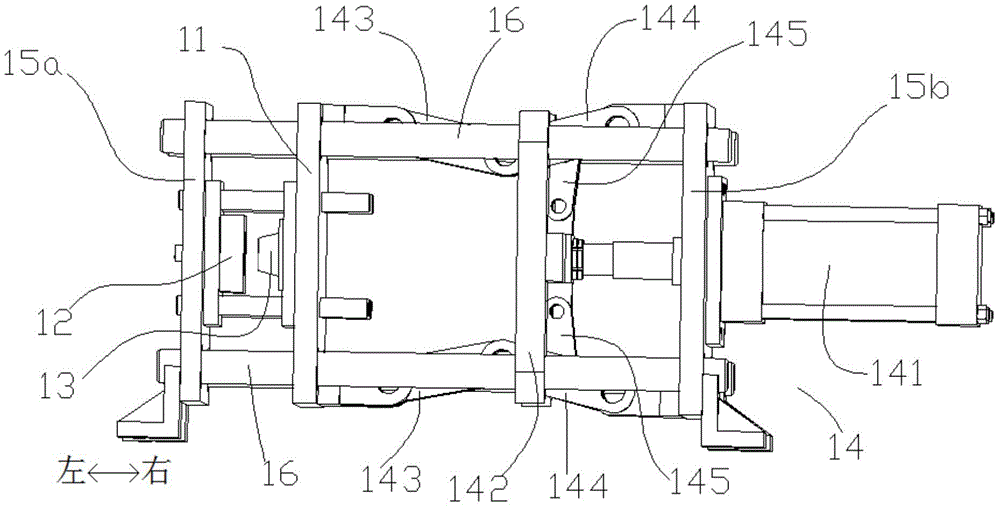

FIG. 1 is a schematic view of a tableware mold according to example 1 of the present invention;
FIG. 2 is an elevation view of a tableware mold according to embodiment 1 of the present invention;
fig. 3 is a left side view of the first mounting vertical plate according to embodiment 1 of the present invention;
FIG. 4 is a schematic view showing the structure of a tableware production facility according to example 2 of the present invention;
FIG. 5 is a schematic view of the structure of the mixer in example 2 of the present invention;
FIG. 6 is a schematic view showing a partial structure of an extruder described in example 2 of the present invention;
FIG. 7 is a view showing the arrangement of an extrusion screw and a driving wheel in example 2 of the present invention;
FIG. 8 is a schematic view showing the driving connection between the extrusion screw and the reciprocating drive in example 2 of the present invention.
In the figure: 1 tableware mould, 11 sliding plate, 12 female mould, 13 male mould, 14 first driving piece, 141 first telescopic piece, 142 sliding piece, 143 first connecting rod, 144 second connecting rod, 145 third connecting rod, 15a first mounting vertical plate, 15b second mounting vertical plate, 16 sliding rod, 2 extruder, 21 machine shell, 22 extrusion screw, 221 strip-shaped groove, 23 hopper, 24 driving assembly, 241 rotating driving piece, 2411 third driving piece, 2412 driving wheel, 24121 convex tooth, 242 reciprocating driving piece, 2421 circular groove, 2422 bearing, 3 mixer, 31 groove shell, 32 stirring mechanism, stirring shaft 321, 322 stirring paddle and 33 second driving piece.
Detailed Description
The principles and features of this invention are described below in conjunction with the following drawings, which are set forth to illustrate, but are not to be construed to limit the scope of the utility model.
Example 1
As shown in fig. 1-3, this embodiment provides a tableware mold, which includes a sliding plate 11, a female mold 12, a male mold 13, a first driving member 14, and two mounting vertical plates, where the two mounting vertical plates are vertically disposed along a front-back direction and are spaced apart from each other along a left-right direction, the two mounting vertical plates are respectively a first mounting vertical plate 15a and a second mounting vertical plate 15b, a plurality of sliding rods 16 are disposed between the two mounting vertical plates along the left-right direction, two ends of each sliding rod 16 are fixedly connected to the two mounting vertical plates, the sliding plate 11 is vertically disposed between the two mounting vertical plates along the front-back direction and is slidably connected to the plurality of sliding rods 16, the female mold 12 is mounted in a middle portion of one of the first mounting vertical plates 15a, which is close to one side of the sliding plate 11, and a feeding hole penetrating through the first mounting vertical plate 15a is disposed on a bottom wall of the female mold 12, the male die 13 is installed on one side, close to the female die 12, of the sliding plate 11, the first driving piece 14 is installed on the second installation vertical plate 15b, the driving end of the first driving piece 14 is in transmission connection with the sliding plate 11, the first driving piece 14 is used for driving the sliding plate 11 to move left and right until the male die 13 extends into the female die 12 or moves out of the female die 12, and therefore the first driving piece drives the sliding plate to move left and right to enable the male die to move left and right to be close to or far away from the female die to complete production of tableware.
In the above technical solution, the first driving member 14 includes a first telescopic member 141 and a sliding member 142, the sliding member 142 is disposed between the sliding plate 11 and the second mounting upright plate 15b and is slidably connected to the plurality of sliding rods 16, the first telescopic member 141 is mounted on the second mounting upright plate 15b, and its telescopic end is in transmission connection with the sliding member 142, one side of the sliding plate 11 close to the second mounting upright plate 15b is rotatably mounted with a plurality of first connecting rods 143, one side of the second mounting upright plate 15b close to the sliding plate 11 is rotatably mounted with a plurality of second connecting rods 144, the plurality of first connecting rods 143 are in one-to-one correspondence with the plurality of second connecting rods 144, each first connecting rod 143 is rotatably connected with one end of the corresponding second connecting rod 144 close to each other, the sliding member 142 is rotatably mounted with a plurality of third connecting rods 145, the plurality of third connecting rods 145 are in one-to, the other end of each third connecting rod 145 is rotatably connected with the middle corresponding to the length direction of the second connecting rod 144, the first connecting rods 143 form the driving end of the first driving member 14, the first telescopic member 141 is used for driving the sliding member 142 to slide left and right to drive the first connecting rods 143 to drive the sliding plate 11 to slide left and right, so that the sliding member is driven to slide by the first telescopic member and the sliding plate is driven to move left and right by the corresponding first connecting rod, second connecting rod and third connecting rod, and the speed of the male die is gradually reduced when the male die moves away from the female die, thereby preventing the deformation of the formed tableware and effectively reducing the defective rate, wherein the first telescopic member is a hydraulic cylinder, a telescopic cylinder or a telescopic electric cylinder.
Preferably, the sliding plate and the two mounting vertical plates are square, the number of the sliding rods is preferably four, the four sliding rods are respectively provided with four corners of the two mounting vertical plates, the four corners of the sliding plate are respectively in sliding connection with the four sliding rods, the sliding part is preferably H-shaped, and two sides of the upper end of the sliding part and two sides of the lower end of the sliding part are respectively in sliding connection with the four sliding rods.
Example 2
As shown in fig. 4, the present embodiment provides a tableware manufacturing apparatus, comprising an extruder 2, a mixer 3 and a tableware mold 1 as described in embodiment 1, wherein the extruder 2 has a feeding port and an extruding port, the lower end of the mixer 3 has a discharging port, the mixer 3 is disposed above the extruder 2, the discharging port of the mixer 3 is communicated with the feeding port of the extruder 2, the tableware mold 1 is disposed at the side of the extruder 2, and the extruding port of the extruder 2 is connected and communicated with the feeding port of the female mold 12.
As shown in fig. 5, in the above technical solution, the mixer 3 includes a casing 31, a stirring mechanism 32 and a second driving member 33, a notch of the casing 31 faces upward, a discharge port of the mixer 3 is disposed at a lower end of the casing 31, the stirring mechanism 32 is mounted on the casing 31, a stirring portion of the stirring mechanism 32 is located in the casing 31, a driving end of the second driving member 33 is in transmission connection with the stirring mechanism 32, and for this reason, the second driving member 33 may be a speed reduction motor, and the structure is simple and the mixing effect is good.
In the above technical solution, the stirring mechanism 32 includes a stirring shaft 321 and a stirring paddle 322, the stirring shaft 321 is horizontally disposed in the tank shell 31, and one end of the stirring shaft 321 extends to penetrate out of the tank shell 31 and is in transmission connection with the second driving member 33 disposed outside the tank shell 31, the stirring paddle 322 is disposed in the tank shell 31 and is installed on the stirring shaft, and the stirring shaft has a simple structure.
As shown in fig. 6-8, in the above technical solution, the extruder 2 includes a casing 21, an extrusion screw 22, a hopper 23 and a driving assembly 24, the casing 21 is horizontally disposed along a left-right direction, the extrusion port of the extruder 2 is disposed at one end of the casing 21, the feed inlet of the extruder 2 is disposed at one end of the side wall of the casing 21, which is far away from the extrusion port, the hopper 23 is vertically disposed, the discharge port of the hopper 23 is connected and communicated with the feed inlet of the extruder 2, the discharge port of the mixer 3 is communicated with the inside of the hopper 23, the extrusion screw 22 is disposed in the casing 21 along the left-right direction, one end of the extrusion screw 22, which is close to the extrusion port of the casing 21, is a screw portion thereof, and the other end of the extrusion screw 22 extends out of the casing 21 and is in transmission connection with the driving assembly 24 (the end of the extrusion screw 22, which extends out of the casing, is connected with the casing in a sliding and sealing manner), the driving assembly 24 is used for driving the extrusion screw 22 to rotate and move left and right in a reciprocating manner, so that the extrusion screw can rotate coaxially and move axially in a reciprocating manner, and the material can be uniformly mixed and melted in the extruder. The side wall of the casing is provided with a plurality of electric heaters for heating the casing, and preferably, the casing is externally coated with a heat-insulating layer to avoid heat loss generated by the heaters during heating.
In the above technical solution, the driving assembly 24 includes a rotary driving element 241 and a reciprocating driving element 242, the driving end of the rotary driving element 241 and the driving end of the reciprocating driving element 242 are both in transmission connection with one end of the extrusion screw 22 located outside the housing 21, the rotary driving element 241 is used for driving the extrusion screw 22 to rotate coaxially, the reciprocating driving element 242 is used for driving one reciprocating end of the extrusion screw 22 along the left-right direction, the structure is simple, so the rotary driving element drives the extrusion screw to rotate, and the reciprocating driving element drives the extrusion screw to move reciprocally.
In the above technical solution, the rotary driving member 241 includes a third driving member 2411 and a driving wheel 2412, a strip groove 221 is formed in one end of the extrusion screw 22 located outside the casing 21 along the left-right direction, the driving wheel 2412 is slidably sleeved on the extrusion screw 22 and is rotatably connected with the casing 21 (the driving wheel and the casing are rotatably connected in a conventional technical manner, which is not described herein), a protruding tooth 24121 extending into the strip groove 221 is convexly formed in an inner hole of the driving wheel 2412, and the third driving member 2411 is in transmission connection with the driving wheel 2412. The third driving member may adopt a motor, the driving wheel 2412 may adopt a bevel gear, and a driving end of the third driving member is provided with a bevel gear engaged with the driving wheel 2412, and further preferably, the diameter of the bevel gear at the driving end of the third driving member is smaller than that of the driving wheel, so as to realize speed reduction transmission.
In the above technical solution, the plurality of the strip-shaped grooves 221 are circumferentially distributed at intervals, the inner hole of the driving wheel 2412 is provided with a plurality of convex teeth 24121, the plurality of convex teeth 24121 are in one-to-one correspondence with the plurality of the strip-shaped grooves 221, and each convex tooth 24121 extends into the corresponding strip-shaped groove 221.
In the above technical solution, the reciprocating driving member 242 is a telescopic cylinder (a hydraulic cylinder or a telescopic electric cylinder may be adopted), the reciprocating driving member 242 is horizontally disposed, and the telescopic end of the reciprocating driving member faces the extrusion screw 22 and is coaxially rotatably connected with the end of the extrusion screw 22 located outside the housing 21, the reciprocating driving member 242 extends or contracts to drive the extrusion screw 22 to reciprocate, the structure is simple, and the reciprocating driving member does not affect the coaxial rotation of the extrusion screw.
Preferably, a circular groove 2421 is coaxially and fixedly installed at the end of the telescopic end of the reciprocating driving element 242, the notch of the circular groove 2421 is away from the reciprocating driving element 242, a bearing 2422 is coaxially and fixedly installed in the circular groove, and one end of the extrusion screw rod, which is close to the reciprocating driving element, coaxially extends into the inner ring of the bearing and is coaxially connected and fixed with the inner ring of the bearing.
The above description is only for the purpose of illustrating the preferred embodiments of the present invention and is not to be construed as limiting the utility model, and any modifications, equivalents, improvements and the like that fall within the spirit and principle of the present invention are intended to be included therein.
Claims (10)
1. A tableware mould is characterized by comprising a sliding plate (11), a female mould (12), a male mould (13), a first driving piece (14) and two mounting vertical plates, wherein the two mounting vertical plates are vertically arranged along the front-back direction and are distributed at intervals along the left-right direction, the two mounting vertical plates are respectively a first mounting vertical plate (15a) and a second mounting vertical plate (15b), a plurality of sliding rods (16) are arranged between the two mounting vertical plates along the left-right direction, two ends of each sliding rod (16) are fixedly connected with the two mounting vertical plates, the sliding plate (11) is vertically arranged between the two mounting vertical plates along the front-back direction and is in sliding connection with the plurality of sliding rods (16), the female mould (12) is mounted in the middle of one side, close to the sliding plate (11), of the first mounting vertical plate (15a), a feeding hole penetrating through the first mounting vertical plate (15a) is formed in the bottom wall of the female mould (12), the male die (13) is arranged on one side, close to the female die (12), of the sliding plate (11), the first driving piece (14) is arranged on the second installation vertical plate (15b), the driving end of the first driving piece (14) is in transmission connection with the sliding plate (11), and the first driving piece (14) is used for driving the sliding plate (11) to move left and right until the male die (13) extends into the female die (12) or moves out of the female die (12).
2. Tableware mould according to claim 1, characterized in that said first driving member (14) comprises a first telescopic member (141) and a sliding member (142), said sliding member (142) is arranged between said sliding plate (11) and a second mounting plate (15b) and is slidably connected with said plurality of sliding rods (16), said first telescopic member (141) is mounted on said second mounting plate (15b) and its telescopic end is in transmission connection with said sliding member (142), said sliding plate (11) side near said second mounting plate (15b) is rotatably mounted with a plurality of first connecting rods (143), said second mounting plate (15b) side near said sliding plate (11) is rotatably mounted with a plurality of second connecting rods (144), said plurality of first connecting rods (143) and said plurality of second connecting rods (144) are in one-to-one correspondence, each of said first connecting rods (143) is rotatably connected with the end of said second connecting rods (144), a plurality of third connecting rods (145) are rotatably mounted on the sliding piece (142), the third connecting rods (145) correspond to the second connecting rods (144) one by one, the other end of each third connecting rod (145) is rotatably connected with the middle part corresponding to the length direction of the second connecting rod (144), the first connecting rods (143) form the driving end of the first driving piece (14), and the first telescopic piece (141) is used for driving the sliding piece (142) to slide left and right so as to drive the first connecting rods (143) to drive the sliding plate (11) to slide left and right.
3. Tableware production equipment, characterized in that it comprises an extruder (2), a mixer (3) and a tableware mould (1) according to claim 1 or 2, the extruder (2) has a feed inlet and an extrusion outlet, the lower end of the mixer (3) has a discharge outlet, the mixer (3) is placed above the extruder (2), the discharge outlet of the mixer (3) is communicated with the feed inlet of the extruder (2), the tableware mould (1) is arranged at the side of the extruder (2), and the extrusion outlet of the extruder (2) is connected and communicated with the feed inlet of the female mould (12).
4. A cutlery production device according to claim 3, characterized in that the mixer (3) comprises a bowl (31), a stirring element (32) and a second driving element (33), the bowl (31) being open towards the top, the discharge opening of the mixer (3) being arranged at the lower end of the bowl (31), the stirring element (32) being mounted on the bowl (31) with the stirring part of the stirring element (32) being located in the bowl (31), the driving end of the second driving element (33) being drivingly connected to the stirring element (32).
5. The tableware production apparatus according to claim 4, wherein said stirring mechanism (32) comprises a stirring shaft (321) and a stirring paddle (322), said stirring shaft (321) is horizontally disposed in said housing (31), and one end of said stirring shaft (321) extends out of said housing (31) and is in transmission connection with a second driving member (33) disposed outside said housing (31), said stirring paddle (322) is disposed in said housing (31) and mounted on said stirring shaft.
6. The tableware production apparatus according to any one of claims 3-5, wherein the extruder (2) comprises a housing (21), an extruding screw (22), a hopper (23) and a driving assembly (24), the housing (21) is horizontally arranged along the left-right direction, a heater is arranged on the side wall of the housing (21), the extruding opening of the extruder (2) is arranged at one end of the housing (21), the feeding opening of the extruder (2) is arranged at one end of the side wall of the housing (21) far away from the extruding opening, the hopper (23) is vertically arranged, the discharging opening of the hopper is connected and communicated with the feeding opening of the extruder (2), the discharging opening of the mixer (3) is communicated with the inside of the hopper (23), the extruding screw (22) is arranged in the housing (21) along the left-right direction, the end of the extruding screw (22) close to the extruding opening of the housing (21) is a screw portion thereof, and the other end of the extrusion screw rod (22) extends out of the shell (21) and is in transmission connection with the driving assembly (24), and the driving assembly (24) is used for driving the extrusion screw rod (22) to rotate and move left and right in a reciprocating manner.
7. Tableware production equipment according to claim 6, characterized in that the driving assembly (24) comprises a rotary driving piece (241) and a reciprocating driving piece (242), the driving end of the rotary driving piece (241) and the driving end of the reciprocating driving piece (242) are both in transmission connection with one end of the extrusion screw (22) outside the machine shell (21), the rotary driving piece (241) is used for driving the extrusion screw (22) to rotate coaxially, and the reciprocating driving piece (242) is used for driving one end of the extrusion screw (22) to reciprocate along the left-right direction.
8. The tableware production apparatus according to claim 7, wherein the rotary driving member (241) comprises a third driving member (2411) and a driving wheel (2412), a strip-shaped groove (221) is formed in one end of the extrusion screw (22) located outside the housing (21) along the left-right direction, the driving wheel (2412) is slidably sleeved on the extrusion screw (22) and rotatably connected with the housing (21), a protruding tooth (24121) extending into the strip-shaped groove (221) is convexly arranged at an inner hole of the driving wheel (2412), and the third driving member (2411) is in transmission connection with the driving wheel (2412).
9. The tableware production equipment according to claim 8, wherein a plurality of strip-shaped grooves (221) are arranged, the strip-shaped grooves (221) are circumferentially distributed at intervals, a plurality of convex teeth (24121) are arranged at the inner hole of the driving wheel (2412), the convex teeth (24121) are in one-to-one correspondence with the strip-shaped grooves (221), and each convex tooth (24121) respectively extends into the corresponding strip-shaped groove (221).
10. The tableware production apparatus according to claim 7, wherein the reciprocating driving member (242) is a telescopic cylinder, the reciprocating driving member (242) is horizontally disposed, and the telescopic end of the reciprocating driving member faces the extruding screw (22) and is coaxially and rotatably connected with the end of the extruding screw (22) outside the housing (21), and the reciprocating driving member (242) extends or contracts to drive the extruding screw (22) to reciprocate.
