The utility model relates to the field of illumination, in particular to a lamp. The utility model provides a lamp, includes base (1) and installs lamp pole (2) on base (1), and the outside cover of lamp pole (2) is equipped with a plurality of lamp shade assembly (3), and lamp shade assembly (3) can be dismantled with lamp pole (2) and be connected, and lamp shade assembly (3) are equipped with through-hole (4) along the axial, and lamp shade assembly (3) pass lamp pole (2) through-hole (4). The lampshade component (3) is any one or more of a sphere, an ellipsoid and a cube, and the lampshade component (3) is coaxially arranged on the outer surface of the lamp post (2). The lamp can be used as an indoor desk lamp and also can be used as a floor lamp in a public area, and the requirements of different working and living scenes can be met.

Description

Lamp set
Technical Field
The utility model relates to the field of illumination, in particular to a lamp.
Background
Lamps are the general name of lighting tools and are divided into ceiling lamps, table lamps, wall lamps, floor lamps and the like. Refers to a device capable of transmitting light, distributing and changing the light distribution of a light source, and comprises all the parts except the light source, which are needed for fixing and protecting the light source, and the circuit accessories which are necessary for connecting with a power supply. The floor lamp is commonly used for local illumination, does not teach the comprehensiveness, emphasizes the convenience of movement, and is very practical for the construction of corner atmosphere. The floor lamp is suitable for activities needing mental concentration such as reading if the lighting mode of the floor lamp is direct downward projection, and can adjust the overall light change if the lighting mode of the floor lamp is indirect lighting. The floor lamp is generally placed at the corner of the sofa, the lamplight of the floor lamp is soft, and the effect is good when a user watches television at night. The lamp shade of floor lamp material kind is abundant, and the consumer can select according to own hobby. Many people prefer a floor lamp with a small table top because a fixed telephone can be placed on a small table top. The desk lamp is divided into a ceramic lamp, a wood lamp, an iron art lamp, a copper lamp, a resin lamp, a crystal lamp and the like according to the material, is divided into an eye-protecting desk lamp, a decorative desk lamp, a working desk lamp and the like according to the function, and is divided into a bulb, a plug-in lamp tube, a lamp bead desk lamp and the like according to the light source. The desk lamp is selected to mainly read the quality and the manufacturing process of electronic accessories, generally, the quality of the electronic accessories of the desk lamp of a small manufacturer is poor, the manufacturing process level is low, and therefore a consumer needs to select the desk lamp produced by a large manufacturer. The energy-saving eye-protecting desk lamp is used for a working table and a learning table, but the energy-saving lamp cannot adjust light.
The desk lamp and the floor lamp are lighting articles frequently used in life of people, most of the current electrical appliances used by people are simply combined by a lamp holder, a lamp post, a lampshade and a bulb, along with the improvement of the taste of life of people, the need of people for the lamps is no longer just lighting, the decoration and the artistry of the lamps are also a great factor considered when people select the desk lamp, and some artistic lamps and lanterns come into play
The utility model discloses a be ZL 202020595171.4's utility model patent like chinese patent number, disclose a desk lamp and vertical lamp, the desk lamp includes base, support piece and lamp body, and support piece is fixed in on the base, and support piece keeps away from the one end of base and rotates with the lamp body to be connected and divide into first sub-lamp body and the sub-lamp body of second with the lamp body, and first sub-lamp body length is greater than the sub-lamp body length of second. The lamp body can rotate relative to the support piece, when first sub-lamp body or second sub-lamp body and support piece laminating, can make the lamp body when rotatory to the maximum extent, keep the lamp body laminating at support piece's state, avoid the lamp body rotation to surpass the rotatable maximum angle between lamp body and the support piece and lead to the rotary mechanism between lamp body and the support piece to damage, can prolong the life of desk lamp, increase the practicality of desk lamp, simultaneously, can keep the state of the rotatory maximum angle between lamp body and the support piece, stability when can improve the desk lamp illumination. The vertical lamp is used for being placed on the ground for lighting and has the same function as the desk lamp. Most lamps in the prior art only have one shape, but the lamps are used as important components of household soft clothes and often need different shapes to be matched in different environments and different scenes.
The utility model aims to overcome the technical defects in the prior art and provide a lamp, which can enable a user to sleeve lampshade assemblies with different shapes on the outside of a lamp post according to needs, so that the lamp can change different shapes to adapt to matching of different decorations and bring good use experience to people.
SUMMERY OF THE UTILITY MODEL
Aiming at the defects that the shape of the lamp in the prior art is single and cannot be changed as required, the utility model provides the lamp, a user can sleeve the lampshade assemblies with different shapes on the outside of the lamp post as required, so that the lamp can change different shapes, the indoor artistic feeling is increased, and good use experience is brought to people.
In order to solve the technical problem, the utility model is solved by the following technical scheme:
the utility model provides a lamp, includes the base and installs the lamp pole on the base, and the outside cover of lamp pole is equipped with a plurality of lamp shade subassemblies, and lamp shade subassembly can be dismantled with the lamp pole and be connected, and lamp shade subassembly is equipped with the through-hole along the axial, and lamp shade subassembly passes the lamp pole through the through-hole. The base is used for placing lamps and lanterns at mesa or subaerial, and base and lamp pole are fixed connection undetachable, and lampshade assembly and lamp pole are for dismantling the connection, and the lamp pole is the light emitting source, and lampshade assembly is used for going out the even scattering of light emitting source.
Preferably, the lampshade assembly is any one or more of a sphere, an ellipsoid and a cube, and the lampshade assembly is coaxially arranged on the outer surface of the lamppost. The lampshade components can be in other shapes, the utility model only uses representative spheres, ellipsoids and cubes as embodiments, and the lampshade components are sequentially arranged from top to bottom and coaxially arranged on the outer surface of the lamppost, so that the light source in the lamppost is uniformly scattered. Because lamp shade subassembly and lamp pole are for dismantling to be connected, consequently the user can select the lamp shade subassembly of different shapes to install at the lamp pole surface as required, has the permutation and combination of multiple difference like this, and user's selection is also more diversified, if a certain lamp shade subassembly damages, only needs to change the lamp shade subassembly of damage and need not to change whole lamps and lanterns.
Preferably, the lampshade assembly is internally provided with a hollow cavity, and the diameter of the through hole is the same as the outer diameter of the lamp post. The globe assembly is a hollow housing for housing the exterior of the light source, and an axial through hole for passing the lamp post, the diameter of the through hole being the same as the outer diameter of the lamp post, so that a user can more easily pass the globe assembly through the lamp post without leaving a gap.
Preferably, the number of the lampshade assemblies is 3, and the heights of all the lampshade assemblies are the same and are 1/3 of the heights of the lampposts. There are 3 lamp shade components on every lamps and lanterns, and 3 lamp shade components are established ties in proper order and are installed on the lamp pole, just in time wrap up the lamp pole completely, make the light source scattering more even and do not have the omission.
Preferably, the first gasket is arranged at the joint of the lampshade assembly and the lamp post.
Preferably, the contact surface between the globe assemblies is provided with a second gasket. The first gasket and the second gasket are rubber gaskets, so that the contact between the lampshade assembly and the lamp post and between the lampshade assemblies is changed from hard contact to soft contact, and the lampshade assembly and the lamp post are prevented from being damaged.
Preferably, a lamp post top cover is installed at the top of the lamp post, the lower end of the lamp post top cover is clamped inside the lamp post, and the diameter of the upper end of the lamp post top cover is larger than the outer diameter of the lamp post. The top cap is connected for dismantling with the lamp pole, if need to change lamp shade assembly, can dismantle down the top cap from the lamp pole, installs the top cap on the lamp pole again after the change. The diameter of the top cover upper cover is greater than the external diameter of the lamp post, so that the diameter of the top cover upper cover is also greater than the through hole of the lamp shade assembly, and the lamp post top cover can clamp the lamp shade assembly on the lamp post to avoid the upper part of the lamp shade assembly from falling off.
Preferably, the lamp post is electrically connected to the external power supply device and the control switch. The lamp post is used as a luminous source and needs to be electrically connected with an external power supply device and a control switch, the power supply device can be arranged inside the lamp holder, and the control switch can be arranged on the outer surface or the bottom surface of the lamp holder, so that the lamp post is practical and attractive.
Preferably, the lampshade assembly is made of light-transmitting materials. The lamp shade is used for evenly transmitting the light of lamp pole away, consequently needs choose for use the printing opacity material, because lamp shade subassembly is inside to be hollow, consequently need choose for use the plastics material, avoids the collision to damage.
Preferably, the lamp is used for a desk lamp or a floor lamp. The lamp can be used as an indoor table lamp and also can be used as a floor lamp in a public area, and the requirements of different working and living scenes can be met.
Due to the adoption of the technical scheme, the utility model has the following remarkable technical effects:
(1) the user can establish the lamp shade subassembly cover of different shapes outside the lamp pole as required to make lamps and lanterns transform different shapes, in order to adapt to the collocation of different decorations, give other people and bring good use experience.
(2) If a certain lampshade assembly is damaged, only the damaged lampshade assembly needs to be replaced without replacing the whole lamp.
(3) The lamp can be used as an indoor table lamp and also can be used as a floor lamp in a public area, and the requirements of different working and living scenes can be met.
Drawings

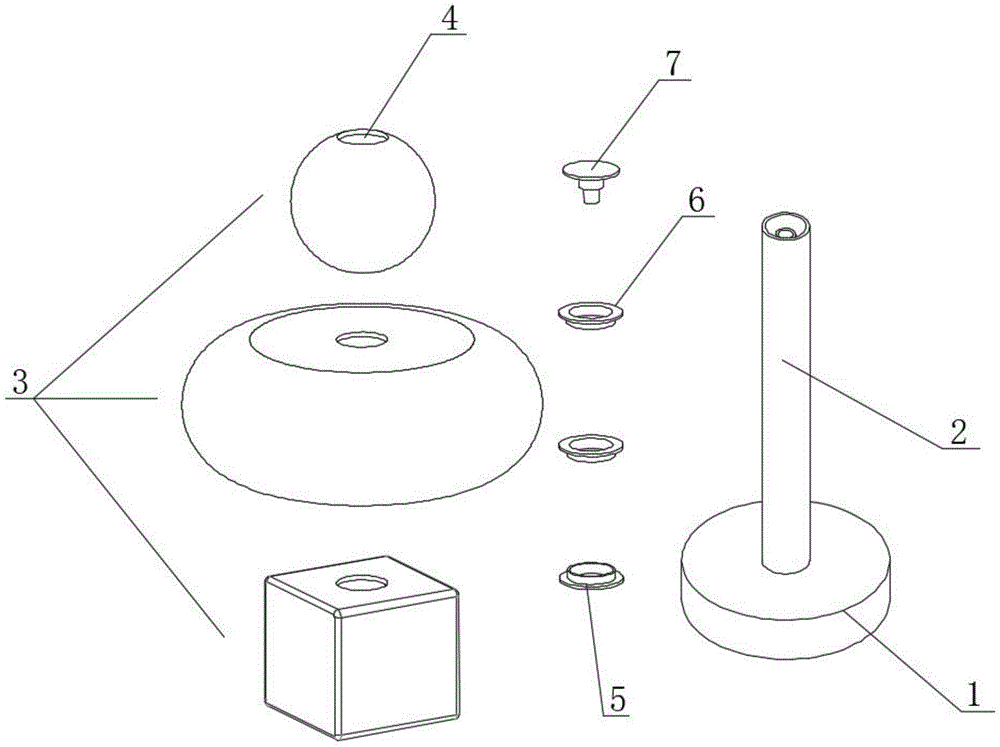

Fig. 1 is a schematic structural division diagram of embodiment 1 of the present invention.
Fig. 2 to 7 are schematic views of combination states of embodiments 2 to 7 of the present invention.
The names of the parts designated by the numerical references in the drawings are as follows: 1-a base; 2-lamp pole; 3-a lampshade assembly; 4-a through hole; 5-a first gasket; 6-a second gasket; 7-lamppost top cover.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and examples.
Example 1:
as shown in fig. 1, a lamp includes a base 1 and a lamp post 2 installed on the base 1, and is characterized in that: the outside cover of lamp pole 2 is equipped with a plurality of lamp shade assembly 3, and lamp shade assembly 3 can be dismantled with lamp pole 2 and be connected, and lamp shade assembly 3 is equipped with through-hole 4 along the axial, and lamp shade assembly 3 passes lamp pole 2 through-hole 4.
The lampshade component 3 is any one or more of a sphere, an ellipsoid and a cube, and the lampshade component 3 is coaxially arranged on the outer surface of the lamp post 2. The inner part of the lampshade component 3 is a hollow cavity, and the diameter of the through hole 4 is the same as the outer diameter of the lamp post 2. The number of the lampshade assemblies 3 is 3, and the heights of all the lampshade assemblies 3 are the same and are 1/3 of the height of the lamppost 2.
The first gasket 5 is arranged at the joint of the lampshade assembly 3 and the lamp post 2. The contact surface between the lampshade assemblies 3 is provided with a second gasket 6.
Lamp pole top cap 7 is installed at 2 tops of lamp pole, and inside lamp pole 2, 7 lower extreme joints of lamp pole top cap are inside, and the diameter of lamp pole top cap 7 upper end is greater than the external diameter of lamp pole 2. The lamp post 2 is electrically connected with an external power supply device and a control switch. The lampshade assembly 3 is made of light-transmitting materials. The lamp is used for a desk lamp or a floor lamp.
Examples 2 to 7:
as shown in fig. 2 to 7, the schematic diagrams of the use states of the different combined shapes of the lampshade assemblies show that any one or more of the sphere, the ellipsoid and the cube can be combined at will, so that the lamp can be changed into different shapes, the indoor artistic feeling is increased, and good use experience is brought to people.

Claims (8)

1. A lamp, comprising a base (1) and a lamp post (2) installed on the base (1), characterized in that: the outside cover of lamp pole (2) is equipped with a plurality of lamp shade assembly (3), lamp shade assembly (3) can be dismantled with lamp pole (2) and be connected, lamp shade assembly (3) are equipped with through-hole (4) along the axial, lamp shade assembly (3) pass lamp pole (2) through-hole (4), lamp shade assembly (3) are the spheroid, the ellipsoid, arbitrary one or several kinds in the square, lamp shade assembly (3) coaxial arrangement is in lamp pole (2) surface, the quantity of lamp shade assembly (3) is 3, the height of every lamp shade assembly (3) is the same, be 1/3 of lamp pole (2) height.
2. A light fixture as recited in claim 1, wherein: the inner part of the lampshade component (3) is a hollow cavity, and the diameter of the through hole (4) is the same as the outer diameter of the lamp post (2).
3. A light fixture as recited in claim 2, wherein: a first gasket (5) is arranged at the joint of the lampshade assembly (3) and the lamp post (2).
4. A light fixture as recited in claim 3, wherein: and a second gasket (6) is arranged on the contact surface between the lampshade components (3).
5. A light fixture as recited in claim 3, wherein: lamp pole top cap (7) are installed at lamp pole (2) top, and inside lamp pole (2) the joint of lamp pole top cap (7) lower extreme, the diameter of lamp pole top cap (7) upper end is greater than the external diameter of lamp pole (2).
6. A light fixture as recited in claim 1, wherein: the lamp post (2) is electrically connected with an external power supply device and the control switch.
7. A light fixture as recited in claim 1, wherein: the lampshade component (3) is made of light-transmitting materials.
8. A luminaire as claimed in any one of claims 1-7, characterized in that: the lamp is used for a desk lamp or a floor lamp.
