Abstract

The present application relates to the technical field of storage products, and specifically discloses a storage box, the technical solution of which includes a first box body, a second box body, a first cover body and a second cover body, and the first box The top end of the first box body and the second box body are both open, and the first box body is provided with a first partition plate, and the edge of the first partition plate is fixedly connected with the inner side wall of the first box body. The second box body is movable through the side wall of the first box body, and the second box body is located below the first partition, the first cover body and the second cover body It is rotatably connected to opposite sides of the first box body. The present application has the effect of facilitating the user to quickly find the desired item.

Description

a storage box

technical field

The present application relates to the technical field of storage products, and in particular, to a storage box.

Background technique

The storage box is a box used for daily storage of items, and the user stores items in the storage box not only for convenient storage, but also to prevent items from being lost to a certain extent.

In the related art, a storage box generally includes a box body and a cover body. The user puts the items to be stored into the box body, and then covers the box body with the cover body.

In view of the above-mentioned related technologies, the inventor believes that the storage box has a single structure, and when there are many items stored in the storage box, the storage box appears disorganized, and it is difficult for the user to find the required items at the first time.

Utility model content

In order to facilitate users to quickly find desired items, the present application provides a storage box.

A storage box provided by the application adopts the following technical solutions:

A storage box includes a first box body, a second box body, a first cover body and a second cover body, wherein the top ends of the first box body and the second box body are both open and arranged, and the first box body and the second box body are provided with openings. The inside of the box body is provided with a first partition, the edge of the first partition is fixedly connected with the inner side wall of the first box body, and the second box body is movable through the side wall of the first box body , and the second box body is located below the first partition plate, and the first cover body and the second cover body are rotatably connected to opposite sides of the first box body.

By adopting the above technical solution, the storage box has two box bodies: the first box body and the second box body, and the second box body is movably passed through the first box body, and the first partition plate separates the first box body and the second box body. The storage space of the storage box is separated, and the storage box is arranged in layers without increasing the occupied space of the storage box, and then the storage box is opened and closed through the first cover and the second cover, so that the user can store the items that need to be stored. The storage items are placed in an orderly manner, so that the user can quickly find the needed items.

Preferably, the first cover body includes a first cover plate, a second cover plate and a third cover plate, the first cover plate is rotatably connected to the second cover plate, and the second cover plate is connected to the second cover plate. The third cover plate is connected in rotation, the first cover plate is fixedly covered on the bottom end of the first box body, and the connection between the first cover plate and the second cover plate is located at the bottom of the first box body The end is far away from the edge of the second cover body, and the connection between the second cover plate and the third cover plate is located at the edge of the top end of the first box body away from the second cover body.

By adopting the above technical solution, the second cover can be rotated around the edge of the bottom end of the first box away from the second cover. When the second cover is rotated to a position overlapping with the side wall of the first box, the third cover can be rotated. The cover can be rotated around the edge of the top of the first box away from the second cover. When the third cover is rotated to abut against the top of the first box, the third cover is covered above the first box.

Preferably, the second cover body includes a connecting plate, the connecting plate is rotatably connected to the edge of the bottom end of the first box body away from the second cover plate, and the connecting plate rotates with the first box body An abutment plate is vertically fixed to connect adjacent edges, and a fourth cover plate is vertically fixed to the edge of the connection plate and the opposite edge of the first box body in rotational connection.

By adopting the above technical solution, when the connecting plate rotates around the edge of the bottom end of the first box until the connecting plate overlaps with the side wall of the first box that is far away from the second cover, the abutting plate and the first box are far away from the second cover. The adjacent side walls of the plates are in contact with each other, which protects the first box body. At the same time, the fourth cover plate is covered on the top of the first box body and the third cover plate is covered on the top of the first box body to cover the first box body. An opening of the box body is closed.

Preferably, the second box body is movably passed through the side wall of the first box body close to the second cover plate, and the second box body faces the outer side wall of the first box body and the first box body. The inner side wall of a box body is slidably connected.

By adopting the above technical solution, the second box body is slidably connected to the inner side wall of the first box body toward the outer side wall of the first box body, so that the second box body and the first box body form a drawer structure. When the box body is pulled out, the user can pick and place items in the second box body. When the user pushes the second box body into the first box body, the items are stored in the second box body. At the same time, the second cover The plate is rotated to a position overlapping with the side wall of the first box body, and the plate surface of the second cover plate facing the second box body is in contact with the side wall of the second box body, so that the second baffle plate presses the second box body against the side wall of the second box body. Being tightly inside the first box body is beneficial to prevent the second box body from slipping out from the inside of the first box body.

Preferably, a backing plate is fixedly arranged at one end of the fourth cover plate away from the connecting plate, a magnet is embedded in the backing plate, and an end of the third cover plate away from the second cover plate is embedded in the inside There is an iron sheet, when the first cover body and the second cover body cover the open end of the first box body, the third cover plate and the backing plate are superimposed, and the iron sheet directly above the magnet.

By adopting the above technical solution, when the first cover body and the second cover body cover the open end of the first box body, the third cover plate and the backing plate are superimposed, and the iron sheet is located directly above the magnet, and the magnet attracts the iron so that the third cover plate is fixedly connected to the fourth cover plate through the backing plate, thereby helping to improve the stability of the first box body when it is closed.

Preferably, a drawer is fixedly arranged on the side wall of the second box body close to the second cover plate.

By adopting the above technical solution, the drawing member facilitates the user's operation of pulling out the second box body from the inside of the first box body, thereby helping to improve the convenience of operation.

Preferably, the second box body is provided with a second partition plate, and the second partition plate is vertically fixed on the bottom surface of the second box body.

By adopting the above technical solution, the second partition divides the second box into two storage areas, further increasing the area for storage and classification of items.

Preferably, the first box body, the second box body, the first cover body and the second cover body all adopt a cardboard structure.

By adopting the above technical solution, the cardboard structural material is easily available, low in cost, recyclable and beneficial to environmental protection.

To sum up, the present application includes at least one of the following beneficial technical effects:

1. By setting the first box body, the second box body, the first cover plate, the second cover plate and the first partition plate, the second box body is movable through the first box body, and the first The box body is separated from the storage space of the second box body, and the storage box is arranged in layers without increasing the occupied space of the storage box, and then the storage box is opened and closed through the first cover body and the second cover body. The items to be stored can be classified and placed, so that the stored items are placed in an orderly manner, and it is convenient for users to quickly find the needed items.

2. By fixing a backing plate at the end of the fourth cover plate away from the connecting plate, a magnet is embedded in the backing plate, and an iron sheet is embedded in the end of the third cover plate away from the second cover plate. When the second cover covers the open end of the first box, the third cover is superimposed on the backing plate, and the magnet attracts the iron sheet, so that the third cover is fixedly connected to the fourth cover through the backing plate, which is beneficial to the The stability when the first box body is closed is improved.

3. By setting the second partition, the second partition divides the second box into two storage areas, which further increases the number of storage and classification areas for items, thereby further facilitating the user to quickly find the desired items.

Description of drawings

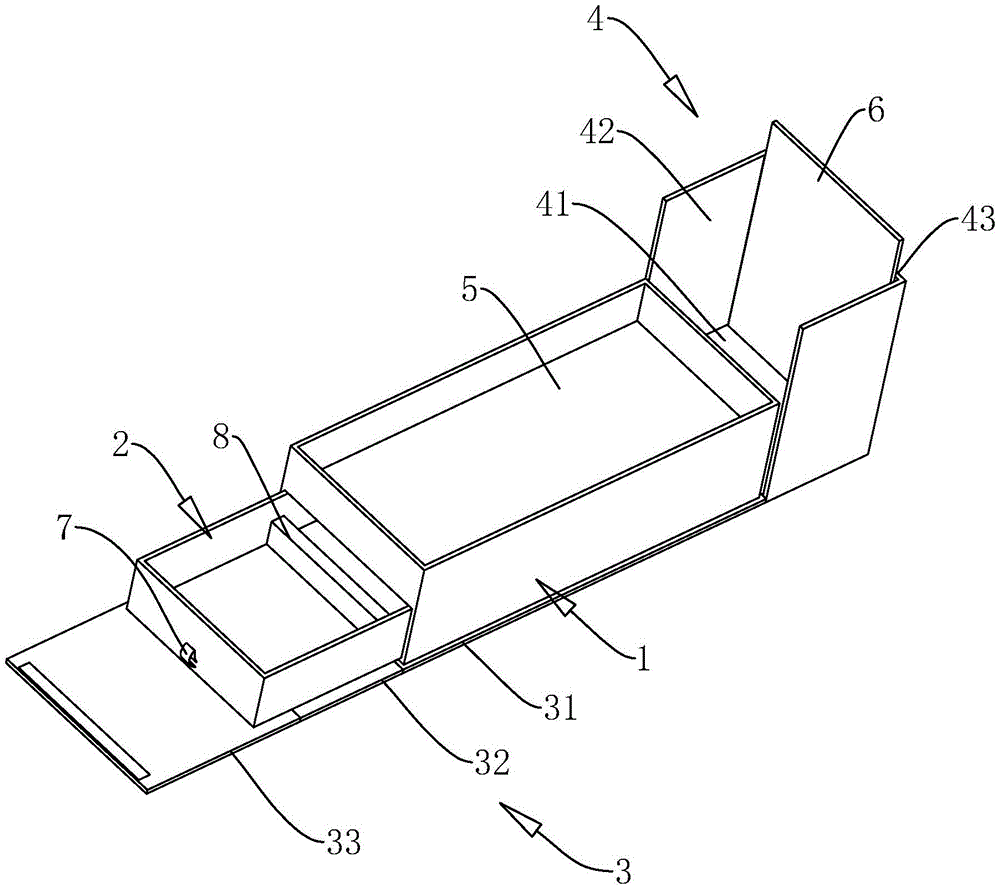

FIG. 1 is a schematic diagram of the overall structure of the storage box according to the embodiment of the present application when it is unfolded.

FIG. 2 is a schematic diagram of the overall structure of the storage box according to the embodiment of the present application when the cover is closed.

Description of reference numbers:

1, the first box body; 2, the second box body; 3, the first cover body; 31, the first cover plate; 32, the second cover plate; 33, the third cover plate; 4, the second cover body; 41 42, abutting plate; 43, fourth cover plate; 5, first partition plate; 6, backing plate; 7, drawing piece; 8, second partition plate.

Detailed ways

The present application will be further described in detail below in conjunction with accompanying drawings 1-2.

The embodiment of the present application discloses a storage box. Referring to FIG. 1 , it includes a first box body 1 . The cross section of the first box body 1 is arranged in a rectangular shape, and the top of the first box body 1 is arranged with an opening. The inside of the first box body 1 is arranged A first clapboard 5 is fixed and bonded horizontally, the first clapboard 5 is arranged in a rectangular plate shape, and the edge of the first clapboard 5 is fixedly connected with the inner side wall of the first box body 1, so that the first clapboard 5 will The first box body 1 is divided into a structure of upper and lower layers.

1 and 2, a second box body 2 is movably passed through the first box body 1. Specifically, the cross-section of the second box body 2 is rectangular, and the top of the second box body 2 is also provided with an opening. , the side wall of the first box body 1 located under the first partition plate 5 is provided with a rectangular through hole, the second box body 2 is located under the first partition plate 5, and the second box body 2 is located in the first partition plate through the rectangular through hole. The bottom of the plate 5 slides, and the second box body 2 is slidably connected to the inner side wall of the first box body 1 toward the outer side wall of the first box body 1 , and the user realizes the second box body 2 by pushing and pulling the second box body 2 Opening and closing of the open end.

At the same time, a second partition 8 is arranged in the second box body 2 , the second partition plate 8 is arranged in a rectangular plate shape, the second partition plate 8 is vertically fixed on the bottom surface of the second box body 2 , and the second partition plate 8 is arranged in the shape of a rectangular plate. The two ends of 8 are respectively in contact with the two opposite inner side walls of the second box body 2. In this embodiment, the second partition plate 8 is arranged at the middle position in the length direction of the bottom surface of the second box body 2. 8. The second box body 2 is divided into two storage areas of the same size, which increases the number of storage areas for items. It is worth mentioning that the second partition 8 can slide along the length direction of the second box body 2, thereby changing the size of the two storage areas. The body 2 is divided into multiple storage areas, which can be adjusted according to the actual situation of the user. In addition, when the second box body 2 slides to the position where its opening is closed, a pull-out member 7 is fixedly arranged on the outer side wall of the second box body 2 close to the rectangular through hole. The component 7 is set as a cloth strip, and the two ends of the cloth strip are fixedly bonded to the outer side wall of the second box body 2. When the user needs to pull out the second box body 2 from the first box body 1, the user pulls The cloth strip drives the second box body 2 to slide out of the first box body 1 .

1 and 2 , the storage box further includes a first cover 3 and a second cover 4 . The first cover 3 and the second cover 4 are rotatably connected to opposite sides of the first box 1 . Specifically, the first cover 3 includes a first cover 31 , a second cover 32 and a third cover 33 , and the first cover 31 , the second cover 32 and the third cover 33 are all arranged in a rectangular plate shape , the first cover 31 and the second cover 32 are rotatably connected, the second cover 32 and the third cover 33 are rotatably connected, and the first cover 31 and the second cover 32 and the second cover 32 and the A crease is formed between the third cover plates 33 , the first cover plate 31 is fixedly bonded to the bottom end of the first box body 1 , and the first cover plate 31 completely covers the bottom surface of the first box body 1 . The bottom surface plays a protective role. When the first cover plate 31 covers the first box body 1, the crease between the first cover plate 31 and the second cover plate 32 is located at the bottom end of the first box body 1 near the rectangular through hole. Edge, the crease between the second cover plate 32 and the third cover plate 33 is located at the edge of the top end of the first box body 1 close to the rectangular through hole. At this time, the second cover plate 32 and the first box body 1 have a rectangular hole. The side walls of the holes are superimposed, and the second baffle plate can press the second box body 2 against the inside of the first box body 1 .

1 and 2, the second cover body 4 includes a connecting plate 41 in the shape of a rectangular plate. The connecting plate 41 is rotatably connected to the edge of the bottom end of the first box body 1 away from the second cover plate 32. The connecting plate 41 The two edges adjacent to the first box body 1 in the rotational connection are vertically fixed with an abutment plate 42, and the opposite edge of the connection plate 41 in the rotational connection with the first box body 1 is vertically fixed with a fourth cover plate 43, The connecting plate 41, the abutting plate 42 and the fourth cover plate 43 form a frame-shaped structure with two adjacent end faces open. When the connecting plate 41 rotates around the edge of the bottom end of the first box body 1 to the connecting plate 41 and the first box When the side walls of the body 1 away from the second cover plate 32 are superimposed, the two abutment plates 42 abut against the two adjacent side walls of the first box body 1 away from the second cover plate 32, respectively, and the two abutment plates 42 To protect the first box body 1, at the same time the fourth cover plate 43 covers the top of the first box body 1 together with the third cover plate 33 to cover the top of the first box body 1 to cover the first box body 1. opening is closed.

1 and 2, one end of the fourth cover plate 43 away from the connecting plate 41 is fixedly bonded with a backing plate 6, the backing plate 6 and the connecting plate 41 are arranged in parallel, and a magnet is embedded in the backing plate 6 (Fig. At the same time, an iron sheet (not shown in the figure) is embedded in the end of the third cover plate 33 away from the second cover plate 32. When the first cover body 3 and the second cover body 4 are closed When the open end of the box body 1 is opened, the third cover plate 33 and the backing plate 6 are superimposed, and the iron sheet is located directly above the magnet, and the magnet attracts the iron sheet, so that the third cover plate 33 passes through the backing plate 6 and the fourth cover. The plate 43 is fixedly connected, so as to improve the stability of the first box body 1 when it is closed. In addition, the first box body 1, the second box body 2, the first cover body 3 and the second cover body 4 all adopt the cardboard structure, the cardboard structure material is easy to obtain, the cost is low, it can be recycled, and is conducive to environmental protection.

The implementation principle of a storage box in the embodiment of the present application is as follows: the first partition 5 separates the storage space of the first box body 1 and the second box body 2, and the storage box is not increased without increasing the occupied space of the storage box. The layered arrangement is carried out, and at the same time, the second partition 8 further divides the second box body 2 into several storage areas, and the user can classify and place the items that need to be stored, so that the stored items are placed in an orderly manner, which is convenient for the user to quickly find Items needed; when the user needs to store items, the user opens the first cover 3 and the second cover 4, and then places the items in the first box 1, or pulls the second box through the drawer 7 The body 2 is pulled out from the first box body 1, the article is placed in the second box body 2, and then the user pushes the second box body 2 into the first box body 1 to remove the first cover body 3 and the second cover body. 4. Re-close, and the first cover 3 and the second cover 4 are fixed to each other through iron sheets and magnets.

The above are all preferred embodiments of the present application, and are not intended to limit the protection scope of the present application. Therefore: all equivalent changes made according to the structure, shape and principle of the present application should be covered within the scope of the present application. Inside.

Claims (8)

1. A storage box, characterized in that it comprises a first box body (1), a second box body (2), a first cover body (3) and a second cover body (4), the first box body (1) and the top ends of the second box body (2) are both provided with openings, the first box body (1) is provided with a first partition plate (5), and the first partition plate (5) is The edge is fixedly connected to the inner side wall of the first box body (1), the second box body (2) is movably passed through the side wall of the first box body (1), and the second box body (1) is (2) Located below the first partition plate (5), the first cover body (3) and the second cover body (4) are rotatably connected to two opposite sides of the first box body (1). side. 2 . The storage box according to claim 1 , wherein the first cover body ( 3 ) comprises a first cover plate ( 31 ), a second cover plate ( 32 ) and a third cover plate ( 33 ). 3 . ), the first cover (31) is rotatably connected with the second cover (32), the second cover (32) is rotatably connected with the third cover (33), the first A cover plate (31) is fixedly covered on the bottom end of the first box body (1), and the connection between the first cover plate (31) and the second cover plate (32) is located in the first box body (1) The bottom end is far away from the edge of the second cover (4), and the connection between the second cover (32) and the third cover (33) is located in the first box (1) The top end is away from the edge of the second cover body (4). 3 . The storage box according to claim 2 , wherein the second cover body ( 4 ) comprises a connecting plate ( 41 ), and the connecting plate ( 41 ) is connected to the first box body ( 1 ). 4 . ) The bottom end is rotatably connected to the edge of the second cover plate (32), and the adjacent edge of the connecting plate (41) and the first box body (1) is rotatably connected and is vertically fixed with an abutment plate (42). ), a fourth cover plate (43) is vertically fixed on the opposite edge of the connecting plate (41) and the first box body (1) in a rotational connection. 4. A storage box according to claim 2, characterized in that: the second box body (2) is movably passed through the first box body (1) close to the second cover plate (32) The side wall of the second box body (2) is slidably connected to the inner side wall of the first box body (1) toward the outer side wall of the first box body (1). 5. A storage box according to claim 3, characterized in that: a backing plate (6) is fixedly provided at one end of the fourth cover plate (43) away from the connecting plate (41), and the backing plate (6) A magnet is embedded inside, and an iron sheet is embedded inside the end of the third cover (33) away from the second cover (32). When the first cover (3) and the When the second cover body (4) covers the open end of the first box body (1), the third cover plate (33) and the backing plate (6) are superimposed, and the iron sheet is located at the directly above the magnet. 6 . The storage box according to claim 2 , wherein a drawer ( 7 ) is fixedly arranged on the side wall of the second box body ( 2 ) close to the second cover plate ( 32 ). 7 . 7 . The storage box according to claim 1 , wherein a second partition plate ( 8 ) is arranged in the second box body ( 2 ), and the second partition plate ( 8 ) is vertically fixed and arranged. 8 . on the bottom surface of the second box body (2). 8. A storage box according to claim 1, characterized in that: the first box body (1), the second box body (2), the first cover body (3) and the The second cover body (4) adopts a cardboard structure.
