CN216539971U

CN216539971U - Steel pipe belt cleaning device for machining

Info

Publication number: CN216539971U
Application number: CN202122993359.1U
Authority: CN
Inventors: 宋玉伶
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-11-30
Filing date: 2021-11-30
Publication date: 2022-05-17
Anticipated expiration: 2031-11-30

Abstract

The utility model discloses a steel pipe cleaning device for machining, which belongs to the technical field of steel pipe cleaning and comprises a bottom plate, wherein a bidirectional threaded rod is rotatably connected at the middle position inside the bottom plate, an installation table is fixedly connected at the middle position of the top of the bottom plate, a placing table is fixedly connected at the top of the installation table, the outer wall of the bidirectional threaded rod is in threaded connection with symmetrical internal thread sleeves, connecting pipes are fixedly connected at the tops of the internal thread sleeves, the opposite ends of the two connecting pipes are fixedly connected with a first spray head, connecting rods are fixedly connected at the four corners of the top of the bottom plate, the top of each connecting rod is fixedly connected with a top plate, a first motor is fixedly installed at the position, close to one side, of the bottom of the top plate through a first connecting piece, and the first motor can enable a second spray head, the first spray head and cleaning cotton to simultaneously wash and clean the outer wall and the inner wall of a steel pipe, thereby promoting the efficiency of steel pipe washing, reducing staff's work load.

Description

Steel pipe belt cleaning device for machining

Technical Field

The utility model belongs to the technical field of steel pipe cleaning, and particularly relates to a steel pipe cleaning device for machining.

Background

The steel pipe is in the course of working, need polish the steel pipe, and after the steel pipe was polished, generally there will be some metal debris to remain on the outer wall and the inner wall of steel pipe, if do not clear up these impurity, these metal debris can influence the normal use of steel pipe, so need wash the steel pipe after polishing the steel pipe, need use the belt cleaning device of steel pipe this moment.

Traditional steel pipe belt cleaning device generally can wash the inner wall and the outer wall of steel pipe alone when wasing the steel pipe, when the outer wall washing to the steel pipe is accomplished, washs the inner wall of steel pipe again, and abluent efficiency reduces, simultaneously greatly increased staff's work load, cause staff fatigue to staff's operating mass has been reduced.

SUMMERY OF THE UTILITY MODEL

1. Technical problem to be solved

Aiming at the problems in the prior art, the utility model aims to provide a steel pipe cleaning device for machining, which can clean the inner wall and the outer wall of a steel pipe simultaneously, improve the efficiency of cleaning the steel pipe, and reduce the workload of workers so as to improve the working quality of the workers.

2. Technical scheme

In order to solve the above problems, the present invention adopts the following technical solutions.

A steel pipe cleaning device for machining comprises a bottom plate, wherein a bidirectional threaded rod is rotatably connected to the middle position inside the bottom plate, an installation table is fixedly connected to the middle position on the top of the bottom plate, a placing table is fixedly connected to the top of the installation table, a symmetrical internal thread sleeve is in threaded connection with the outer wall of the bidirectional threaded rod, connecting pipes are fixedly connected to the top of the internal thread sleeve, a first spray head is fixedly connected to the opposite ends of the two connecting pipes, connecting rods are fixedly connected to the four corners of the top of the bottom plate, a top plate is fixedly connected to the top of the connecting rods, a first motor is fixedly installed at the position, close to one side, of the bottom of the top plate through a first connecting piece, a one-way threaded rod is fixedly connected to the output end of the first motor, and the right end of the one-way threaded rod is rotatably connected with the top plate through a second connecting piece, the outer wall of the one-way threaded rod is in threaded connection with a second spray nozzle, the top of the second spray nozzle is fixedly connected with a connecting piece, a sliding groove is formed in the position, corresponding to the connecting piece, of the bottom of the top plate, the top of the connecting piece is in sliding connection with the sliding groove, the positions, close to the left end, of the outer walls of the two-way threaded rod and the one-way threaded rod are fixedly connected with driving wheels, a driving belt is connected between the two driving wheels, and the diameter of one driving wheel above is half of the diameter of one driving wheel below.

Further, the bottom plate top is close to middle position department fixed mounting has the second motor, the output fixedly connected with dwang of second motor, the right-hand member of dwang runs through the inside of mount table and rotates with the mount table to be connected.

Further, the symmetrical fixedly connected with driving roller of position department that the dwang outer wall is close to both ends, the transversal semicircular structure of personally submitting of driving roller, the outside of driving roller is provided with the skid resistant course.

Furthermore, a through groove is formed in the middle of the top of the bottom plate, and the connecting pipe is connected with the internal thread sleeve through the through groove.

Furthermore, the connecting pipe is of a zigzag structure, cleaning cotton is arranged on one side, located at the position where the first spray head deviates from, of the outer wall of the connecting pipe, and the position of the first spray head is higher than the position where the bottom of the placing table is located.

Further, place the platform and be the arc structure, the inside of placing the platform is equidistant to be provided with a plurality of water leakage holes.

3. Advantageous effects

Compared with the prior art, the utility model has the advantages that:

(1) placing the steel pipe in a placing table, controlling a second motor to start, driving a driving roller to rotate by a second motor through a rotating rod, simultaneously controlling a first motor to start, enabling the first motor to drive a one-way threaded rod to rotate, driving one driving wheel to rotate by the one-way threaded rod, driving the other driving wheel to rotate by the driving wheel, thereby enabling a two-way threaded rod to rotate, enabling a second spray head to move rightwards along the one-way threaded rod, enabling a connecting piece to slide rightwards in a sliding groove at the moment, driving two connecting pipes to move towards a mutually close direction by the two-way threaded rod, enabling an internal thread sleeve to drive the connecting pipes and the first spray head to be inserted into the steel pipe, enabling the second spray head to just move to a position close to the left end of the top of the steel pipe at the moment, enabling the connecting pipes and the second spray head to be connected with an external water source at the moment, enabling water to be sprayed out through the first spray head and the second spray head to move along with the internal thread sleeve and the second spray head, make second shower nozzle, first shower nozzle and clearance cotton wash away the washing simultaneously to the outer wall and the inner wall of steel pipe to promote steel pipe abluent efficiency, reduce staff's work load, thereby promote steel pipe abluent quality.

(2) Because driving roller semicircular structure, when driving roller rotated a definite position, the driving roller contacted with the outer wall of steel pipe to make the driving roller drive the steel pipe and be intermittent motion, make second shower nozzle and first shower nozzle more thorough to washing of steel pipe, prevent that the steel pipe from having the dead angle that can not wash, thereby further improve steel pipe abluent quality.

Drawings

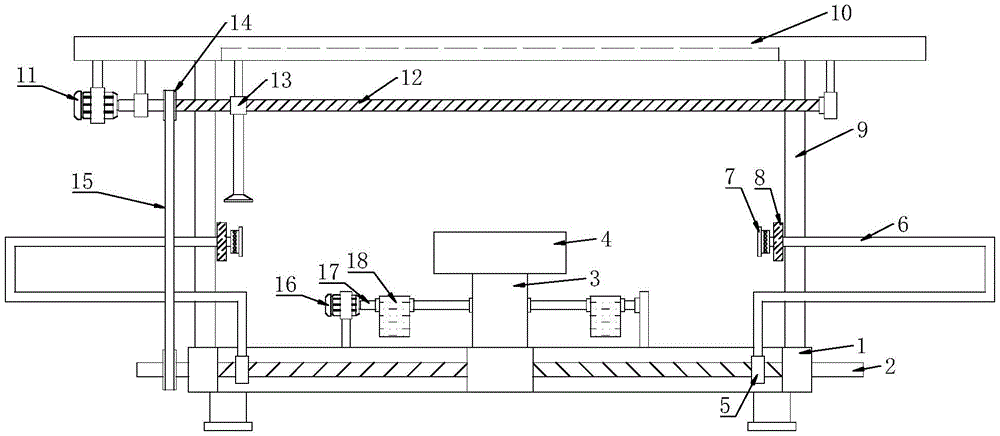

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a side cross-sectional view of the placement table of the present invention;

FIG. 3 is a schematic view of the structure of the driving roller of the present invention;

fig. 4 is a schematic view showing the installation position of the bidirectional threaded rod of the present invention.

The reference numbers in the figures illustrate:

1. a base plate; 2. a bidirectional threaded rod; 3. an installation table; 4. a placing table; 5. an internally threaded sleeve; 6. a connecting pipe; 7. a first nozzle; 8. cleaning cotton; 9. a connecting rod; 10. a top plate; 11. a first motor; 12. a one-way threaded rod; 13. a second nozzle; 14. a driving wheel; 15. a transmission belt; 16. a second motor; 17. rotating the rod; 18. and (5) driving rollers.

Detailed Description

The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention; it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all embodiments, and all other embodiments obtained by those skilled in the art without any inventive work are within the scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "top/bottom", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "sleeved/connected," "connected," and the like are to be construed broadly, e.g., "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Example 1:

referring to fig. 1-4, a steel pipe cleaning device for machining comprises a bottom plate 1, a bidirectional threaded rod 2 is rotatably connected at an intermediate position inside the bottom plate 1, an installation table 3 is fixedly connected at an intermediate position on the top of the bottom plate 1, a placing table 4 is fixedly connected at the top of the installation table 3, an outer wall of the bidirectional threaded rod 2 is in threaded connection with symmetrical internal thread sleeves 5, connecting pipes 6 are fixedly connected at the top of the internal thread sleeves 5, a first spray head 7 is fixedly connected at opposite ends of the two connecting pipes 6, connecting rods 9 are fixedly connected at four corners of the top of the bottom plate 1, a top plate 10 is fixedly connected at the top of the connecting rods 9, a first motor 11 is fixedly installed at a position close to one side of the bottom of the top plate 10 through a first connecting piece, a one-way threaded rod 12 is fixedly connected at an output end of the first motor 11, and the right end of the one-way threaded rod 12 is rotatably connected with the top plate 10 through a second connecting piece, the outer wall threaded connection of one-way threaded rod 12 has second shower nozzle 13, the top fixedly connected with connecting piece of second shower nozzle 13, the spout has been seted up to roof 10 bottom and the corresponding position department of connecting piece, the top and the spout sliding connection of connecting piece, two-way threaded rod 2 and the position department fixedly connected with drive wheel 14 of the outer wall of one-way threaded rod 12 near the left end, be connected with drive belt 15 between two drive wheels 14, the diameter of a drive wheel 14 of top is the half of a drive wheel 14 diameter of below.

In fig. 1, connecting pipe 6 is tortuous structure, one side that 6 outer walls of connecting pipe lie in that first shower nozzle 7 deviates from mutually is provided with clearance cotton 8, the position of first shower nozzle 7 is higher than the position of placing the interior bottom of platform 4 and locating, when first shower nozzle 7 and second shower nozzle 13 remove to suitable position, insert outside water source with connecting pipe 6 and second shower nozzle 13, make water spray out through first shower nozzle 7 and second shower nozzle 13, along with the removal of female thread sleeve pipe 5 and second shower nozzle 13, make second shower nozzle 13, first shower nozzle 7 washes away the washing simultaneously with the inner wall to the outer wall of steel pipe with clearance cotton 8, thereby promote the abluent efficiency of steel pipe, reduce staff's work load.

In fig. 1 and 2, position department fixed mounting that bottom plate 1 top is close to the centre has second motor 16, second motor 16's output fixedly connected with dwang 17, the right-hand member of dwang 17 runs through the inside of mount table 3 and rotates with mount table 3 and is connected, the position department symmetry fixedly connected with driving roller 18 that the dwang 17 outer wall is close to both ends, the transversal semicircular structure that personally submits of driving roller 18, the outside of driving roller 18 is provided with the skid resistant course, the frictional force on the increase and decrease driving roller 18, when driving roller 18 rotates a certain position, driving roller 18 contacts with the outer wall of steel pipe, thereby make driving roller 18 drive the steel pipe and be intermittent motion, it is more thorough to wash the steel pipe to make second shower nozzle 13 and first shower nozzle 7, prevent that the steel pipe has the dead angle that can not wash, thereby further improve the abluent quality of steel pipe.

In fig. 2, the placing table 4 is of an arc-shaped structure, a plurality of water leakage through holes are formed in the placing table 4 at equal intervals, so that the placing table 4 can drain water conveniently, and water accumulation of the placing table 4 is prevented.

In fig. 1 and 4, a through groove is formed in the middle of the top of the bottom plate 1, and the connecting pipe 6 is connected with the internal thread bushing 5 through the through groove, so that the internal thread bushing 5 can drive the connecting pipe 6 to move, and the position of the first nozzle 7 can be adjusted.

When in use: placing the steel pipe in the placing table 4, controlling the second motor 16 to start, the second motor 16 driving the driving roller 18 to rotate through the rotating rod 17, and simultaneously controlling the first motor 11 to start, so that the first motor 11 drives the unidirectional threaded rod 12 to rotate, the unidirectional threaded rod 12 drives one driving wheel 14 to rotate, the driving wheel 14 driving the other driving wheel 14 to rotate through the driving belt 15, so that the bidirectional threaded rod 2 rotates, at the moment, the second spray head 13 moves rightwards along the unidirectional threaded rod 12, at the moment, the connecting piece slides rightwards in the chute, the bidirectional threaded rod 2 drives the two connecting pipes 6 to move towards the mutually close directions, so that the internal threaded sleeve 5 drives the connecting pipes 6 and the first spray head 7 to be inserted into the steel pipe, at the moment, the second spray head 13 just moves to the position close to the left end of the top of the steel pipe, at the moment, the connecting pipes 6 and the second spray head 13 are connected to an external water source, so that water is sprayed out through the first spray head 7 and the second spray head 13, along with the removal of internal thread sleeve pipe 5 and second shower nozzle 13, make second shower nozzle 13, first shower nozzle 7 and clearance cotton 8 wash away simultaneously and wash the washing to the outer wall and the inner wall of steel pipe, because driving roller 18 semicircular structure, when driving roller 18 rotated a locating position, driving roller 18 contacted with the outer wall of steel pipe to make driving roller 18 drive the steel pipe and be intermittent motion, make second shower nozzle 13 more thorough with the washing of first shower nozzle 7 to the steel pipe.

The foregoing is only a preferred embodiment of the present invention; the scope of the utility model is not limited thereto. Any person skilled in the art should be able to cover the technical scope of the present invention by equivalent or modified solutions and modifications within the technical scope of the present invention.

Claims

1. The utility model provides a steel pipe belt cleaning device for machining, includes bottom plate (1), its characterized in that: the middle position of the inside of the bottom plate (1) is rotatably connected with a bidirectional threaded rod (2), the middle position of the top of the bottom plate (1) is fixedly connected with an installation table (3), the top of the installation table (3) is fixedly connected with a placing table (4), the outer wall of the bidirectional threaded rod (2) is in threaded connection with symmetrical internal thread sleeves (5), the top of each internal thread sleeve (5) is fixedly connected with a connecting pipe (6), one end of each connecting pipe (6) opposite to the corresponding end is fixedly connected with a first spray head (7), four corners of the top of the bottom plate (1) are fixedly connected with connecting rods (9), the top of each connecting rod (9) is fixedly connected with a top plate (10), a first motor (11) is fixedly installed at the position of the bottom of the top plate (10) close to one side through a first connecting piece, and a one-way threaded rod (12) is fixedly connected with the output end of the first motor (11), the right-hand member of one-way threaded rod (12) is passed through the second connecting piece and is connected with roof (10) rotation, the outer wall threaded connection of one-way threaded rod (12) has second shower nozzle (13), the top fixedly connected with connecting piece of second shower nozzle (13), roof (10) bottom has seted up the spout with the corresponding position department of connecting piece, the top and the spout sliding connection of connecting piece, two-way threaded rod (2) and one-way threaded rod (12) outer wall are close to position department fixedly connected with drive wheel (14) of left end, two be connected with drive belt (15) between drive wheel (14), one of top the diameter of drive wheel (14) is the half of a drive wheel (14) diameter in below.

2. The steel pipe cleaning device for machining according to claim 1, characterized in that: bottom plate (1) top is close to the position department fixed mounting in the middle of there is second motor (16), the output fixedly connected with dwang (17) of second motor (16), the right-hand member of dwang (17) runs through the inside of mount table (3) and rotates with mount table (3) and is connected.

3. The steel pipe cleaning device for machining according to claim 2, characterized in that: dwang (17) outer wall is close to position department symmetry fixedly connected with driving roller (18) at both ends, the transversal semicircular structure of personally submitting of driving roller (18), the outside of driving roller (18) is provided with the skid resistant course.

4. The steel pipe cleaning device for machining according to claim 1, characterized in that: a through groove is formed in the middle of the top of the bottom plate (1), and the connecting pipe (6) is connected with the internal thread sleeve (5) through the through groove.

5. The steel pipe cleaning device for machining according to claim 1, characterized in that: the connecting pipe (6) is of a zigzag structure, cleaning cotton (8) is arranged on one side, located at the position where the first spray head (7) deviates from the outer wall of the connecting pipe (6), and the position of the first spray head (7) is higher than the position where the bottom is located in the placing table (4).

6. The steel pipe cleaning device for machining according to claim 1, characterized in that: the placing table (4) is of an arc-shaped structure, and a plurality of water leakage through holes are formed in the placing table (4) at equal intervals.
