CN216535908U

CN216535908U - Clinical auxiliary treatment device of department of general surgery

Info

Publication number: CN216535908U
Application number: CN202122977471.6U
Authority: CN
Inventors: 孙铁峰
Original assignee: Qingdao Eighth Peoples Hospital
Current assignee: Qingdao Eighth Peoples Hospital
Priority date: 2021-11-30
Filing date: 2021-11-30
Publication date: 2022-05-17
Anticipated expiration: 2031-11-30

Abstract

The utility model provides a clinical auxiliary treatment device for general surgery department, belonging to the technical field of medical instruments, comprising: a base; the adjusting assembly comprises a sleeve arranged at the top of the base, a slidable square sleeve column is arranged in the sleeve, and a motor which is positioned right below the sleeve column is arranged in the sleeve and is used for driving the sleeve column to move up and down; the auxiliary assembly, the auxiliary assembly is including connecting the connecting plate at cover post top, the upper surface of connecting plate is provided with places the piece, still be provided with on the connecting plate and use to place the piece and be the fixed part of symmetric distribution as the center, the device can highly carry out suitable regulation to fixed, satisfies the comfortable position of the best treatment of hindering the person, has improved the result of use, can directly fix the arm or the shank of hindering the person simultaneously, and it is fixed to need not many personnel to mutually support, has saved a large amount of human time, and is efficient, has improved the practicality.

Description

Clinical auxiliary treatment device of department of general surgery

Technical Field

The utility model belongs to the technical field of medical instruments, and particularly relates to a clinical auxiliary treatment device for general surgery department.

Background

The general surgery department is a clinical subject which treats other diseases such as liver, biliary tract, pancreas, gastrointestinal tract, anorectal, vascular diseases, thyroid and breast tumors, trauma and the like by taking an operation as a main method, is a special subject of a surgical system, and general comprehensive hospital surgery departments comprise orthopedics, neurosurgery, cardiothoracic surgery, urology surgery and the like besides the general surgery department.

At present, the injured arm or leg of the injured person is often treated in the clinical treatment process of general surgery, but most of the existing treatment modes are that the arm or leg of the injured person is simply placed, a plurality of persons are needed to be matched with each other to fix the injured person to prevent the injured person from moving around, the treatment mode is low in efficiency, a large amount of labor is needed to be consumed to finish the treatment mode together, and therefore inconvenience is caused.

SUMMERY OF THE UTILITY MODEL

In order to make up for the defects, the utility model provides a clinical auxiliary treatment device for general surgery, which aims to solve the problems that the injury on the arm or the leg of the injured person is often treated in the current clinical treatment process of general surgery, but most of the existing treatment modes are that the arm or the leg of the injured person is simply placed, a plurality of persons are required to be mutually matched to fix the injured person to prevent the injured person from moving around, the treatment mode has low efficiency, and a great amount of labor is required to be consumed to jointly complete the treatment, so that inconvenience is caused.

The utility model is realized by the following steps:

the utility model provides a clinical auxiliary treatment device for general surgery department, comprising:

a base;

the adjusting assembly comprises a sleeve arranged at the top of the base, a slidable square sleeve column is arranged in the sleeve, and a motor which is positioned right below the sleeve column is arranged in the sleeve and is used for driving the sleeve column to move up and down;

the auxiliary assembly comprises a connecting plate connected to the top of the sleeve column, a placing block is arranged on the upper surface of the connecting plate, and fixing parts which are symmetrically distributed by taking the placing block as the center are further arranged on the connecting plate and used for fixing a patient;

the lighting assembly comprises a mounting plate mounted on the base, a bearing seat is arranged on the mounting plate, a universal hose is mounted on the inner side of the bearing seat, and a lamp body used for providing illumination is arranged at one end, far away from the bearing seat, of the universal hose.

In one embodiment of the present invention, the lower surface of the base is provided with four universal wheels for moving the device, and the four universal wheels are distributed annularly.

In one embodiment of the present invention, the sleeve column is provided with a thread groove along a central axis, an output shaft end of the motor is connected with a threaded rod, and the threaded rod is screwed in the thread groove.

In an embodiment of the present invention, the placing block is a soft rubber pad, and a middle portion of the placing block is recessed downward.

In one embodiment of the utility model, the fixing part comprises a fixing cylinder and four square openings formed in the connecting plate, a positioning insertion rod is arranged in the fixing cylinder, an annular plate is arranged on the outer side of the positioning insertion rod, and a limiting spring is arranged on the outer side of the positioning insertion rod and on one side far away from the annular plate.

In an embodiment of the utility model, a U-shaped plug connector is inserted between the inner sides of the two square opening parts on the same side, four positioning holes are respectively formed on the left side and the right side of the plug connector, the four positioning holes on the same side are distributed at equal intervals, and the aperture of each positioning hole is larger than the diameter of each positioning plug rod.

In one embodiment of the utility model, the fixed cylinder is fixedly connected to the bottom of the connecting plate, and the inner side of the plug connector is provided with a silicon rubber pad.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, the threaded rod is driven to rotate by controlling the motor, and the sleeve column slides on the inner side of the sleeve, so that the sleeve column can move up and down in the sleeve by the rotating threaded rod under the action of the rotating thrust of the thread, the height of the auxiliary assembly can be properly adjusted, the optimal comfortable treatment position of a wounded person is met, and the use effect is improved.

2. According to the utility model, an injured person directly places arms or legs at the grooves on the placing blocks, then respectively pulls the corresponding positioning insertion rods left and right, the positioning insertion rods drive the annular plates to move and extrude the limiting springs to be stressed and compressed, then the plug connectors are inserted into the two corresponding square openings, the height positions of the plug connectors are adjusted, the inner sides of the plug connectors are attached to the skin of the injured person, the closest positioning holes correspond to the positioning insertion rods, then the positioning insertion rods are loosened, the limiting springs are reset and inserted into the positioning holes, and then the arms or the legs of the injured person are fixed without mutual matching of multiple persons, so that a large amount of manpower time is saved, the efficiency is high, and the practicability is improved.

3. According to the utility model, the lighting direction of the lamp body can be adjusted by rotating the universal hose, and meanwhile, the lighting direction of the lamp body can be randomly adjusted by the universal hose, so that sufficient lighting is provided for injury treatment, and convenience is brought to treatment.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

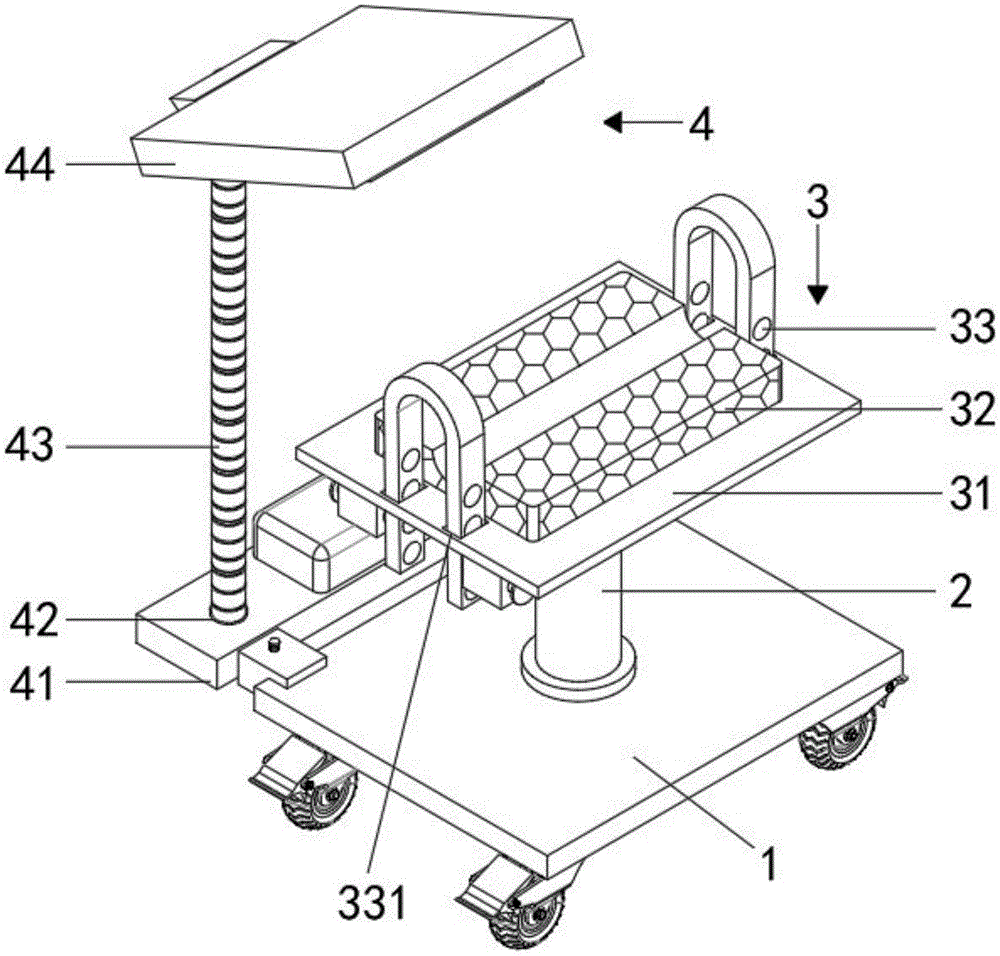

FIG. 1 is a perspective view of a clinical auxiliary treatment device for general surgery department;

FIG. 2 is a front view of the clinical auxiliary treatment device in general surgery department;

FIG. 3 is a structural section view of an adjusting component in the clinical auxiliary treatment device in general surgery department;

FIG. 4 is a top view of a sleeve and a sleeve column connecting structure in the clinical auxiliary treatment device for general surgery department of the present invention;

FIG. 5 is a schematic structural diagram of a fixing component in the clinical auxiliary treatment device for general surgery department of the utility model.

Description of reference numerals: 1. a base; 2. an adjustment assembly; 3. an auxiliary component; 4. a lighting assembly; 21. a sleeve; 22. sleeving a column; 23. a thread groove; 24. an electric motor; 25. a threaded rod; 31. a connecting plate; 32. placing the blocks; 33. a fixing member; 331. a square opening part; 332. a plug-in unit; 333. positioning holes; 334. a fixed cylinder; 335. Positioning the inserted rod; 336. an annular plate; 337. a limiting spring; 41. mounting a plate; 42. a bearing seat; 43. a universal hose; 44. and a lamp body.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention more apparent, the technical solutions of the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings of the embodiments of the present invention, and it is obvious that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention.

Thus, the following detailed description of the embodiments of the present invention, presented in the figures, is not intended to limit the scope of the utility model, as claimed, but is merely representative of selected embodiments of the utility model. All other embodiments, which can be obtained by a person skilled in the art without any inventive step based on the embodiments of the present invention, are within the scope of the present invention.

It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.

In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.

Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically defined otherwise.

Referring to the attached drawings 1-5, the utility model provides a technical scheme: a clinical adjunctive therapy device for general surgery, comprising: the base 1, the adjusting component 2, the auxiliary component 3 and the lighting component 4;

referring to fig. 1-4, the adjusting assembly 2 of the present embodiment includes a sleeve 21 mounted on the top of the base 1, a slidable square-shaped sleeve 22 is disposed in the sleeve 21, and a motor 24 disposed directly below the sleeve 22 is disposed in the sleeve 21 for driving the sleeve 22 to move up and down.

According to the embodiment, the sleeve column 22 can be driven by the motor 24 to move up and down in the sleeve 21, so that the height of the auxiliary assembly 3 can be adjusted.

Referring to fig. 1, 2 and 5, the auxiliary assembly 3 in this embodiment includes a connecting plate 31 connected to the top of the sleeve column 22, a placing block 32 is disposed on the upper surface of the connecting plate 31, and fixing members 33 symmetrically distributed with the placing block 32 as the center are further disposed on the connecting plate 31 for fixing the patient.

According to the embodiment, the arm or the leg of the wounded person is placed on the placing block 32, and the two sides of the arm or the leg are assisted and fixed through the fixing component 33, so that the doctor can conveniently treat the wound.

Referring to fig. 1 and 2, the lighting assembly 4 in the present embodiment includes a mounting plate 41 mounted on the base 1, a bearing seat 42 is disposed on the mounting plate 41, a universal hose 43 is mounted inside the bearing seat 42, and a lamp body 44 for providing illumination is disposed at an end of the universal hose 43 away from the bearing seat 42.

According to the embodiment, the lighting direction of the lamp body 44 can be adjusted by rotating the universal hose 43, and meanwhile, the lighting direction of the lamp body 44 can be randomly adjusted by the arranged universal hose 43, so that sufficient lighting is provided for injury treatment, and convenience is brought to treatment.

As an embodiment of the present invention, the lower surface of the base 1 is provided with four universal wheels for moving the device, and the four universal wheels are annularly distributed; can remove the device at will through the universal wheel that sets up, improve the availability factor.

In one embodiment of the present invention, the sleeve post 22 is provided with a threaded groove 23 along a central axis, a threaded rod 25 is connected to an output shaft end of the motor 24, and the threaded rod 25 is screwed in the threaded groove 23.

As an embodiment of the present invention, the placing block 32 is a soft rubber pad, and the middle part of the placing block 32 is concave downward; is convenient for placing the arms and the legs of the wounded, and the soft rubber pad provides comfort for the wounded.

As an embodiment of the present invention, the fixing member 33 includes a fixing cylinder 334 and four square openings 331 formed on the connecting plate 31, a positioning insertion rod 335 is disposed in the fixing cylinder 334, an annular plate 336 is mounted on an outer side of the positioning insertion rod 335, and a limit spring 337 is disposed on an outer side of the positioning insertion rod 335 and a side far away from the annular plate 336; the annular plate 336 is moved by pulling the positioning rod 335 to compress the limiting spring 337.

As an embodiment of the present invention, a U-shaped plug-in component 332 is inserted between the inner sides of two square opening portions 331 on the same side, four positioning holes 333 are respectively formed on the left and right sides of the plug-in component 332, the four positioning holes 333 on the same side are distributed at equal intervals, and the aperture of the positioning hole 333 is larger than the diameter of the positioning plug-in rod 335; the plug-in components 332 are inserted into the two corresponding square opening parts 331, the positions of the plug-in components are adjusted, the positioning plug-in rods 335 are inserted into the positioning holes 333 to complete the limiting, and then the arms or the legs of the injured person are fixed.

As an embodiment of the present invention, the fixed cylinder 334 is fixedly connected to the bottom of the connecting plate 31, and a silicon rubber pad is disposed inside the plug 332; the silicone rubber pad on the inside of the plug 332 contacts the skin when secured, providing a protective effect.

The working principle of the clinical auxiliary treatment device for general surgery department is as follows:

(1) firstly, the threaded rod 25 is driven to rotate by controlling the motor 24, and the sleeve column 22 slides on the inner side of the sleeve 21, so that the sleeve column 22 can move up and down in the sleeve 21 by the rotating threaded rod 25 under the action of the rotating thrust of the threads, and the height of the auxiliary component 3 can be properly adjusted to meet the optimal comfortable treatment position of the wounded;

(2) then the wounded directly places the arm or the leg in the groove on the placing block 32, then pulls the corresponding positioning insertion rod 335 left and right respectively, the positioning insertion rod 335 drives the annular plate 336 to move and extrude the limiting spring 337 to be stressed and compressed, then inserts the insertion piece 332 into the two corresponding square opening portions 331, adjusts the height position of the insertion piece 332, enables the inner side of the insertion piece 332 to be attached to the skin of the wounded, enables the closest positioning hole to correspond to the positioning insertion rod 335, then loosens the positioning insertion rod 335, and resets and inserts the limiting spring 337 into the positioning hole 333, thereby fixing the arm or the leg of the wounded.

(3) The lighting direction of the lamp body 44 can be adjusted by rotating the universal hose 43, and the lighting direction of the lamp body 44 can be adjusted at will by the universal hose 43, so that sufficient lighting is provided for injury treatment, and convenience is brought to treatment.

It should be noted that the model specifications of the motor 24 and the lamp body 44 need to be determined by model selection according to the actual specification of the device, and the specific model selection calculation method adopts the prior art, so detailed description is omitted.

The powering of the motor 24 and the lamp body 44 and the principles thereof will be clear to those skilled in the art and will not be described in detail herein.

The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. A clinical auxiliary treatment device for general surgery department is characterized by comprising:

a base (1);

the adjusting assembly (2) comprises a sleeve (21) installed at the top of the base (1), a slidable square sleeve column (22) is arranged in the sleeve (21), and a motor (24) located right below the sleeve column (22) is arranged in the sleeve (21) and used for driving the sleeve column (22) to move up and down;

the auxiliary assembly (3) comprises a connecting plate (31) connected to the top of the sleeve column (22), a placing block (32) is arranged on the upper surface of the connecting plate (31), and fixing parts (33) which are symmetrically distributed by taking the placing block (32) as the center are further arranged on the connecting plate (31) and used for fixing a patient;

illumination assembly (4), illumination assembly (4) are including installing mounting panel (41) on base (1), be provided with bearing frame (42) on mounting panel (41), universal hose (43) are installed to the inboard of bearing frame (42), the one end that bearing frame (42) were kept away from in universal hose (43) is provided with lamp body (44) that are used for providing the illumination.

2. Clinical auxiliary treatment device for department of general surgery according to claim 1, characterized in that the lower surface of the base (1) is provided with universal wheels for moving the device, the number of universal wheels is four, and the four universal wheels are distributed in a ring shape.

3. The clinical auxiliary treatment device for general surgery department according to claim 1, characterized in that the sleeve column (22) is provided with a thread groove (23) along the central axis, the output shaft end of the motor (24) is connected with a threaded rod (25), and the threaded rod (25) is screwed in the thread groove (23).

4. The clinical auxiliary treatment device for general surgery department according to claim 1, characterized in that the placing block (32) is a soft rubber pad, and the middle part of the placing block (32) is concave downwards.

5. The clinical auxiliary treatment device for general surgery department according to claim 1, characterized in that the fixing component (33) comprises a fixing cylinder (334) and four square openings (331) formed on the connecting plate (31), a positioning inserted rod (335) is arranged in the fixing cylinder (334), an annular plate (336) is arranged on the outer side of the positioning inserted rod (335), and a limit spring (337) is arranged on the outer side of the positioning inserted rod (335) and on one side far away from the annular plate (336).

6. The clinical auxiliary treatment device for general surgery department according to claim 5, characterized in that a U-shaped plug connector (332) is inserted between the inner sides of two square opening parts (331) on the same side, four positioning holes (333) are respectively formed on the left side and the right side of the plug connector (332), the four positioning holes (333) on the same side are distributed at equal intervals, and the diameter of each positioning hole (333) is larger than the diameter of each positioning plug rod (335).

7. The clinical auxiliary treatment device for general surgery department according to claim 6, characterized in that the fixed cylinder (334) is fixedly connected to the bottom of the connecting plate (31), and the inner side of the plug connector (332) is provided with a silicon rubber pad.
