CN216530219U

CN216530219U - A operation platform that is arranged in electric power circuit of salt pond to overhaul

Info

Publication number: CN216530219U
Application number: CN202122565748.4U
Authority: CN
Inventors: 王文强; 吴春海; 戚振飞; 花明; 陈秋梁; 吕文玉; 任玉涛
Original assignee: Binzhou Power Supply Co of State Grid Shandong Electric Power Co Ltd
Current assignee: Binzhou Power Supply Co of State Grid Shandong Electric Power Co Ltd
Priority date: 2021-10-25
Filing date: 2021-10-25
Publication date: 2022-05-13
Anticipated expiration: 2031-10-25

Abstract

The utility model belongs to the field of line maintenance, and particularly discloses an operation platform for electric power line maintenance in a salt pond, which comprises two groups of bearing seats, wherein an adjusting guide rod and a reinforcing rod are respectively embedded between the two groups of bearing seats, the reinforcing rod is positioned in front of the adjusting guide rod, two groups of adjusting frames are attached to the outer surface of the adjusting guide rod, two groups of reinforcing frames are attached to the outer surface of the reinforcing rod, platform seats are respectively arranged below the adjusting guide rod and below the reinforcing rod, two groups of connecting pull rods and two groups of reinforcing brackets are respectively obliquely extended from the upper end surface of each platform seat, the connecting pull rods are positioned behind the reinforcing brackets, and platform main bodies are horizontally embedded in the end parts of the connecting pull rods and the end parts of the reinforcing brackets. The utility model can improve the maintenance convenience, ensure the operation safety and meet the use requirement.

Description

A operation platform that is arranged in electric power circuit of salt pond to overhaul

Technical Field

The utility model belongs to the field of line maintenance, and particularly discloses an operation platform for electric power line maintenance in a salt pond.

Background

Salt pond mainly used stores and melts its effect with salt, wherein many power line that have erect in the top of salt pond are in order to supply power to some electric power facilities in the salt room, present when this circuit trouble maintains, need to remove the scaffold earlier and put in the salt pond for the maintenance personal stands, just can maintain the circuit of salt pond top afterwards, and need remove the scaffold out of the salt pond after the maintenance, the very big increase of its operation the loaded down with trivial details degree when maintaining, seriously influence its easy maintenance degree, simultaneously the scaffold is placed very easily because the accumulational salt of salt bottom of salt pond causes the phenomenon that the scaffold is put unstably and thereby appears toppling after in the salt pond, cause the maintenance personal who stands on the scaffold to appear injured, its potential safety hazard is great.

SUMMERY OF THE UTILITY MODEL

In view of the above, the present invention provides a work platform for repairing a power line in a salt pond to solve the problems in the prior art.

In order to achieve the above purpose, the utility model provides an operation platform for electric power line maintenance in a salt pond, which comprises two groups of bearing seats, wherein an adjusting guide rod and a reinforcing rod are respectively embedded between the two groups of bearing seats, the reinforcing rod is positioned in front of the adjusting guide rod, two groups of adjusting frames are attached to the outer surface of the adjusting guide rod, two groups of reinforcing frames are attached to the outer surface of the reinforcing rod, platform seats are respectively arranged below the adjusting guide rod and below the reinforcing rod, two groups of connecting pull rods and two groups of reinforcing brackets are respectively obliquely extended from the upper end surface of the platform seats, the connecting pull rods are positioned behind the reinforcing brackets, platform main bodies are horizontally embedded in the end parts of the connecting pull rods and the end parts of the reinforcing brackets, the connecting pull rods are connected with the adjusting frames, the reinforcing brackets are connected with the reinforcing frames, and a fixing seat is embedded between the two groups of adjusting frames, the upper end face of the fixing seat penetrates through the magnetic fixing device and is provided with a fixing column, and the fixing column is attached to the upper end face of the adjusting guide rod in a penetrating mode.

In the above technical scheme, preferably, a second connecting block extends from the front end face of the adjusting frame, and the end of the second connecting block is fixedly connected with the connecting pull rod.

Preferably, the front end face of the reinforcing frame extends to form a first connecting block, and the end part of the first connecting block is fixedly connected with the reinforcing support.

Preferably, a plurality of groups of adjusting holes are formed in the upper end face of the adjusting guide rod, and the fixing column is attached to the inside of one group of adjusting holes.

Preferably, the upper edge of the inside of the adjusting hole is provided with an inclined plane, and the upper end part of the fixing column is inlaid with a pull ring.

Preferably, a magnetic ring is embedded on the outer side of the fixing column and is adsorbed with the fixing seat.

Compared with the prior art, the utility model has the following beneficial effects: the platform main body can extend to the upper part of the salt pond through the pulling and supporting effects of the connecting pull rod and the reinforcing bracket, so that maintenance personnel can stand on the platform main body to maintain a circuit above the salt pond, the phenomenon that a scaffold frame needs to be moved in the salt pond first in the maintenance process is avoided, the maintenance convenience is improved, the inclination angles of the connecting pull rod and the reinforcing bracket can be reinforced through the matching between the reinforcing rod and the reinforcing frame and the matching between the adjusting guide rod and the adjusting frame, so that the platform main body cannot fall into the salt pond in the maintenance process, the operation safety is further ensured, meanwhile, through pulling the fixing column which is adsorbed and fixed by the magnetic ring, the fixing column is separated from the adjusting hole on the adjusting guide rod, the adjusting frame can be driven to move to slide on the adjusting guide rod, and the idler wheel on the platform seat rolls on the edge of the salt pond, the position of the platform main body is adjusted to meet the use requirement of the platform main body.

Drawings

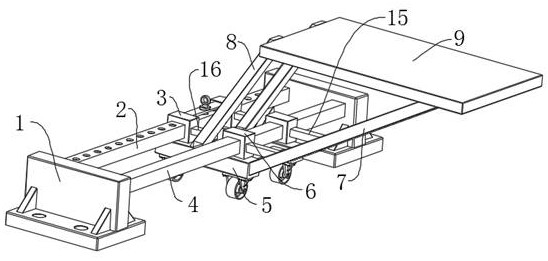

FIG. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a schematic view of the present invention at an adjustment block.

In the figure: 1. a bearing seat; 2. adjusting the guide rod; 3. an adjusting frame; 4. a reinforcing bar; 5. a platform base; 6. a reinforcing frame; 7. a reinforcing bracket; 8. connecting a pull rod; 9. a platform body; 10. a fixed seat; 11. fixing a column; 12. a magnetic ring; 13. an adjustment hole; 14. a pull ring; 15. a first connecting block; 16. and a second connecting block.

Detailed Description

In order that the above objects, features and advantages of the present invention can be more clearly understood, a more particular description of the utility model will be rendered by reference to the appended drawings.

In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and thus the present invention is not limited to the specific embodiments disclosed below.

As shown in fig. 1-2, the work platform for electric power line maintenance in a salt pond includes two sets of bearing seats 1, an adjusting guide rod 2 and a reinforcing rod 4 are respectively embedded between the two sets of bearing seats 1, the reinforcing rod 4 is located in front of the adjusting guide rod 2, two sets of adjusting frames 3 are attached to the outer surface of the adjusting guide rod 2, two sets of reinforcing frames 6 are attached to the outer surface of the reinforcing rod 4, platform seats 5 are respectively arranged below the adjusting guide rod 2 and below the reinforcing rod 4, two sets of connecting pull rods 8 and two sets of reinforcing brackets 7 are respectively extended obliquely from the upper end surface of the platform seat 5, the inclined angles of the connecting pull rods 8 and the reinforcing brackets 7 can be reinforced through the adjusting guide rod 2 and the reinforcing rod 4, the platform seat 5 plays a role in bearing the connecting pull rods 8 and the reinforcing brackets 7, and can be pressed on the ground to bear the adjusting guide rod 2 and the reinforcing rod 4, with the atress that reduces adjusting guide arm 2 and stiffener 4 to can utilize the gyro wheel of 5 bottoms of platform seat to reduce the frictional force with ground when platform main part 9 removes, so that promote, connect pull rod 8 and play the effect of carrying out the pulling to platform main part 9, strengthen support 7 and play the effect of carrying out the support to platform main part 9, bear seat 1 and can fix on the salt pond edge through expansion bolts.

Connecting rod 8 is located the rear of strengthening support 7, connecting rod 8's tip and the equal level of tip of strengthening support 7 are inlayed and are had platform main part 9, connecting rod 8 is connected with adjusting frame 3, adjusting frame 3's preceding terminal surface extends there is connecting block 16 No. two, connecting block 16's tip and connecting rod 8 fixed connection, strengthening support 7 is connected with strengthening frame 6, strengthening frame 6's preceding terminal surface extends there is connecting block 15 No. one, connecting block 15's tip and strengthening support 7 fixed connection, it has fixing base 10 to inlay between two sets of adjusting frame 3, connecting rod 8 and adjusting frame 3 are together fixed through connecting block 16 No. two that set up, connecting block 15 can be together fixed strengthening support 7 and strengthening frame 6.

The upper end face of fixing base 10 runs through magnetism fixed mounting and has fixed column 11, magnetic ring 12 has been inlayed in the outside of fixed column 11, magnetic ring 12 adsorbs with fixing base 10 mutually, fixed column 11 laminating runs through in the up end of adjusting guide 2, the up end of adjusting guide 2 has seted up multiunit regulation hole 13, fixed column 11 laminates in the inside of one of them group regulation hole 13, the inside top edge department of regulation hole 13 sets up to the inclined plane, the upper end of fixed column 11 is inlayed and is had pull ring 14, can fix fixing base 10 through the fixed column 11 that sets up, and then fix adjustment frame 3, make adjustment frame 3 unable slide, and then fix the position of platform main part 9, the inside top edge department of adjustment hole 13 sets up for the inclined plane can be convenient for fixed column 11 to get into, magnetic ring 12 plays and adsorbs fixed effect to fixed column 11.

When the device is used, the fixed columns 11 adsorbed and fixed by the magnetic rings 12 are pulled to separate the fixed columns 11 from the adjusting holes 13 on the adjusting guide rods 2, the adjusting frames 3 can be driven to move to slide on the adjusting guide rods 2, the rollers on the platform seat 5 roll along the sides of the salt pond at the moment to adjust the position of the platform main body 9, the platform main body 9 can be located in a maintenance area, a maintenance worker can stand on the platform main body 9 to maintain the circuit above the salt pond, in the maintenance process, the inclination angles of the connecting pull rod 8 and the reinforcing bracket 7 can be reinforced under the matching between the reinforcing rod 4 and the reinforcing frame 6 and the matching between the adjusting guide rods 2 and the adjusting frames 3, and then the platform main body 9 pulled and supported by the connecting pull rod 8 and the reinforcing bracket 7 is reinforced, so that the platform main body 9 cannot fall into the salt pond in the maintenance process, thereby ensuring the operation safety.

In the present invention, the terms "mounting," "connecting," "fixing," and the like are used in a broad sense, for example, "connecting" may be a fixed connection, a detachable connection, or an integral connection; may be directly connected or indirectly connected through an intermediate. The specific meanings of the above terms in the present invention can be understood by those skilled in the art according to specific situations.

In the description herein, the appearances of the phrases "one embodiment," "some embodiments," "a specific embodiment," or the like, in various places throughout this specification are not necessarily all referring to the same embodiment or example, but rather to the same embodiment or example. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, which are merely illustrative of the principles of the utility model, but that various changes and modifications may be made without departing from the spirit and scope of the utility model, which fall within the scope of the utility model as claimed. The scope of the utility model is defined by the appended claims and equivalents thereof.

Claims

1. A work platform that is arranged in electric power circuit of salt pond to overhaul, its characterized in that, including two sets of bearing seat (1), it is two sets of bear and inlay respectively between seat (1) and have regulation guide arm (2) and stiffener (4), stiffener (4) are located the place ahead of adjusting guide arm (2), the surface laminating of adjusting guide arm (2) is installed two sets of regulation frame (3), the surface laminating of stiffener (4) is installed two sets of stiffeners (6), the below of adjusting guide arm (2) and the below of stiffener (4) all are provided with platform seat (5), the up end of platform seat (5) inclines respectively to extend has two sets of connecting pull rod (8) and two sets of reinforcing frame (7), connecting pull rod (8) are located the rear of reinforcing frame (7), the equal level of tip of connecting pull rod (8) and the tip of reinforcing frame (7) is inlayed and is had platform main part (9), connecting rod (8) are connected with adjusting frame (3), strengthen support (7) and strengthen frame (6) and be connected, two sets of it has fixing base (10) to inlay between adjusting frame (3), the up end of fixing base (10) runs through magnetism fixed mounting and has fixed column (11), fixed column (11) laminating runs through in the up end of adjusting guide arm (2).

2. The work platform for electric line maintenance in a salt pond according to claim 1, characterized in that a second connecting block (16) extends from the front end face of the adjusting frame (3), and the end of the second connecting block (16) is fixedly connected with the connecting pull rod (8).

3. The work platform for electric line maintenance in a salt pond according to claim 1, characterized in that a first connecting block (15) extends from the front end face of the reinforcing frame (6), and the end of the first connecting block (15) is fixedly connected with the reinforcing bracket (7).

4. The work platform for electric power line maintenance in a salt pond according to claim 1, wherein a plurality of groups of adjusting holes (13) are formed in the upper end face of the adjusting guide rod (2), and the fixing column (11) is attached to the inside of one group of adjusting holes (13).

5. The work platform for power line maintenance in a salt pond as claimed in claim 4, characterized in that the upper edge of the inside of the adjusting hole (13) is provided with an inclined surface, and the upper end of the fixed column (11) is embedded with a pull ring (14).

6. The work platform for power line maintenance in a salt pond as claimed in claim 1, wherein a magnetic ring (12) is embedded on the outer side of the fixed column (11), and the magnetic ring (12) is adsorbed with the fixed seat (10).
