Abstract

The utility model discloses a glass laminate LED lamp which comprises an outer shell, two lamp panels and light-passing boards, wherein the outer shell is provided with accommodating grooves, the two side walls of each lamp panel are provided with inserting blocks, and the lamp panels are embedded in the accommodating grooves. According to the glass laminate LED lamp, the clamping plates are outwards unfolded, the glass plates are placed between the clamping plates, the tightening springs drive the movable blocks to be matched with the connecting rods to enable the two clamping plates to oppositely clamp the glass plates, the glass plates with different thicknesses can be conveniently installed according to actual use conditions, the lamp plates are taken out of the accommodating grooves and can be overhauled and maintained, on the contrary, the inserting blocks on the lamp plates with the light-passing plates installed are inserted into the inserting grooves in the shell, the clamping plates are outwards unfolded, the glass plates are placed between the clamping plates at the moment, the tightening springs drive the movable blocks to be matched with the connecting rods to enable the two clamping plates to oppositely clamp the glass plates, and therefore the glass laminate LED lamp can be rapidly assembled, and the practicability is improved.

Description

Glass laminate LED lamp

Technical Field

The utility model relates to the technical field of lamps, in particular to a glass laminate LED lamp.

Background

Along with the improvement of people's standard of living, people also are higher and higher to the requirement of fitment at home, in the illumination, people not only satisfied in the practicality of illumination lamps and lanterns, still often explain how to hide better the illumination lamps and lanterns to make lamps and lanterns can also satisfy other demands when the illumination, should bring about based on this glass laminate lamp.

The glass plate lamp of current can't adapt to the glass board of multiple thickness size when the installation, leads to the shell body of difference that needs to be changed when installing different thickness glass boards, has improved manufacturing cost, and the quick assembly of current glass plate lamp also is not convenient for moreover dismantles, influences the maintenance in later stage.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the defects in the prior art and provides a glass laminate LED lamp.

In order to achieve the purpose, the utility model adopts the following technical scheme: a glass laminate LED lamp comprises an outer shell, a lamp panel and a light-transmitting plate;

the clamping device comprises an outer shell and a clamping plate, wherein two outer shells are arranged, an accommodating groove is formed in each outer shell, two opposite side walls in each accommodating groove are provided with inserting grooves, the top and the bottom of each outer shell are respectively provided with a groove, the clamping plate is movably embedded in each groove, an installing groove is formed in each outer shell, a fixed block is arranged in the middle of each installing groove, the upper surface and the lower surface of each fixed block are fixedly connected with a tightening spring, the other end of each tightening spring is fixedly connected with a movable block, the other end of each movable block is provided with a connecting rod, and the other end of each connecting rod penetrates through each outer shell and is fixedly connected to the lower surface of each clamping plate;

all be provided with the inserted block on width direction's the both sides wall is followed to the lamp plate, the lamp plate passes through the inserted block and cooperates and the lamp plate inlays with the slot plug bush and establishes in the holding tank, the terminal fixed mounting of both sides wall of lamp plate has the light-passing board.

Preferably, rubber anti-slip pads are arranged on one side face opposite to the clamping plate.

Preferably, the top of lamp plate is equidistant to be provided with a plurality of bulb.

Preferably, the outer diameter of the light-transmitting plate is smaller than the inner diameter of the accommodating groove.

Preferably, a glass plate is arranged between the two outer shells through a clamping plate.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the glass laminate LED lamp, the clamping plate is unfolded outwards, the glass plate is taken out of the clamping plate firstly, the lamp plate is taken out of the containing groove at the moment, the lamp plate can be maintained, on the contrary, the inserting block on the lamp plate with the light-passing plate installed is inserted into the inserting groove in the outer shell, the clamping plate is unfolded outwards, the glass plate is placed between the clamping plates at the moment, the tightening spring drives the movable block to match with the connecting rod, so that the two clamping plates clamp the glass plate oppositely, and the glass laminate LED lamp can be assembled quickly.

Drawings

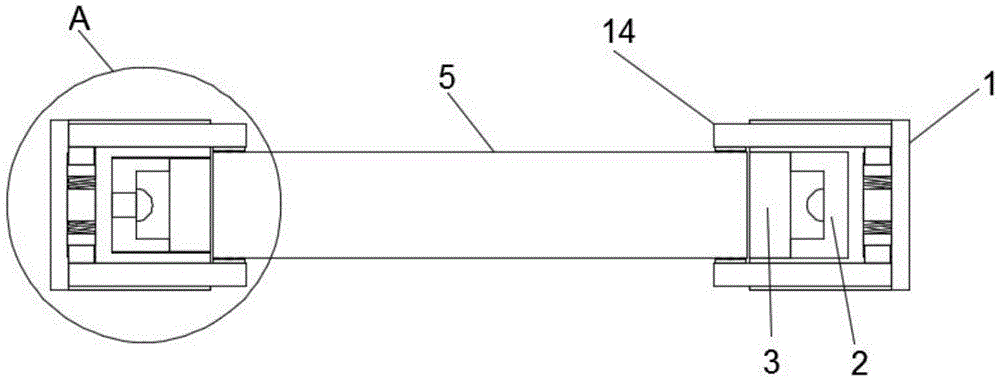

FIG. 1 is a cross-sectional view of a glass laminate LED lamp according to the present invention;

FIG. 2 is a perspective view of a glass laminate LED lamp according to the present invention;

FIG. 3 is a front view of a glass laminate LED lamp according to the present invention;

fig. 4 is an enlarged view of a structure a in fig. 1.

Illustration of the drawings:

1. an outer housing; 11. accommodating grooves; 12. a slot; 13. a groove; 14. a clamping plate; 15. mounting grooves; 16. a fixed block; 17. tightening the spring; 18. a movable block; 19. a connecting rod; 2. a lamp panel; 21. inserting a block; 22. a bulb; 3. a light-transmitting plate; 4. a rubber non-slip mat; 5. a glass plate.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

Referring to fig. 1-4, a glass laminate LED lamp includes an outer shell 1, a lamp panel 2 and a light-transmitting plate 3;

two outer shells 1 are arranged, two holding grooves 11 are arranged on the outer shells 1, two opposite side walls in the holding grooves 11 are provided with slots 12, the top and the bottom of each outer shell 1 are provided with grooves 13, clamping plates 14 are movably embedded in the grooves 13, a mounting groove 15 is arranged in each outer shell 1, a fixed block 16 is arranged in the middle of each mounting groove 15, tightening springs 17 are fixedly connected to the upper and the lower surfaces of the fixed blocks 16, the other ends of the tightening springs 17 are fixedly connected with movable blocks 18, the other ends of the movable blocks 18 are provided with connecting rods 19, the other ends of the connecting rods 19 penetrate through the outer shells 1 and are fixedly connected to the lower surfaces of the clamping plates 14, when glass plates 5 with different thicknesses are mounted, the clamping plates 14 are outwards spread, at the moment, the glass plates 5 are placed between the clamping plates 14, the tightening springs 17 drive the movable blocks 18 to be matched with the connecting rods 19 to enable the two clamping plates 14 to oppositely clamp the glass plates 5, the glass plate 5 with different thicknesses can be conveniently mounted according to actual use conditions;

all be provided with inserted block 21 on lamp plate 2 along width direction's the both sides wall, lamp plate 2 inlays through inserted block 21 and slot 12 plug bush cooperation and lamp plate 2 and establishes in holding tank 11, the terminal fixed mounting in both sides wall of lamp plate 2 has light-passing board 3, in the slot 12 on the lamp plate 2 plug bush income shell body 1 that will install light-passing board 3, outwards strut grip block 14, put into between the grip block 14 with glass board 5 this moment, tighten up spring 17 and drive 18 cooperation connecting rods 19 of movable block and make two grip blocks 14 press from both sides tight glass board 5 relatively, alright fast assembly glass plywood LED lamp.

The rubber anti-slip pads 4 are arranged on the opposite side surfaces of the clamping plates 14 to prevent the glass plates 5 from falling off.

The equidistant a plurality of bulb 22 that is provided with in top of lamp plate 2, the external diameter of light-passing board 3 is less than the internal diameter of holding tank 11, and light just can reach actual bandwagon effect in passing through 3 refractions of light-passing board and advancing glass board 5.

A glass plate 5 is provided between the two outer cases 1 via a clamping plate 14.

The working principle is as follows: this a glass plywood LED lamp during use, when installing the glass board 5 of different thickness, outwards strut grip block 14, put into between grip block 14 with glass board 5 this moment, it makes two grip block 14 press from both sides tight glass board 5 relatively to tighten up spring 17 and drive movable block 18 cooperation connecting rod 19, be convenient for install according to the glass board 5 that the in-service use condition is applicable to different thickness, strut grip block 14 outwards earlier take out glass board 5 from grip block 14, take out lamp plate 2 from accommodating groove 11 this moment, alright overhaul and maintain it, on the contrary, in inserting block 21 plug bush on the lamp plate 2 that will install light-passing board 3 enters slot 12 on the shell body 1, strut grip block 14 outwards, put into between grip block 14 with glass board 5 this moment, it drives movable block 18 cooperation connecting rod 19 and makes two grip block 14 press from both sides tight glass board 5 relatively to tighten up spring 17, alright fast assembly glass plywood LED lamp.

The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.

Claims (5)

1. A glass laminate LED lamp is characterized by comprising an outer shell (1), a lamp panel (2) and a light-transmitting plate (3);

the two outer shells (1) are provided, the outer shell (1) is provided with two accommodating grooves (11), two opposite side walls in the accommodating grooves (11) are provided with inserting grooves (12), the top and the bottom of the outer shell (1) are provided with grooves (13), the grooves (13) are movably embedded with clamping plates (14), the outer shell (1) is internally provided with an installing groove (15), the middle part of the installing groove (15) is provided with a fixed block (16), the upper surface and the lower surface of the fixed block (16) are fixedly connected with tightening springs (17), the other ends of the tightening springs (17) are fixedly connected with movable blocks (18), the other ends of the movable blocks (18) are provided with connecting rods (19), and the other ends of the connecting rods (19) penetrate through the outer shell (1) and are fixedly connected to the lower surfaces of the clamping plates (14);

all be provided with inserted block (21) on lamp plate (2) along width direction's the both sides wall, lamp plate (2) are inlayed through inserted block (21) and slot (12) plug bush cooperation and lamp plate (2) and are established in holding tank (11), the terminal fixed mounting of both sides wall of lamp plate (2) has light-passing board (3).

2. A glass-laminate LED lamp as claimed in claim 1, wherein said clamping plates (14) are provided on opposite sides with rubber non-slip pads (4).

3. A glass laminate LED lamp as claimed in claim 1, wherein a plurality of bulbs (22) are provided at equal intervals on the top of the lamp panel (2).

4. A glass-laminate LED lamp as claimed in claim 1, wherein the outer diameter of the light-transmitting plate (3) is smaller than the inner diameter of the receiving groove (11).

5. A glass-laminate LED lamp as claimed in claim 1, characterized in that a glass plate (5) is arranged between the two outer housings (1) by means of a clamping plate (14).
