CN216473985U

CN216473985U - Dyeing liquor preparation and modulation device based on dip dyeing

Info

Publication number: CN216473985U
Application number: CN202123095938.0U
Authority: CN
Inventors: 高国建; 黄战伟; 俞海峰
Original assignee: Hangzhou Dongjiahong Industrial Co ltd
Current assignee: Hangzhou Dongjiahong Industrial Co ltd
Priority date: 2021-12-10
Filing date: 2021-12-10
Publication date: 2022-05-10
Anticipated expiration: 2031-12-10

Abstract

The utility model discloses a dyeing is joined in marriage liquid modulating device based on dip-dye, including allotment case body, one side fixed mounting of allotment case body inner chamber has the water storage tank, and the top fixed mounting of allotment case body inner chamber has the PLC controller, the utility model relates to a dyeing is joined in marriage liquid modulation technical field. Through setting up an automatic modulating mechanism, respectively at the water storage tank, add water and raw materials in the medicine storage tube, and let in to the agitator tank, the rabbling mechanism in the agitator tank stirs it this moment, after the stirring, open the third control valve, the dyeing is joined in marriage the liquid and is stored in getting into the storage box, gravity induction system detects to bear the gravity decline this moment, spread signal to PLC controller, the first control valve second control valve is controlled respectively to the PLC controller, and open, let in raw materials and water in the agitator tank again this moment, do so and do not need the manual work to allocate raw materials and water, the time is saved, staff's work efficiency has been improved greatly.

Description

Dyeing liquor preparation and modulation device based on dip dyeing

Technical Field

The utility model relates to a liquid modulation technical field is joined in marriage in the dyeing, specifically is a liquid modulating device is joined in marriage in dyeing based on dip-dye.

Background

Textile fabrics on the market at present have different colors, the initial fabrics are dyed by contacting with dyeing solutions with different colors, the dyeing solutions with different colors need to be prepared by using different types of raw materials, and a special preparation device needs to be used during preparation.

Present blending device is after the modulation, need the manual work to mix raw materials and water according to certain proportion earlier, stir after the mixing, thereby obtain dyeing and join in marriage the liquid, it is very troublesome to place raw materials and water manually, needs the staff to stay by the modulation device, has consumed a large amount of times of staff, has reduced staff's efficiency, secondly, current agitating unit can not be fine mix raw materials and water, thereby the dyeing that leads to producing is joined in marriage the liquid and is not possessed fine dyeing function.

SUMMERY OF THE UTILITY MODEL

The utility model is not enough to prior art, the utility model provides a dyeing is joined in marriage liquid modulating device based on dip-dye, current blending device has been solved after the modulation, need the manual work mix raw materials and water according to certain proportion earlier, stir after the mixing, thereby obtain the dyeing and join in marriage liquid, it is very troublesome that the raw materials is placed with water to the manual work, it is other at modulating device to need the staff to stay, a large amount of time of staff has been consumed, staff's efficiency has been reduced, secondly, current agitating unit can not be fine mix raw materials and water, thereby the dyeing that leads to producing is joined in marriage liquid and is not possessed the problem of fine dyeing function.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: dyeing liquid preparation modulating device based on dip-dyeing, including the allotment case body, one side fixed mounting of allotment case body inner chamber has the water storage tank, the top fixed mounting of allotment case body inner chamber has the PLC controller, the opposite side of allotment case body inner chamber is fixed with the medicine memotron, the bottom fixed mounting of water storage tank has first control valve, the bottom fixed mounting of medicine memotron has the second control valve, the middle part fixed mounting of allotment case body inner chamber has the agitator tank, the bottom of agitator tank is inlayed and is installed gravity induction system, the bottom fixed mounting of allotment case body inner chamber has box in storing, one side fixed mounting of box has the third control valve in storing.

Preferably, one side fixed mounting of agitator tank inner chamber has the protection box, one side fixed mounting of protection box inner chamber has first driving motor, first driving motor's output has the driving gear through shaft coupling fixed mounting, driven gear has all been cup jointed in the activity of the upper and lower both sides of driving gear, one side fixed mounting of driving gear has the second rotation axis, the equal fixed mounting in the upper and lower both sides of second rotation axis has stirring fan blade, one side fixed mounting of driven gear has first rotation axis, the inner chamber of first rotation axis is fixed and is cup jointed the drive case.

Preferably, the upper side and the lower side of the inner cavity of the driving box are fixedly provided with second driving motors, the output ends of the second driving motors are fixedly provided with third rotating shafts through couplers, and the left side and the right side of each third rotating shaft are fixedly provided with stirring blades.

Preferably, a display instrument is fixedly mounted on one side of the blending box body, a supporting seat is fixedly mounted at the bottom of the blending box body, and a control panel is fixedly mounted on the outer surface of the blending box body.

Preferably, one side fixed mounting of medicine storage tube has a solid fixed splint, and its material is iron material.

Preferably, the output end of the gravity sensing device is electrically connected with the input end of the PLC through a signal transmission wire, and the input end of the PLC is electrically connected with the input end of the first control valve through a signal transmission wire.

Advantageous effects

The utility model provides a dyeing is joined in marriage liquid modulating device based on dip-dyeing. Compared with the prior art, the method has the following beneficial effects:

(1) this liquid modulating device is joined in marriage in dyeing based on dip-dye, through setting up an automatic modulating mechanism, respectively at the water storage tank, add water and raw materials in the medicine storage tube, and let in to the agitator tank, the rabbling mechanism in the agitator tank stirs it this moment, after the stirring, open the third control valve, the liquid is joined in marriage in the entering storage box of dyeing and is stored, gravity induction system detects to bear the gravity decline this moment, spread signal to PLC controller, PLC controller controls first control valve second control valve respectively, and open, let in raw materials and water in the agitator tank again this moment, do so and do not need the manual work to allocate raw materials and water, the time is saved, staff's work efficiency has been improved greatly.

(2) This liquid modulating device is joined in marriage in dyeing based on dip-dye, through setting up a novel rabbling mechanism, after letting in raw materials and water in the agitator tank, the first driving motor of protection box inner chamber begins work this moment, it is rotatory to drive the driving gear, it is rotatory to drive driven gear when the driving gear is rotatory, the driving gear also drives stirring fan acanthus leaf equally and stirs raw materials and water, driven gear is rotatory also can drive first rotation axis rotation simultaneously, second driving motor can drive the stirring acanthus leaf and rotate in the drive box of first rotation axis inner chamber, make and to stir on the horizontal direction, thereby make the more abundant of stirring, it can not be fine to mix raw materials and water to have solved current agitating unit like this, thereby the dyeing that leads to produce is joined in marriage the liquid and is not possessed the problem of fine dyeing function.

Drawings

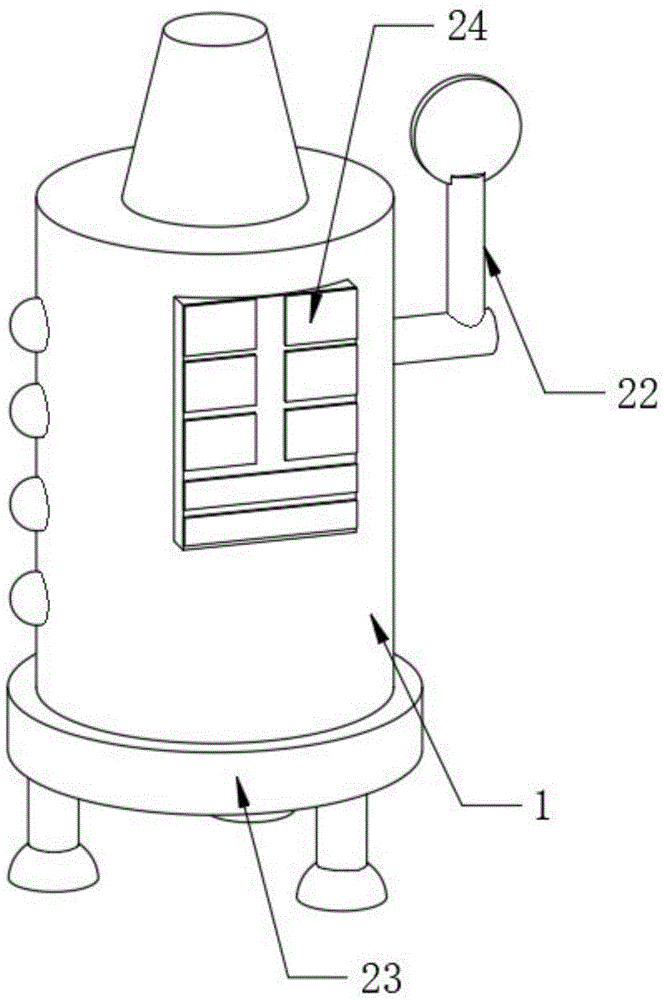

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the inner structure of the brewing box of the present invention;

FIG. 3 is a schematic view of the internal structure of the stirring tank of the present invention;

fig. 4 is a schematic diagram of the internal structure of the middle driving box of the present invention.

In the figure: 1. a blending box body; 2. a water storage tank; 3. a PLC controller; 4. a drug storage tube; 5. a first control valve; 6. a second control valve; 7. a stirring box; 8. a gravity sensing device; 9. a third control valve; 10. storing the inner box; 11. a protective case; 12. a first drive motor; 13. a driving gear; 14. a driven gear; 15. a first rotating shaft; 16. a drive box; 17. a second rotation shaft; 18. stirring the fan blade plate; 19. a second drive motor; 20. a third rotation axis; 21. stirring the blade plate; 22. a display instrument; 23. a supporting seat; 24. a control panel.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a dyeing liquid preparation device based on dip dyeing comprises a preparation box body 1, a water storage tank 2 is fixedly installed on one side of an inner cavity of the preparation box body 1, a PLC controller 3 is fixedly installed on the top of the inner cavity of the preparation box body 1, a medicine storage tube 4 is fixedly installed on the other side of the inner cavity of the preparation box body 1, a first control valve 5 is fixedly installed on the bottom of the water storage tank 2, a second control valve 6 is fixedly installed on the bottom of the medicine storage tube 4, a stirring box 7 is fixedly installed in the middle of the inner cavity of the preparation box body 1, a gravity sensing device 8 is embedded and installed on the bottom of the stirring box 7, an inner storage box 10 is fixedly installed on the bottom of the inner cavity of the preparation box body 1, a third control valve 9 is fixedly installed on one side of the inner storage box 10, a display 22 is fixedly installed on one side of the preparation box body 1, and a supporting seat 23 is fixedly installed on the bottom of the preparation box body 1, the outer fixed surface of allotment case body 1 installs control panel 24, and one side fixed mounting of medicine storage tube 4 has solid fixed splint, and its material is the iron material, and the output of gravity induction system 8 passes through signal transmission wire and PLC controller 3's input electric connection, and PLC controller 3's input passes through signal transmission wire and the input electric connection of first control valve 5.

During the use, through setting up an automatic modulating mechanism, respectively at water storage tank 2, add water and raw materials in medicine storage tube 4, and let in 7 agitator tanks, the rabbling mechanism in 7 agitator tanks stirs it this moment, after the stirring, open third control valve 9, the dyeing is joined in marriage the liquid and is got into and store in box 10, gravity induction system 8 detects to bear the gravity decline this moment, spread signal to PLC controller 3, PLC controller 3 controls 5 second control valves 6 of first control valve respectively, and open, let in raw materials and water in 7 agitator tanks again this moment, do so and do not need the manual work to allocate raw materials and water, the time is saved, staff's work efficiency has been improved greatly.

Referring to fig. 3-4, a protection box 11 is fixedly mounted on one side of an inner cavity of the stirring box 7, a first driving motor 12 is fixedly mounted on one side of the inner cavity of the protection box 11, a driving gear 13 is fixedly mounted at an output end of the first driving motor 12 through a coupler, driven gears 14 are movably sleeved on upper and lower sides of the driving gear 13, a second rotating shaft 17 is fixedly mounted on one side of the driving gear 13, stirring vane plates 18 are fixedly mounted on upper and lower sides of the second rotating shaft 17, a first rotating shaft 15 is fixedly mounted on one side of the driven gear 14, a driving box 16 is fixedly sleeved in an inner cavity of the first rotating shaft 15, second driving motors 19 are fixedly mounted on upper and lower sides of an inner cavity of the driving box 16, a third rotating shaft 20 is fixedly mounted at an output end of the second driving motor 19 through a coupler, and stirring vane plates 21 are fixedly mounted on left and right sides of the third rotating shaft 20.

During the use, through setting up a novel rabbling mechanism, after letting in raw materials and water in 7 to the agitator tank, the first driving motor 12 of 11 inner chambers of protection box begins to work this moment, it rotates to drive driving gear 13, it is rotatory to drive driven gear 14 when driving gear 13 is rotatory, driving gear 13 also drives stirring fan paddle 18 and stirs raw materials and water equally, driven gear 14 is rotatory also can drive first rotation axis 15 rotatory simultaneously, second driving motor 19 can drive stirring paddle 21 and rotate in the drive box 16 of 15 inner chambers of first rotation axis, make and to stir on the horizontal direction, thereby make the more abundant of stirring, it can not be fine to mix raw materials and water to have solved current agitating unit like this, thereby lead to the dyeing that produces to join in marriage the problem that the liquid does not possess fine dyeing function.

And those not described in detail in this specification are well within the skill of those in the art.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. Dyeing liquid preparation modulating device based on dip-dyeing, including allotment box body (1), one side fixed mounting of allotment box body (1) inner chamber has water storage tank (2), the top fixed mounting of allotment box body (1) inner chamber has PLC controller (3), the fixed ann of opposite side of allotment box body (1) inner chamber has medicine storage tube (4), its characterized in that: the bottom fixed mounting of water storage tank (2) has first control valve (5), the bottom fixed mounting of medicine storage tube (4) has second control valve (6), the middle part fixed mounting of allotment box body (1) inner chamber has agitator tank (7), the bottom of agitator tank (7) is inlayed and is installed gravity induction system (8), box (10) in the bottom fixed mounting of allotment box body (1) inner chamber stores, one side fixed mounting of box (10) has third control valve (9) in the storage.

2. The dip-dyeing-based dyeing liquor preparation device according to claim 1, characterized in that: one side fixed mounting of agitator tank (7) inner chamber has protection box (11), one side fixed mounting of protection box (11) inner chamber has first driving motor (12), the output of first driving motor (12) has driving gear (13) through shaft coupling fixed mounting, driven gear (14) have been cup jointed in the equal activity in upper and lower both sides of driving gear (13), one side fixed mounting of driving gear (13) has second rotation axis (17), the equal fixed mounting in upper and lower both sides of second rotation axis (17) has stirring flabellum (18), one side fixed mounting of driven gear (14) has first rotation axis (15), drive tank (16) have been cup jointed to the inner chamber of first rotation axis (15) is fixed.

3. The dip-dyeing-based dyeing liquor preparation device according to claim 2, characterized in that: the equal fixed mounting in upper and lower both sides of drive case (16) inner chamber has second driving motor (19), the output of second driving motor (19) has third rotation axis (20) through shaft coupling fixed mounting, the equal fixed mounting in the left and right sides of third rotation axis (20) has stirring vane (21).

4. The dip-dyeing-based dyeing liquor preparation device according to claim 1, characterized in that: one side fixed mounting of allotment case body (1) has display instrument (22), the bottom fixed mounting of allotment case body (1) has supporting seat (23), the surface fixed mounting of allotment case body (1) has control panel (24).

5. The dip-dyeing-based dyeing liquor preparation device according to claim 1, characterized in that: one side fixed mounting of medicine storage tube (4) has the solid fixed splint, and its material is iron material.

6. The dip-dyeing-based dyeing liquor preparation device according to claim 1, characterized in that: the output end of the gravity sensing device (8) is electrically connected with the input end of the PLC (3) through a signal transmission wire, and the input end of the PLC (3) is electrically connected with the input end of the first control valve (5) through a signal transmission wire.
