Abstract
The utility model belongs to the technical field of the three-phase separating centrifuge, especially, be a kitchen garbage squeezes liquid three-phase separating centrifuge anti-freezing system, including separating centrifuge rotary drum body and hot air device, main housing has been cup jointed in the surface activity of separating centrifuge rotary drum body, and the housing rear end plate in separating centrifuge rotary drum body surface left end is cup jointed in the left surface fixed mounting of main housing activity, and the housing front end plate of separating centrifuge rotary drum body surface right-hand member has been cup jointed in the right side fixed mounting of main housing activity, and the equal fixed mounting in both ends has the activity to cup joint the baffle at both ends about separating centrifuge rotary drum body surface about main housing inner chamber side. The utility model discloses a setting of housing front end plate, main housing and baffle can play the effect of intensification to separator rotary drum body, lets separator rotary drum body can carry out the promotion of temperature at the in-process that carries out high-speed rotation, can not be because of the too fast unable heat treatment that heats of rotational speed to this anti-freezing system's practicality has been improved.
Description
Technical Field
The utility model relates to a three-phase separation machine technical field especially relates to a kitchen garbage squeezes liquid three-phase separation machine anti-freezing system.
Background
The kitchen waste squeezing liquid oil, water and slag three-phase separation mostly adopts a horizontal spiral sedimentation centrifuge, the three-phase centrifuge can carry out effective separation treatment on the kitchen waste, and when the kitchen waste is separated, the three-phase centrifuge is not provided with a heating structure, so that the temperature of the machine body is too low, and the machine body is easy to block the machine body.
However, in the prior art, when the machine works in winter, the temperature of a rotary drum of the three-phase separator is low, oil to be separated in squeezed liquid in the rotary drum is condensed and is adhered to the inner wall of the rotary drum, a spiral shaft and spiral blades together with slag, gravity settling separation cannot be realized, and particularly when the temperature of the rotary drum is lower than an icing temperature, water in the rotary drum is frozen and frozen when meeting the inner wall of the rotary drum, the spiral shaft, the spiral blades and a pipeline, so that the separation method works, kitchen waste treatment is forced to stop production, and the consequence is serious, therefore, the anti-freezing system of the three-phase separator for the kitchen waste squeezed liquid is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an anti-freezing system of a three-phase separator for kitchen waste squeezing liquid.
In order to achieve the above purpose, the utility model adopts the following technical scheme: an anti-freezing system of a three-phase separator for kitchen waste squeezing liquid comprises a separator drum body and a hot air device, wherein a main housing is movably sleeved on the outer surface of the separator drum body, a housing rear end plate movably sleeved at the left end of the outer surface of the separator drum body is fixedly installed on the left side surface of the main housing, a housing front end plate movably sleeved at the right end of the outer surface of the separator drum body is fixedly installed on the right side surface of the main housing, partition plates movably sleeved at the left end and the right end of the outer surface of the separator drum body are fixedly installed at the left end and the right end of the side surface of an inner cavity of the main housing, a temperature controller is fixedly installed on the top surface of the hot air device, the output end of the temperature controller is fixedly connected with the right end of the bottom surface of the main housing, a fresh air compensator is fixedly connected with the bottom end of the left side surface of the hot air device, and an air return pipe is fixedly communicated with the input end of the hot air device, the hot air device is characterized in that an output end of the hot air device is fixedly communicated with an air supply pipe, the other end of the air supply pipe is fixedly communicated with an air distribution pipe, the other end of the air distribution pipe is fixedly communicated with an air distribution nozzle, the bottom end of the air distribution nozzle penetrates through the top surface of the main housing and extends to the lower portion of the top surface of the inner cavity of the main housing, and a feeding pipe is fixedly communicated with the right end of the separator drum body.
Preferably, the left end of main housing bottom surface is fixed the intercommunication and is had the pipe of slagging tap, the fixed intercommunication of right-hand member of main housing bottom surface has an oil pipe, the bottom mounting intercommunication of inlet pipe surface has the outlet pipe.
Preferably, the middle part of the side surface of the rear end plate of the housing is provided with a first bearing sleeve hole, the middle part of the side surface of the front end plate of the housing is provided with a second bearing sleeve hole, the size and the shape of the first bearing sleeve hole are matched with the size and the shape of the left end of the outer surface of the separator drum body, and the size and the shape of the second bearing sleeve hole are matched with the size and the shape of the right end of the outer surface of the separator drum body.
Preferably, a driving motor is arranged at the left end of the separator drum body, supporting frames are mounted at the left end and the right end of the separator drum body, a communicating hole is formed in the middle of the bottom surface of the main housing, and the size and the shape of the communicating hole are matched with those of the top of the return air pipe.
Preferably, the number of the air distribution nozzles is four, the four air distribution nozzles are uniformly fixed on the top surface of the main housing in a distributing manner, the top surface of the main housing is provided with a through hole, and the size and the shape of the through hole are matched with those of the air distribution nozzles.
Preferably, the bottom end of the outer surface of the air distribution pipe is provided with a limiting hole, and the size and the shape of the limiting hole are matched with those of the top end of the air distribution nozzle.
Compared with the prior art, the beneficial effects of the utility model are that: at first, the device can play the effect of intensification to separator rotary drum body through the setting of housing front end plate, main housing and baffle, lets separator rotary drum body carry out the promotion of temperature at the in-process that carries out high-speed rotation, can not be because of the too fast unable heat treatment that heats of rotational speed to this anti-freezing system's practicality has been improved.
The utility model is simple in operation, convenient to use, through the setting of main housing, utilize the setting of hot-blast apparatus, return air duct, blast pipe, gas-distributing pipe and minute wind nozzle, can carry out convenient installation to the surface of separator rotary drum body, need not to carry out holistic dismantlement to separator rotary drum body for this anti-freezing system is convenient for carry out the suit and dismantle at the surface of separator rotary drum body, thereby has improved the suitability of this anti-freezing system.
Drawings

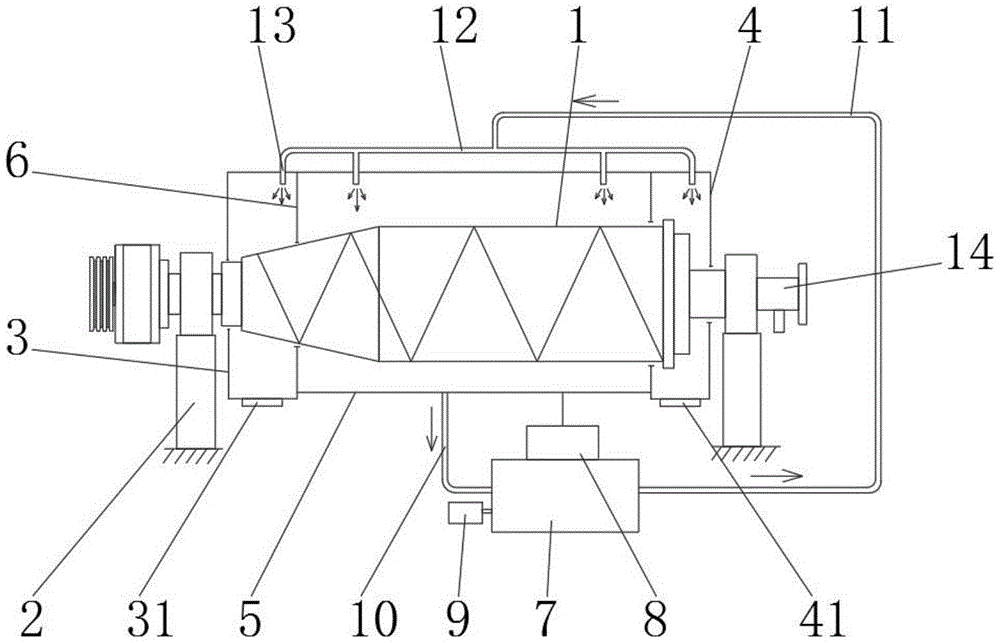

FIG. 1 is a front sectional view of the overall structure of the present invention;
fig. 2 is an overall structure front view of the present invention.
In the figure: 1. a separator drum body; 2. a support frame; 3. a housing rear end plate; 31. a slag pipe; 4. a front end plate of the housing; 41. an oil outlet pipe; 5. a main housing; 6. a partition plate; 7. a hot air device; 8. a temperature controller; 9. a fresh air compensator; 10. a return air duct; 11. an air supply pipe; 12. a gas distributing pipe; 13. a wind distributing nozzle; 14. a feed pipe; 141. and (5) discharging a water pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present invention provides a technical solution: an anti-freezing system of a three-phase separator for kitchen waste squeezing liquid comprises a separator rotary drum body 1 and a hot air device 7, wherein a main housing 5 is movably sleeved on the outer surface of the separator rotary drum body 1, a housing rear end plate 3 movably sleeved at the left end of the outer surface of the separator rotary drum body 1 is fixedly installed on the left side surface of the main housing 5, a housing front end plate 4 movably sleeved at the right end of the outer surface of the separator rotary drum body 1 is fixedly installed on the right side surface of the main housing 5, partition plates 6 movably sleeved at the left end and the right end of the outer surface of the separator rotary drum body 1 are fixedly installed at the left end and the right end of the inner cavity side surface of the main housing 5, a temperature controller 8 is fixedly installed on the top surface of the hot air device 7, the output end of the temperature controller 8 is fixedly connected with the right end of the bottom surface of the main housing 5, a fresh air compensator 9 is fixedly connected at the bottom end of the left side surface of the hot air device 7, and an air return pipe 10 is fixedly connected with the input end of the hot air device 7, the output end of the hot air device 7 is fixedly communicated with an air supply pipe 11, the other end of the air supply pipe 11 is fixedly communicated with an air distribution pipe 12, the other end of the air distribution pipe 12 is fixedly communicated with an air distribution nozzle 13, the bottom end of the air distribution nozzle 13 penetrates through the top surface of the main housing 5 and extends to the lower part of the top surface of the inner cavity of the main housing 5, and the right end of the separator drum body 1 is fixedly communicated with a feeding pipe 14;
the left end of the bottom surface of the main housing 5 is fixedly communicated with a slag discharge pipe 31, the right end of the bottom surface of the main housing 5 is fixedly communicated with an oil outlet pipe 41, the bottom end of the outer surface of the feeding pipe 14 is fixedly communicated with a water outlet pipe 141, the communication between the slag discharge pipe 31 and the oil outlet pipe 41 can be used for separately discharging oil residues after kitchen waste treatment, and the arrangement of the water outlet pipe 141 can be used for discharging water in the kitchen waste;
the middle part of the side surface of the housing rear end plate 3 is provided with a first bearing sleeve hole, the middle part of the side surface of the housing front end plate 4 is provided with a second bearing sleeve hole, the size and the shape of the first bearing sleeve hole are matched with the size and the shape of the left end of the outer surface of the separator drum body 1, the size and the shape of the second bearing sleeve hole are matched with the size and the shape of the right end of the outer surface of the separator drum body 1, and the main housing 5 cannot be driven to rotate along with the first bearing hole and the second bearing hole in the rotating process of the separator drum body 1, so that the air distribution nozzle 13 can uniformly heat the outer surface of the separator drum body 1;
the left end of the separator drum body 1 is provided with a driving motor, the left end and the right end of the separator drum body 1 are both provided with supporting frames 2, the middle part of the bottom surface of the main housing 5 is provided with a communicating hole, the size and the shape of the communicating hole are matched with the size and the shape of the top of the return air pipe 10, the driving motor can drive the separator drum body 1 to rotate, the communicating hole is formed to enable air inside the main housing 5 to be guided into the hot air device 7 through the return air pipe 10 and then heated again, the temperature of the air inside the main housing 5 is higher than that of the air outside according to the temperature inside the main housing 5, and the hot air device 7 can heat the air guided out by the return air pipe 10 more quickly;
the number of the air distribution nozzles 13 is four, the four air distribution nozzles 13 are fixedly sleeved on the top surface of the main housing 5 in a distributed manner, the top surface of the main housing 5 is provided with through holes, the size and the shape of each through hole are matched with those of the air distribution nozzles 13, the air distribution nozzles 13 can penetrate through the through holes, and the bottom ends of the air distribution nozzles 13 can be placed into the inner cavity of the main housing 5;
the bottom of the outer surface of the air distribution pipe 12 is provided with a limiting hole, the size and the shape of the limiting hole are matched with those of the top end of the air distribution nozzle 13, and the air distribution nozzle 13 can be conveniently communicated with the limiting hole by arranging the limiting hole.
The working principle is as follows: when in use, an operator can put the kitchen waste to be treated into the separator drum body 1 through the feeding pipe 14, then the separator drum body 1 is driven to rotate through the driving motor, when the separator drum body 1 rotates, the hot air device 7, the temperature controller 8 and the fresh air compensator 9 are started, so that the hot air device 7 can realize the circulation of the blast pipe 11, the air distribution pipe 12, the air distribution nozzle 13, the main housing 5 and the return air pipe 10, the temperature measured by the temperature controller 8 can adjust the temperature of the hot air device 7, so that the blast pipe 11, the air distribution pipe 12 and the air distribution nozzle 13 can guide the heated air into the main housing 5, the air that makes the intensification can contact with the surface of separating centrifuge rotary drum body 1, for separating centrifuge rotary drum body 1 provides even temperature promotion for the kitchen garbage phenomenon that can not appear solidifying can.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a kitchen garbage squeezes liquid three-phase separation machine anti-freezing system, includes separating centrifuge rotary drum body (1) and hot air device (7), its characterized in that: the outer surface of the separator rotary drum body (1) is movably sleeved with a main housing (5), the left side surface of the main housing (5) is fixedly provided with a housing rear end plate (3) which is movably sleeved at the left end of the outer surface of the separator rotary drum body (1), the right side surface of the main housing (5) is fixedly provided with a housing front end plate (4) which is movably sleeved at the right end of the outer surface of the separator rotary drum body (1), the left end and the right end of the inner cavity side surface of the main housing (5) are fixedly provided with clapboards (6) which are movably sleeved at the left end and the right end of the outer surface of the separator rotary drum body (1), the top surface of the hot air device (7) is fixedly provided with a temperature controller (8), the output end of the temperature controller (8) is fixedly connected with the right end of the bottom surface of the main housing (5), the bottom end of the left side surface of the hot air device (7) is fixedly connected with a fresh air compensator (9), and the input end of the hot air device (7) is fixedly communicated with an air return pipe (10), the hot air device is characterized in that an output end of the hot air device (7) is fixedly communicated with an air supply pipe (11), the other end of the air supply pipe (11) is fixedly communicated with an air distribution pipe (12), the other end of the air distribution pipe (12) is fixedly communicated with an air distribution nozzle (13), the bottom end of the air distribution nozzle (13) penetrates through the top surface of the main housing (5) and extends to the lower portion of the top surface of the inner cavity of the main housing (5), and the right end of the separator drum body (1) is fixedly communicated with an inlet pipe (14).
2. The anti-freezing system of the three-phase kitchen waste squeezing liquid separator according to claim 1, characterized in that: the left end of main housing (5) bottom surface is fixed the intercommunication and is had slag tap pipe (31), the right-hand member of main housing (5) bottom surface is fixed the intercommunication and is had oil outlet pipe (41), the bottom mounting intercommunication of inlet pipe (14) surface has outlet pipe (141).
3. The anti-freezing system of the three-phase kitchen waste squeezing liquid separator according to claim 1, characterized in that: the middle part of the side surface of the housing rear end plate (3) is provided with a first bearing sleeve hole, the middle part of the side surface of the housing front end plate (4) is provided with a second bearing sleeve hole, the size and the shape of the first bearing sleeve hole are matched with the size and the shape of the left end of the outer surface of the separator drum body (1), and the size and the shape of the second bearing sleeve hole are matched with the size and the shape of the right end of the outer surface of the separator drum body (1).
4. The anti-freezing system of the three-phase kitchen waste squeezing liquid separator according to claim 1, characterized in that: the novel separator drum is characterized in that a driving motor is arranged at the left end of the separator drum body (1), support frames (2) are mounted at the left end and the right end of the separator drum body (1), a communicating hole is formed in the middle of the bottom surface of the main housing (5), and the size and the shape of the communicating hole are matched with those of the top of the return air pipe (10).
5. The anti-freezing system of the three-phase kitchen waste squeezing liquid separator according to claim 1, characterized in that: the number of the air distribution nozzles (13) is four, the four air distribution nozzles (13) are uniformly distributed and fixedly sleeved on the top surface of the main housing (5), the top surface of the main housing (5) is provided with a through hole, and the size and the shape of the through hole are matched with those of the air distribution nozzles (13).
6. The anti-freezing system of the three-phase kitchen waste squeezing liquid separator according to claim 1, characterized in that: the bottom of the outer surface of the air distribution pipe (12) is provided with a limiting hole, and the size and the shape of the limiting hole are matched with those of the top end of the air distribution nozzle (13).
