Support frame is used in installation of interval adjustable photovoltaic power generation board

Technical Field

The application relates to the technical field of photovoltaic power generation, in particular to a supporting frame for mounting a photovoltaic power generation panel with an adjustable interval.

Background

With the global environment deterioration, green energy is increasingly used in a wide range to reduce the consumption of non-renewable resources and to reduce the emission of carbon dioxide. Photovoltaic power generation is an environment-friendly power generation mode using solar energy.

Photovoltaic power generation panel solar energy power generation absorbs solar energy through the photovoltaic power generation panel and generates electricity, converts solar energy into the electric energy, compares in traditional thermal power mode, and photovoltaic power generation is more energy-concerving and environment-protective.

The support frame is required to be used for installing the existing photovoltaic power generation panel when the installation, the position of the installation interface of the existing support frame is fixed, the distance between the installation interfaces of the support frame is fixed and unchangeable, the support frame can only be completely adapted to the installation of the photovoltaic power generation panel with a single size, and when the photovoltaic power generation panel with different sizes is required to be installed, the adjustment of the distance between the support frames is quite unchanged, so that the application range of the support frame is small.

SUMMERY OF THE UTILITY MODEL

The purpose of this application is in order to solve among the prior art inconvenient problem that leads to application scope little of photovoltaic power generation board support frame interval adjustment, and the support frame is used in the installation of the photovoltaic power generation board of interval adjustable that proposes.

In order to achieve the purpose, the following technical scheme is adopted in the application:

the supporting frame for mounting the photovoltaic power generation panel with the adjustable space comprises a base, wherein a mounting groove is formed in the base, two supporting columns are mounted in the mounting groove, and the two supporting columns are connected with the base through an adjusting mechanism;

adjustment mechanism includes two fixed connection in the riser of base upside, two all seted up the shaft hole on the riser, two the pore wall in shaft hole rotates through the bearing and is connected with same adjusting screw, two all set up threaded hole on the support column, adjusting screw runs through two support columns, two through two screw holes the equal fixedly connected with sliding plate of lower extreme of support column, fixedly connected with guide bar in the mounting groove, two the guiding hole has all been seted up on the sliding plate, the guide bar runs through two sliding plates, two through two guiding holes the downside of sliding plate all rotates installs the cylinder, a plurality of mounting panels of vertical lateral wall fixedly connected with of base, the pinhole has been seted up on the mounting panel.

Preferably, two fixedly connected with scale plate between the riser, two the slip hole has all been seted up on the support column, the scale plate runs through the support column through the slip hole.

Preferably, the specific structure of the supporting column is a telescopic structure.

Preferably, the two support columns are fixedly connected with triangular indication blocks corresponding to the scale plates.

Preferably, one end of the adjusting screw is fixedly connected with a turntable, the vertical side wall of the turntable is fixedly connected with an operating rod, and a rod wall fixing sleeve of the operating rod is provided with a rubber sleeve.

Preferably, the bottom of the mounting groove is provided with a rolling groove matched with the two rollers.

Preferably, the lower side of the base is provided with a sewage discharge hole communicated with the mounting groove.

Compared with the prior art, this application provides interval adjustable support frame for photovoltaic power generation board installation, possesses following beneficial effect:

this support frame is used in installation of interval adjustable photovoltaic power generation board, base through setting up, the mounting groove, support column and adjustment mechanism, during the adjustment, rotate adjusting screw, through the screw-thread fit between adjusting screw and the screw hole, and mutually support through guide bar and sliding plate, can make two support columns slide on the guide bar, the cylinder of setting can roll in the mounting groove, thereby can reduce the gliding resistance of two support columns, two support columns can slide on the guide bar and can change the interval between two support columns, thereby can adjust the interval between the installation interface of support frame, can make the support frame be applicable to the installation of not unidimensional photovoltaic power generation board, the effectual application scope who improves the photovoltaic power generation board support frame.

The part that does not relate to in the device all is the same with prior art or can adopt prior art to realize, and this application can make the support frame be applicable to the installation of the photovoltaic power generation board of unidimensional not, the effectual application scope who improves photovoltaic power generation board support frame.

Drawings

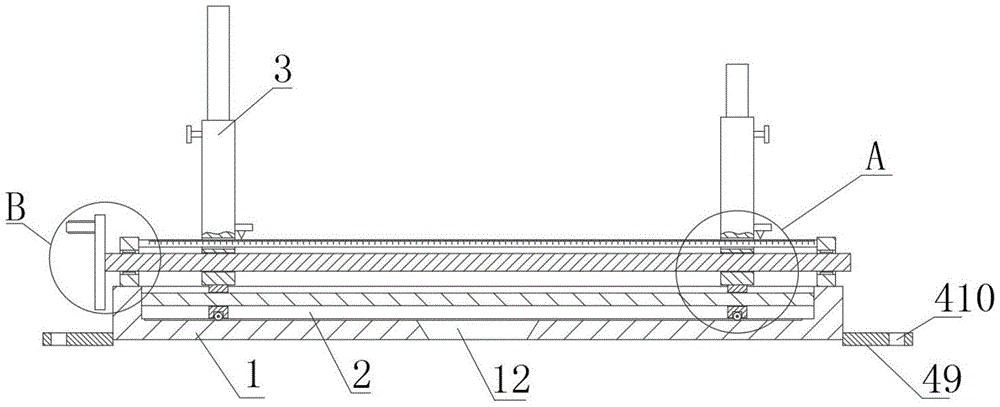

Fig. 1 is a schematic structural diagram of a support frame for mounting a photovoltaic power generation panel with adjustable spacing provided by the present application;

FIG. 2 is a schematic structural view of portion A of FIG. 1;

fig. 3 is a schematic structural diagram of a portion B in fig. 1.

In the figure: 1. a base; 2. mounting grooves; 3. a support pillar; 4. an adjustment mechanism; 41. a vertical plate; 42. a shaft hole; 43. adjusting the screw rod; 44. a threaded hole; 45. a sliding plate; 46. a guide bar; 47. a guide hole; 48. a drum; 49. mounting a plate; 410. a pin hole; 5. a scale plate; 6. a slide hole; 7. a triangular indication block; 8. a turntable; 9. an operating lever; 10. a rubber sleeve; 11. a rolling groove; 12. and a sewage draining hole.

Detailed Description

The technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only a part of the embodiments of the present application, and not all of the embodiments.

In the description of the present application, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present application and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed in a particular orientation, and be operated, and thus, should not be construed as limiting the present application.

Referring to fig. 1 to 3, the supporting frame for mounting the photovoltaic power generation panel with the adjustable space comprises a base 1, wherein a sewage discharge hole 12 communicated with a mounting groove 2 is formed in the lower side of the base 1, so that water accumulation in the base 1 can be prevented, the mounting groove 2 is formed in the base 1, two supporting columns 3 are mounted in the mounting groove 2, the specific structure of each supporting column 3 is a telescopic structure, the height of the supporting frame can be adjusted, the mounting angle of the photovoltaic power generation panel can be adjusted, and the two supporting columns 3 are connected with the base 1 through an adjusting mechanism 4;

the adjusting mechanism 4 comprises two vertical plates 41 fixedly connected to the upper side of the base 1, shaft holes 42 are respectively formed in the two vertical plates 41, the hole walls of the two shaft holes 42 are rotatably connected with a same adjusting screw 43 through bearings, threaded holes 44 are respectively formed in the two support columns 3, the adjusting screw 43 penetrates through the two support columns 3 through the two threaded holes 44, the lower ends of the two support columns 3 are respectively and fixedly connected with a sliding plate 45, a guide rod 46 is fixedly connected in the mounting groove 2, guide holes 47 are respectively formed in the two sliding plates 45, the guide rod 46 penetrates through the two sliding plates 45 through the two guide holes 47, rollers 48 are respectively and rotatably mounted on the lower sides of the two sliding plates 45, a rolling groove 11 matched with the two rollers 48 is formed in the groove bottom of the mounting groove 2, the rollers 48 can be limited, the rolling stability of the rollers 48 is improved, and a plurality of mounting plates 49 are fixedly connected to the vertical side wall of the base 1, pinhole 410 has been seted up on mounting panel 49, during the regulation, adjusting screw 43 rotates, through the screw-thread fit between adjusting screw 43 and screw hole 44, and mutually support through guide bar 46 and sliding plate 45, can make two support column 3 slide on guide bar 46, the cylinder 48 of setting can roll in mounting groove 2, thereby can reduce the gliding resistance of two support column 3, two support column 3 slide on guide bar 46 can change the interval between two support column 3, thereby can adjust the interval between the installation interface of support frame, can make the support frame be applicable to the installation of not unidimensional photovoltaic power generation board, the effectual application scope who improves the photovoltaic power generation board support frame.

Fixedly connected with scale plate 5 between two risers 41 has all seted up sliding hole 6 on two support columns 3, and scale plate 5 runs through support column 3 through sliding hole 6, and equal fixedly connected with indicates piece 7 with the triangle that scale plate 5 is corresponding on two support columns 3. Through scale 5 and triangle instruction piece 7 mutually supporting, can improve the accuracy that the support frame was adjusted.

Adjusting screw 43's one end fixedly connected with carousel 8, carousel 8's vertical lateral wall fixedly connected with action bars 9, the fixed cover of pole wall of action bars 9 is equipped with rubber sleeve 10, promotes action bars 9 and can drive carousel 8 and rotate, and carousel area 8 drives adjusting screw 43 and rotates, has improved the convenience of operation.

The working principle is as follows: during the adjustment, adjusting screw 43 rotates, through the screw-thread fit between adjusting screw 43 and screw hole 44, and mutually support through guide bar 46 and sliding plate 45, can make two support columns 3 slide on guide bar 46, the cylinder 48 of setting can roll in mounting groove 2, thereby can reduce the gliding resistance of two support columns 3, two support columns 3 can change the interval between two support columns 3 on guide bar 46 slides, thereby can adjust the interval between the installation interface of support frame, can make the support frame be applicable to the installation of the photovoltaic power generation board of not unidimensional, the effectual application scope who improves the photovoltaic power generation board support frame.

The above description is only for the preferred embodiments of the present application, but the scope of the present application is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present application, and equivalent alternatives or modifications according to the technical solutions and the application concepts of the present application, which are within the technical scope of the present application.

Claims

1. A support frame for installing photovoltaic power generation panels with adjustable spacing, comprising a base (1), characterized in that a mounting groove (2) is opened on the base (1), and two mounting grooves (2) are installed in the mounting groove (2). support columns (3), two of the support columns (3) are connected to the base (1) through the adjustment mechanism (4);

The adjustment mechanism (4) includes two vertical plates (41) fixedly connected to the upper side of the base (1), and shaft holes (42) are opened on the two vertical plates (41), and the two shafts The hole wall of the hole (42) is rotatably connected with the same adjusting screw (43) through the bearing, the two supporting columns (3) are both provided with threaded holes (44), and the adjusting screw (43) is connected by two threads The hole (44) runs through the two support columns (3), the lower ends of the two support columns (3) are fixedly connected with a sliding plate (45), and the installation groove (2) is fixedly connected with a guide rod (46) , the two sliding plates (45) are provided with guide holes (47), the guide rods (46) pass through the two sliding plates (45) through the two guiding holes (47), and the two sliding plates The lower side of (45) is rotatably installed with rollers (48), the vertical side walls of the base (1) are fixedly connected with a plurality of mounting plates (49), and the mounting plates (49) are provided with pin holes ( 410).

2 . The photovoltaic power generation panel installation support frame with adjustable spacing according to claim 1 , wherein a scale plate ( 5 ) is fixedly connected between the two vertical plates ( 41 ), and the two supports The columns (3) are provided with sliding holes (6), and the scale plate (5) penetrates the support column (3) through the sliding holes (6).

3 . The support frame for installing photovoltaic power generation panels with adjustable spacing according to claim 2 , wherein the specific structure of the support column ( 3 ) is a retractable structure. 4 .

4. The support frame for installing photovoltaic power generation panels with adjustable spacing according to claim 3, wherein a triangular indicator corresponding to the scale plate (5) is fixedly connected to the two support columns (3). block (7).

5 . The photovoltaic power generation panel installation support frame with adjustable spacing according to claim 1 , wherein a turntable (8) is fixedly connected to one end of the adjusting screw (43), and the vertical direction of the turntable (8) is fixed. 6 . The straight side wall is fixedly connected with an operating rod (9), and the rod wall fixing sleeve of the operating rod (9) is provided with a rubber sleeve (10).

6 . The photovoltaic power generation panel installation support frame with adjustable spacing according to claim 1 , wherein the groove bottom of the installation groove ( 2 ) is provided with rolling grooves ( 11).

7 . The photovoltaic power generation panel installation support frame with adjustable spacing according to claim 6 , wherein a sewage hole ( 12 ) communicated with the installation groove ( 2 ) is formed on the lower side of the base ( 1 ). 8 .
