CN216404034U

CN216404034U - Pipeline direct drinking water wastewater treatment equipment

Info

Publication number: CN216404034U
Application number: CN202122667202.XU
Authority: CN
Inventors: 冯锐; 夏朝军; 蔡冬冬
Original assignee: Guizhou Heting Water Environmental Engineering Co ltd
Current assignee: Guizhou Heting Water Environmental Engineering Co ltd
Priority date: 2021-11-02
Filing date: 2021-11-02
Publication date: 2022-04-29
Anticipated expiration: 2031-11-02

Abstract

The utility model relates to the technical field of sewage treatment, in particular to a pipeline direct drinking water wastewater treatment device which comprises a device body, a cleaning structure and a water purification tank, wherein the water purification tank is arranged in the shell, one side of the water purification tank extends to the outer side of the shell, one side of the bottom end of the water purification tank is provided with a No. two sewage dropping groove, one side of the shell is fixedly provided with an auxiliary tank, the bottom end of the auxiliary tank is provided with a No. one sewage dropping groove, and a No. one rod is movably arranged between the top end and the bottom end of the inner wall of the auxiliary tank through a bearing. According to the utility model, the first gear is driven by the third gear to rotate the screw rod, so that the scraper moves left and right, accumulated silt in the water purification tank can be scraped outwards by the scraper and falls from the second dirt falling groove and the first dirt falling groove, the convenience of the device is improved, the working steps are reduced, the labor force is liberated, and the working efficiency is increased.

Description

Pipeline direct drinking water wastewater treatment equipment

Technical Field

The utility model relates to the technical field of sewage treatment, in particular to a pipeline direct drinking water wastewater treatment device.

Background

The sewage treatment equipment is an industrial equipment capable of effectively treating domestic sewage, industrial wastewater and the like in urban areas, prevents sewage and pollutants from directly flowing into water areas, and has important significance for improving ecological environment, promoting urban grade and promoting economic development.

At present, rural economic development is rapid, and peasant's standard of living is very improved, but rural environmental construction and economic development are asynchronous, and wherein water environmental pollution problem is especially serious, and sewage treatment device on the market at present mostly needs artifical desilting, needs certain labour, and work efficiency can not improve, consequently needs to design the pipeline and directly drinks water waste water treatment device urgently.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a pipeline direct drinking water wastewater treatment device, which aims to solve the problems that the prior sewage treatment device on the market in the background technology mostly needs manual dredging, needs certain labor force and cannot improve the working efficiency.

In order to achieve the purpose, the utility model provides the following technical scheme: pipeline direct drinking water wastewater treatment equipment includes:

a device body including a housing;

the cleaning structure comprises a water purifying tank, the water purifying tank is arranged in a shell, one side of the water purifying tank extends to the outer side of the shell, one side of the bottom end of the water purifying tank is provided with a second pollution-dropping groove, one side of the shell is fixedly provided with an auxiliary tank, the bottom end of the auxiliary tank is provided with a first pollution-dropping groove, a first rod is movably arranged between the top end of the inner wall of the auxiliary tank and the bottom end of the inner wall of the auxiliary tank through a bearing, a second gear, a third gear and a fourth gear are fixedly arranged on the outer side of the first rod, a motor is fixedly arranged on the top end of the water purifying tank on the outer side of the shell, a fifth gear is fixedly arranged on the output end of the motor, the fifth gear is meshed with the second gear, a first groove is formed in one side of the water purifying tank, a lead screw is movably arranged on one side of the inner wall of the water purifying tank through the bearing, and one end of the lead screw, which is far away from the bearing, penetrates through the first groove and extends to the inner part of the auxiliary tank, the lead screw is close to the one end fixed mounting who attaches the case and has a gear, and a gear meshes with No. three gears mutually, the outside fixed mounting who attaches the case has the switch, there is the scraper blade in the outside of lead screw through screw thread movable mounting, the filter screen is installed in the inboard embedding in bottom of water purification case, the bottom of scraper blade is laminated with the top of a gear mutually.

Preferably, the inner wall of the shell far away from one side of the auxiliary tank is fixedly provided with a positioning lug, and the top end of the positioning lug is attached to the bottom end of the water purifying tank.

Preferably, the shell has been seted up the second fluting being close to one side of attaching the case, there is No. two poles inner wall one side of shell through bearing movable mounting, and No. two poles one end of keeping away from the bearing runs through the outside that the second fluting extended to the shell, No. two pole one end fixed mounting of keeping away from the bearing has No. six gears, and No. six gears and No. four gears mesh mutually, the even fixed mounting in outside of No. two poles has a plurality of blades.

Preferably, the outside fixed mounting of No. two poles has the fixed block, the top fixed mounting of fixed block has the rope, the one end fixed mounting that No. two poles were kept away from to the fixed block has the rubber ball, and the top of rubber ball is laminated with the bottom of filter screen mutually.

Preferably, a water guide block is fixedly mounted at the bottom end of the shell.

Preferably, the inside fixed mounting of water purification case has the slide bar, and the quantity of slide bar is four, four the slide bar all runs through the scraper blade through the perforation activity.

Compared with the prior art, the utility model has the beneficial effects that:

1. through being provided with the water purification case, the lead screw, the scraper blade, a gear, a pole, No. two gears, No. three gears, including a motor, an end cap, a controller, and a cover plate, No. one the dirty groove of falling and No. two dirty grooves of falling, during the use, sewage gets into the water purification case and opens the motor through the switch, No. five gears drive No. two gears, make a pole begin to rotate, drive No. three gear revolve, it makes the lead screw rotate to drive a gear through No. three gears, make the scraper blade remove about, the water purification incasement portion's long-pending silt can be scraped by the scraper blade outside this moment, fall down from No. two dirty grooves of falling and a dirty groove department of falling, the convenience of device has been improved, work step has been reduced, then the labour has been liberated, and work efficiency is increased.

2. By arranging the fourth gear, the filter screen, the second rod, the sixth gear, the blade, the fixed block, the rope, the rubber ball, the positioning lug, the water guide block and the slide rod, when in use, the fourth gear drives the sixth gear to enable the second rod to rotate, at the moment, the blade fixed on the surface of the second rod can stir sewage through rotation, so that the sewage and the disinfection liquid are mixed more thoroughly, the pollution of the treated sewage is reduced to the minimum, the next treatment is facilitated, the scraper is fixed through the slide rod, the position deviation of the scraper in work can be prevented, the dredging is not clean, when the second rod rotates, the rubber ball impacts the filter screen under the driving of the fixed block and the rope, the filter screen shakes, the filter screen is prevented from being accumulated and blocked, the device runs more smoothly, the working efficiency is further improved, the positioning lug provides supporting force for the water purifying tank, prevent that upper end pressure is too big, improved the life of device, the water guide piece can be after the purification is finished, quick with sewage water conservancy diversion inlet and outlet for the work progress improves work efficiency.

Drawings

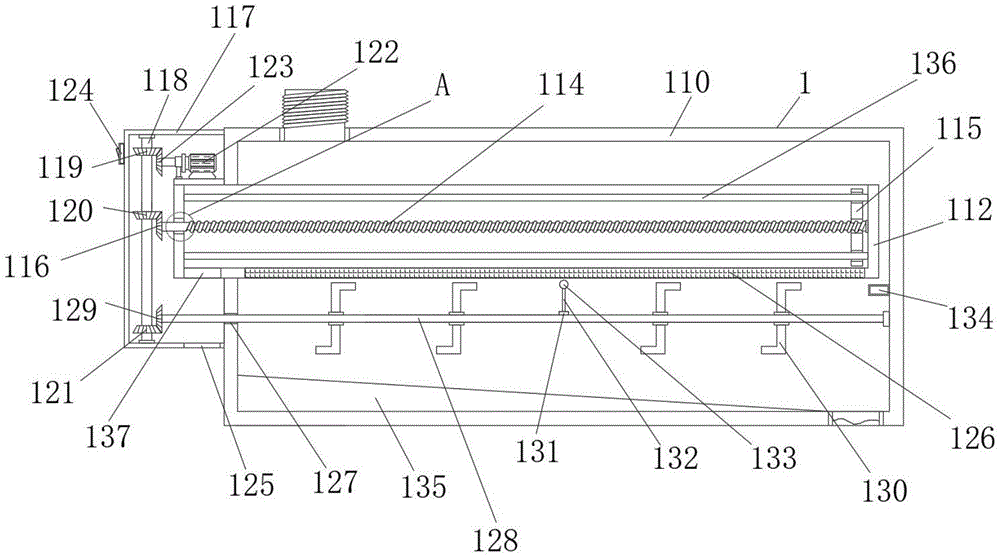

FIG. 1 is a schematic sectional elevation view of the structure of the present invention;

FIG. 2 is a schematic sectional front view of a housing according to the present invention;

FIG. 3 is a schematic side sectional view of the structure of the present invention;

fig. 4 is an enlarged view of the structure at a in fig. 1 according to the present invention.

In the figure: 1. a device body; 110. a housing; 112. a water purifying tank; 113. a first slot; 114. a screw rod; 115. a squeegee; 116. a first gear; 117. an auxiliary box; 118. a first rod; 119. a second gear; 120. a third gear; 121. a fourth gear; 122. a motor; 123. a fifth gear; 124. a switch; 125. a first sewage dropping tank; 126. a filter screen; 127. a second slot; 128. a second rod; 129. a sixth gear; 130. a blade; 131. a fixed block; 132. a rope; 133. a rubber ball; 134. positioning the bump; 135. a water guide block; 136. a slide bar; 137. and a second sewage dropping tank.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, an embodiment of the present invention is shown:

pipeline direct drinking water wastewater treatment equipment includes:

the device body 1, the motor 122 and the switch 124 used in the present application are all commercially available models, and the specific operation principle and connection method thereof are well known to those skilled in the art, and therefore will not be described herein, including the housing 110;

the cleaning structure comprises a water purifying tank 112, the water purifying tank 112 is arranged inside a shell 110, one side of the water purifying tank 112 extends to the outer side of the shell 110, one side of the bottom end of the water purifying tank 112 is provided with a second dirt falling groove 137, one side of the shell 110 is fixedly provided with an auxiliary tank 117, the bottom end of the auxiliary tank 117 is provided with a first dirt falling groove 125, the inner wall of the shell 110 far away from one side of the auxiliary tank 117 is fixedly provided with a positioning lug 134, the top end of the positioning lug 134 is attached to the bottom end of the water purifying tank 112, the positioning lug 134 plays a supporting role for the water purifying tank 112, a first rod 118 is movably arranged between the top end and the bottom end of the inner wall of the auxiliary tank 117 through a bearing, a second gear 119, a third gear 120 and a fourth gear 121 are fixedly arranged on the outer side of the first rod 118, a motor 122 is fixedly arranged on the top end of the water purifying tank 112 on the outer side of the shell 110, an output end of the motor 122 is fixedly provided with a fifth gear 123, and the fifth gear 123 is engaged with the second gear 119, a first slot 113 is formed in one side of the water purifying tank 112 close to the auxiliary tank 117, a screw rod 114 is movably mounted on one side of the inner wall of the water purifying tank 112 through a bearing, one end of the screw rod 114, far away from the bearing, penetrates through the first slot 113 and extends into the auxiliary tank 117, a first gear 116 is fixedly mounted at one end of the screw rod 114, close to the auxiliary tank 117, and is meshed with a third gear 120, a switch 124 is fixedly mounted on the outer side of the auxiliary tank 117, a scraper 115 is movably mounted on the outer side of the screw rod 114 through threads, slide rods 136 are fixedly mounted in the water purifying tank 112, the number of the slide rods 136 is four, the four slide rods 136 movably penetrate through the scraper 115 through perforations, when the motor 122 is turned on through the switch 124, the switch 124 drives the fifth gear 123, thereby driving the second gear 119, the first rod 118 to rotate, the third gear 120 and the fourth gear 121 are driven, and the first gear 116 is driven, the screw rod 114 starts to rotate, the scraper 115 moves left and right on the screw rod 114, the sliding rod 136 plays a role in fixing the scraper 115 to prevent the scraper 115 from deviating, finally, accumulated silt in the water purification tank 112 is scraped by the scraper 115 and is discharged from the second dirt dropping groove 137 and the first dirt dropping groove 125, the filter screen 126 is embedded and installed on the inner side of the bottom end of the water purification tank 112, and the bottom end of the scraper 115 is attached to the top end of the first gear 116.

The shell 110 is provided with a second slot 127 at one side close to the auxiliary box 117, one side of the inner wall of the shell 110 is movably provided with a second rod 128 through a bearing, one end of the second rod 128 far away from the bearing penetrates through the second slot 127 and extends to the outer side of the shell 110, one end of the second rod 128 far away from the bearing is fixedly provided with a sixth gear 129, the sixth gear 129 is meshed with a fourth gear 121, the outer side of the second rod 128 is uniformly and fixedly provided with a plurality of blades 130, the sixth gear 129 is driven to rotate through the fourth gear 121, the blades 130 fixed on the surface of the sixth gear 129 start to rotate, sewage in the device body 1 is stirred, the sewage is fully mixed with the disinfection liquid, the purification force is improved, the outer side of the second rod 128 is fixedly provided with a fixed block 131, the top end of the fixed block 131 far away from the second rod 128 is fixedly provided with a rubber ball 133, and the top end of the rubber ball 133 is attached to the bottom end of the filter screen 126, the rotation through No. two poles 128 drives fixed block 131 and rope 132 and rotates, makes rubber ball 133 hit filter screen 126, makes filter screen 126 shake, prevents that filter screen 126 from blockking up, and the bottom fixed mounting of shell 110 has water guide block 135, and through the water conservancy diversion effect of water guide block 135, can make the faster getting rid of the sewage of handling.

The working principle is as follows: when the device is used, firstly, the device is externally connected with a power supply, so that the device is provided with electric power support, when in use, sewage to be treated enters the inside of the water purification tank 112 from a water inlet, at the moment, the motor 122 starts to work by opening the switch 124, the fifth gear 123 starts to rotate, the first rod 118 starts to rotate as the fifth gear 123 is meshed with the second gear 119, the third gear 120 and the fourth gear 121 on the outer side of the first rod 118 also start to rotate, the third gear 120 is meshed with the first gear 116, the fourth gear 121 is meshed with the sixth gear 129, so the screw rod 114 and the second rod 128 rotate simultaneously, as the scraping plate 115 is in through connection with the screw rod 114 through threads, the scraping plate 115 fixes four corners, the outer wall of the scraping plate 115 is also attached to the inner wall of the water purification tank 112, the screw rod 114 drives the scraping plate 115 to move left and right, and left, accumulated silt in the water purification tank 112 can be scraped outwards through the movement of the scraping plate 115, discharge through No. two dirty grooves 137 and No. one dirty groove 125 departments that falls, fall downwards when the filtration of sewage through filter screen 126, this moment because No. two pole 128's rotation, install blade 130 in No. two pole 128 outsides and can stir sewage, make sewage and disinfection liquid intensive mixing, because rubber ball 133 passes through the upper end of rope 132 fixed connection at fixed block 131, fixed block 131 fixed mounting is in No. two pole 128's the outside, so No. two pole 128 drives rubber ball 133 and whipps, rubber ball 133 can strike filter screen 126 this moment, make filter screen 126 shake, prevent that filter screen 126 from blockking up, after sewage treatment finishes, open the valve that drains on the drain pipe of shell 110 bottom, sewage passes through the water conservancy diversion effect of water guide block 135, quick outflow.

It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims

1. Pipeline direct drinking water waste water treatment equipment, its characterized in that includes:

a device body (1) including a housing (110);

the cleaning structure comprises a water purifying tank (112), the water purifying tank (112) is arranged inside a shell (110), one side of the water purifying tank (112) extends to the outer side of the shell (110), one side of the bottom end of the water purifying tank (112) is provided with a second pollution dropping groove (137), one side of the shell (110) is fixedly provided with an auxiliary tank (117), the bottom end of the auxiliary tank (117) is provided with a first pollution dropping groove (125), a first rod (118) is movably arranged between the top end of the inner wall of the auxiliary tank (117) and the bottom end of the inner wall of the auxiliary tank (118), the outer side of the first rod (118) is fixedly provided with a second gear (119), a third gear (120) and a fourth gear (121), the top end of the water purifying tank (112) on the outer side of the shell (110) is fixedly provided with a motor (122), an output end of the motor (122) is fixedly provided with a fifth gear (123), and the fifth gear (123) is meshed with the second gear (119), first fluting (113) has been seted up to water purification case (112) one side that is close to attach case (117), there is lead screw (114) inner wall one side of water purification case (112) through bearing movable mounting, and lead screw (114) keep away from the one end of bearing and pass first fluting (113) and extend to the inside of attaching case (117), lead screw (114) are close to the one end fixed mounting who attaches case (117) have gear (116) No. one, and gear (116) mesh with No. three gear (120) mutually, the outside fixed mounting who attaches case (117) has switch (124), there is scraper blade (115) in the outside of lead screw (114) through screw thread movable mounting, filter screen (126) are installed to the inboard embedding in bottom of water purification case (112), the bottom of scraper blade (115) is laminated with the top of gear (116) mutually.

2. The pipe-direct-drinking-water wastewater treatment apparatus according to claim 1, wherein: the inner wall of the shell (110) far away from one side of the auxiliary tank (117) is fixedly provided with a positioning lug (134), and the top end of the positioning lug (134) is attached to the bottom end of the water purifying tank (112).

3. The pipe-direct-drinking-water wastewater treatment apparatus according to claim 1, wherein: second fluting (127) has been seted up in one side that shell (110) is being close to and attaches case (117), there is No. two pole (128) inner wall one side of shell (110) through bearing movable mounting, and No. two one end that bearing was kept away from in pole (128) runs through the outside that second fluting (127) extended to shell (110), No. two one end fixed mounting that bearing was kept away from in pole (128) has No. six gear (129), and No. six gear (129) and No. four gear (121) mesh mutually, the even fixed mounting in outside of No. two pole (128) has a plurality of blades (130).

4. The pipe-direct-drinking-water wastewater treatment apparatus according to claim 3, wherein: the outside fixed mounting of No. two pole (128) has fixed block (131), the top fixed mounting of fixed block (131) has rope (132), the one end fixed mounting that No. two pole (128) were kept away from in fixed block (131) has rubber ball (133), and the top of rubber ball (133) is laminated mutually with the bottom of filter screen (126).

5. The pipe-direct-drinking-water wastewater treatment apparatus according to claim 1, wherein: the bottom end of the shell (110) is fixedly provided with a water guide block (135).

6. The pipe-direct-drinking-water wastewater treatment apparatus according to claim 1, wherein: slide bars (136) are fixedly installed inside the water purifying tank (112), the number of the slide bars (136) is four, and the four slide bars (136) penetrate through the scraper (115) through the perforation activity.
