CN216393272U

CN216393272U - Finger ring with ball ornament

Info

Publication number: CN216393272U
Application number: CN202122785159.7U
Authority: CN
Inventors: 游志聪
Original assignee: Dongguan Meijing Industrial Co ltd
Current assignee: Dongguan Meijing Industrial Co ltd
Priority date: 2021-11-12
Filing date: 2021-11-12
Publication date: 2022-04-29
Anticipated expiration: 2031-11-12

Abstract

The utility model provides a ring with a spherical ornament, which comprises a ring assembly and an ornament assembly arranged on the ring assembly, wherein the ornament assembly is rotatably arranged on the ring assembly and comprises a first ring, a second ring and a mounting column, one end of the first ring is fixedly connected with one end of the second ring, and the mounting column is arranged at the joint of the first ring and the second ring; install in ring subassembly through rotating ornament subassembly to improve ring's use impression, ring subassembly has the first ring and the second ring that are the contained angle setting simultaneously, not only can improve the stability that the user dressed, has also improved ring's visual effect.

Description

Finger ring with ball ornament

Technical Field

The utility model relates to the field of rings, in particular to a ring with a ball ornament.

Background

Ornaments are popular among various crowds, and particularly, a finger ring, also called a ring and a bracelet, is the most common ornament type in the ornaments. The ring can be roughly divided into three types of a plain ring, a plain golden fancy ring and an embedded ring according to the shape and matched materials of the ring. Among them, the inlaid ring is particularly popular.

The prior art inlaid ring is generally composed of a ring and a jewel seat on the ring, fixed ornaments such as jewels are arranged on the jewel seat, and the ornaments arranged on the jewel seat are fixed, so that the ring has the defects of monotonous structure, no change and the like.

SUMMERY OF THE UTILITY MODEL

In order to solve the problems, the utility model provides a ring with a spherical ornament, wherein the ornament component is rotatably arranged on the ring component to improve the use impression of the ring, and the ring component is provided with a first ring and a second ring which are arranged at an included angle, so that the wearing stability of a user can be improved, and the visual effect of the ring is also improved.

In order to achieve the purpose, the utility model adopts the technical scheme that the ring with the spherical ornament comprises a ring assembly and an ornament assembly arranged on the ring assembly, wherein the ornament assembly is rotatably arranged on the ring assembly, the ring assembly comprises a first ring, a second ring and a mounting column, one end of the first ring is fixedly connected with one end of the second ring, and the mounting column is arranged at the joint of the first ring and the second ring.

As a preferable scheme, the first ring and the second ring are arranged at an included angle.

As a preferable scheme, the mounting column further comprises a fixing piece, and the fixing piece is mounted at one end of the mounting column.

As a preferred scheme, the ornament component comprises a sphere frame, a jewel arranged on the sphere frame, and a limiting seat and a fixing seat which are arranged on the sphere frame, wherein the sphere frame is provided with an installation position, and the jewel is arranged on the installation position.

As a preferable scheme, the number of the installation positions is multiple, the number of the gems is multiple, and the installation positions and the gems are arranged in a one-to-one matching mode.

As a preferred scheme, the installation position is arranged in a triangular shape, clamping pieces are arranged at three corners of the installation position, and the clamping pieces are clamped at one end of the jewel.

As a preferred scheme, the limiting seat is provided with a limiting hole, the fixing seat is provided with an upper groove, a lower groove and a through hole, the upper groove and the lower groove are communicated through the through hole, one end of the mounting column penetrates through the limiting hole and is placed in the lower groove, and one end of the fixing piece penetrates through the through hole and is mounted on the mounting column.

The utility model has the beneficial effects that: install in ring subassembly through rotating ornament subassembly to improve ring's use impression, ring subassembly has the first ring and the second ring that are the contained angle setting simultaneously, not only can improve the stability that the user dressed, has also improved ring's visual effect.

Drawings

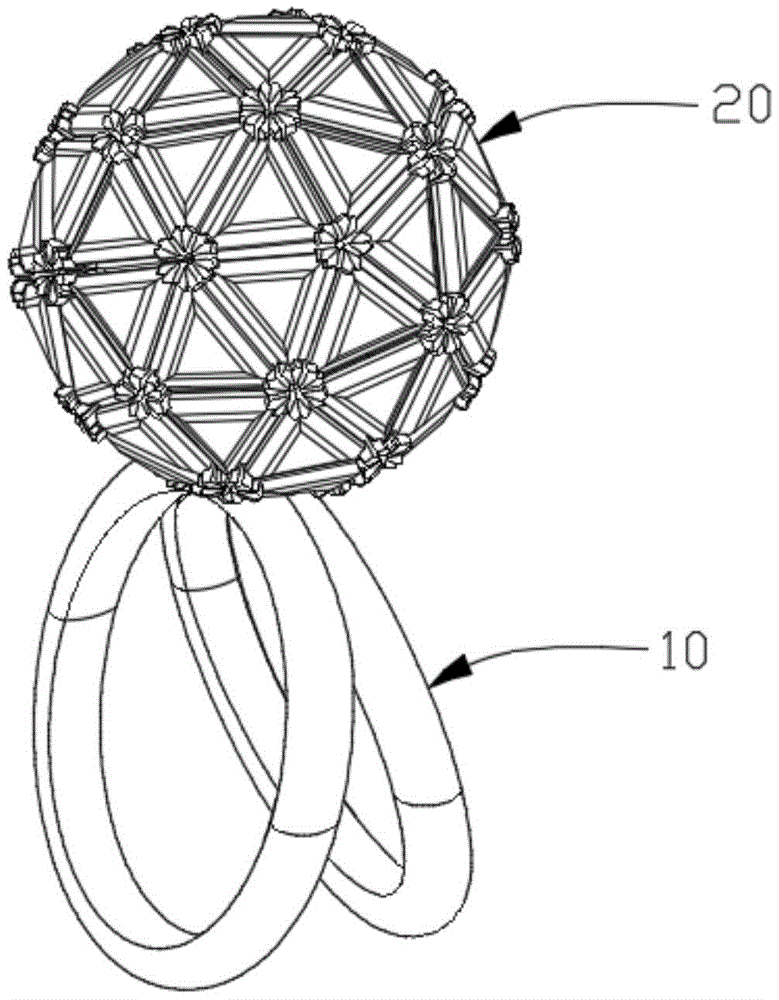

Fig. 1 is a schematic view of the overall structure of a ring with a ball ornament according to the present invention.

Fig. 2 is a schematic view of the ring assembly of fig. 1 in a ring with a ball ornament.

Fig. 3 is a schematic view of the ring assembly of fig. 1 with a ball ornament.

Fig. 4 is a schematic view of another angle of the ring of fig. 1 with a ball ornament.

Fig. 5 is a further angular view of the ring of fig. 1 with a ball ornament.

The reference numbers illustrate: 10-ring component, 11-first ring, 12-second ring, 13-mounting column, 14-fixing piece, 20-ornament component, 21-sphere frame, 21 a-mounting position, 21 b-clamping piece, 22-jewel, 23-limiting seat, 23 a-limiting hole, 24-fixing seat, 24 a-upper groove, 24 b-lower groove and 24 c-through hole.

Detailed Description

The technical solutions of the present invention will be described clearly and completely with reference to the accompanying drawings, and it should be understood that the described embodiments are some, but not all embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

In the description of the present invention, it should be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.

As shown in fig. 1 to 5, the present invention relates to a ring with a ball ornament, which comprises a ring assembly 10 and an ornament assembly 20 installed on the ring assembly 10, wherein the ornament assembly 20 is rotatably installed on the ring assembly 10, the ring assembly 10 comprises a first ring 11, a second ring 12 and an installation column 13, one end of the first ring 11 is fixedly connected with one end of the second ring 12, the installation column 13 is installed at the connection position of the first ring 11 and the second ring 12, the first ring 11 and the second ring 12 are arranged at an included angle, and the ring further comprises a fixing member 14, and the fixing member 14 is installed at one end of the installation column 13; through rotating ornament subassembly 20 and installing in ring subassembly 10 to improve the use impression of ring, ring subassembly 10 has first ring 11 and the second ring 12 that is the contained angle setting simultaneously, not only can improve the stability that the user dressed, has also improved the visual effect of ring.

The ornament assembly 20 comprises a sphere frame 21, a jewel 22 arranged on the sphere frame 21, a limiting seat 23 arranged on the sphere frame 21 and a fixed seat 24, wherein the sphere frame 21 is provided with an installation position 21a, and the jewel 22 is arranged on the installation position 21 a.

The installation positions 21a are multiple, the gems 22 are multiple, the installation positions 21a and the gems 22 are arranged in a one-to-one matching mode, the gems 22 enable the whole sphere frame 21 to be fully distributed with the gems 22, and the use impression of a user can be improved.

The mounting position 21a is triangular, the three corners of the mounting position 21a are provided with clamping pieces 21b, the clamping pieces 21b are clamped at one end of the jewel 22, the mounting position 21a is used for placing the jewel 22, and the clamping pieces 21b are used for clamping the jewel 22, so that the jewel 22 is prevented from falling out of the mounting position 21 a.

The limiting seat 23 is provided with a limiting hole 23a, the fixing seat 24 is provided with an upper groove 24a, a lower groove 24b and a through hole 24c, the upper groove 24a and the lower groove 24b are communicated through the through hole 24c, one end of the mounting column 13 penetrates through the limiting hole 23a and is placed in the lower groove 24b, and one end of the fixing piece 14 penetrates through the through hole 24c and is mounted on the mounting column 13; when the ornament assembly 20 is mounted with the ring assembly 10, the fixing piece 14 is firstly taken down from the mounting column 13, then one end of the mounting column 13 is placed in the lower groove 24b through the limiting hole 23a, then the fixing piece 14 is placed in the upper groove 24a, one end of the fixing piece 14 is mounted on the mounting column 13 through the through hole, the ornament assembly 20 is mounted with the ring assembly 10, and when the ornament assembly 20 is worn, the ornament assembly 20 can rotate on the ring assembly 10, so that the visual feeling of a user can be provided.

The above embodiments are merely illustrative of the preferred embodiments of the present invention, and not restrictive, and various changes and modifications to the technical solutions of the present invention may be made by those skilled in the art without departing from the spirit of the present invention, and the technical solutions of the present invention are intended to fall within the scope of the present invention defined by the appended claims.

Claims

1. A ring with a ball ornament is characterized in that: the ring comprises a ring component and an ornament component arranged on the ring component, wherein the ornament component is rotatably arranged on the ring component, the ring component comprises a first ring, a second ring and a mounting column, one end of the first ring is fixedly connected with one end of the second ring, and the mounting column is arranged at the joint of the first ring and the second ring.

2. A ring with a ball accouterment according to claim 1, wherein: the first ring and the second ring are arranged at an included angle.

3. A ring with a ball accouterment according to claim 1, wherein: the mounting column is characterized by further comprising a fixing piece, wherein the fixing piece is mounted at one end of the mounting column.

4. A ring with a ball accouterment according to claim 3, wherein: the ornament component comprises a sphere frame, a jewel arranged on the sphere frame, a limiting seat and a fixing seat, wherein the limiting seat and the fixing seat are arranged on the sphere frame, the sphere frame is provided with an installation position, and the jewel is arranged on the installation position.

5. A ring with a ball ornament as claimed in claim 4, wherein: the installation position is a plurality of, the precious stone is a plurality of, and is a plurality of installation position and a plurality of the precious stone matches the setting one by one.

6. A ring with a ball ornament as claimed in claim 5, wherein: the mounting position is triangular, three corners of the mounting position are provided with clamping pieces, and the clamping pieces are clamped at one end of the jewel.

7. A ring with a ball ornament as claimed in claim 4, wherein: the limiting seat is provided with a limiting hole, the fixing seat is provided with an upper groove, a lower groove and a through hole, the upper groove and the lower groove are communicated through the through hole, one end of the mounting column penetrates through the limiting hole to be placed in the lower groove, and one end of the fixing piece penetrates through the through hole to be mounted in the mounting column.
