Abstract
The utility model discloses a water outlet device with filtering and purifying functions for an aluminum melting furnace, which comprises a barrel body and a box body, wherein a liquid flow pipe is inserted between the barrel body and the box body in a sealing manner, a flow guide port is formed in the bottom end of the barrel body, a liquid outlet pipe is inserted at the other end of the box body in a sealing manner, a sedimentation tank is arranged on the inner wall of the bottom of the box body, a filter screen is inserted at the top of the box body, the bottom of the filter screen is inserted with the inner wall of the bottom of the box body, a third connecting rod is inserted at the top of the box body, a first scraper blade is fixedly connected to the bottom end of the third connecting rod and is in contact with the filter screen, and a fourth connecting rod is rotatably connected to one side of the third connecting rod. The utility model not only can filter out impurities contained in the aluminum liquid, thereby effectively purifying the aluminum liquid flowing out and obtaining high-quality aluminum liquid, thereby improving the economic benefit, but also can orderly guide the aluminum liquid in the furnace into the water outlet pipeline, and ensure that the aluminum liquid in the furnace is emptied, discharged and cleaned without residues.
Description
Technical Field
The utility model relates to the technical field of aluminum melting furnaces, in particular to a water outlet device with a filtering and purifying function for an aluminum melting furnace.
Background
The aluminum melting furnace is a novel high-efficiency energy-saving furnace developed according to an aluminum melting process, and can well meet the requirements of the aluminum melting process that: the alloy has strict requirements on components, discontinuous production, large capacity of a single furnace and the like, and achieves the effects of reducing consumption, reducing burning loss, improving product quality, reducing labor intensity, improving labor conditions and improving production efficiency.
At present, in an operating aluminum melting furnace, a water outlet only has a single function, namely, the aluminum water is guided to the next procedure, and because some impurities are mixed in the aluminum during melting and heat preservation, if the impurities are not treated, the impurities can flow into products along with the aluminum liquid, so that the quality is reduced, even serious quality accidents are caused, and therefore, the water outlet device with the filtering and purifying functions for the aluminum melting furnace is very necessary.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art, and provides a water outlet device with a filtering and purifying function for an aluminum melting furnace.
In order to achieve the purpose, the utility model adopts the following technical scheme:
the utility model provides a delivery port device for melting aluminium stove with filtering purification performance, includes staving and box, sealed the pegging graft has the flowing liquid pipe between staving and the box, and the bottom of staving is equipped with the water conservancy diversion mouth, and the other end of box is sealed the pegging graft and has the drain pipe, the bottom inner wall of box is equipped with the sedimentation tank, and the top of box is pegged graft and is had the filter screen, and the bottom of filter screen is pegged graft with the bottom inner wall of box, the top of box is pegged graft and is had the third connecting rod, the first scraper blade of bottom fixedly connected with of third connecting rod, first scraper blade and filter screen contact, one side of third connecting rod is rotated and is connected with the fourth connecting rod, and the other end of fourth connecting rod is rotated and is connected with the second scraper blade, the bottom inner wall contact of second scraper blade and box, the both sides inner wall of box all is equipped with the spout, and the second scraper blade slides in the spout.
As a further scheme of the present invention, an installation plate is fixedly connected to the upper surface of the box body, a motor is fixedly connected to one side of the installation plate, a first connection rod is fixed to an output end of the motor, a second connection rod is slidably connected to the other end of the first connection rod, and the other end of the second connection rod is rotatably connected to one end of a third connection rod.
As a further scheme of the utility model, a barrel cover is arranged at the top of the barrel body, an observation window is arranged at the top of the barrel cover, and a handle is fixedly connected to the outer wall of the top of the barrel cover.
As a further scheme of the utility model, the outer wall of the bottom of the barrel body is fixedly connected with a plurality of support rods.
As a further scheme of the utility model, the top of the box body is fixedly connected with a controller, and the outer wall of the bottom of the box body is fixedly connected with a plurality of ground feet.
As a further scheme of the utility model, one end of the box body is rotatably connected with a baffle plate, the baffle plate is positioned in the liquid outlet pipe, the outer wall of the top of the box body is rotatably connected with an electric telescopic rod, and the other end of the electric telescopic rod is rotatably connected with the baffle plate.
As a further scheme of the utility model, a plurality of annular heating wires are fixedly connected to the circumferential inner wall of the barrel body, and straight heating wires are fixedly connected to the inner walls of the two sides of the box body.
As a further scheme of the present invention, the controller is electrically connected to the electric telescopic rod, the motor, the annular heating wire and the straight heating wire.
The utility model has the beneficial effects that:
1. according to the utility model, the impurity contained in the aluminum liquid can be filtered out by arranging the aluminum liquid flowing through the filter screen, so that the flowing aluminum liquid can be effectively purified, high-quality aluminum liquid is obtained, and the economic benefit is improved.
2. The flow guiding port is arranged at the bottom end of the barrel body, so that the flow of the aluminum liquid can be guided, the aluminum liquid in the furnace is guided into the water outlet pipeline in order, and the aluminum liquid in the furnace is ensured to be emptied, discharged and clean without residue.
3. The utility model can heat and preserve the heat of the aluminum liquid through the arrangement of the annular heating wire and the straight heating wire, thereby preventing the reduction of the filtering efficiency of the aluminum liquid due to the deterioration of the fluidity of the aluminum liquid caused by the temperature reduction.
4. According to the utility model, the second scraper is driven by the motor to slide in the chute, so that impurities accumulated on the inner wall of the bottom of the box body are pushed into the sedimentation tank to be collected, the intercepted residues are stored by the sedimentation tank, and the influence on the water outlet flow due to the accumulation of the residues is prevented.
Drawings
FIG. 1 is a schematic perspective view of a water outlet device with filtering and purifying functions for an aluminum melting furnace according to the present invention;
FIG. 2 is a schematic view of the internal structure of a water outlet device with filtering and purifying functions for an aluminum melting furnace according to the present invention;

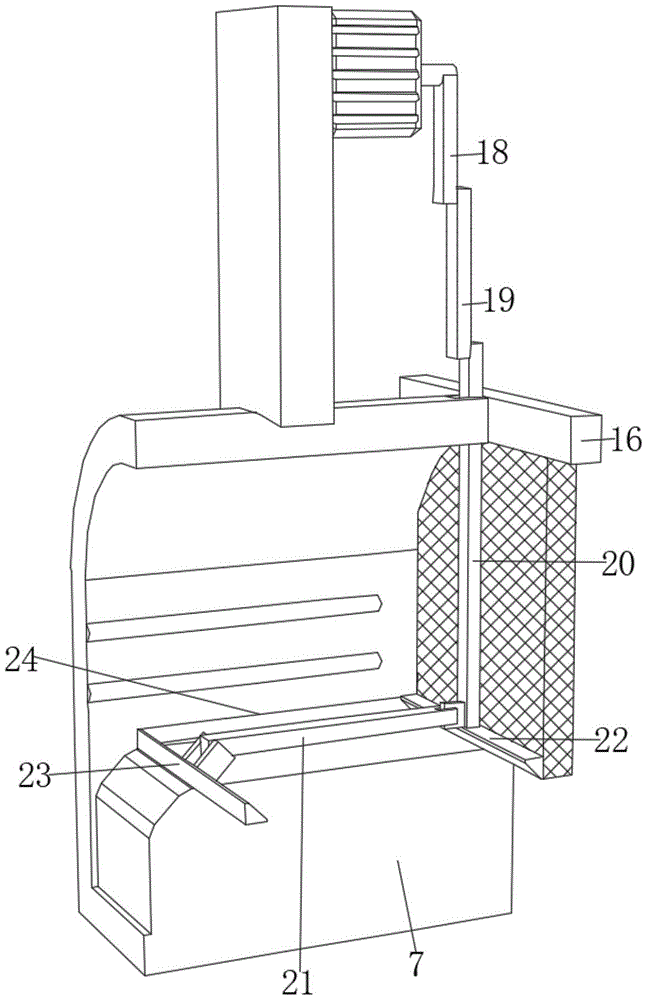

fig. 3 is a schematic partial sectional structural view of a water outlet device with a filtering and purifying function for an aluminum melting furnace according to the present invention.
In the figure: 1. a barrel body; 2. a barrel cover; 3. an observation window; 4. a handle; 5. a support bar; 6. a liquid flow pipe; 7. a box body; 8. a controller; 9. ground feet; 10. a liquid outlet pipe; 11. a baffle plate; 12. a ring-shaped heating wire; 13. a sedimentation tank; 14. a flow guide port; 15. a straight heater wire; 16. a filter screen; 17. an electric telescopic rod; 18. a first connecting rod; 19. a second connecting rod; 20. a third connecting rod; 21. a fourth connecting rod; 22. a first squeegee; 23. a second squeegee; 24. a chute.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. It should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and their meaning in the context of this patent may be understood by those skilled in the art as appropriate.
Referring to fig. 1-3, a water outlet device with filtering and purifying functions for an aluminum melting furnace comprises a barrel body 1 and a box body 7, one side of the box body 7 is provided with a sealing door, a liquid flow pipe 6 is hermetically inserted between the barrel body 1 and the box body 7, the bottom end of the barrel body 1 is provided with a flow guide port 14, the flow guide port 14 guides the outflow of aluminum liquid, so as to guide the aluminum liquid in the furnace into a water outlet pipeline in order to ensure the aluminum liquid in the furnace to be emptied, discharged and purified and has no residue, the other end of the box body 7 is hermetically inserted with a liquid outlet pipe 10, the bottom inner wall of the box body 7 is provided with a sedimentation tank 13, the top of the box body 7 is inserted with a filter screen 16, the filter screen 16 can filter impurities in the aluminum liquid, so that the outflow aluminum water can be effectively purified to obtain high-quality aluminum liquid, the bottom of the filter screen 16 is inserted with the bottom inner wall of the box body 7, the top of the box body 7 is inserted with a third connecting rod 20, the bottom of third connecting rod 20 is passed through the bolt fastening and is had first scraper blade 22, first scraper blade 22 and filter screen 16 contact, one side of third connecting rod 20 is rotated and is connected with fourth connecting rod 21, the other end of fourth connecting rod 21 is rotated and is connected with second scraper blade 23, second scraper blade 23 and the bottom inner wall contact of box 7, the both sides inner wall of box 7 all is equipped with spout 24, second scraper blade 23 slides in spout 24, the motor drives second scraper blade 23 and slides in spout 24, thereby will pile up and collect in the sedimentation tank 13 is pushed away to the impurity of box 7 bottom inner wall, thereby store the residue that comes down to the interception through the sedimentation tank, prevent to influence out the water flow because of the residue gathering.
In the utility model, an installation plate is fixed on the upper surface of a box body 7 through bolts, a motor is fixed on one side of the installation plate through bolts, a first connecting rod 18 is fixed at the output end of the motor, a second connecting rod 19 is connected to the other end of the first connecting rod 18 in a sliding manner, the other end of the second connecting rod 19 is rotatably connected with one end of a third connecting rod 20, the first connecting rod 18 rotates under the driving of the motor and simultaneously drives the second connecting rod 19 to rotate, so that the third connecting rod 20 moves up and down, a first scraper 22 scrapes up and down on a filter screen 16 to scrape impurities adhered on the filter screen 16, a barrel cover 2 is arranged at the top of the barrel body 1, an observation window 3 is arranged at the top of the barrel cover 2, a handle 4 is fixed on the outer wall of the top of the barrel cover 2 through bolts, the handle 4 is convenient for opening the barrel cover 2, and a plurality of support rods 5 are welded on the outer wall of the bottom of the barrel body 1, the top of the box body 7 is fixed with a controller 8 through bolts, the controller 8 is in a DATA-7311 type, the outer wall of the bottom of the box body 7 is fixed with a plurality of ground feet 9 through bolts, one end of the box body 7 is rotatably connected with a baffle 11, the baffle 11 is positioned in a liquid outlet pipe 10, the outer wall of the top of the box body 7 is rotatably connected with an electric telescopic rod 17, the other end of the electric telescopic rod 17 is rotatably connected with the baffle 11, the baffle 11 is opened under the driving of the electric telescopic rod 17, the aluminum liquid flows out of the liquid outlet pipe 10, the inner wall of the circumference of the barrel body 1 is fixedly provided with a plurality of annular heating wires 12 through bolts, the inner walls of two sides of the box body 7 are fixedly provided with straight heating wires 15 through bolts, the annular heating wires 12 and the straight heating wires 15 are arranged to heat and insulate the aluminum liquid, thereby preventing the reduction of the flowability of the aluminum liquid due to the temperature, and the reduction of the filtration efficiency of the aluminum liquid, the controller 8 and the electric telescopic rod 17, The motor, the annular heating wire 12 and the straight heating wire 15 are electrically connected.
The working principle is as follows: firstly, the aluminum liquid in the barrel body 1 flows into the liquid flowing pipe 6 into the box body 7 under the guiding action of the guiding opening 14, in the box body 7, the aluminum liquid is filtered by the filter screen 16 to filter impurities contained in the aluminum liquid, then the motor is started, the first connecting rod 18 is driven by the motor to rotate, and the second connecting rod 19 is driven to rotate, so that the third connecting rod 20 moves up and down, so that the first scraper 22 scrapes up and down on the filter mesh 16, scrapes off the foreign substances adhered to the filter mesh 16, at the same time, the second scraper 23 is driven to slide in the chute 24 under the action of the fourth connecting rod 21, so as to push the impurities accumulated on the inner wall of the bottom of the box body 7 into the sedimentation tank 13 for collection, then, start the electric telescopic rod 17, the baffle 11 is opened under the driving of the electric telescopic rod 17, the aluminum liquid flows out from the liquid outlet pipe 10, and meanwhile, the annular heating wire 12 and the straight heating wire 15 heat and preserve heat of the aluminum liquid.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (8)
1. A water outlet device with filtering and purifying functions for an aluminum melting furnace comprises a barrel body (1) and a box body (7) and is characterized in that a liquid flow pipe (6) is hermetically inserted between the barrel body (1) and the box body (7), a flow guide port (14) is formed in the bottom end of the barrel body (1), a liquid outlet pipe (10) is hermetically inserted in the other end of the box body (7), a sedimentation tank (13) is arranged on the inner wall of the bottom of the box body (7), a filter screen (16) is inserted in the top of the box body (7), the bottom of the filter screen (16) is inserted in the inner wall of the bottom of the box body (7), a third connecting rod (20) is inserted in the top of the box body (7), a first scraper blade (22) is fixedly connected to the bottom end of the third connecting rod (20), the first scraper blade (22) is in contact with the filter screen (16), a fourth connecting rod (21) is rotatably connected to one side of the third connecting rod (20), the other end of fourth connecting rod (21) rotates and is connected with second scraper blade (23), and second scraper blade (23) and the contact of the bottom inner wall of box (7), the both sides inner wall of box (7) all is equipped with spout (24), and second scraper blade (23) slide in spout (24).
2. The water outlet device with the filtering and purifying functions for the aluminum melting furnace is characterized in that a mounting plate is fixedly connected to the upper surface of the box body (7), a motor is fixedly connected to one side of the mounting plate, a first connecting rod (18) is fixed to the output end of the motor, a second connecting rod (19) is slidably connected to the other end of the first connecting rod (18), and the other end of the second connecting rod (19) is rotatably connected to one end of a third connecting rod (20).
3. The water outlet device with the filtering and purifying functions for the aluminum melting furnace according to claim 1, wherein a barrel cover (2) is arranged at the top of the barrel body (1), an observation window (3) is arranged at the top of the barrel cover (2), and a handle (4) is fixedly connected to the outer wall of the top of the barrel cover (2).
4. The water outlet device with the filtering and purifying functions for the aluminum melting furnace as claimed in claim 1, wherein a plurality of support rods (5) are fixedly connected to the outer wall of the bottom of the barrel body (1).
5. The water outlet device with the filtering and purifying functions for the aluminum melting furnace according to claim 2, wherein a controller (8) is fixedly connected to the top of the box body (7), and a plurality of anchor feet (9) are fixedly connected to the outer wall of the bottom of the box body (7).
6. The water outlet device with the filtering and purifying functions for the aluminum melting furnace according to claim 5, wherein one end of the box body (7) is rotatably connected with a baffle (11), the baffle (11) is positioned in the liquid outlet pipe (10), the outer wall of the top of the box body (7) is rotatably connected with an electric telescopic rod (17), and the other end of the electric telescopic rod (17) is rotatably connected with the baffle (11).
7. The water outlet device with the filtering and purifying functions for the aluminum melting furnace according to claim 6, wherein a plurality of annular heating wires (12) are fixedly connected to the inner wall of the circumference of the barrel body (1), and straight heating wires (15) are fixedly connected to the inner walls of two sides of the box body (7).
8. The water outlet device with the filtering and purifying functions for the aluminum melting furnace as claimed in claim 7, wherein the controller (8) is electrically connected with the electric telescopic rod (17), the motor, the annular heating wire (12) and the straight heating wire (15).
