Abstract
The utility model discloses a veterinary drencher which comprises a moving frame, a roller, a pesticide mixing barrel, a reciprocating type pushing drenching assembly and a drenching head, wherein the roller is arranged on the bottom wall of the moving frame, the pesticide mixing barrel is arranged on the moving frame, the reciprocating type pushing drenching assembly is connected onto the pesticide mixing barrel through a connecting hose I, a stop valve is arranged on the connecting hose I, and the drenching head is connected onto the reciprocating type pushing drenching assembly through a connecting hose II. The utility model belongs to the technical field of veterinary medical instruments, and particularly relates to a drencher for livestock and poultry.
Description
Technical Field
The utility model belongs to the technical field of veterinary medical instruments, and particularly relates to a drencher for livestock and poultry.
Background
Animal husbandry is a production department for obtaining animal products such as meat, eggs, milk, wool, cashmere, skin, silk and medicinal materials by utilizing the physiological functions of animals such as livestock and poultry which are domesticated by human beings or wild animals such as deer, musk, fox, mink, otter and quail and converting pasture, feed and other plant energy into animal energy through artificial feeding and breeding. In the livestock breeding process, sometimes, in order to prevent or treat certain diseases, the livestock needs to be drenched. However, for large-scale livestock, the required dosage of the drug is more, while the traditional injection type drug filling device contains less dosage and needs to continuously add the liquid medicine, so the use is inconvenient, and the time and the labor are wasted.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a drencher for livestock and poultry, which aims to solve the problems in the background technology.
In order to solve the technical problem, the drencher for the livestock and poultry comprises a moving frame, rollers, a pesticide mixing barrel, a reciprocating pushing drenching assembly and a drenching head, wherein the rollers are arranged on the bottom wall of the moving frame, the pesticide mixing barrel is arranged on the moving frame, the reciprocating pushing drenching assembly is connected to the pesticide mixing barrel through a connecting hose, a stop valve is arranged on the connecting hose, the drenching head is connected to the reciprocating pushing drenching assembly through a connecting hose II, the pesticide mixing barrel can dissolve the required dose of pesticide, the drenching head is worn on the mouth of the livestock, the drenching assembly is continuously injected into the controllable mouth of the livestock through reciprocating pushing, the pesticide does not need to be added repeatedly, and the operation is convenient.
Preferably, the reciprocating pushing medicine filling assembly comprises a medicine filling barrel, a piston and a slide bar, a first feed pipe and a second feed pipe are arranged at two ends of the upper wall of the medicine filling barrel, the first feed pipe and the second feed pipe are both connected to a first connecting hose, a first check valve is arranged on the first feed pipe, a second check valve is arranged on the second feed pipe, a first medicine outlet pipe and a second medicine outlet pipe are respectively arranged at the front end and the rear end of the medicine filling barrel, a third check valve is arranged on the first medicine outlet pipe, a fourth check valve is arranged on the second medicine outlet pipe, a three-way pipe is arranged at the end part of the second medicine outlet pipe, the end part of the first medicine outlet pipe is connected to the three-way pipe through a pipeline, the second connecting hose is connected to the output end of the three-way pipe and a medicine filling head, the piston is slidably arranged in the medicine filling barrel, one end of the slide bar is arranged on the piston, the other end of the slide bar slidably penetrates through the side wall of the medicine filling barrel and is hermetically arranged, and the end part of the slide bar is provided with a grab handle, after the medicines are uniformly mixed in the medicine mixing barrel, the stop valve is opened, the grab handle is pulled, the slide rod is driven to drive the piston to reciprocate, when the piston moves forwards, the front half part of the medicine beating barrel is pushed out, the space of the rear half part of the medicine beating barrel is enlarged, the check valve III and the check valve II are in a closed state, the check valve I and the check valve II are in an open state, the rear half part of the medicine beating barrel sucks the medicines at the moment, when the piston moves to the front end of the medicine beating barrel and starts to move backwards, the space of the front end of the medicine beating barrel is enlarged, the check valve IV and the check valve I are in a closed state, the check valve II and the check valve III are in an open state, the front end of the medicine beating barrel sucks the medicines, the medicines sucked in the front process at the rear end of the medicine beating barrel are discharged and are sent into the mouth of livestock along the communication hose II through the medicine pouring head.
Preferably, the drench medicine head including mouth cover, drench medicine mouth and band, the drench medicine mouth is located in the mouth cover and is connected with coupling hose two, the band is located on the mouth cover, is fixed in the livestock mouth with the help of the band with the mouth cover, and the drench medicine mouth is lived by the livestock, along with reciprocating type promotion drench medicine subassembly work, drench the medicament in the livestock mouth.
As a further improvement of the utility model, the top wall of the medicine mixing barrel is provided with a driving motor, and the medicine mixing barrel is internally provided with a stirring paddle and is connected with the output end of the driving motor to operate, so that the stirring paddle can be driven to rotate, the medicine can be dispersed and dissolved, and the deposition can be avoided.
As a further improvement of the utility model, the movable frame is provided with a hoop, and the medicine mixing barrel is arranged on the hoop and is convenient to take down and clean.
The utility model adopts the structure to obtain the following beneficial effects: the livestock and poultry animal medicine filling device provided by the utility model is simple in structure and reasonable in design, the mixing barrel is arranged outside and is connected with the reciprocating type pushing and medicine filling assembly, so that the medicine can be directly and continuously filled into the mouth of livestock in a controllable manner without repeatedly adding liquid medicine, the operation is convenient, meanwhile, in order to prevent the medicine from precipitating, the mixing barrel can be provided with the stirring paddle and the driving motor, and the medicine is kept dispersed in the medicine filling process.
Drawings

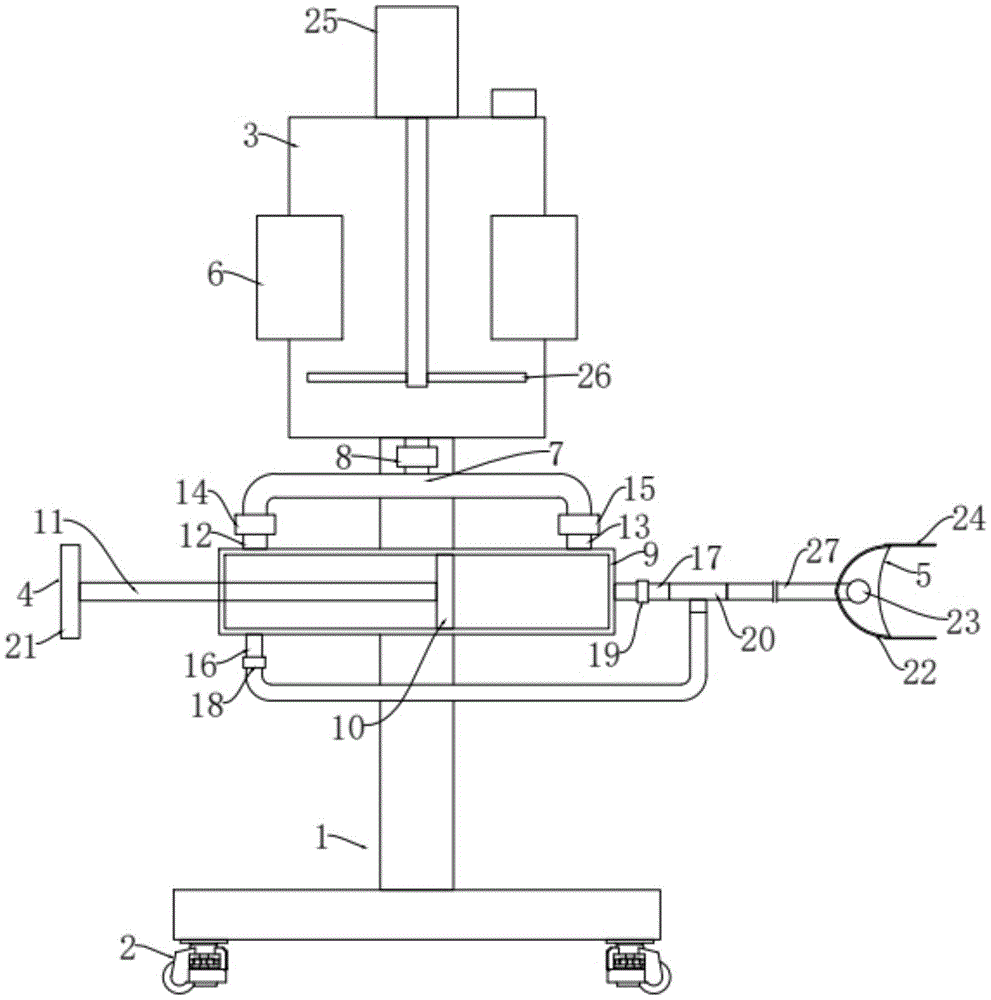

FIG. 1 is a schematic structural view of the drencher for livestock and poultry;
fig. 2 is a side view of the drencher for livestock and poultry use according to the present invention.
The medicine mixing device comprises a moving frame 1, a moving frame 2, rollers 3, a medicine mixing barrel 4, a reciprocating type pushing medicine filling assembly 5, a medicine filling head 6, a hoop 7, a first connecting hose 8, a cut-off valve 9, a medicine filling barrel 10, a piston 11, a sliding rod 12, a first feeding pipe 13, a second feeding pipe 14, a first one-way valve 15, a second one-way valve 16, a first medicine outlet pipe 17, a second medicine outlet pipe 18, a third one-way valve 19, a fourth one-way valve 20, a three-way pipe 21, a grab handle 22, a nozzle sleeve 23, a medicine filling nozzle 24, a belt 25, a driving motor 26, a stirring paddle 27 and a second connecting hose.
Detailed Description
The technical solutions of the present invention will be described in further detail with reference to specific embodiments, and all the parts of the present invention that are not described in detail in the technical features or the connection relationships of the present invention are the prior art.
In the description of the present invention, it is to be understood that the terms "longitudinal", "lateral", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on those shown in the drawings, and are used only for convenience in describing the present invention and for simplicity in description, and do not indicate or imply that the referenced devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and thus, are not to be construed as limiting the present invention.
The present invention will be described in further detail with reference to the accompanying drawings.
As shown in fig. 1-2, the livestock and poultry animal medicine drencher provided by the utility model comprises a movable frame 1, rollers 2, a medicine mixing barrel 3, a reciprocating pushing medicine drenching assembly 4 and a medicine drenching head 5, wherein the rollers 2 are arranged on the bottom wall of the movable frame 1, an anchor ear 6 is arranged on the movable frame 1, the medicine mixing barrel 3 is arranged on the anchor ear 6, the reciprocating pushing medicine drenching assembly 4 is connected to the medicine mixing barrel 3 through a first connecting hose 7, a stop valve 8 is arranged on the first connecting hose 7, and the medicine drenching head 5 is connected to the reciprocating pushing medicine drenching assembly 4 through a second connecting hose 27.
The reciprocating type pushing medicine filling assembly 4 comprises a medicine filling barrel 9, a piston 10 and a slide rod 11, wherein a first feed pipe 12 and a second feed pipe 13 are arranged at two ends of the upper wall of the medicine filling barrel 9, the first feed pipe 12 and the second feed pipe 13 are both connected to a first connecting hose 7, a first check valve 14 is arranged on the first feed pipe 12, a second check valve 15 is arranged on the second feed pipe 13, a first medicine outlet pipe 16 and a second medicine outlet pipe 17 are respectively arranged at the front end and the rear end of the medicine filling barrel 9, a third check valve 18 is arranged on the first medicine outlet pipe 16, a fourth check valve 19 is arranged on the second medicine outlet pipe 17, a three-way pipe 20 is arranged at the end part of the second medicine outlet pipe 17, the end part of the first medicine outlet pipe 16 is connected to the three-way pipe 20 through a pipeline, a second connecting hose 27 is connected to the output end of the three-way pipe 20 and the medicine filling head 5, the piston 10 is slidably arranged in the medicine filling barrel 9, one end of the slide rod 11 is arranged on the piston 10, and the other end of the slide rod 11 slidably penetrates through the side wall of the medicine filling barrel 9 and is hermetically arranged, the end of the sliding rod 11 is provided with a grab handle 21.
The medicine filling head 5 comprises a mouth sleeve 22, a medicine filling nozzle 23 and a belt 24, the medicine filling nozzle 23 is arranged in the mouth sleeve 22 and is connected with a second connecting hose 27, and the belt 24 is arranged on the mouth sleeve 22.
Mix 3 roof of explosive barrel and be equipped with driving motor 25, be equipped with stirring rake 26 in mixing explosive barrel 3 and be connected with driving motor 25 output.
When the medicine injection device is used specifically, medicine and a proper amount of warm water are poured into the medicine mixing barrel 3, the driving motor 25 is started to drive the stirring paddle 26 to rotate to promote medicine dispersion, the mouth sleeve 22 is fixed on the head of livestock through the strap 24, the medicine injection mouth 23 is inserted into the mouth of the livestock, the cut-off valve 8 is opened, the sliding rod 11 is driven to move repeatedly through the push handle, the state of the check valve IV 19 is the same as that of the check valve IV 14, the check valve IV 15 and the check valve IV 18, when the piston 10 moves forwards, the medicine in the front half part of the medicine injection barrel 9 is pushed out, the space in the rear half part of the medicine injection barrel 9 is enlarged, the check valve IV 18 and the check valve IV 15 are in a closed state, the check valve IV 14 and the check valve IV 19 are in an open state, the medicine is sucked in the rear half part of the medicine injection barrel 9, when the piston 10 moves to the front end of the medicine injection barrel 9 and starts to move backwards, the space in the front end of the medicine injection barrel 9 is enlarged, the check valve IV 19 and the check valve IV 14 are in a closed state, the second check valve 15 and the third check valve 18 are in an opening state, so that the front end of the medicine injection barrel 9 sucks the medicine, the medicine sucked in the previous process at the rear end of the medicine injection barrel 9 is discharged, and the medicine is conveyed into the mouth of the livestock through the medicine filling head 5 along the second communication hose.
The present invention and its embodiments have been described above, and the description is not intended to be limiting, and the drawings are only one embodiment of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should appreciate that they can readily use the disclosed conception and specific embodiments as a basis for designing or modifying other structures for carrying out the same purposes of the present invention without departing from the spirit and scope of the utility model as defined by the appended claims.
Claims (5)
1. The utility model provides a poultry animal doctor is with drencher which characterized in that: including removing frame, gyro wheel, mixing the explosive barrel, reciprocating type promotion irritate the medicine subassembly and irritate the medicine head, the gyro wheel is located on the diapire of removing the frame, mix the explosive barrel and locate on removing the frame, reciprocating type promotion irritates the medicine subassembly and passes through coupling hose one and connect on mixing the explosive barrel, coupling hose is last to be equipped with the trip valve, irritate the medicine head and pass through coupling hose two and connect on reciprocating type promotion irritates the medicine subassembly.
2. The animal husbandry veterinary medical drencher of claim 1, characterized in that: the reciprocating type pushing and filling component comprises a cartridge shooting barrel, a piston and a sliding rod, wherein a first feeding pipe and a second feeding pipe are arranged at two ends of the upper wall of the cartridge shooting barrel, the first feeding pipe and the second feeding pipe are both connected with the first connecting hose, the first feeding pipe is provided with a one-way valve, the feeding pipe II is provided with a one-way valve II, the front end and the rear end of the cartridge beating barrel are respectively provided with a first drug outlet pipe and a second drug outlet pipe, a check valve III is arranged on the first medicine outlet pipe, a check valve IV is arranged on the second medicine outlet pipe, a three-way pipe is arranged at the end part of the second medicine outlet pipe, the end part of the first medicine outlet pipe is connected to the three-way pipe through a pipeline, the second connecting hose is connected to the output end of the three-way pipe and the medicine filling head, the piston slides and is located in beating the cartridge case, the one end of slide bar is located on the piston, the other end of slide bar slides and runs through beating cartridge case lateral wall and sealed the setting, the slide bar tip is equipped with the grab handle.
3. The animal husbandry veterinary medical drencher of claim 2, characterized in that: the medicine filling head comprises a mouth sleeve, a medicine filling nozzle and a bridle, the medicine filling nozzle is arranged in the mouth sleeve and is connected with the second connecting hose, and the bridle is arranged on the mouth sleeve.
4. The animal husbandry veterinary medical drencher of claim 3, characterized in that: mix the explosive barrel roof and be equipped with driving motor, be equipped with the stirring rake in mixing the explosive barrel and be connected with the driving motor output.
5. The animal husbandry veterinary medical drencher of claim 4, characterized in that: the movable frame is provided with a hoop, and the medicine mixing barrel is arranged on the hoop.
