CN216365285U

CN216365285U - Multifunctional convenient device for pericardiocentesis drainage

Info

Publication number: CN216365285U
Application number: CN202122631183.5U
Authority: CN
Inventors: 刘雪梅; 顾玉琴; 于红静
Original assignee: Second Affiliated Hospital of Guangzhou Medical University
Current assignee: Second Affiliated Hospital of Guangzhou Medical University
Priority date: 2021-10-30
Filing date: 2021-10-30
Publication date: 2022-04-26
Anticipated expiration: 2031-10-30

Abstract

A multifunctional convenient device for pericardiocentesis drainage comprises a bag body and a storage box, and is characterized in that the storage box is arranged in the bag body; the storage box is provided with a plurality of placing cavities for placing articles; the article comprises a pigtail drainage catheter, a nickel-titanium guide wire, a guide wire booster, an injection needle, a sterile injector, a puncture needle, a needle pad, an expander, an epitaxial tube clamp, a butterfly-shaped clamp, a blue fixer, a short-handle operating blade, a non-absorbable surgical suture, medical dressing, medical gauze, a hole towel, a sterilizing brush, a medicine adding cup, non-woven fabrics, a disposable sterile glove, a heparin lock, an infusion joint, a three-way pipe and a disposable spiral port anti-reflux drainage bag, and the article is used for pericardial puncture drainage; the device can place all required articles of pericardiocentesis through a plurality of chambeies and the spacing groove of placing, has reduced the required time of preparing for the thing, improves treatment efficiency to and required three-way pipe when drawing liquid need not to prepare for the thing in addition again, has improved and has prepared for thing efficiency.

Description

Multifunctional convenient device for pericardiocentesis drainage

Technical Field

The utility model relates to the technical field of medical instruments, in particular to a multifunctional convenient device for pericardiocentesis drainage.

Background

Pericardial effusion is common in clinic, and is rapidly accumulated in a short time or chronically accumulated for a long time, a large amount of pericardial effusion often causes pericardial stuffing and endangers the life of a patient, a pericardiocentesis operation needs to be performed immediately, the pericardial effusion is discharged, the pericardial stuffing is removed, and continuous pericardial drainage is performed if necessary. But the pericardiocentesis needs many kinds of articles, the preparation time is long, and in clinical work, the phenomenon that a connecting pipeline or a drainage bag matched with the pigtail drainage catheter cannot be found often appears when the pericardiocentesis drainage is continued, so that the quick implementation of the pericardiocentesis is not facilitated, and the rescue difficulty is increased.

Based on the above, the utility model designs a multifunctional convenient device for pericardiocentesis drainage, so as to solve the problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a multifunctional convenient device for pericardiocentesis drainage, which can effectively solve the problems in the background technology.

In order to solve the problems, the technical scheme adopted by the utility model is as follows: a multifunctional convenient device for pericardiocentesis drainage comprises a bag body and a storage box, and is characterized in that the storage box is arranged in the bag body; the storage box is provided with a plurality of placing cavities for placing articles; the article comprises a pigtail drainage catheter, a nickel-titanium guide wire, a guide wire booster, an injection needle, an aseptic injector, a puncture needle, a needle pad, an expander, an epitaxial tube clamp, a butterfly-shaped clamp, a blue fixer, a short-handle operating blade, a non-absorbable surgical suture, medical dressing, medical gauze, a hole towel, a sterilizing brush, a medicine adding cup, non-woven fabrics, disposable aseptic gloves, a heparin lock, an infusion joint, a three-way pipe and a disposable spiral port anti-reflux drainage bag, and the article is used for carrying out pericardial puncture drainage.

As a further preferable scheme of the utility model, one end or two ends of the bag body are provided with a handle part; the sterile treatment towel is placed inside the bag body, and the inside of the bag body is aseptically sealed, or the bag body is wrapped by the sterile treatment towel; the bag body is a sterile bag.

As a further preferable scheme of the utility model, the outer surface of the storage box is provided with the anti-slip strips, and the anti-slip strips are adhered to the storage box; the storage box is provided with a handle, and the handle is fixedly connected with the storage box.

As a further preferable scheme of the utility model, the storage box is a flip type and is divided into an upper flip and a lower cover; the upper flip cover and the lower cover are both provided with a placing cavity, the storage box is provided with a clamping tongue, and the clamping tongue is rotatably connected with the storage box; the clamping tongue is arranged between the upper flip cover and the lower cover.

As a further preferable scheme of the utility model, the shape of the placing cavity comprises a circle, a straight notch, a triangle, a square, an ellipse and a rectangle.

As a further preferable scheme of the utility model, the storage box further comprises a pull plate, and the pull plate is connected with the upper flip cover in a sliding manner; the pull plate is arranged between the upper flip cover and the clamping tongue, and the pull plate is provided with a limiting groove for placing the drainage bag.

As a further preferable scheme of the utility model, the pulling plate is provided with an elastic belt, and the elastic belt is fixedly connected with the pulling plate.

As a further preferable scheme of the utility model, the upper flip cover and the lower cover are connected by the fasteners at two sides; the front opening end of the upper turnover cover is provided with a clamping block, and the front opening end of the lower cover is provided with a boss matched with the clamping block.

As a further preferable scheme of the utility model, the clamping piece is divided into a locking piece and a limiting column, and the limiting column is fixedly connected with the upper flip cover; the limiting column is fixedly connected with the lower cover.

Compared with the prior art, the utility model provides a multifunctional convenient device for pericardiocentesis drainage, which has the following beneficial effects:

the device can place all articles required by the pericardiocentesis through the plurality of placing cavities and the limiting grooves, so that the time required by article preparation is reduced, the treatment efficiency is improved, the three-way pipe required by liquid extraction is not needed, and the article preparation efficiency is improved; a positive pressure joint is added, and is connected with the three-way pipe after liquid is pumped and is isolated from the outside air, so that the subsequent liquid pumping is facilitated, and the occurrence of infection is reduced; the device is used for placing the articles required by drainage in a matching way with the catheter, so that the articles can be directly taken for use during use, the connection is tight, the risk of tube detachment in drainage is reduced, and the occurrence of catheter-related blood stream infection possibly caused by mismatching of connecting tubes is also reduced.

Drawings

FIG. 1 is a schematic view of a part of a bag body of the present application;

FIG. 2 is a schematic view of a portion of the storage box of the present application;

FIG. 3 is a schematic view of an opened portion of the storage case;

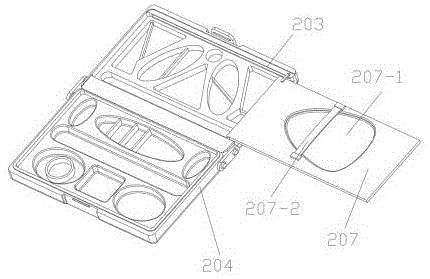

FIG. 4 is a schematic view of an open portion of the pulling plate of the present invention;

FIG. 5 is a schematic view of the open bottom portion of the pull plate of the present invention;

wherein: 1. the bag comprises a bag body, 101, a handle part, 2, a storage box, 201, an anti-slip strip, 202, a handle, 203, an upper flip cover, 203-1, a clamping block, 204, a lower cover, 204-1, a boss, 205, a placing cavity, 206, a clamping tongue, 207, a pulling plate, 207-1, a limiting groove, 207-2, an elastic belt, 208, a clamping piece, 208-1, a locking piece, 208-2 and a limiting column.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.

The utility model provides a multifunctional convenient device for pericardiocentesis drainage, which comprises a bag body 1 and a storage box 2, and is characterized in that the storage box 2 is arranged in the bag body 1; the storage box 2 is provided with a plurality of placing cavities 205 for placing articles; the article comprises a 7F pigtail drainage catheter of 20cm, a nickel-titanium guide wire of 60cm, a guide wire booster, a 25G injection needle, a 22G injection needle, a Y-shaped puncture needle of 18Ga x 71mm, a needle pad, a 7F dilator, an epitaxial tube clamp, a 7F butterfly clamp, a blue fixer, a No. 11 short-handle scalpel blade, a 2-0 non-absorbent surgical suture, a medical dressing of 8.5cm x 10.5cm, a 60cm x 80cm hole towel, a medicine adding cup, a 70cm x 70cm blue non-woven fabric, a disposable No. 7 sterile glove, a heparin lock, an infusion connector, a three-way pipe and a disposable spiral port anti-reflux drainage bag which are 1 sample respectively, and 3 blocks of 8 layers of medical gauze of 2 sterile injectors, 3 sterile brushes of 13cm and 3 medical gauzes of 7cm x 7cm, and is used for carrying out pericardial puncture drainage.

As a further preferable scheme of the utility model, one end or two ends of the bag body 1 are provided with a handle part 101; the sterile treatment towel is placed inside the bag body 1, the inside of the bag body 1 is aseptically sealed, or the bag body 1 is wrapped by the sterile treatment towel; the bag body 1 is a sterile bag and is convenient for medical personnel to carry through the handle part 101, and the material of the bag body 1 is harmless plastic.

As a further preferable scheme of the present invention, the outer surface of the storage box 2 is provided with an anti-slip strip 201, and the anti-slip strip 201 is adhered to the storage box 2; storage box 2 is equipped with handle 202, and handle 202 and storage box 2 fixed connection, through handle 202, make things convenient for medical personnel to carry or take.

As a further preferable scheme of the present invention, the storage box 2 is a flip-type, and is divided into an upper flip 203 and a lower flip 204; the upper turnover cover 203 and the lower cover 204 are both provided with a placing cavity 205, the storage box 2 is provided with a clamping tongue 206, and the clamping tongue 206 is rotatably connected with the storage box 2; the latch 206 is disposed between the upper lid 203 and the lower lid 204.

As a further preferable solution of the present invention, the shape of the placing cavity 205 includes a circle, a straight notch, a triangle, a square, an ellipse, and a rectangle.

As a further preferable scheme of the present invention, the storage box 2 further includes a pulling plate 207, and the pulling plate 207 is slidably connected to the upper flip 203; the pull plate 207 is arranged between the upper flip cover 203 and the clamping tongue 206, and the pull plate 207 is provided with a limit groove 207-1 for placing the drainage bag.

As a further preferable scheme of the utility model, the pulling plate 207 is provided with an elastic belt 207-2, and the elastic belt 207-2 is fixedly connected with the pulling plate 207.

As a further preferable solution of the present invention, the upper lid 203 and the lower lid 204 are connected by a snap-fit member 208 at two sides; a clamping block 203-1 is arranged at the front opening end of the upper turning cover 203, and a boss 204-1 matched with the clamping block 203-1 is arranged at the front opening end of the lower cover 204.

As a further preferable scheme of the present invention, the engaging member 208 is divided into a locking member 208-1 and a limiting column 208-2, and the limiting column 208-2 is fixedly connected to the upper flip cover 203; the limiting column 208-2 is fixedly connected with the lower cover 204.

Also relates to a pericardial puncture drainage method which is implemented by using the multifunctional convenient device for pericardial puncture drainage.

As a specific embodiment of the present invention:

when the pericardiocentesis is performed, the pericardiocentesis can be performed only by taking up the bag body 1 without additional preparation, the bag body 1 is conveniently and quickly torn, the storage box 2 is taken out, the locking pieces 208-1 on the two sides are firstly taken away, the upper flip cover 203 is turned over, the clamping tongue 206 limits the pull plate 207 in the process of turning over the upper flip cover 203, the pull plate 207 is prevented from being turned over in the process of turning over the cover, then the locking pieces 208-1 are sleeved into the limiting columns 208-2 for fixing, the pull plate 207 is pulled open, and at the moment, all articles required by the pericardiocentesis are prepared.

The above examples are only intended to illustrate the technical solution of the present invention, but not to limit it; although the present invention has been described in detail with reference to the foregoing embodiments, it will be understood by those of ordinary skill in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; and such modifications or substitutions do not depart from the spirit and scope of the corresponding technical solutions of the embodiments of the present invention.

Claims

1. A multifunctional convenient device for pericardiocentesis drainage comprises a bag body (1) and a storage box (2), and is characterized in that the storage box (2) is arranged in the bag body (1); the storage box (2) is provided with a plurality of placing cavities (205) for placing articles; the article comprises a pigtail drainage catheter, a nickel-titanium guide wire, a guide wire booster, an injection needle, an aseptic injector, a puncture needle, a needle pad, an expander, an epitaxial tube clamp, a butterfly-shaped clamp, a blue fixer, a short-handle operating blade, a non-absorbable surgical suture, medical dressing, medical gauze, a hole towel, a sterilizing brush, a medicine adding cup, non-woven fabrics, disposable aseptic gloves, a heparin lock, an infusion joint, a three-way pipe and a disposable spiral port anti-reflux drainage bag, and the article is used for carrying out pericardial puncture drainage.

2. The multifunctional convenient device for pericardial puncture drainage according to claim 1, characterized in that a handle (101) is provided at one or both ends of the bag body (1); the sterile treatment towel is placed inside the bag body (1), the inside of the bag body (1) is aseptically sealed, or the bag body (1) is wrapped by the sterile treatment towel; the bag body (1) is an aseptic bag.

3. The multifunctional convenient device for pericardial puncture drainage according to claim 1, characterized in that the outer surface of the storage box (2) is provided with anti-slip strips (201), and the anti-slip strips (201) are bonded with the storage box (2); the storage box (2) is provided with a handle (202), and the handle (202) is fixedly connected with the storage box (2).

4. The multifunctional convenient device for pericardial puncture drainage according to claim 1 or 3, characterized in that the storage case (2) is of a flip type, which is divided into an upper flip (203) and a lower cover (204); the storage box (2) is provided with a clamping tongue (206), and the clamping tongue (206) is rotatably connected with the storage box (2); the clamping tongue (206) is arranged between the upper flip cover (203) and the lower cover (204).

5. The multipurpose convenient device for pericardial puncture drainage according to claim 1 or 4, characterized in that the shape of the placement cavity (205) includes circle, straight notch, triangle, square, ellipse, rectangle.

6. The multifunctional convenient device for pericardial puncture drainage according to claim 4, characterized in that the storage box (2) further comprises a pull plate (207), and the pull plate (207) is slidably connected with the upper flip (203); the pull plate (207) is arranged between the upper turnover cover (203) and the clamping tongue (206), and the pull plate (207) is provided with a limiting groove (207-1) for placing a drainage bag.

7. The multifunctional convenient device for pericardial puncture drainage according to claim 6, characterized in that the pulling plate (207) is provided with an elastic band (207-2), and the elastic band (207-2) is fixedly connected with the pulling plate (207).

8. The multifunctional convenient device for pericardial puncture drainage according to claim 4, wherein the upper flip (203) and the lower cover (204) are connected by a snap fastener (208) at two sides; a clamping block (203-1) is arranged at the front opening end of the upper turning cover (203), and a boss (204-1) matched with the clamping block (203-1) is arranged at the front opening end of the lower cover (204).

9. The multifunctional convenient device for pericardial puncture drainage according to claim 8, wherein the engaging member (208) is divided into a locking member (208-1) and a position-limiting column (208-2), and the position-limiting column (208-2) is fixedly connected with the upper flip (203); the limiting column (208-2) is fixedly connected with the lower cover (204).
