Abstract
The utility model relates to the technical field of medical instruments and discloses a special wrapping auxiliary device for emergency nursing, which comprises a bottom plate, wherein a first vertical plate is fixedly arranged on one side of the top of the bottom plate, a first adjusting rod is rotatably connected to the top of the first vertical plate, a second vertical plate is fixedly arranged on the other side of the top of the bottom plate, a storage cabinet is fixedly arranged on the top of the bottom plate, a lifting plate is slidably connected to one side of the first vertical plate, a second adjusting rod is rotatably connected to the front side of the lifting plate, and sliding blocks are slidably connected to two sides of the top of the lifting plate. According to the utility model, the two sliding blocks at the top of the lifting plate can be driven to mutually approach or separate through the matching arrangement of the second adjusting rod, the two-way screw rod, the threaded sleeve, the first bevel gear and the second bevel gear, so that the adjustment can be performed when patients with different body types face each other, the adjustment is more convenient, the fixation can be well performed, and the adaptation to patients with different body types is facilitated.
Description
Technical Field
The utility model relates to the technical field of medical instruments, in particular to a special binding auxiliary device for emergency nursing.
Background
With the progress of science and technology and the development of society, medical instruments in China are rapidly developed, and with the rapid development of emergency nursing tools, in emergency departments, patients with injured arms or legs are frequently treated, wounds of the arms or the legs need to be disinfected and bandaged, and at present, when bandaged, bandaged wounds are usually assisted by bandaged auxiliary devices in order to reduce the labor cost of medical staff.
Some emergency nursing on the market special use are wrapped auxiliary device at present:
(1) in the process of using the dressing auxiliary device, the injured limb needs to be fixed, but most of the dressing auxiliary devices special for emergency nursing have fixed structures, are inconvenient to adjust according to the body types of different patients, and are easy to cause secondary injury to the patients;
(2) at the in-process that uses to wrap auxiliary device, because the auxiliary device is wrapped in the special use of most emergency nursing does not have and deposits the structure, lead to wrapping the access of material comparatively inconvenient, at the in-process of wrapping, still need the staff to prepare in advance and wrap required material, not only inconvenient to use, but also can cause the influence to wrapping efficiency.
Therefore, we propose a special bandaging auxiliary device for emergency nursing, so as to solve the problems mentioned above.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In view of the above-mentioned shortcomings in the prior art, an object of the present invention is to provide an auxiliary bandaging device for emergency nursing, so as to solve the problems of inconvenience in adjusting according to the body types of different patients and inconvenience in storing and taking bandaging materials in some of the auxiliary bandaging devices for emergency nursing in the current market proposed in the above-mentioned background art.
(II) technical scheme
In order to achieve the purpose, the utility model is realized by the following technical scheme:
a special wrapping auxiliary device for emergency nursing comprises a bottom plate, wherein a first vertical plate is fixedly mounted on one side of the top of the bottom plate, a first adjusting rod is rotatably connected to the top of the first vertical plate, a second vertical plate is fixedly mounted on the other side of the top of the bottom plate, a storage cabinet is fixedly mounted on the top of the bottom plate, a lifting plate is slidably connected to one side of the first vertical plate, a second adjusting rod is rotatably connected to the front side of the lifting plate, sliding blocks are slidably connected to two sides of the top of the lifting plate, a connecting rod is fixedly mounted on one side of each sliding block, a connecting plate is fixedly mounted at one end of each connecting rod, a fixed plate is fixedly mounted on one side of each connecting plate, and a limiting plate is fixedly mounted on one side of each fixed plate;
the inner bottom wall of the first vertical plate is rotatably connected with a ball screw, the inner bottom wall of the second vertical plate is fixedly provided with a sliding rod, two sides of the lifting plate are both fixedly provided with connecting blocks, one side of the inner wall of the lifting plate is rotatably connected with a bidirectional screw, the outer sides of two ends of the bidirectional screw are both in threaded connection with threaded sleeves, the outer side of one end of the bidirectional screw is fixedly provided with a first bevel gear, and one side of the first bevel gear is in meshed connection with a second bevel gear;
the utility model discloses a safe deposit cabinet, including storing compartment, the interior diapire one side sliding connection of storing compartment has the medicine cabinet, the interior diapire opposite side sliding connection of storing compartment has the gauze cabinet, the equal fixed mounting in interior roof both sides of storing compartment has the sterilamp.
Preferably, both sides of the bottom plate are fixedly provided with rollers, and the rollers are made of universal wheels with brake pads.
Preferably, the top of the second vertical plate is fixedly provided with an installation rod, one end of the installation rod is fixedly provided with an illuminating lamp, and the illuminating lamp is an LED lamp.
Preferably, the shape of limiting plate is the arc, the inboard sliding connection of limiting plate has the movable rod, the one end fixed mounting of movable rod has the connection ball, the other end fixed mounting of movable rod has the baffle, the outside of movable rod is provided with the spring, the one end of spring is fixed mutually with one side of being connected the ball, the other end of spring is fixed mutually with the inboard of limiting plate, it is made by the silicon rubber material to connect the ball.
Furthermore, the bottom end of the first adjusting rod penetrates through the top of the first vertical plate and is fixed to the top end of the ball screw, the connecting block on the left side of the lifting plate is located inside the first vertical plate and is in threaded connection with the ball screw, the connecting block on the right side of the lifting plate is located inside the second vertical plate and is in sliding connection with the sliding rod, and grooves matched with the connecting blocks are formed in one sides of the first vertical plate and the second vertical plate.
Furthermore, one end of the second adjusting rod penetrates through the front side of the lifting plate and is fixed with the middle of the second bevel gear, and the top of the threaded sleeve is fixed with the bottom of the sliding block through the mounting block.
Furthermore, the number of sterilamp has a plurality ofly, and is a plurality of the sterilamp is the distribution of rectangle array, the sterilamp is sterilamp.
(III) advantageous effects
Compared with the prior art, the utility model has the beneficial effects that:
(1) the cooperation setting between pole, two-way lead screw, thread bush, first bevel gear, the second bevel gear is adjusted to the second, can drive two sliders at lifter plate top and be close to each other or keep away from to can make the regulation when the patient in the face of different sizes, it is comparatively convenient to adjust, can be fine fix, the patient of the different sizes of adaptation of being convenient for avoids causing the secondary injury to the patient.
(2) The inside of storing compartment is deposited to the material that can directly use when wrapping through the cooperation setting between storing compartment, medicine cabinet, the gauze cabinet, when the patient wraps, need not to follow and newly gets it filled, through medicine cabinet and gauze cabinet, can separately place medicine and gauze, and the rethread is equipped with the sterilamp, can carry out sterilamp to the inside of storing compartment, avoids medicine and gauze to receive the pollution of bacterium when depositing.
Drawings

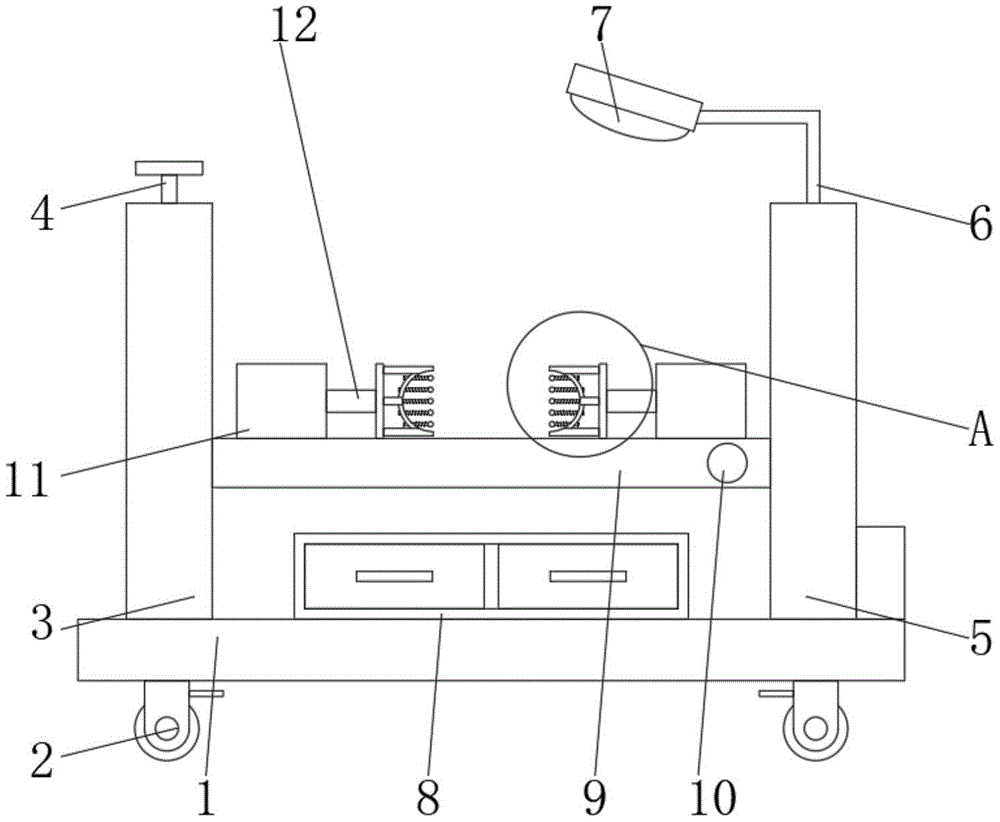

Fig. 1 is a schematic overall front view of the dressing auxiliary device for emergency nursing according to the present invention;
FIG. 2 is an enlarged schematic view of the dressing auxiliary device specially used for emergency nursing in FIG. 1;
FIG. 3 is a schematic cross-sectional view of a lifting plate of the auxiliary device for emergency nursing dressing according to the present invention;
FIG. 4 is a schematic sectional view of a storage cabinet of the dressing auxiliary device for emergency nursing according to the present invention;
fig. 5 is a schematic perspective view of a storage cabinet of the dressing auxiliary device for emergency nursing according to the present invention.
In the figure: 1. a base plate; 2. a roller; 3. a first vertical plate; 4. a first adjusting lever; 5. a second vertical plate; 6. mounting a rod; 7. an illuminating lamp; 8. a storage cabinet; 9. a lifting plate; 10. a second adjusting lever; 11. a slider; 12. a connecting rod; 13. a connecting plate; 14. a fixing plate; 15. a limiting plate; 16. a movable rod; 17. a connecting ball; 18. a spring; 19. a ball screw; 20. a slide bar; 21. connecting blocks; 22. a bidirectional lead screw; 23. a threaded sleeve; 24. a first bevel gear; 25. a second bevel gear; 26. a medicine cabinet; 27. a gauze cabinet; 28. a sterilizing light.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-5, the present invention provides a dressing auxiliary device for emergency nursing; the lifting device comprises a bottom plate 1, wherein a first vertical plate 3 is fixedly installed on one side of the top of the bottom plate 1, a first adjusting rod 4 is rotatably connected to the top of the first vertical plate 3, a second vertical plate 5 is fixedly installed on the other side of the top of the bottom plate 1, a storage battery is fixedly installed on one side, close to the second vertical plate 5, of the other side of the top of the bottom plate 1, a storage cabinet 8 is fixedly installed on the top of the bottom plate 1, a lifting plate 9 is slidably connected to one side of the first vertical plate 3, a second adjusting rod 10 is rotatably connected to the front side of the lifting plate 9, sliding blocks 11 are slidably connected to two sides of the top of the lifting plate 9, a connecting rod 12 is fixedly installed on one side of each sliding block 11, a connecting plate 13 is fixedly installed at one end of each connecting rod 12, a fixing plate 14 is fixedly installed on one side of each connecting plate 13, and a limiting plate 15 is fixedly installed on one side of each fixing plate 14;
the inner bottom wall of the first vertical plate 3 is rotatably connected with a ball screw 19, the inner bottom wall of the second vertical plate 5 is fixedly provided with a sliding rod 20, two sides of the lifting plate 9 are both fixedly provided with connecting blocks 21, one side of the inner wall of the lifting plate 9 is rotatably connected with a bidirectional screw 22, the outer sides of two ends of the bidirectional screw 22 are both in threaded connection with a threaded sleeve 23, the outer side of one end of the bidirectional screw 22 is fixedly provided with a first bevel gear 24, and one side of the first bevel gear 24 is in meshed connection with a second bevel gear 25;
one side of the inner bottom wall of the storage cabinet 8 is connected with a medicine cabinet 26 in a sliding manner, the other side of the inner bottom wall of the storage cabinet 8 is connected with a gauze cabinet 27 in a sliding manner, and two sides of the inner top wall of the storage cabinet 8 are both fixedly provided with disinfection lamps 28;
according to the scheme shown in figure 1, as a preferred technical scheme of the utility model: the two sides of the bottom plate 1 are fixedly provided with the rollers 2, the rollers 2 are made of universal wheels with brake pads, and the auxiliary device can be driven to move by arranging the rollers 2;
according to the scheme shown in figure 1, as a preferred technical scheme of the utility model: the top of the second vertical plate 5 is fixedly provided with an installation rod 6, one end of the installation rod 6 is fixedly provided with an illuminating lamp 7, the illuminating lamp 7 is an LED lamp, and the illuminating lamp 7 is arranged to illuminate the lifting plate 9, so that a good illuminating environment can be provided;
according to the illustration of fig. 2, as a preferred embodiment of the present invention: the limiting plate 15 is arc-shaped, the inner side of the limiting plate 15 is connected with a movable rod 16 in a sliding mode, one end of the movable rod 16 is fixedly provided with a connecting ball 17, the other end of the movable rod 16 is fixedly provided with a baffle, the outer side of the movable rod 16 is provided with a spring 18, one end of the spring 18 is fixed with one side of the connecting ball 17, the other end of the spring 18 is fixed with the inner side of the limiting plate 15, the connecting ball 17 is made of silicon rubber materials, the pressure of the limiting plate 15 can be buffered through the matching arrangement of the movable rod 16, the connecting ball 17 and the spring 18, and meanwhile, the limiting plate can be better adapted to limbs in different shapes;
according to the illustration in fig. 3, as a preferred embodiment of the present invention: the bottom end of the first adjusting rod 4 penetrates through the top of the first vertical plate 3 and is fixed with the top end of the ball screw 19, the connecting block 21 on the left side of the lifting plate 9 is positioned inside the first vertical plate 3 and is in threaded connection with the ball screw 19, the connecting block 21 on the right side of the lifting plate 9 is positioned inside the second vertical plate 5 and is in sliding connection with the sliding rod 20, and grooves matched with the connecting block 21 are formed in one sides of the first vertical plate 3 and the second vertical plate 5;
according to the illustration in fig. 3, as a preferred embodiment of the present invention: one end of the second adjusting rod 10 penetrates through the front side of the lifting plate 9 and is fixed with the middle part of the second bevel gear 25, and the top of the threaded sleeve 23 is fixed with the bottom of the sliding block 11 through a mounting block;
according to fig. 5, as a preferred embodiment of the present invention: the number of the disinfection lamps 28 is multiple, the multiple disinfection lamps 28 are distributed in a rectangular array, and the disinfection lamps 28 are ultraviolet sterilization lamps.
The working principle of the embodiment is as follows: when the special bandaging auxiliary device for emergency nursing is used, as shown in fig. 1-5, the device integrally comprises a bottom plate 1, a first vertical plate 3, a second vertical plate 5, a storage cabinet 8, a lifting plate 9, a sliding block 11, a connecting rod 12, a connecting plate 13, a fixing plate 14 and a limiting plate 15, when a patient is bandaged, the limb of the patient is placed on the lifting plate 9, then the limiting plate 15 is adjusted according to different body types, when the second adjusting rod 10 is adjusted, the second adjusting rod 10 drives two thread sleeves 23 on a bidirectional screw rod 22 to mutually approach or separate through a first bevel gear 24 on a second bevel gear 25, so that the device is adapted to different body types, when the device is fixed, a connecting ball 17 is in contact with the skin of the patient, through the expansion and contraction of a spring 18, the device can better adapt to the limb of the patient while buffering pressure, and by rotating the first adjusting rod 4, can drive connecting block 21 on the ball 19 and rotate to drive lifter plate 9 and go up and down, thereby highly adjusting patient's limbs, through medicine cabinet 26 and gauze cabinet 27, it has the gauze to directly take out the medicine, and convenient quick wraps.
Claims (7)
1. The special wrapping auxiliary device for emergency nursing comprises a bottom plate (1) and is characterized in that a first vertical plate (3) is fixedly mounted on one side of the top of the bottom plate (1), a first adjusting rod (4) is rotatably connected to the top of the first vertical plate (3), a second vertical plate (5) is fixedly mounted on the other side of the top of the bottom plate (1), a storage cabinet (8) is fixedly mounted on the top of the bottom plate (1), a lifting plate (9) is slidably connected to one side of the first vertical plate (3), a second adjusting rod (10) is rotatably connected to the front side of the lifting plate (9), sliders (11) are slidably connected to both sides of the top of the lifting plate (9), a connecting rod (12) is fixedly mounted on one side of each slider (11), a connecting plate (13) is fixedly mounted at one end of each connecting rod (12), and a fixing plate (14) is fixedly mounted on one side of each connecting plate (13), a limiting plate (15) is fixedly arranged on one side of the fixing plate (14);
the inner bottom wall of the first vertical plate (3) is rotatably connected with a ball screw (19), the inner bottom wall of the second vertical plate (5) is fixedly provided with a sliding rod (20), two sides of the lifting plate (9) are fixedly provided with connecting blocks (21), one side of the inner wall of the lifting plate (9) is rotatably connected with a bidirectional screw (22), the outer sides of two ends of the bidirectional screw (22) are respectively in threaded connection with a threaded sleeve (23), the outer side of one end of the bidirectional screw (22) is fixedly provided with a first bevel gear (24), and one side of the first bevel gear (24) is in meshing connection with a second bevel gear (25);
inner diapire one side sliding connection of storing compartment (8) has medicine cabinet (26), inner diapire opposite side sliding connection of storing compartment (8) has gauze cabinet (27), the equal fixed mounting in inner roof both sides of storing compartment (8) has sterilamp (28).
2. The emergency nursing special-purpose dressing auxiliary device according to claim 1, wherein rollers (2) are fixedly mounted on both sides of the bottom plate (1), and the rollers (2) are made of universal wheels with brake pads.
3. The emergency nursing special-purpose dressing auxiliary device according to claim 1, wherein a mounting rod (6) is fixedly mounted on the top of the second vertical plate (5), an illuminating lamp (7) is fixedly mounted at one end of the mounting rod (6), and the illuminating lamp (7) is an LED lamp.
4. The emergency nursing special-purpose dressing auxiliary device according to claim 1, wherein the limiting plate (15) is arc-shaped, the inner side of the limiting plate (15) is slidably connected with a movable rod (16), one end of the movable rod (16) is fixedly provided with a connecting ball (17), the other end of the movable rod (16) is fixedly provided with a baffle, the outer side of the movable rod (16) is provided with a spring (18), one end of the spring (18) is fixed with one side of the connecting ball (17), the other end of the spring (18) is fixed with the inner side of the limiting plate (15), and the connecting ball (17) is made of silicon rubber material.
5. The emergency nursing special-purpose wrapping auxiliary device according to claim 1, wherein the bottom end of the first adjusting rod (4) penetrates through the top of the first vertical plate (3) and is fixed with the top end of the ball screw (19), the connecting block (21) on the left side of the lifting plate (9) is located inside the first vertical plate (3) and is in threaded connection with the ball screw (19), the connecting block (21) on the right side of the lifting plate (9) is located inside the second vertical plate (5) and is in sliding connection with the sliding rod (20), and grooves matched with the connecting block (21) are formed in one side of each of the first vertical plate (3) and the second vertical plate (5).
6. The dressing auxiliary device special for emergency nursing according to claim 1, wherein one end of the second adjusting rod (10) penetrates through the front side of the lifting plate (9) and is fixed with the middle part of the second bevel gear (25), and the top of the threaded sleeve (23) is fixed with the bottom of the sliding block (11) through a mounting block.
7. The emergency nursing dressing auxiliary device according to claim 1, wherein there are a plurality of said disinfection lamps (28), a plurality of said disinfection lamps (28) are distributed in a rectangular array, and said disinfection lamps (28) are ultraviolet germicidal lamps.
