本实用新型公开了一种用于新型储能系统的配电柜，包括柜体和柜门，所述柜体一端的两侧分别活动铰接有一组柜门，所述柜体一端的顶部开设有凹槽，所述凹槽的内部固定连接有操作面板。该用于新型储能系统的配电柜通过设置有侧槽、防水罩、固定框、防尘网、通槽和导气孔，当柜体内部的电子元器件运行时产生热量后，热量通过导气孔和通槽进入到侧槽的内部，侧槽将热空气导出以降低柜体内部的温度，且侧槽内部的防尘网可以防止灰尘从侧槽进入到柜体内部，侧槽一侧的多组防水罩可以防止水溅入，解决的是在内部大量电子元件工作时产生的热量难以快速导出，导致内部长期保持高温运行的问题。
The utility model discloses a power distribution cabinet for a novel energy storage system, comprising a cabinet body and a cabinet door. A set of cabinet doors are respectively hinged on both sides of one end of the cabinet body, and a top of one end of the cabinet body is provided with a set of cabinet doors. A groove, the interior of the groove is fixedly connected with an operation panel. The power distribution cabinet for the new energy storage system is provided with side grooves, waterproof covers, fixed frames, dustproof nets, through grooves and air guide holes. When the electronic components inside the cabinet generate heat during operation, the heat passes through the guide The air holes and through slots enter the inside of the side slot. The side slot leads hot air out to reduce the temperature inside the cabinet, and the dustproof net inside the side slot can prevent dust from entering the cabinet from the side slot. Multiple sets of waterproof covers can prevent water from splashing in, which solves the problem that the heat generated when a large number of electronic components are working inside is difficult to quickly dissipate, resulting in the long-term high-temperature operation inside.
Description
Technical Field
The utility model relates to the technical field of power distribution cabinets, in particular to a power distribution cabinet for a novel energy storage system.
Background
The switch board is important component part among the power system, no matter be power transmission system or energy storage system, all need to have dedicated switch board to control, and the switch board in use that is used for novel energy storage system still has some not enough, the heat that produces in inside a large amount of electronic component during operation is difficult to derive fast, lead to inside long-term high temperature operation that keeps, and can't adjust inside installation framework according to the size of component when installing electronic component, also can't protect operating panel, lead to the condition of easy damage that appears, so need a neotype switch board that is used for novel energy storage system to solve above-mentioned not enough now.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a power distribution cabinet for a novel energy storage system, and aims to solve the problem that heat generated when a large number of internal electronic elements work is difficult to quickly lead out, so that the interior of the power distribution cabinet keeps high-temperature operation for a long time.
In order to achieve the purpose, the utility model provides the following technical scheme: a power distribution cabinet for a novel energy storage system comprises a cabinet body and cabinet doors, wherein a set of cabinet doors are movably hinged to two sides of one end of the cabinet body respectively, a groove is formed in the top of one end of the cabinet body, an operation panel is fixedly connected to the inside of the groove, a set of side grooves are fixedly connected to two sides of the cabinet body respectively, and a set of side plates are fixedly connected to two sides of the inside of the cabinet body respectively;
one side fixedly connected with multiunit buckler of side channel, the fixed frame of inside fixedly connected with of side channel, the inside fixedly connected with dust screen of fixed frame, a set of logical groove has been seted up respectively to the both sides of the cabinet body, multiunit air guide hole has been seted up to one side of curb plate.
Preferably, the height of the side groove is greater than that of the through groove, and the width inside the through groove is greater than that inside the air guide hole.
Preferably, a plurality of groups of positioning grooves are formed in one side of the side plate, positioning strips are movably connected inside the positioning grooves, a mounting plate is fixedly connected to one side of each positioning strip, a group of movable sleeves are fixedly connected to two sides of two ends of the inner portion of the cabinet body respectively, a connecting rod is movably connected inside the movable sleeves, a plurality of groups of baffle plates are fixedly connected to one side of the connecting rod, and the baffle plates and the positioning strips are movably connected.
Preferably, the side plates and the baffle plates form a movable connection, and the length inside the cabinet body is larger than that of the mounting plate.
Preferably, the top activity of the inside recess articulates there is the movable frame, the inside fixedly connected with transparent plate of movable frame, a set of movable groove has been seted up respectively to the both sides of recess, one side fixedly connected with spring of movable inslot portion, one side fixedly connected with fixture block of spring, a set of draw-in groove has been seted up respectively to the bottom of movable frame both sides, fixture block and draw-in groove constitute swing joint.
Preferably, the center line of the groove and the center line of the movable frame are on the same vertical plane, and the height of the operation panel is smaller than that of the movable frame.
Compared with the prior art, the utility model has the beneficial effects that: the power distribution cabinet for the novel energy storage system not only realizes the reduction of the temperature during internal operation, realizes the convenient adjustment of an internal installation framework, but also realizes the protection of an operation panel;
(1) by arranging the side grooves, the waterproof covers, the fixing frames, the dustproof nets, the through grooves and the air guide holes, when electronic components in the cabinet body generate heat during operation, the heat enters the inside of the side grooves through the air guide holes and the through grooves, the side grooves guide hot air out to reduce the temperature inside the cabinet body, the dustproof nets in the side grooves can prevent dust from entering the cabinet body from the side grooves, multiple groups of waterproof covers on one sides of the side grooves can prevent water from splashing, and the temperature inside the cabinet body during operation can be reduced;
(2) by arranging the positioning strips, the positioning grooves, the side plates, the mounting plate, the movable sleeve, the connecting rods and the baffle plates, before electronic components are mounted in the cabinet body, the connecting rods are pulled upwards to enable the baffle plates to be separated from one ends of the positioning grooves, then the mounting plate is pulled to pull the positioning strips on the two sides out of the positioning grooves, then the mounting plate is adjusted to a proper position according to the size of the components, then the positioning strips on the two sides are inserted into the positioning grooves, the connecting rods are loosened, the baffle plates are blocked at one ends of the positioning grooves, the positioning strips in the cabinet body are positioned, and the framework in the cabinet body can be conveniently adjusted according to mounting requirements;
(3) through being provided with the movable groove, a spring, the fixture block, the draw-in groove, the movable frame, transparent plate and recess, when this switch board is controlled to needs, to both sides pulling fixture block messenger fixture block break away from the inside back of draw-in groove, can upwards overturn the movable frame, thereby open the recess and operate on inside operating panel, the operation is accomplished the back, with the movable frame reset and laminating inside the recess, the fixture block is under the promotion of spring, insert the draw-in groove inside and fix the movable frame, realized can protecting operating panel, reduce its spoilage.
Drawings

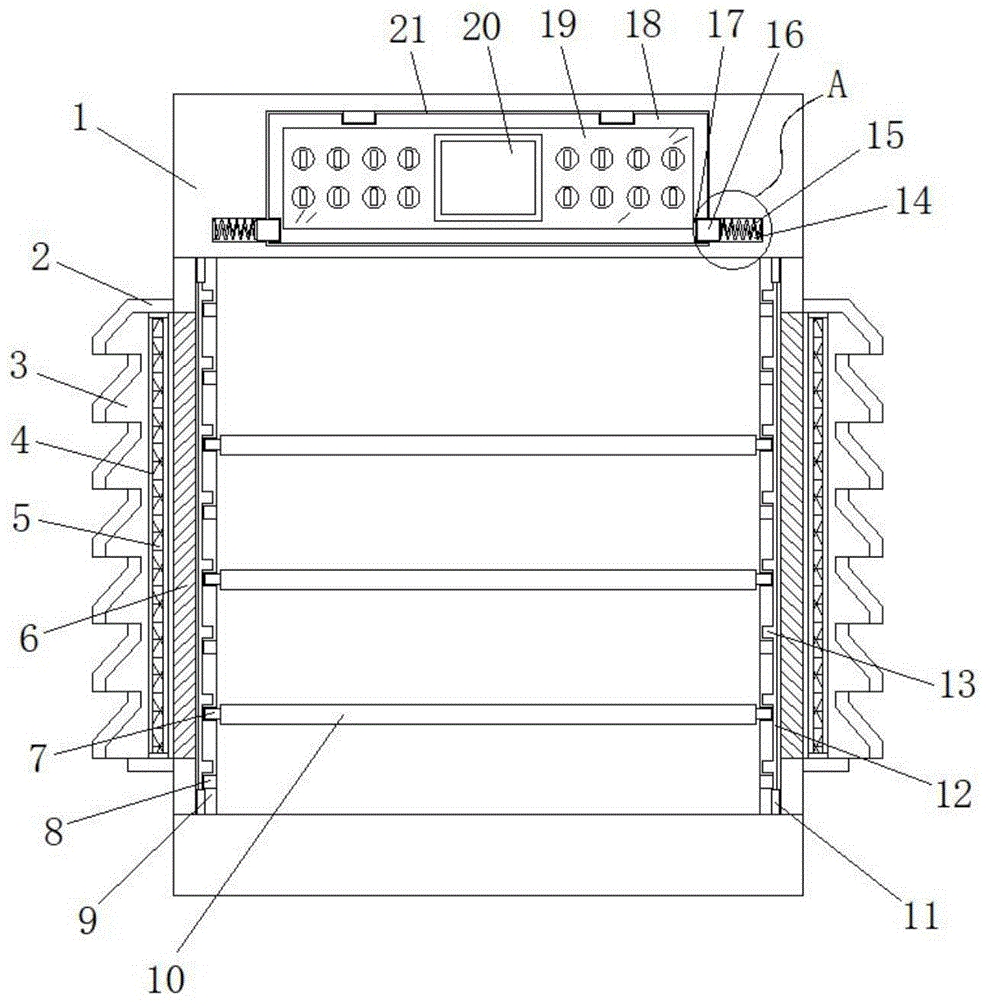

FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a side view of the cabinet of the present invention;
FIG. 3 is an enlarged partial cross-sectional view taken at A in FIG. 1 according to the present invention;
FIG. 4 is a schematic diagram of a side view of a positioning groove of the present invention.
In the figure: 1. a cabinet body; 2. a side groove; 3. a waterproof cover; 4. a fixing frame; 5. a dust screen; 6. a through groove; 7. a positioning bar; 8. positioning a groove; 9. a side plate; 10. mounting a plate; 11. a movable sleeve; 12. a connecting rod; 13. a baffle plate; 14. a movable groove; 15. a spring; 16. a clamping block; 17. a card slot; 18. a movable frame; 19. a transparent plate; 20. an operation panel; 21. a groove; 22. a cabinet door; 23. and air vents.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Example 1: referring to fig. 1-4, a power distribution cabinet for a novel energy storage system includes a cabinet body 1 and cabinet doors 22, wherein two sides of one end of the cabinet body 1 are respectively and movably hinged with a set of cabinet doors 22, a groove 21 is formed at the top of one end of the cabinet body 1, an operation panel 20 is fixedly connected inside the groove 21, two sides of the cabinet body 1 are respectively and fixedly connected with a set of side grooves 2, and two sides of the inside of the cabinet body 1 are respectively and fixedly connected with a set of side plates 9;
one side of the side groove 2 is fixedly connected with a plurality of groups of waterproof covers 3, the inside of the side groove 2 is fixedly connected with a fixed frame 4, the inside of the fixed frame 4 is fixedly connected with a dustproof net 5, two sides of the cabinet body 1 are respectively provided with a plurality of groups of through grooves 6, and one side of the side plate 9 is provided with a plurality of groups of air guide holes 23;
the height of the side groove 2 is greater than that of the through groove 6, and the width of the inside of the through groove 6 is greater than that of the inside of the air guide hole 23;
specifically, as shown in fig. 1 and 2, after the electronic components inside the cabinet 1 generate heat during operation, the heat enters the inside of the side groove 2 through the air guide hole 23 and the through groove 6, the side groove 2 guides out hot air to reduce the temperature inside the cabinet 1, the dust screen 5 inside the side groove 2 can prevent dust from entering the cabinet 1 from the side groove 2, the multiple groups of waterproof covers 3 on one side of the side groove 2 can prevent water from splashing, and the temperature inside the cabinet 1 during operation can be reduced.
Example 2: a plurality of groups of positioning grooves 8 are formed in one side of the side plate 9, positioning strips 7 are movably connected inside the positioning grooves 8, a mounting plate 10 is fixedly connected to one side of each positioning strip 7, a group of movable sleeves 11 are respectively and fixedly connected to two sides of two ends inside the cabinet body 1, connecting rods 12 are movably connected inside the movable sleeves 11, a plurality of groups of baffles 13 are fixedly connected to one side of each connecting rod 12, and the baffles 13 and the positioning strips 7 are movably connected;
the side plates 9 and the baffle 13 form a movable connection, and the length of the inside of the cabinet body 1 is greater than that of the mounting plate 10;
specifically, as shown in fig. 1 and 4, before the internally mounted electronic components of the cabinet body 1, pull up the connecting rod 12 earlier and make the baffle 13 break away from the one end of constant head tank 8, pull the mounting panel 10 again and take out the location strip 7 of its both sides from the inside of constant head tank 8, later according to the size of components and parts, adjust the mounting panel 10 to suitable position after, insert the location strip 7 of its both sides inside constant head tank 8 again, and loosen connecting rod 12, make baffle 13 keep off the one end at constant head tank 8, fix a position the location strip 7 of inside, realized that can be convenient adjust the inside framework of the cabinet body 1 according to the installation demand.
Example 3: a movable frame 18 is movably hinged to the top end inside the groove 21, a transparent plate 19 is fixedly connected inside the movable frame 18, a group of movable grooves 14 are respectively formed in two sides of the groove 21, a spring 15 is fixedly connected to one side inside the movable groove 14, a clamping block 16 is fixedly connected to one side of the spring 15, a group of clamping grooves 17 are respectively formed in the bottom ends of two sides of the movable frame 18, and the clamping block 16 and the clamping grooves 17 are movably connected;
the central line of the groove 21 and the central line of the movable frame 18 are on the same vertical plane, and the height of the operation panel 20 is less than that of the movable frame 18;
specifically, as shown in fig. 1 and 3, when this switch board is controlled to needs, to both sides pulling fixture block 16 make fixture block 16 break away from the inside of draw-in groove 17 after, can upwards overturn activity frame 18, thereby open recess 21 and operate on inside operation panel 20, the operation is accomplished the back, reset activity frame 18 and laminate inside recess 21, fixture block 16 is under spring 15's promotion, insert the inside activity frame 18 of fixing to draw-in groove 17, realized can protecting operation panel 20, reduce its spoilage.
The working principle is as follows: when the utility model is used, firstly, after the electronic components in the cabinet body 1 generate heat when running, the heat enters the inside of the side groove 2 through the air guide holes 23 and the through groove 6, the side groove 2 guides hot air out to reduce the temperature in the cabinet body 1, the dust screen 5 in the side groove 2 can prevent dust from entering the cabinet body 1 from the side groove 2, the multiple groups of waterproof covers 3 on one side of the side groove 2 can prevent water from splashing, before the electronic components are installed in the cabinet body 1, the connecting rod 12 is pulled upwards to separate the baffle 13 from one end of the positioning groove 8, then the mounting plate 10 is pulled to draw out the positioning strips 7 on the two sides from the inside of the positioning groove 8, then the mounting plate 10 is adjusted to a proper position according to the size of the components, then the positioning strips 7 on the two sides are inserted into the positioning groove 8, the connecting rod 12 is loosened to make the baffle 13 block one end of the positioning groove 8 to position the positioning strips 7 inside, when this switch board is controlled to needs, behind the inside that makes fixture block 16 break away from draw-in groove 17 to both sides pulling fixture block 16, can upwards overturn activity frame 18 to open recess 21 and operate on inside operating panel 20, the operation is accomplished the back, resets activity frame 18 and the laminating inside recess 21, and fixture block 16 inserts draw-in groove 17 inside and fixes activity frame 18 under the promotion of spring 15.
