Abstract

The utility model discloses a solar light that is easy to install, comprising an installation rod, a third installation groove is formed on the outer side of the installation rod, a locking block is slidably connected between the inner walls of the third installation groove, and both sides of the locking block are provided with Locking slot, the beneficial effects of the utility model are: the utility model has strong practicability, and by setting the protective cover to cooperate with the mounting frame, it can effectively prevent the device from being accidentally touched during use, which affects the operation efficiency. The matching of the position slot is beneficial to improve the movement stability of the second mounting plate. By setting the outer sides of the two fixing blocks to be arc structures, the fixing blocks can better enter the locking groove. By setting the second spring and the first mounting plate With the cooperation of the plate, the device can be disassembled better, and the position of the installation block can be better reset by setting the first spring, which greatly improves the operation quality and the use efficiency compared with the traditional device.

Description

An easy-to-install solar light

technical field

The utility model relates to the technical field of lighting devices, in particular to a solar lamp that is easy to install.

Background technique

With the development of the economy and the progress of society, people have put forward higher and higher requirements for energy, and the search for new energy has become an urgent task facing human beings. Solar power is considered to be the most important energy source in the 21st century because solar power has the advantages of cleanliness, safety, extensiveness and adequacy of resources unmatched by thermal power, hydropower and nuclear power. It is composed of battery pack, intelligent controller, high-efficiency and energy-saving light source, light pole, installation materials, etc. However, traditional solar lamps are not easy to install and disassemble during use, resulting in low maintenance efficiency and difficult to meet the needs of modern life and production.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a solar light that is easy to install, so as to solve the problems raised in the above background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a solar light that is easy to install, comprising an installation rod, a third installation groove is opened on the outer side of the installation rod, and the inner walls of the third installation groove are slidably connected There is a locking block, both sides of the locking block are provided with locking grooves, one end of the locking block extends to the outside of the mounting rod and is fixedly installed with a third mounting plate, and the outer side of the third mounting plate is fixedly mounted with a main body, A fourth installation groove is opened inside the installation rod and on both sides close to the third installation groove, and two third springs are fixedly installed on one side of the inner wall of the fourth installation groove, and one of the two third springs is fixed. A second installation plate is fixedly installed between the sides, the outer side of the second installation plate is slidably connected with the fourth installation groove, the outer side of the second installation plate is fixedly installed with a fixing block, and one end of the fixing block extends to the locking Inside the slot, a second installation slot is opened inside the installation rod and located between the two fourth installation slots, and two sliders are slidably connected between the inner walls of the second installation slot, and one end of the slider extends to the inside of the fourth installation groove and fixedly connected to the second installation plate, a first installation groove is opened inside the installation rod and on the side close to the second installation groove, and the inner walls of the first installation groove are slidably connected with positioning One end of the positioning block extends to the inside of the second installation groove, the outer side of the positioning block is slidably connected with the two sliders, the outer side of the installation rod is provided with a fifth installation groove, and the fifth installation groove is A mounting block is slidably connected between the inner walls, a connecting rod is fixedly mounted on the outer side of the mounting block, and one end of the connecting rod extends into the inside of the first mounting groove and is fixedly connected with the positioning block.

Preferably, a mounting bracket is fixedly mounted on the outer side of the mounting rod, and a protective cover is threadedly connected to the inside of the mounting bracket.

Preferably, a limiting slot is provided inside the mounting rod and on a side close to the fourth mounting slot, a limiting rod is slidably connected between the inner walls of the limiting slot, and one end of the limiting rod is fixed to the second mounting plate connect.

Preferably, the outer sides of the two fixing blocks are arc structures.

Preferably, a second spring is fixedly installed on one side of the inner wall of the third installation groove, a first installation plate is fixedly installed at one end of the second spring, and the outer side of the first installation plate is slidably connected to the third installation groove .

Preferably, a first spring is fixedly installed on one side of the inner wall of the fifth installation groove, and one end of the first spring is fixedly connected with the installation block.

Compared with the prior art, the beneficial effects of the present utility model are: the utility model has strong practicability, and by arranging a protective cover to cooperate with the mounting frame, the device can be effectively prevented from being accidentally touched during use, which affects the operation efficiency. The matching of the position rod and the limit slot is beneficial to improve the movement stability of the second mounting plate. By setting the outer sides of the two fixing blocks to be arc structures, the fixing blocks can better enter the locking groove. By setting the second spring In cooperation with the first mounting plate, the device can be disassembled better, and the position of the mounting block can be better reset by setting the first spring, which greatly improves the work quality and the use efficiency compared with the traditional device.

Description of drawings

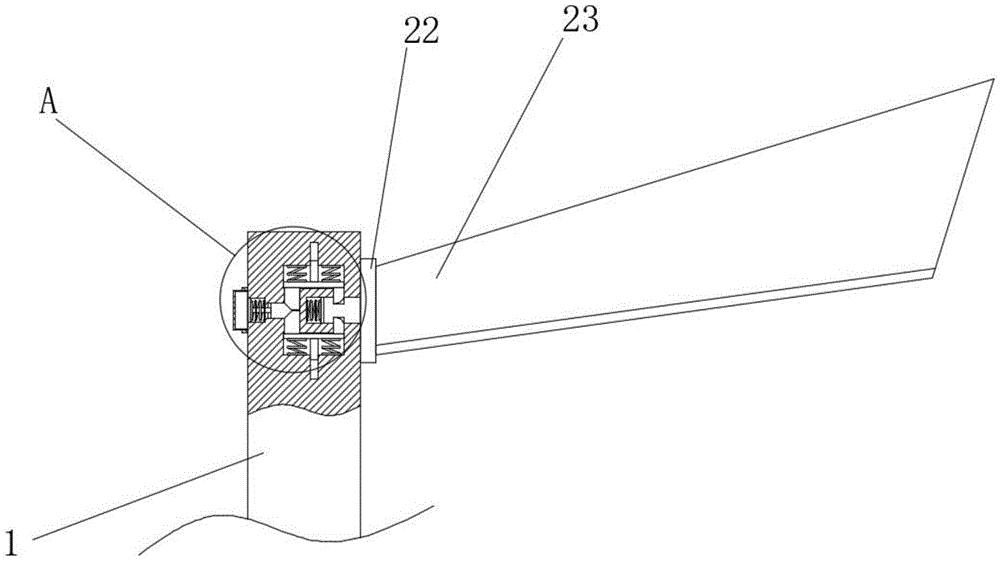

Fig. 1 is the overall structure diagram of the utility model;

Figure 2 is an enlarged view of the A part of the utility model.

In the figure: 1. Mounting rod; 2. Slider; 3. Mounting frame; 4. Protective cover; 5. Mounting block; 6. Connecting rod; 7. First spring; 8. First mounting groove; 9. Positioning block ; 10, the second installation slot; 11, the third installation slot; 12, the second spring; 13, the first installation plate; 14, the locking block; 15, the locking groove; 18, the fourth installation slot; 19, the third spring; 20, the limit rod; 21, the limit slot; 22, the third installation plate; 23, the main body; 24, the fifth installation slot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, the present utility model provides a technical solution: a solar light that is easy to install, comprising an installation rod 1, a third installation groove 11 is opened on the outer side of the installation rod 1, and the inner wall of the third installation groove 11 is A locking block 14 is slidably connected between the two sides of the locking block 14. Locking grooves 15 are provided on both sides of the locking block 14. One end of the locking block 14 extends to the outside of the mounting rod 1 and is fixedly installed with a third mounting plate 22. The outer side of the third mounting plate 22 is fixed The main body 23 is installed, the inside of the installation rod 1 and both sides close to the third installation groove 11 are provided with fourth installation grooves 18 , and two third springs 19 are fixedly installed on one side of the inner wall of the fourth installation groove 18 . A second mounting plate 17 is fixedly installed between one side of the three springs 19 , the outer side of the second mounting plate 17 is slidably connected with the fourth mounting groove 18 , the outer side of the second mounting plate 17 is fixedly mounted with a fixing block 16 , the fixing block 16 One end of the rod extends to the inside of the locking groove 15, a second installation groove 10 is opened inside the installation rod 1 and located between the two fourth installation grooves 18, and two sliders 2 are slidably connected between the inner walls of the second installation groove 10. One end of the slider 2 extends into the fourth installation groove 18 and is fixedly connected to the second installation plate 17 . The inside of the installation rod 1 and the side close to the second installation groove 10 is provided with a first installation groove 8 . The first installation groove 8 A positioning block 9 is slidably connected between the inner walls of the locating block 9, one end of the positioning block 9 extends to the inside of the second installation groove 10, the outer side of the positioning block 9 is slidably connected with the two sliders 2, and the outer side of the installation rod 1 is provided with a fifth installation groove 24. A mounting block 5 is slidably connected between the inner walls of the fifth mounting groove 24, a connecting rod 6 is fixedly installed on the outside of the mounting block 5, and one end of the connecting rod 6 extends to the inside of the first mounting groove 8 and is fixedly connected with the positioning block 9 .

Further, a mounting bracket 3 is fixedly installed on the outer side of the mounting rod 1, and a protective cover 4 is threadedly connected to the inner side of the mounting bracket 3. By setting the protective cover 4 to cooperate with the mounting bracket 3, the device can be effectively prevented from being accidentally touched during use. affect work efficiency.

Further, a limiting slot 21 is defined inside the mounting rod 1 and on one side close to the fourth mounting slot 18 , the limiting rod 20 is slidably connected between the inner walls of the limiting slot 21 , and one end of the limiting rod 20 is connected to the second mounting plate 17 . For the fixed connection, by setting the limit rod 20 to cooperate with the limit slot 21 , it is beneficial to improve the movement stability of the second mounting plate 17 .

Further, the outer sides of the two fixing blocks 16 are both arc structures. By setting the outer sides of the two fixing blocks 16 to be arc structures, the fixing blocks 16 can better enter the locking grooves 15 .

Further, a second spring 12 is fixedly installed on one side of the inner wall of the third installation groove 11 , a first installation plate 13 is fixedly installed at one end of the second spring 12 , and the outer side of the first installation plate 13 is slidably connected to the third installation groove 11 . , by arranging the second spring 12 to cooperate with the first mounting plate 13, the device can be disassembled better.

Further, the first spring 7 is fixedly installed on one side of the inner wall of the fifth installation groove 24, and one end of the first spring 7 is fixedly connected with the installation block 5. By setting the first spring 7, the position of the installation block 5 can be better adjusted. reset.

Specifically, when the operator uses the present invention, the operator moves the locking block 14 outside the main body 23 into the third installation groove 11 , drives the two fixing blocks 16 to move, and compresses the third spring 19 . When the fixing block 16 moves to a position parallel to the locking groove 15 , the two third springs 19 drive the second mounting plate 17 to move, thereby driving the fixing block 16 to move into the locking groove 15 , and adjust the position of the locking block 14 and the main body 23 . It is limited that when the main body 23 needs to be disassembled, the operator rotates the protective cover 4, then presses the installation block 5, compresses the first spring 7, drives the connecting rod 6 and the positioning block 9 to move, and drives the two sliders 2 to be installed in the second The inside of the slot 10 slides, thereby driving the second mounting plate 17 to slide between the inner walls of the fourth mounting slot 18, compressing the two third springs 19, driving the two fixing blocks 16 to move out of the locking slot 15, and the second spring 12 driving The locking block 14 moves to quickly complete the disassembly of the device. By setting the limit rod 20 to cooperate with the limit groove 21, it is beneficial to improve the movement stability of the second mounting plate 17, which greatly improves the work quality and use compared with the traditional device. efficiency.

In the description of the present invention, it should be understood that the terms "coaxial", "bottom", "one end", "top", "middle", "the other end", "upper", "one side", " The orientation or positional relationship indicated by "top", "inside", "front", "center", "both ends", etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description , rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be construed as a limitation on the present invention.

In addition, the terms "first", "second", "third", "fourth" are only used for descriptive purposes and should not be understood as indicating or implying relative importance or implying the number of technical features indicated, Thus, features defined as "first", "second", "third", "fourth" may expressly or implicitly include at least one of such features.

In the present invention, unless otherwise expressly fixed and limited, terms such as "installation", "arrangement", "connection", "fixed", "screwed connection" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediate medium, it can be the internal communication of two elements or the interaction of two elements Unless otherwise clearly defined, those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A solar light that is easy to install, comprising a mounting rod (1), characterized in that: a third mounting groove (11) is formed on the outer side of the mounting rod (1), and the third mounting groove (11) is provided with a third mounting groove (11). A locking block (14) is slidably connected between the inner walls, locking grooves (15) are provided on both sides of the locking block (14), and one end of the locking block (14) extends to the outside of the mounting rod (1) and is fixed A third mounting plate (22) is installed, a main body (23) is fixedly mounted on the outside of the third mounting plate (22), and both sides of the mounting rod (1) inside and close to the third mounting groove (11) are A fourth installation groove (18) is opened, two third springs (19) are fixedly installed on one side of the inner wall of the fourth installation groove (18), and one side of the two third springs (19) is fixed between two sides. A second installation plate (17) is fixedly installed, the outer side of the second installation plate (17) is slidably connected with the fourth installation groove (18), and the outer side of the second installation plate (17) is fixedly installed with a fixing block ( 16), one end of the fixing block (16) extends to the interior of the locking groove (15), and a second mounting groove (10) is opened inside the mounting rod (1) and located between the two fourth mounting grooves (18). ), two sliding blocks (2) are slidably connected between the inner walls of the second installation groove (10), and one end of the sliding block (2) extends into the fourth installation groove (18) and is installed with the second installation groove (18). The plate (17) is fixedly connected, a first installation groove (8) is opened inside the installation rod (1) and on the side close to the second installation groove (10), and the inner walls of the first installation groove (8) are between the inner walls. A positioning block (9) is slidably connected, one end of the positioning block (9) extends to the inside of the second installation groove (10), and the outer side of the positioning block (9) is slidably connected with the two sliders (2), so A fifth mounting groove (24) is provided on the outer side of the mounting rod (1), and a mounting block (5) is slidably connected between the inner walls of the fifth mounting groove (24), and the outer side of the mounting block (5) is fixed A connecting rod (6) is installed, and one end of the connecting rod (6) extends into the inside of the first installation groove (8) and is fixedly connected with the positioning block (9). 2 . The solar light that is easy to install according to claim 1 , wherein a mounting bracket ( 3 ) is fixedly installed on the outer side of the mounting rod ( 1 ), and the inner screw connection of the mounting bracket ( 3 ) is threaded. 3 . There is a protective cover (4). 3. A solar lamp for easy installation according to claim 1, characterized in that: a limiting groove (21) is provided inside the installation rod (1) and on one side close to the fourth installation groove (18), so A limit rod (20) is slidably connected between the inner walls of the limit groove (21), and one end of the limit rod (20) is fixedly connected with the second mounting plate (17). 4 . The solar light that is easy to install according to claim 1 , wherein the outer sides of the two fixing blocks ( 16 ) are arc structures. 5 . 5 . The solar lamp for easy installation according to claim 1 , wherein a second spring ( 12 ) is fixedly installed on one side of the inner wall of the third installation groove ( 11 ), and the second spring ( One end of 12) is fixedly mounted with a first mounting plate (13), and the outer side of the first mounting plate (13) is slidably connected with the third mounting groove (11). 6. A solar light for easy installation according to claim 1, characterized in that: a first spring (7) is fixedly installed on one side of the inner wall of the fifth installation groove (24), and the first spring ( One end of 7) is fixedly connected with the mounting block (5).
