CN216337318U - Forming device for glass fiber product - Google Patents

Abstract

The utility model belongs to the technical field of glass fiber manufacturing, in particular to a molding device for glass fiber products, comprising a processing platform, a traction wheel, a coating box and a winding wheel. The controller, the discharge port and the roller group are composed. The roller group is composed of a frame, a sliding bar, a squeeze roller and an anti-sticking layer, and the anti-sticking layer is made of wax. In the molding device for glass fiber products, after the surface of the glass fiber products is coated with fiber raw materials by a coating device, the glass fiber products pass through a plurality of squeeze rollers in sequence, and when a glass fiber product passes between the two squeeze rollers , the extrusion roller will rotate on the outer surface of the sliding rod, so that the extrusion roller will drive the anti-stick layer to evenly spread the fiber raw material on the surface of the glass fiber product. Because the anti-stick layer is made of wax, it is difficult for the glass fiber material to stick to the extrusion. The outer surface of the pressing roller prevents the pressing roller from needing to be replaced frequently and increases the processing efficiency.

Description

A molding device for glass fiber products

technical field

The utility model relates to the technical field of glass fiber manufacturing, in particular to a molding device for glass fiber products.

Background technique

Glass fiber is an inorganic non-metallic material with excellent performance. There are many kinds. The advantages are good insulation, strong heat resistance, good corrosion resistance and high mechanical strength.

Glass fiber products are made from pyrophyllite, quartz sand, limestone, dolomite, borosite, and borosite through high temperature melting, hot pressing and other processes. During compression molding, the glass fiber material is easy to stick to the outer surface of the squeeze roller, so that the squeeze roller needs to be replaced frequently, which is very troublesome.

Utility model content

The purpose of the present invention is to provide a molding device for glass fiber products, so as to solve the problems raised in the above-mentioned background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: a molding device for glass fiber products, including a processing platform, a traction wheel, a coating box and a winding wheel, and the traction wheel is fixedly installed on the top of the processing platform On the left side, the coating box is fixedly installed on the top of the processing platform close to the left side, and the winding wheel is fixedly installed on the top right side of the processing platform.

The coating box is composed of a feed port, a coating device, a controller, a discharge port and a roller set. The feed port is opened in the middle of the left side of the coating box, and the discharge port is opened in the coating box. In the middle of the right side of the coating box, the coating device is fixedly installed on the top of the coating box, the controller is fixedly installed on the top of the coating device, and the roller set is arranged on the right side of the inner bottom of the coating box.

Preferably, the bottom of the coating device extends to the inside of the coating box, the controller is electrically connected to the coating device, and when the glass fiber product is shaped, the glass fiber product is made to bypass the traction wheel and the The rewinding wheel starts the coating device through the controller, so that the coating device coats the fiber raw material on the surface of the glass fiber product, so that the glass fiber product is sequentially squeezed and smeared by the roller group, and then discharged from the discharge port.

Preferably, the roller group consists of a frame, a sliding rod, a squeeze roller and an anti-sticking layer, the frame is fixedly installed on the right side of the inner bottom of the coating box, and the sliding rod is fixedly connected to the back of the frame , the squeezing roller is arranged on the outer surface of the sliding rod, and the anti-sticking layer is sleeved on the outer surface of the squeezing roller.

Preferably, the inner wall of the squeezing roller is slidably connected to the outer surface of the sliding rod, the number of the sliding rods is two, the anti-sticking layer is made of wax, and the anti-sticking layer is connected to the outer surface of the squeezing roller. The surface is bonded by quick-drying glue. After the surface of the glass fiber product is coated with fiber raw materials by the coating device, the glass fiber product passes through multiple squeeze rollers in turn. The pressure roller will rotate on the outer surface of the slide bar.

Preferably, a heating box is fixedly installed on the top center of the processing platform, a hot pressing mechanism is fixedly installed on the top of the processing platform near the right side, and a control panel is fixedly installed on the front of the processing platform. Connected with the controller signal, the glass fiber products discharged from the discharge port will enter the heating box for heating.

Preferably, the hot-pressing mechanism is composed of a cylinder, a movable rod, a pressing plate, an air intake switch and a load-bearing plate, the cylinder is fixedly installed on the top of the processing platform near the right side, and the movable rod is connected to the cylinder At the output end, the extrusion plate is fixedly connected to the bottom of the movable rod, the intake switch is fixedly installed on the top of the cylinder, and the load-bearing plate is fixedly installed on the upper surface of the processing platform.

Preferably, the number of the movable rods is four, the bottoms of the four movable rods are all fixedly connected to the top of the extrusion plate, the air intake switch is connected to the control panel signal, and the heated glass fiber products Enter into the hot pressing mechanism, turn on the air inlet switch through the control panel, so that the cylinder drives the movable rod to move down, and the movable rod drives the extrusion plate to extrude the surface of the glass fiber product.

Compared with the prior art, the beneficial effects of the present utility model are:

1. In this molding device for glass fiber products, the glass fiber products pass through a plurality of squeeze rollers in turn. When a glass fiber product passes between the two squeeze rollers, the squeeze rollers will rotate on the outer surface of the sliding rod. Therefore, the extrusion roller drives the anti-stick layer to spread the fiber raw material on the surface of the glass fiber product evenly. Because the anti-stick layer is made of wax, the glass fiber material is difficult to stick to the outer surface of the extrusion roller, preventing the extrusion roller from needing to be replaced frequently. , increasing the processing efficiency.

2. This molding device for glass fiber products, through the control panel to open the air inlet switch, so that the cylinder drives the movable rod to move down, and the movable rod drives the extrusion plate to squeeze the surface of the glass fiber products, extruding the glass fiber products. To the upper surface of the load-bearing plate, the glass fiber products are extruded, because the glass fiber products pass through the interior of the heating box, so that the glass fiber products are more easily extruded.

Description of drawings

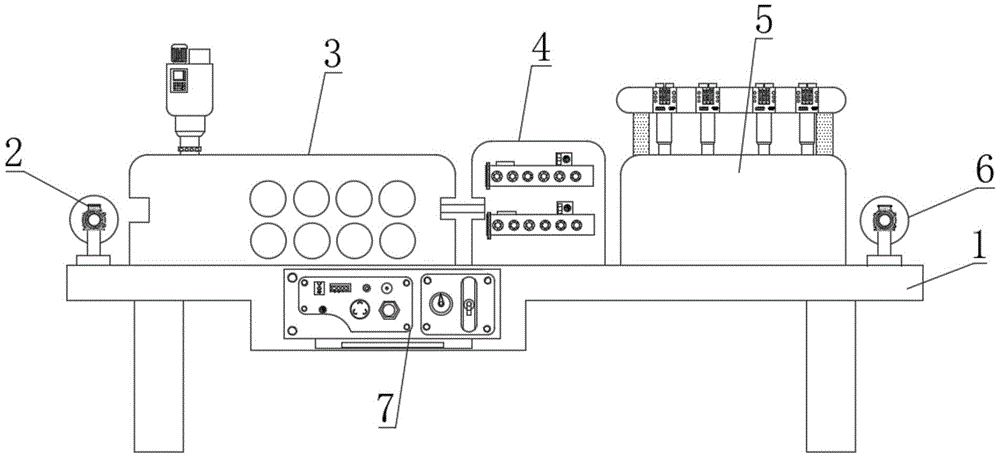

Fig. 1 is the front view of the utility model;

2 is a schematic diagram of the internal structure of the coating box of the present invention;

Fig. 3 is the structure schematic diagram of the roller group of the present invention;

FIG. 4 is a schematic structural diagram of the hot pressing mechanism of the present invention.

In the picture: 1 processing platform, 2 traction wheel, 3 coating box, 301 feeding port, 302 coating device, 303 controller, 304 discharging port, 305 roller set, 3051 frame, 3052 sliding bar, 3053 extrusion Roller, 3054 anti-stick layer, 4 heating box, 5 hot pressing mechanism, 501 cylinder, 502 movable rod, 503 extrusion plate, 504 air inlet switch, 505 load-bearing plate, 6 winding wheel, 7 control panel.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, the present utility model provides a technical solution: a molding device for glass fiber products, comprising a processing platform 1, a traction wheel 2, a coating box 3 and a winding wheel 6, and the traction wheel 2 is fixed Installed on the left side of the top of the processing platform 1, the coating box 3 is fixedly installed on the top of the processing platform 1 near the left side, the winding wheel 6 is fixedly installed on the top right side of the processing platform 1, and the top center of the processing platform 1 is fixed A heating box 4 is installed, a hot-pressing mechanism 5 is fixedly installed on the top of the processing platform 1 near the right side, and a control panel 7 is fixedly installed on the front of the processing platform 1. The control panel 7 is signally connected to the controller 303. When the product is processed, the glass fiber product is made to bypass the traction wheel 2 and the winding wheel 6 in turn, and the glass fiber product discharged from the discharge port 304 will enter the heating box 4 for heating.

The coating box 3 is composed of a feeding port 301, a coating device 302, a controller 303, a discharging port 304 and a roller group 305. The feeding port 301 is opened in the middle of the left side of the coating box 3, and the discharging port 304 is opened in the middle. In the middle of the right side of the coating box 3, the coating device 302 is fixedly installed on the top of the coating box 3, the controller 303 is fixedly installed on the top of the coating device 302, and the roller set 305 is arranged on the right side of the inner bottom of the coating box 3 , the bottom of the coating device 302 extends to the inside of the coating box 3 , the controller 303 is electrically connected to the coating device 302 , and the roller group 305 is composed of a frame 3051 , a sliding rod 3052 , a squeezing roller 3053 and an anti-sticking layer 3054 , the frame 3051 is fixedly installed on the right side of the inner bottom of the coating box 3, the sliding rod 3052 is fixedly connected to the back of the frame 3051, the squeezing roller 3053 is arranged on the outer surface of the sliding rod 3052, and the anti-stick layer 3054 is sleeved on the extrusion The outer surface of the pressing roller 3053, the inner wall of the pressing roller 3053 is slidably connected with the outer surface of the sliding rod 3052, the number of sliding rods 3052 is two, the anti-sticking layer 3054 is made of wax, the anti-sticking layer 3054 is connected with the pressing roller 3053 The outer surface of the glass fiber is bonded by quick-drying glue, and the coating device 302 is activated by the controller 303, so that the coating device 302 coats the fiber raw material on the surface of the glass fiber product, so that the glass fiber product is sequentially squeezed and wiped by the roller group 305. After uniform, it is discharged from the discharge port 304. After the surface of the glass fiber product is coated with fiber raw materials by the coating device, the glass fiber product passes through a plurality of squeeze rollers 3053 in turn. When there is a glass fiber product between the two squeeze rollers 3053. When passing through, the squeezing roller 3053 will rotate on the outer surface of the sliding rod 3052, so that the squeezing roller 3053 will drive the anti-sticking layer 3054 to evenly spread the fiber material on the surface of the glass fiber product. Because the anti-sticking layer 3054 is made of wax, so The glass fiber material is difficult to stick to the outer surface of the squeezing roller 3053, which prevents the squeezing roller 3053 from needing to be replaced frequently, and increases the processing efficiency.

The hot pressing mechanism 5 is composed of a cylinder 501, a movable rod 502, a pressing plate 503, an air intake switch 504 and a bearing plate 505. The cylinder 501 is fixedly installed on the top of the processing platform 1 near the right side, and the movable rod 502 is connected to the cylinder 501. At the output end, the extrusion plate 503 is fixedly connected to the bottom of the movable rod 502, the intake switch 504 is fixedly installed on the top of the cylinder 501, the bearing plate 505 is fixedly installed on the upper surface of the processing platform 1, and the number of the movable rods 502 is four , the bottoms of the four movable rods 502 are fixedly connected with the top of the extrusion plate 503, the air inlet switch 504 is connected with the signal of the control panel 7, and the heated glass fiber product enters the inside of the hot pressing mechanism 5, and passes through the control panel 7. Turn on the air intake switch 504, so that the cylinder 501 drives the movable rod 502 to move downward, the movable rod 502 drives the extrusion plate 503 to squeeze the surface of the glass fiber product, and squeezes the glass fiber product to the upper surface of the bearing plate 505, so that the glass fiber The fiber products are extruded, because the glass fiber products pass through the inside of the heating box 4, so that the glass fiber products are more easily extruded.

When in use, make the glass fiber product bypass the traction wheel 2 and the winding wheel 6 in turn, start the coating device 302 through the controller 303, so that the coating device 302 coats the fiber raw material on the surface of the glass fiber product, so that the glass fiber After being squeezed and smeared by the roller group 305 in turn, the products are discharged from the discharge port 304, enter the heating box 4 for heating, and then enter the hot pressing mechanism 5. The air inlet switch 504 is turned on through the control panel 7 to make the air cylinder 501 The movable rod 502 is driven to move downward, and the movable rod 502 drives the extrusion plate 503 to extrude the surface of the glass fiber product, and the glass fiber product is extruded to the upper surface of the bearing plate 505 to extrude the glass fiber product.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a forming device for glass fiber product, includes processing platform (1), traction wheel (2), coating case (3) and rolling wheel (6), its characterized in that: the traction wheel (2) is fixedly arranged on the left side of the top of the processing platform (1), the coating box (3) is fixedly arranged on the position, close to the left side, of the top of the processing platform (1), and the winding wheel (6) is fixedly arranged on the right side of the top of the processing platform (1);

coating case (3) comprise feed inlet (301), coating device (302), controller (303), discharge gate (304) and roller train (305), the left side middle part of coating case (3) is seted up in feed inlet (301), the right side middle part of coating case (3) is seted up in discharge gate (304), coating device (302) fixed mounting is in the top of coating case (3), controller (303) fixed mounting is in the top of coating device (302), roller train (305) set up in the inside bottom right side of coating case (3).

2. A forming apparatus for a fiberglass product according to claim 1, wherein: the bottom of the coating device (302) extends to the interior of the coating box (3), and the controller (303) is electrically connected with the coating device (302).

3. A forming apparatus for a fiberglass product according to claim 1, wherein: roller train (305) comprises frame (3051), slide bar (3052), squeeze roll (3053) and antiseized layer (3054), frame (3051) fixed mounting is on the inside bottom right side of coating case (3), slide bar (3052) fixed connection is in the back of frame (3051), squeeze roll (3053) set up in the surface of slide bar (3052), antiseized layer (3054) cup joint in the surface of squeeze roll (3053).

4. A forming apparatus for fiberglass products, as claimed in claim 3, wherein: the inner wall of squeeze roll (3053) and the surface sliding connection of slide bar (3052), the quantity of slide bar (3052) is two, antiseized layer (3054) is made by wax, antiseized layer (3054) passes through the rapid-curing cutback glue bonding with the surface of squeeze roll (3053).

5. A forming apparatus for a fiberglass product according to claim 1, wherein: the top center fixed mounting of processing platform (1) has heating cabinet (4), the top of processing platform (1) is close to the fixed position on right side and installs hot pressing mechanism (5), the positive fixed mounting of processing platform (1) has control panel (7), control panel (7) and controller (303) signal connection.

6. A forming apparatus for fiberglass products, according to claim 5, wherein: hot pressing mechanism (5) comprise cylinder (501), movable rod (502), stripper plate (503), admit air switch (504) and bearing plate (505), cylinder (501) fixed mounting is close to the position on right side in the top of processing platform (1), movable rod (502) are connected in the output of cylinder (501), stripper plate (503) fixed connection is in the bottom of movable rod (502), admit air switch (504) fixed mounting in the top of cylinder (501), bearing plate (505) fixed mounting is in the upper surface of processing platform (1).

7. A forming apparatus for fiberglass products, according to claim 6, wherein: the number of the movable rods (502) is four, the bottoms of the four movable rods (502) are fixedly connected with the top of the extrusion plate (503), and the air inlet switch (504) is in signal connection with the control panel (7).
