Abstract
本实用新型属于饲料加工技术领域，尤其是适用于哺乳期仔猪生长的饲料用原料混合设备，针对了对饲料进行加工时效率较低且出料容易堆堵的问题，现提出如下方案，其包括搅拌桶，搅拌桶的顶端固定有相互连通的加工箱，加工箱的顶端设置有进料斗，搅拌桶的底端固定有相互连通的收集箱，收集箱的一侧设置有出料口；本实用新型中通过驱动电机转动能够带动粉碎组件对原料进行破碎处理，同时再带动搅拌杆转动对原料进行混合搅拌，使原料在搅拌时更加均匀，提高了对饲料的混合效果，通过送料组件对收集箱内搅拌完成的饲料进行送料，避免出料口出现堆堵，通过送料板进行送料，便于工作人员对加工后的饲料进行收集。
The utility model belongs to the technical field of feed processing, in particular to a feed raw material mixing device suitable for the growth of lactating piglets. Aiming at the problems of low efficiency in processing the feed and easy stacking and blocking of the discharged material, the following scheme is now proposed, which includes: The mixing barrel, the top of the mixing barrel is fixed with a processing box that communicates with each other, the top of the processing box is provided with a feeding hopper, the bottom end of the mixing barrel is fixed with a collection box that communicates with each other, and one side of the collection box is provided with a discharge port; In the utility model, by driving the motor to rotate, the crushing component can be driven to crush the raw materials, and at the same time, the stirring rod can be driven to rotate to mix and stir the raw materials, so that the raw materials are more uniform during stirring, and the mixing effect of the feed is improved. The feed that has been stirred in the box is fed to avoid blockage of the discharge port, and the feed is fed through the feeding plate, which is convenient for the staff to collect the processed feed.
Description
Technical Field
The utility model relates to the technical field of feed processing, in particular to a feed raw material mixing device suitable for growth of piglets in a lactation period.
Background
The common feed for pigs has various types, and is divided into 8 types of protein feed, energy feed, coarse feed, green feed, silage, mineral feed and feed additive according to nutrition; classifying according to categories: the complete feed is a mixed batch consisting of four parts, namely protein feed, energy feed, coarse feed and additive, the complete feed sold in the market is mainly granulated feed processed and granulated by a machine, and the part is expanded granular feed which can be directly used for feeding objects and can fully meet the nutritional requirements of the feeding objects.
The raw materials that pig feed production used need smash the mixture, and current processing machine is generally comparatively simple fixed, and different processing technique needs different equipment to carry out processing production, and the operation is comparatively inconvenient and machining efficiency is lower, and the agitated vessel that current feed processing used piles up stifled discharge gate easily when the ejection of compact, and is comparatively inconvenient during the ejection of compact, needs the manual work to dredge.
Therefore, a raw material mixing device for feed suitable for growth of piglets in the lactation period is needed to solve the problems of low efficiency and easy blockage of discharged materials when the feed is processed.
SUMMERY OF THE UTILITY MODEL
The raw material mixing equipment for the feed, which is suitable for the growth of the piglets in the lactation period, provided by the utility model solves the problems that the efficiency is lower when the feed is processed and the discharged materials are easy to block.
In order to achieve the purpose, the utility model adopts the following technical scheme: raw materials mixing equipment for fodder suitable for suckling period piglet grows, including the agitator, the top of agitator is fixed with the processing case of mutual intercommunication, the top of processing case is provided with the feeder hopper, the bottom mounting of agitator has the collecting box of mutual intercommunication, one side of collecting box is provided with the discharge gate, one side outer wall of collecting box is fixed with out the flitch, the inside of collecting box is provided with feeding unit, one side lateral wall of agitator rotates and is connected with the dwang, the lateral wall of dwang is fixed with a plurality of evenly distributed's puddler, one side lateral wall of agitator install with the driving motor of the coaxial setting of dwang, the inside of processing case is provided with crushing unit.
Preferably, crushing unit include with processing case one side lateral wall rotates two pivots of connecting, and the lateral wall of two pivots all is fixed with a plurality of cutting knives of mutually supporting, one side outer wall of processing case rotates and is connected with two intermeshing's drive gear, two drive gear respectively with the coaxial setting of two pivots, one side lateral wall of processing case with one side lateral wall of agitator rotates respectively and is connected with the belt pulley, two belt pulleys respectively with driving motor and one of them drive gear coaxial setting, the drive belt has been cup jointed jointly to the lateral wall of two belt pulleys.
Preferably, the pay-off subassembly is including setting up the inside push pedal of collecting box, the one side lateral wall of collecting box slides and runs through the push rod that has two symmetries to set up, and the one end of two push rods all is fixed with one side lateral wall of push pedal, and the other end of two push rods is fixed with the connecting plate jointly, the both ends of connecting plate are fixed with the pull rod respectively, the both sides outer wall of collecting box is fixed with the carriage respectively, the lateral wall of pull rod and the inside wall sliding connection of adjacent carriage, the one end of pull rod is fixed with the pull ring, the lateral wall of pull rod has cup jointed expanding spring, expanding spring's both ends are fixed with one side lateral wall of carriage and one side lateral wall of connecting plate respectively.
Preferably, the contact surface of the bottom end of the push plate and the collecting box is a smooth plane, and the top end of the push plate is arranged in an arc surface.
Preferably, the vertical section of the discharge plate is concave, the discharge plate is positioned below the discharge port, and the discharge plate is obliquely arranged.
Preferably, a mounting frame is fixed on the outer wall of one side of the stirring barrel, and the bottom end of the driving motor is fixed to the top end of the mounting frame.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the feeding device, the crushing assembly can be driven to crush the raw materials through the rotation of the driving motor, the stirring rod is driven to rotate to mix and stir the raw materials, so that the raw materials are more uniform during stirring, the mixing effect of the feed is improved, the feed stirred in the collecting box is fed through the feeding assembly, the discharge port is prevented from being blocked, the feed is fed through the feeding plate, and the processed feed is convenient for workers to collect.
2. According to the material stacking device, the cutting knife and the stirring rod can be driven to rotate simultaneously through rotation of the driving motor, so that the material stacking device can crush and stir materials simultaneously, has a good stirring effect, improves the processing efficiency, can drive the push plate to push the materials to a discharge port to discharge the materials by pulling the pull ring, is convenient to discharge the materials, is not easy to block, and can slide to the bottom of the collection box along the cambered surface by setting the top end of the push plate into the cambered surface to avoid stacking.
Drawings

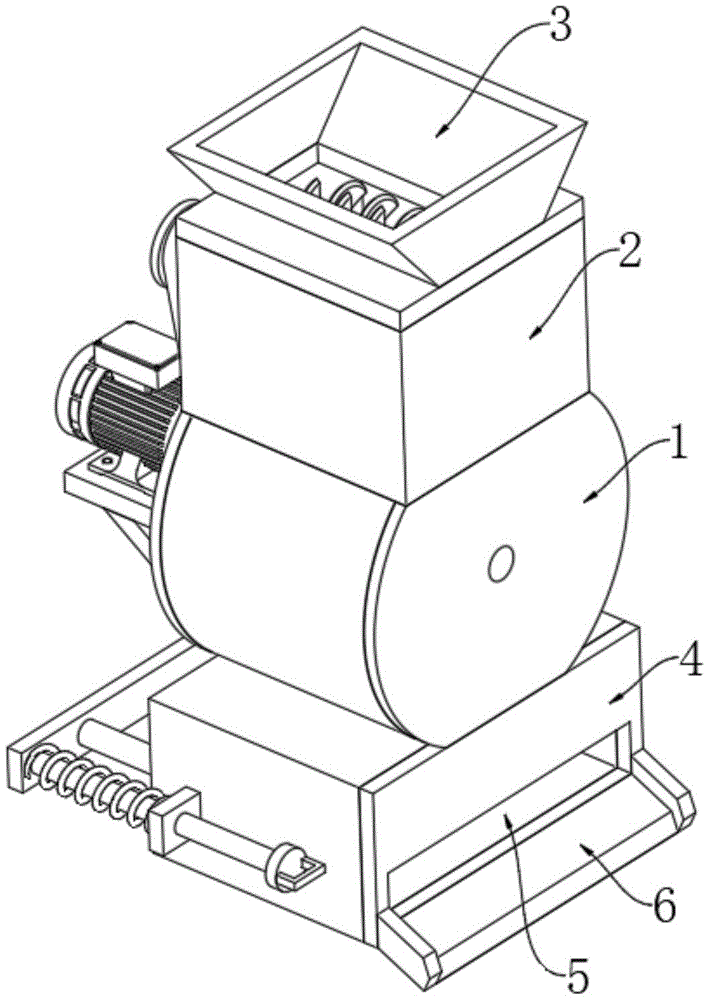

FIG. 1 is a schematic view of the whole structure of a feed material mixing apparatus suitable for growing of piglets in lactation period according to the present invention;
FIG. 2 is a schematic rear view of the overall structure of a feed material mixing apparatus suitable for growing of piglets in the lactation period according to the present invention;
fig. 3 is a schematic view of a partial structure of a feed raw material mixing device suitable for growth of piglets in a lactation period, which is provided by the utility model.
In the figure: 1. a stirring barrel; 2. a processing box; 3. a feed hopper; 4. a collection box; 5. a discharge port; 6. a discharge plate; 7. a feeding assembly; 71. pushing the plate; 72. a push rod; 73. a connecting plate; 74. a pull rod; 75. a carriage; 76. a pull ring; 77. a tension spring; 8. rotating the rod; 9. a stirring rod; 10. a drive motor; 11. a size reduction assembly; 111. a rotating shaft; 112. a cutting knife; 113. a transmission gear; 114. a belt pulley; 115. a transmission belt; 12. and (7) mounting frames.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-3, a feed raw material mixing device suitable for growth of piglets in the lactation period comprises a stirring barrel 1, wherein a processing box 2 which is mutually communicated is fixed at the top end of the stirring barrel 1, a feed hopper 3 is arranged at the top end of the processing box 2, a collecting box 4 which is mutually communicated is fixed at the bottom end of the stirring barrel 1, a discharge hole is formed in one side of the collecting box 4, a discharge plate 6 is fixed on the outer wall of one side of the collecting box 4, a feeding component 7 is arranged in the collecting box 4, a rotating rod 8 is rotatably connected to the side wall of one side of the stirring barrel 1, a plurality of uniformly distributed stirring rods 9 are fixed on the outer wall of the rotating rod 8, a driving motor 10 which is coaxially arranged with the rotating rod 8 is installed on the side wall of one side of the stirring barrel 1, and a crushing component 11 is arranged in the processing box 2; can drive crushing unit 11 through driving motor 10 rotation and carry out broken handle to the raw materials, drive puddler 9 simultaneously again and rotate and mix the stirring to the raw materials, make the raw materials more even when stirring, improved the mixed effect to the fodder, carry out the pay-off through the fodder that the stirring was accomplished in pay-off subassembly 7 to collecting box 4, avoid discharge gate 5 to appear piling stifled, carry out the pay-off through the delivery sheet, the staff of being convenient for collects the fodder after the processing.
The crushing assembly 11 comprises two rotating shafts 111 rotatably connected with the side wall of one side of the processing box 2, a plurality of mutually matched cutting knives 112 are fixed on the outer side walls of the two rotating shafts 111, the outer wall of one side of the processing box 2 is rotatably connected with two mutually meshed transmission gears 113, the two transmission gears 113 are respectively arranged coaxially with the two rotating shafts 111, the side wall of one side of the processing box 2 and the outer side wall of one side of the stirring barrel 1 are respectively rotatably connected with belt pulleys 114, the two belt pulleys 114 are respectively arranged coaxially with the driving motor 10 and one of the transmission gears 113, and the outer side walls of the two belt pulleys 114 are sleeved with a transmission belt 115; can drive cutting knife 112 and puddler 9 simultaneously through driving motor 10 rotation and rotate, make the device can smash and stir the material simultaneously, have better stirring effect, and improved machining efficiency.
The feeding component 7 comprises a push plate 71 arranged in the collection box 4, two symmetrically arranged push rods 72 penetrate through the side wall of one side of the collection box 4 in a sliding manner, one ends of the two push rods 72 are fixed with the side wall of one side of the push plate 71, the other ends of the two push rods 72 are jointly fixed with a connecting plate 73, two ends of the connecting plate 73 are respectively fixed with a pull rod 74, sliding frames 75 are respectively fixed on the outer walls of two sides of the collection box 4, the outer side wall of each pull rod 74 is connected with the inner side wall of the adjacent sliding frame 75 in a sliding manner, a pull ring 76 is fixed at one end of each pull rod 74, a telescopic spring 77 is sleeved on the outer side wall of each pull rod 74, and two ends of each telescopic spring 77 are respectively fixed with the side wall of one side of the sliding frame 75 and the side wall of one side of the connecting plate 73; can drive push pedal 71 through pulling pull ring 76 and push away the material to discharge gate 5 and carry out the ejection of compact, it is comparatively convenient to make the ejection of compact, and difficult emergence is piled stifledly.
The contact surface of the bottom end of the push plate 71 and the collection box 4 is a smooth plane, and the top end of the push plate 71 is arranged in an arc surface; by setting the top end of the push plate 71 to be the cambered surface, the material can slide to the bottom of the collecting box 4 along the cambered surface, and accumulation is avoided.
Go out the vertical cross-section of flitch 6 and be the spill, go out flitch 6 and be located the below of discharge gate 5, go out flitch 6 and be one side outer wall that the slope set up agitator 1 and be fixed with mounting bracket 12, driving motor 10's bottom is fixed with the top of mounting bracket 12.
The working principle is as follows: when feed needs to be mixed, the raw materials are poured into the feed, then the driving motor 10 is started to drive the two belt pulleys 114 to carry out transmission, then the two transmission gears 113 are driven to carry out meshing transmission, the two gears drive the cutting knife 112 to crush the raw materials when rotating, the crushed materials enter the stirring barrel 1, the driving motor 10 drives the rotating rod 8 and the stirring rod 9 to carry out stirring and mixing on the materials, the mixed materials fall into the collection box 4 to be accumulated, when the discharge is needed, the pull ring 76 is pulled to drive the pull rod 74 to move, the pull rod 74 drives the connecting plate 73 and the push rod 72 to move when moving, then the push plate 71 is moved, when the pull ring 76 is loosened, the push plate 71 is reset through the elasticity of the expansion spring 77, so that the push plate 71 can carry out reciprocating movement, when the push plate 71 moves, the materials in the collection box 4 are pushed to the discharge hole 5 to carry out discharge, a worker can place a container below the feed plate to carry out collection, the operation is convenient and efficient.
The driving motor 10 is commercially available, and the driving motor 10 is provided with a power supply, which belongs to the mature technology in the field and is fully disclosed, so that repeated description is omitted in the specification.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. Raw material mixing equipment for feed suitable for growth of piglets in lactation period comprises a stirring barrel (1) and is characterized in that a processing box (2) which is communicated with each other is fixed at the top end of the stirring barrel (1), a feed hopper (3) is arranged at the top end of the processing box (2), a collecting box (4) which is communicated with each other is fixed at the bottom end of the stirring barrel (1), a discharge port (5) is arranged at one side of the collecting box (4), a discharge plate (6) is fixed on the outer wall of one side of the collecting box (4), a feeding component (7) is arranged inside the collecting box (4), a rotating rod (8) is rotatably connected with one side wall of the stirring barrel (1), a plurality of uniformly distributed stirring rods (9) are fixed on the outer side wall of the rotating rod (8), a driving motor (10) which is coaxially arranged with the rotating rod (8) is installed on one side wall of the stirring barrel (1), the processing box (2) is internally provided with a crushing assembly (11).
2. The feed material mixing device according to claim 1, it is characterized in that the crushing component (11) comprises two rotating shafts (111) which are rotationally connected with the side wall of one side of the processing box (2), the outer side walls of the two rotating shafts (111) are respectively fixed with a plurality of cutting knives (112) which are mutually matched, the outer wall of one side of the processing box (2) is rotationally connected with two transmission gears (113) which are meshed with each other, the two transmission gears (113) are respectively arranged coaxially with the two rotating shafts (111), the side wall of one side of the processing box (2) and the lateral wall of one side of the stirring barrel (1) are respectively and rotatably connected with belt pulleys (114), the two belt pulleys (114) are respectively and coaxially arranged with the driving motor (10) and one of the transmission gears (113), and the lateral walls of the two belt pulleys (114) are jointly sleeved with a transmission belt (115).
3. The feed raw material mixing device suitable for the growth of the suckling-period piglets as claimed in claim 1, wherein the feeding component (7) comprises a push plate (71) arranged inside the collection box (4), two symmetrically arranged push rods (72) are slidably penetrated through one side wall of the collection box (4), one ends of the two push rods (72) are fixed with one side wall of the push plate (71), the other ends of the two push rods (72) are jointly fixed with a connecting plate (73), two ends of the connecting plate (73) are respectively fixed with a pull rod (74), two outer side walls of the collection box (4) are respectively fixed with a sliding frame (75), the outer side wall of the pull rod (74) is slidably connected with the inner side wall of the adjacent sliding frame (75), one end of the pull rod (74) is fixed with a pull ring (76), and the outer side wall of the pull rod (74) is sleeved with a telescopic spring (77), and two ends of the telescopic spring (77) are respectively fixed with one side wall of the sliding frame (75) and one side wall of the connecting plate (73).
4. The feed raw material mixing device suitable for the growth of the suckling piglets as claimed in claim 3, wherein the contact surface of the bottom end of the push plate (71) and the collection box (4) is a smooth plane, and the top end of the push plate (71) is arranged in a cambered surface.
5. The feed raw material mixing device suitable for the growth of the suckling-period piglets is characterized in that the vertical section of the discharging plate (6) is concave, the discharging plate (6) is positioned below the discharging hole (5), and the discharging plate (6) is obliquely arranged.
6. The feed raw material mixing device suitable for the growth of the suckling piglets according to the claim 1, wherein a mounting frame (12) is fixed on the outer wall of one side of the stirring barrel (1), and the bottom end of the driving motor (10) is fixed with the top end of the mounting frame (12).
