Abstract
The utility model relates to a chemical raw material grinding device for chemical industry, which belongs to the technical field of chemical raw material processing and comprises a grinding casing, a grinding piece and a bottom plate, wherein the grinding piece and the bottom plate are rotated inside the grinding casing; the interior of grinding the cover shell is wide conical through groove from top to bottom, and the shape of grinding piece is in line with conical through groove. According to the utility model, through the matching among the grinding motor, the grinding piece, the grinding casing and the conical through groove, the chemical raw materials can be fully ground, the situations of grinding missing and uneven grinding are avoided, and the ground materials automatically fall into the material receiving shell, so that the material receiving is convenient.
Description
Technical Field
The utility model belongs to the technical field of chemical raw material grinding, and particularly relates to a chemical raw material grinding device for chemical industry.
Background
The chemical raw materials are various in types and have wide application range. There are over 500-.
Chemical raw materials need to be ground in the processing process, the existing grinding device generally adopts pressing grinding or a motor to drive a grinding cylinder to rotate at a high speed for grinding, the grinding effect is not good, the problems of chemical raw material missing grinding and uneven grinding are easy to occur, and grinding materials are inconvenient to collect.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a chemical raw material grinding device for chemical industry, which solves the problems in the prior art.
The purpose of the utility model can be realized by the following technical scheme:
a chemical raw material grinding device for chemical industry comprises a grinding casing, a grinding piece and a bottom plate, wherein the grinding piece and the bottom plate are rotated inside the grinding casing, the top of the bottom plate is fixedly connected with a material receiving shell through a supporting piece, the material receiving shell is positioned under the grinding casing, the top of the bottom plate is fixedly connected with a grinding motor, the output end of the grinding motor is fixedly connected with a rotating rod, and one end of the rotating rod penetrates through the material receiving shell to be fixedly connected with the bottom of the grinding piece;
the grinding casing is characterized in that a conical through groove with a wide upper part and a narrow lower part is formed in the grinding casing, the grinding piece is matched with the conical through groove in shape, and a gap is reserved between the grinding piece and the conical through groove.
Preferably, the gap is 5 mm.
Preferably, one side of the bottom wall of the material receiving shell is provided with a fan-shaped through groove, and the bottom of the material receiving shell is communicated with a material discharging hopper under the fan-shaped through groove.
Preferably, a gap is formed in a position, corresponding to the discharging hopper, on one side of the supporting piece.
Preferably, the surface of dwang just is located the inside rotation that receives the material shell and is connected with the sleeve, telescopic one side fixedly connected with scrapes the flitch.
Preferably, receive the equal fixedly connected with piece in both sides at material shell top, and the fixedly connected with bracing piece between piece and the grinding shell.
The utility model has the beneficial effects that:
according to the utility model, through the matching among the grinding motor, the grinding piece, the grinding casing and the conical through groove, the chemical raw materials can be fully ground, the situations of grinding missing and uneven grinding are avoided, and the ground materials automatically fall into the material receiving shell, so that the material receiving is convenient.
According to the utility model, the raw materials in the material receiving shell can be taken out for receiving through the matching among the fan-shaped through groove, the discharging hopper and the scraping plate, the operation is simple, the raw material collecting efficiency is improved, and the material receiving work difficulty is reduced.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

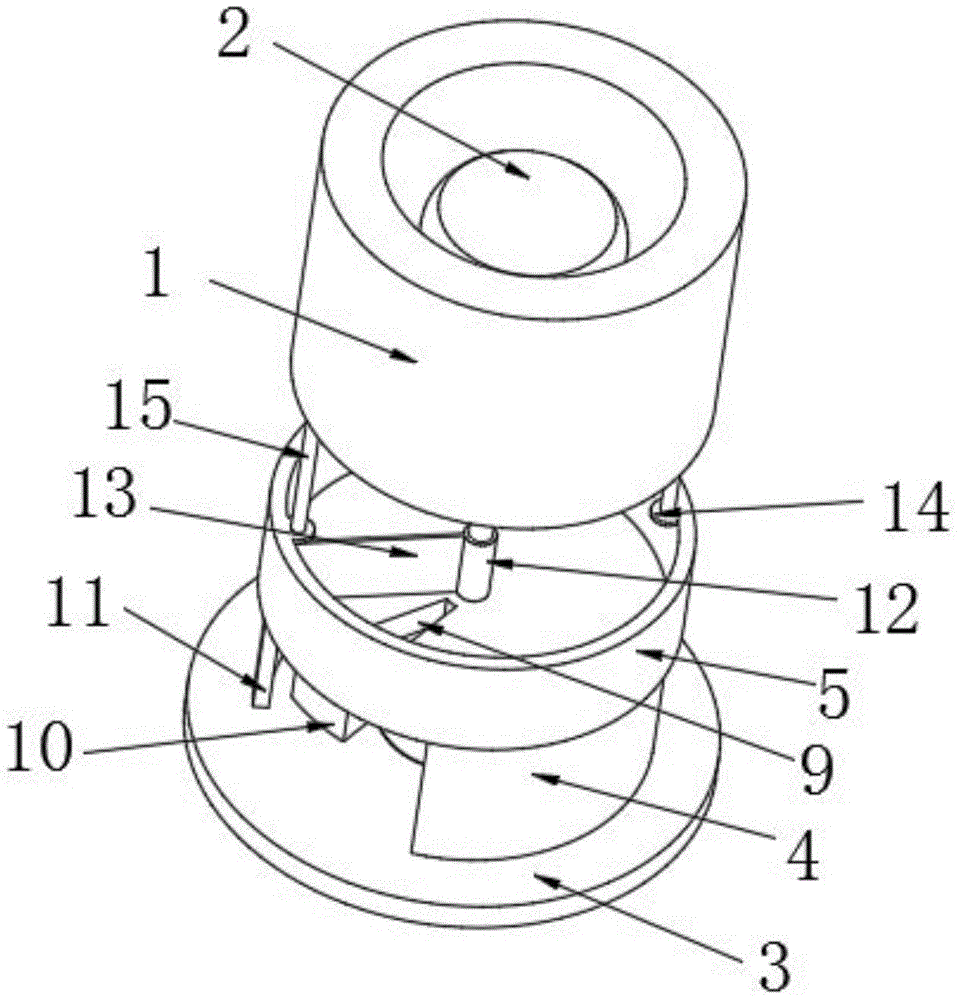

Fig. 1 is a schematic structural diagram of a chemical raw material grinding device for chemical industry according to the present invention.
Fig. 2 is an exploded view of a chemical raw material grinding device according to the present invention.
Fig. 3 is a cross-sectional view of a chemical raw material grinding apparatus according to the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a grinding housing; 2. a grinding member; 3. a base plate; 4. a support member; 5. a material receiving shell; 6. grinding the motor; 7. rotating the rod; 8. a tapered through slot; 9. a fan-shaped through groove; 10. a discharge hopper; 11. a notch; 12. A sleeve; 13. a scraping plate; 14. supporting a block; 15. a support rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, the utility model is a chemical raw material grinding device for chemical industry, comprising a grinding casing 1, a grinding member 2 and a bottom plate 3 rotating inside the grinding casing 1, wherein the top of the bottom plate 3 is fixedly connected with a material receiving shell 5 through a support member 4, the material receiving shell 5 is positioned under the grinding casing 1, the top of the bottom plate 3 is fixedly connected with a grinding motor 6, the output end of the grinding motor 6 is fixedly connected with a rotating rod 7, and one end of the rotating rod 7 penetrates through the material receiving shell 5 and is fixedly connected with the bottom of the grinding member 2; the inside of grinding shell 1 is the toper through groove 8 of narrow down wide from top to bottom, grinds the shape of 2 and the through groove 8 looks adaptation of toper, and grinds and reserves the clearance between 2 and the toper through groove 8.
Grind 6 accessible dwang 7 of motor and drive and grind 2 and rotate, grind 2 and lead to groove 8 with the toper and cooperate and to realize the grinding to industrial chemicals, only grind the qualified raw materials of back and just can drop from the clearance.
The clearance is 5 mm. The gap can be selectively adjusted according to actual conditions.
Receive one side of 5 diapalls of material shell and seted up fan-shaped logical groove 9, receive the bottom of material shell 5 and be located fan-shaped logical groove 9 under the intercommunication have a hopper 10.
The fan-shaped through groove 9 is used for discharging, and the materials are collected to the materials inside the material receiving shell 5 through the fan-shaped through groove and the material discharging hopper.
A gap 11 is arranged at one side of the supporting piece 4 and at the position corresponding to the discharging hopper 10.
The setting of breach 11 is convenient puts collection device under hopper 10, conveniently receives the material.
The surface of dwang 7 just is located the inside rotation that receives material shell 5 and is connected with sleeve 12, and one side fixedly connected with scraping plate 13 of sleeve 12.
The accessible rotates scrapes flitch 13, makes and scrapes flitch 13 and uses sleeve 12 center to rotate as the initial point, will receive the inside material drive of material shell 5 rotatory, makes the material pass through fan-shaped logical groove 9 in proper order, carries out the ejection of compact.
Receive the equal fixedly connected with branch piece 14 in both sides at 5 tops of material shell, and the fixedly connected with bracing piece 15 between branch piece 14 and the grinding cover shell 1.
The working principle of the utility model is as follows:
pouring the industrial chemicals that will need to grind into from the top of grinding the cover shell 1, and place material collection device and wait for receiving the material in support piece 4's breach department, start grinding machine 6, grinding machine 6 drives through dwang 7 and grinds 2 rotations, it cooperatees and grinds industrial chemicals to grind through groove 8 with the toper, the material that qualifies after the grinding falls into receiving material shell 5 through the clearance that grinds between 2 and the toper logical groove 8, after the grinding, scrape flitch 13 in the rotation, will receive the material of 5 inside of material shells and bring collection device into through fan-shaped logical groove 9 and play hopper 10, can.
In the description herein, references to the description of "one embodiment," "an example," "a specific example" or the like are intended to mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the utility model. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The foregoing is merely exemplary and illustrative of the principles of the present invention and various modifications, additions and substitutions of the specific embodiments described herein may be made by those skilled in the art without departing from the spirit and scope of the utility model as defined in the accompanying claims.
Claims (6)
1. The utility model provides a chemical industry raw materials grinder which characterized in that: the grinding device comprises a grinding shell (1), a grinding piece (2) and a bottom plate (3) which rotate inside the grinding shell (1), wherein the top of the bottom plate (3) is fixedly connected with a material receiving shell (5) through a supporting piece (4), the material receiving shell (5) is positioned under the grinding shell (1), the top of the bottom plate (3) is fixedly connected with a grinding motor (6), the output end of the grinding motor (6) is fixedly connected with a rotating rod (7), and one end of the rotating rod (7) penetrates through the material receiving shell (5) to be fixedly connected with the bottom of the grinding piece (2);
the inside of grinding housing (1) is for going up wide narrow toper logical groove (8) down, grind the shape and the logical groove of toper (8) looks adaptation of piece (2), and grind and reserve the clearance between piece (2) and the logical groove of toper (8).
2. The chemical raw material grinding device for chemical industry according to claim 1, characterized in that: the gap is 5 mm.
3. The chemical raw material grinding device for chemical industry according to claim 1, characterized in that: receive the one side of material shell (5) diapire and seted up fan-shaped logical groove (9), receive the bottom of material shell (5) and be located fan-shaped logical groove (9) under intercommunication have a hopper (10).
4. The chemical raw material grinding device for chemical industry according to claim 1, characterized in that: a gap (11) is arranged at one side of the supporting piece (4) and at the position corresponding to the discharging hopper (10).
5. The chemical raw material grinding device for chemical industry according to claim 1, characterized in that: the surface of dwang (7) just is located the inside rotation that receives material shell (5) and is connected with sleeve (12), flitch (13) are scraped to one side fixedly connected with of sleeve (12).
6. The chemical raw material grinding device for chemical industry according to claim 1, characterized in that: receive the equal fixedly connected with in both sides at material shell (5) top and prop up piece (14), and prop up fixedly connected with bracing piece (15) between piece (14) and grinding shell case (1).
