Abstract
The utility model relates to the technical field of anti-seismic supports, in particular to an anti-seismic support convenient to disassemble and used for buildings, which comprises a base, wherein the top of the base is provided with a chute, the inner wall of the chute is connected with a buffer seat in a sliding manner, the positions of the bottom of the buffer seat, which are close to four corners, are respectively provided with a buffer mechanism, the positions of the top of the buffer seat, which are close to the left side and the right side, are symmetrically provided with a support mechanism, the support mechanism comprises a lower support frame, the bottom of the lower support frame is fixedly connected with the top of the buffer seat through bolts, the surface of one side, which is far away from the buffer seat, of the lower support frame is provided with a plurality of fixing threaded holes, and the fixing threaded holes are uniformly arranged at equal intervals; this antidetonation support for building convenient to detach through setting up supporting mechanism for thereby the device can be through lifting stop nut and fixing bolt and reaching the purpose of dismantling the device or adjusting the device support height, has improved workman's work efficiency, has reduced the cost of labor.
Description
Technical Field
The utility model relates to the technical field of anti-seismic supports, in particular to an anti-seismic support convenient to disassemble and used for buildings.
Background
The anti-seismic support is a device commonly used for building work, and when the anti-seismic support needs to be dismounted and loaded or the supporting height is adjusted, the time required for dismounting the anti-seismic support is long, so that the working efficiency of workers is low, the labor cost is high, and therefore the anti-seismic support convenient to dismount for the building is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a conveniently-disassembled anti-seismic support for buildings, which aims to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme:
the utility model provides a shock-resistant support convenient to dismantle for building, includes the base, the spout has been seted up at the base top, spout inner wall sliding connection has the cushion socket, the position that the cushion socket bottom is close to the four corners is equipped with buffer gear respectively, the symmetry that the cushion socket top is close to the left and right sides is equipped with supporting mechanism, supporting mechanism includes the undersetting frame, bolt fixed connection is passed through with the cushion socket top in undersetting frame bottom, a plurality of fixed screw holes have been seted up to a side surface that the cushion socket was kept away from to the undersetting frame, just fixed screw hole is even equidistant range.
Preferably, buffer gear includes buffer housing, the bolt fixed connection is passed through to buffer housing bottom and spout inner wall bottom, buffer housing inner wall bottom fixedly connected with spring, spring top fixedly connected with limiting plate, bolt fixedly connected with buffer beam is passed through in limiting plate top center department, the one end of buffer beam run through buffer housing top and with the buffer seat bottom through bolt fixed connection.
Preferably, one side of the lower support frame far away from the buffer seat is provided with an upper support frame, and one side surface of the upper support frame close to the buffer seat is connected with one side surface of the lower support frame far away from the buffer seat in a sliding manner.
Preferably, the surface of one side of the upper support frame, which is far away from the buffer seat, is in threaded connection with a fixing bolt, the fixing bolt is in threaded connection with one of the fixing threaded holes, and one end of the fixing bolt is in threaded connection with a limit nut.
Preferably, one side surface of the limit nut, which is far away from the buffer seat, is tightly attached to one side surface of the lower support frame, which is close to the buffer seat.
Preferably, the top of the upper support frame is fixedly connected with a support plate through a bolt, and the top of the support plate is fixedly connected with a support soft plate through a bolt.
Compared with the prior art, the utility model has the beneficial effects that:
this antidetonation support for building convenient to detach through setting up supporting mechanism for thereby the device can be through lifting stop nut and fixing bolt and reaching the purpose of dismantling the device or adjusting the device support height, has improved workman's work efficiency, has reduced the cost of labor.
Drawings

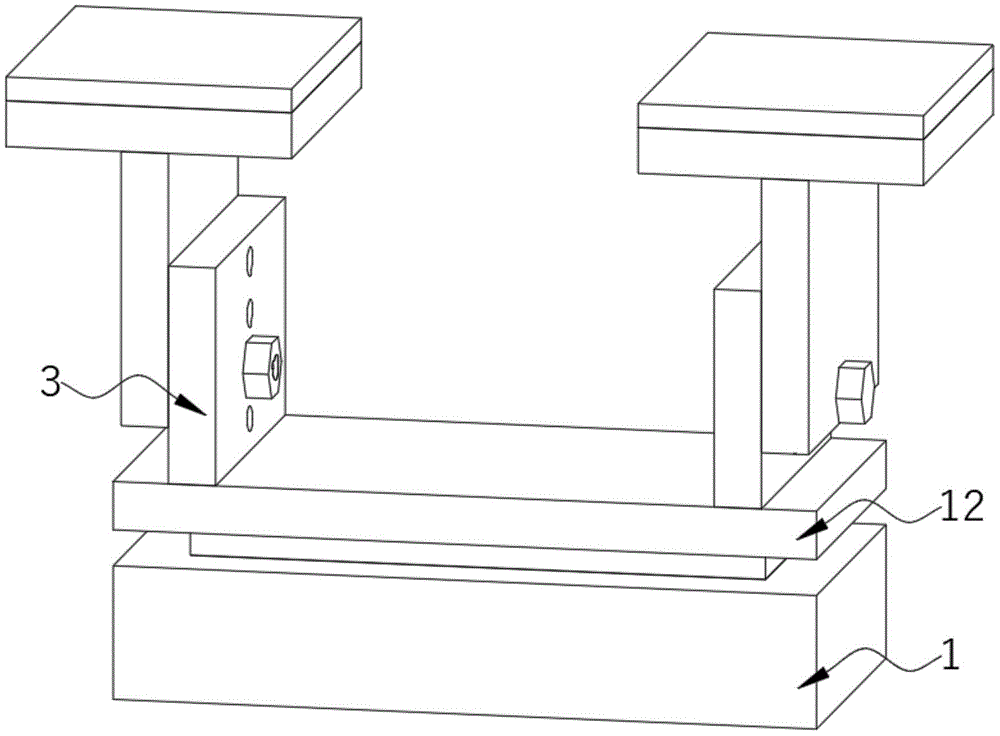

FIG. 1 is a schematic view of the overall structure of embodiment 1 of the present invention;
fig. 2 is a schematic structural view of a base in embodiment 1 of the present invention;
fig. 3 is a schematic structural view of a damper mechanism according to embodiment 1 of the present invention;
fig. 4 is a schematic structural view of a support mechanism in embodiment 1 of the present invention;
fig. 5 is a schematic structural view of a vibration-proof plate in embodiment 2 of the present invention.
The meaning of each reference number in the figures is:
a base 1; a chute 11; a cushion base 12;
a buffer mechanism 2; a buffer housing 21; a spring 22; a stopper plate 23; a buffer rod 24;
a support mechanism 3; a lower support frame 31; a fixing threaded hole 32; an upper support frame 33; a fixing bolt 34; a limit nut 35; a support plate 36; a supporting soft board 37;
and a shock-proof plate 4.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like, indicate orientations and positional relationships based on those shown in the drawings, and are used only for convenience of description and simplicity of description, and do not indicate or imply that the equipment or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be considered as limiting the present invention.
Furthermore, the terms "a", "an", and "the" mean two or more unless explicitly limited otherwise.
Example 1
Referring to fig. 1-4, the present invention provides a technical solution:
the utility model provides a shock-resistant support convenient to detach for building, includes base 1 for support whole device, and spout 11 has been seted up at base 1 top, and 11 inner wall sliding connection in spout have a cushion socket 12, and the position that cushion socket 12 bottom is close to the four corners is equipped with buffer gear 2 respectively, is used for supporting cushion socket 12 and cushions vibrations, and buffer gear 2 includes buffer housing 21, and bolt fixed connection is passed through to buffer housing 21 bottom and 11 inner wall bottoms in spout.
Specifically, buffer housing 21 inner wall bottom fixedly connected with spring 22, spring 22 top fixedly connected with limiting plate 23, limiting plate 23 top center department passes through bolt fixedly connected with buffer rod 24, buffer rod 24's one end runs through buffer housing 21 top and passes through bolt fixed connection with buffer base 12 bottom, when supporting soft board 37 and receiving the shaking force that comes from the top, drive backup pad 36 downstream, drive upper bracket 33 downstream, drive rather than the under bracing frame 31 downstream of being connected through fixing bolt 34, thereby drive buffer base 12 and slide down in spout 11, thereby drive buffer rod 24 downstream, drive limiting plate 23 with the compression of spring 22, thereby offset the shaking force.
Preferably as this embodiment, the position symmetry that the cushion 12 top is close to the left and right sides is equipped with supporting mechanism 3 for support top object, and supporting mechanism 3 includes lower carriage 31, and bolt fixed connection is passed through with cushion 12 top in lower carriage 31 bottom, and a plurality of fixed screw hole 32 have been seted up to a side surface that cushion 12 was kept away from to lower carriage 31, and fixed screw hole 32 is even equidistant range.
Further, one side of the lower support 31 far away from the buffer base 12 is provided with an upper support 33, and a side surface of the upper support 33 near the buffer base 12 is connected with a side surface of the lower support 31 far away from the buffer base 12 in a sliding manner, so that the position of the upper support 33 can be adjusted more conveniently.
Specifically, a fixing bolt 34 is screwed on a surface of one side of the upper support frame 33 away from the buffer base 12 to connect the upper support frame 33 and the lower support frame 31, the fixing bolt 34 is screwed with one of the fixing threaded holes 32, and one end of the fixing bolt 34 is screwed with a limit nut 35 to limit the position of the fixing bolt 34.
Specifically, a side surface of the limit nut 35 far away from the buffer base 12 is closely attached to a side surface of the lower support frame 31 close to the buffer base 12, so that the position of the fixing bolt 34 is limited, the upper support frame 33 and the lower support frame 31 are fixedly connected, the top of the upper support frame 33 is fixedly connected with the support plate 36 through the bolt, the top of the support plate 36 is fixedly connected with the support soft plate 37 through the bolt, and the damage of a supported object caused by vibration is prevented.
In the specific using process, a user firstly loosens the two limit nuts 35, pulls out the two fixing bolts 34 after loosening, adjusts the height of the upper support frame 33 according to the requirement, inserts the two fixing bolts 34 into the initial position and screws up after the adjustment is finished, then respectively connects the two limit nuts 35 with the two fixing bolts 34 in a threaded manner, at the moment, one side surface of the limit nut 35 far away from the buffer base 12 is tightly attached to one side surface of the lower support frame 31 close to the buffer base 12, the upper support frame 33 and the lower support frame 31 are fixedly connected, the supporting height of the device is fixed, then the device is placed below an object to be supported, when the supported object is subjected to the vibration force from the upper part, the support plate 36 is driven to move downwards, the upper support frame 33 is driven to move downwards, the lower support frame 31 connected with the upper support frame through the fixing bolts 34 is driven to move downwards, and the buffer base 12 is driven to slide downwards in the chute 11, thereby moving the damping rod 24 downward and the limiting plate 23 to compress the spring 22, thereby counteracting the vibration force.
Example 2
Referring to fig. 5, the present embodiment provides the following technical solutions on the basis of embodiment 1: the bottom of the base 1 is fixedly connected with a shockproof plate 4 through bolts, so that the shockproof performance of the device is further enhanced.
Preferably, the shockproof plate 4 is made of soft rubber, so as to play a role of skid resistance.
In the specific use process, a user firstly fixedly connects the shockproof plate 4 to the bottom of the base 1 through bolts and then supports an object to be supported by using the device.
The foregoing shows and describes the general principles, essential features, and advantages of the utility model. It will be understood by those skilled in the art that the present invention is not limited to the embodiments described above, and the preferred embodiments of the present invention are described in the above embodiments and the description, and are not intended to limit the present invention. The scope of the utility model is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a antidetonation support for building convenient to detach, includes base (1), its characterized in that: spout (11) have been seted up at base (1) top, spout (11) inner wall sliding connection has buffer seat (12), the position that buffer seat (12) bottom is close to the four corners is equipped with buffer gear (2) respectively, the symmetry of position that buffer seat (12) top is close to the left and right sides is equipped with supporting mechanism (3), supporting mechanism (3) are including undersetting frame (31), bolt fixed connection is passed through with buffer seat (12) top in undersetting frame (31) bottom, a plurality of fixed thread holes (32) have been seted up to a side surface that buffer seat (12) were kept away from in undersetting frame (31), just fixed thread hole (32) are even equidistant range.
2. An earthquake-resistant support for construction easy to detach as claimed in claim 1, wherein: buffer gear (2) are including buffer housing (21), bolt fixed connection is passed through to buffer housing (21) bottom and spout (11) inner wall bottom, buffer housing (21) inner wall bottom fixedly connected with spring (22), spring (22) top fixedly connected with limiting plate (23), limiting plate (23) top center department is through bolt fixedly connected with buffer beam (24), the one end of buffer beam (24) runs through buffer housing (21) top and passes through bolt fixed connection with buffer seat (12) bottom.
3. An earthquake-resistant support for construction easy to detach as claimed in claim 1, wherein: one side that buffer seat (12) were kept away from in lower carriage (31) is equipped with upper strut frame (33), just one side surface that buffer seat (12) were kept away from in upper strut frame (33) and lower carriage (31) are connected with one side surface sliding connection.
4. An earthquake-resistant support for construction easy to detach as claimed in claim 3, wherein: the surface of one side, far away from the buffer base (12), of the upper support frame (33) is in threaded connection with a fixing bolt (34), the fixing bolt (34) is in threaded connection with one of the fixing threaded holes (32), and one end of the fixing bolt (34) is in threaded connection with a limiting nut (35).
5. An earthquake-resistant support for construction easy to detach as claimed in claim 4, wherein: and one side surface of the limit nut (35) far away from the buffer seat (12) is tightly attached to one side surface of the lower support frame (31) close to the buffer seat (12).
6. An earthquake-resistant support for construction easy to detach as claimed in claim 3, wherein: the top of the upper support frame (33) is fixedly connected with a support plate (36) through a bolt, and the top of the support plate (36) is fixedly connected with a support soft plate (37) through a bolt.
