Abstract
The utility model discloses a special lifting device for electromechanical installation, which comprises a bottom plate and a shell fixed at the top of the bottom plate, wherein a supporting plate is vertically fixed at the top of the shell, a lifting plate is arranged on one side of the supporting plate, a driving assembly is arranged between the lifting plate and the bottom plate, the driving assembly comprises a movable groove, a driving block and a threaded rod, a transmission assembly is arranged in the shell, and the transmission assembly comprises a gear steering gear, a transmission disc and a crank handle. Avoiding affecting the progress of the electromechanical installation.
Description
Technical Field
The utility model relates to lifting equipment for installation, in particular to lifting equipment special for electromechanical installation.
Background
The electromechanical installation is the installation of integrated equipment, the electromechanical installation engineering comprises pipeline engineering, electrical engineering, ventilation engineering, air conditioning engineering, intelligent engineering and fire-fighting engineering, most of electromechanical equipment needs to be installed at a high place, for example, the electromechanical equipment such as an electromechanical pipeline, a ventilation pipe and the like, and because the electromechanical equipment has more parts, the parts need to be transported to the high place by lifting equipment special for electromechanical installation for installation during installation.
However, the existing lifting equipment has some problems in specific use:
1. the dedicated jacking equipment of current electromechanical installation mostly passes through its operation of motor drive, because electromechanical installation is gone on in the open air mostly, when meetting the unable condition of using of motor outage, can't carry out the elevating work of electromechanical spare part, can influence the progress of electromechanical installation.
2. The baffle is mostly arranged on the placing plate of the existing lifting device special for electromechanical installation, parts are prevented from sliding out of the placing plate through the baffle, and when the parts with large weight are lifted, the parts are prevented from being transferred from the placing plate by the baffle.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide lifting equipment special for electromechanical installation, which solves the problems that the existing lifting equipment special for electromechanical installation, which is proposed in the background art, mostly runs by driving the lifting equipment through a motor, electromechanical installation is mostly carried out outdoors, and when the motor is powered off and can not be used, lifting work of electromechanical parts can not be carried out, and a baffle plate is mostly arranged on a placing plate of the existing lifting equipment special for electromechanical installation, so that when heavy parts are lifted, the baffle plate can prevent the parts from being transferred from the placing plate.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a dedicated jacking equipment of electromechanical installation, includes the bottom plate and fixes the casing at the bottom plate top, casing top vertical fixation has the backup pad, backup pad one side is provided with the lifter plate, be provided with drive assembly between lifter plate and the bottom plate, drive assembly includes movable groove, drive block and threaded rod, be provided with drive assembly in the casing, drive assembly includes gear steering, driving disk and crank, be provided with power component on the bottom plate, power component includes driving motor, carousel and driving belt, the lifter plate top is constructed there is the standing groove, the standing groove both sides articulate respectively has the baffle, be provided with the restriction subassembly between baffle and the lifter plate, the restriction subassembly includes through hole, screw hole and restriction bolt.
As a preferable technical scheme of the utility model, the supporting plate is provided with a T-shaped sliding groove along the height direction, and one side of the lifting plate is fixed with a T-shaped sliding block which is matched with the T-shaped sliding groove.
As a preferable technical scheme of the utility model, the supporting plate is provided with a movable groove along the height direction, one side of the lifting plate is fixed with a driving block, a threaded rod is arranged in the movable groove along the length direction of the movable groove, the threaded rod is connected with the supporting plate through a bearing, and the threaded rod is in threaded connection with the driving block.
As a preferred technical scheme of the utility model, one side of the shell is fixedly provided with a gear steering gear, the output end of the gear steering gear is fixedly connected with a threaded rod, the input end of the gear steering gear is fixedly connected with a transmission disc, and the other side of the transmission disc is fixedly connected with a crank.
As a preferred technical scheme of the utility model, a driving motor is fixed on the top of the bottom plate, the output end of the driving motor is fixedly connected with a rotary table, and a driving belt is sleeved between the rotary table and the driving table.
As a preferable technical solution of the present invention, a through hole is formed at one side of the lifting plate, a threaded hole is formed at a position of the baffle plate corresponding to the through hole, and a limit bolt is inserted into the through hole and is adapted to the threaded hole.
As a preferable technical scheme of the utility model, a reinforcing plate is fixed between the T-shaped sliding block and the lifting plate.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the utility model, by arranging the driving assembly, the gear steering gear, the driving disc, the crank and the power assembly, when electromechanical installation is carried out outdoors, the power assembly is started to drive the driving disc to rotate, the driving assembly can be driven to operate through the driving disc and the gear steering gear, so that the lifting plate is driven to work, under the condition that the power assembly is powered off, the driving belt is pulled out from the driving disc and the rotating disc, and then the handle is rotated to drive the driving disc to rotate, so that the progress of electromechanical installation is prevented from being influenced.
2. According to the utility model, the baffle plate and the limiting assembly are arranged, the limiting assembly limits the baffle plate when in use, so that the baffle plate can prevent parts on the lifting plate from sliding out, and when parts with heavy weight on the lifting plate need to be moved out, the limiting assembly firstly releases the limiting of the baffle plate, so that the baffle plate can rotate to the side surface of the lifting plate around a hinge point of the baffle plate, and thus the parts can be conveniently moved out of the lifting plate.
Drawings

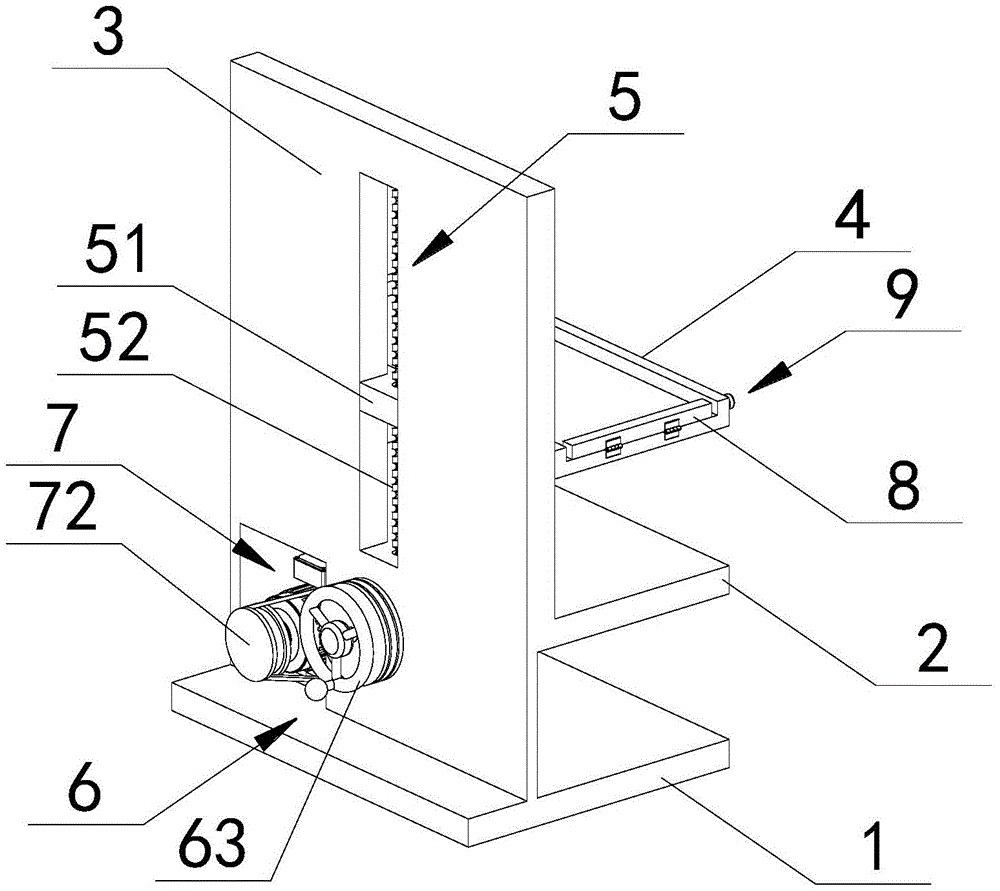

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic perspective view of another embodiment of the present invention;
fig. 3 is a side view of the present invention.
In the figure: 1. a base plate; 2. a housing; 3. a support plate; 4. a lifting plate; 5. a drive assembly; 51. a drive block; 52. a threaded rod; 6. a transmission assembly; 61. a gear diverter; 62. a drive plate; 63. a crank; 7. a power assembly; 71. a drive motor; 72. a turntable; 73. a drive belt; 8. a baffle plate; 9. a restraining component; 91. a restraining bolt; 10. a T-shaped chute; 11. a reinforcing plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution of a lifting device dedicated for electromechanical installation:
the first embodiment is as follows:
referring to fig. 1, 2 and 3, a lifting device specially used for electromechanical installation comprises a bottom plate 1 and a shell 2 fixed on the top of the bottom plate 1, a support plate 3 is vertically fixed on the top of the shell 2, a lifting plate 4 is arranged on one side of the support plate 3, a driving component 5 is arranged between the lifting plate 4 and the bottom plate 1, the driving component 5 comprises a movable groove, a driving block 51 and a threaded rod 52, a transmission component 6 is arranged in the shell 2, the transmission component 6 comprises a gear steering gear 61, a transmission disc 62 and a crank 63, a power component 7 is arranged on the bottom plate 1, the power component 7 comprises a driving motor 71, a rotary disc 72 and a transmission belt 73, a placing groove is constructed on the top of the lifting plate 4, baffles 8 are respectively hinged on two sides of the placing groove, a limiting component 9 is arranged between the baffles 8 and the lifting plate 4, the limiting component 9 comprises a through hole, a threaded hole and a limiting bolt 91, the support plate 3 is constructed with a movable groove along the height direction thereof, 4 one side of lifter plate is fixed with drive block 51, it is provided with threaded rod 52 to its length along the movable groove, threaded rod 52 passes through the bearing and is connected with backup pad 3 and threaded rod 52 and drive block 51 threaded connection, 2 one side of casing is fixed with gear steering gear 61, gear steering gear 61 output and threaded rod 52 fixed connection, gear steering gear 61 input end fixedly connected with driving plate 62, driving plate 62 opposite side fixedly connected with crank 63, 1 top of bottom plate is fixed with driving motor 71, driving motor 71 output end fixedly connected with carousel 72, the cover is equipped with driving belt 73 between carousel 72 and the driving plate 62.
When the lifting device is used, when electromechanical installation is carried out outdoors, the driving motor 71 is started to drive the turntable 72 at the output end of the lifting device to rotate, the turntable 72 can drive the transmission disc 62 to rotate through the transmission belt 73 when rotating, the transmission disc 62 is fixed at the input end of the gear steering gear 61, the threaded rod 52 is fixed at the output end of the gear steering gear 61, the threaded rod 52 can be driven to rotate when the transmission disc 62 rotates, the threaded rod 52 is in threaded connection with the driving block 51, the driving block 51 can be driven to slide along the movable groove when the threaded rod 52 rotates, so that the lifting plate 4 is driven to move along the height direction of the supporting plate 3, the transmission belt 73 is pulled out from the transmission disc 62 and the turntable 72 under the condition that the power component 7 is powered off, then the handle is rotated to drive the transmission disc 62 to rotate, so that the lifting plate 4 is manually driven to lift, avoiding affecting the progress of the electromechanical installation.
Example two:
on the basis of the first embodiment, as shown in fig. 1, 2 and 3, the support plate 3 is configured with a T-shaped sliding groove 10 along the height direction thereof, a T-shaped sliding block is fixed on one side of the lifting plate 4 and is matched with the T-shaped sliding groove 10, a through hole is configured on one side of the lifting plate 4, a threaded hole is configured at the position of the baffle plate 8 corresponding to the through hole, a limiting bolt 91 is inserted in the through hole and is matched with the threaded hole, and a reinforcing plate 11 is fixed between the T-shaped sliding block and the lifting plate 4.
When the lifting device special for electromechanical installation is used specifically, when parts are transported through the lifting plate 4, the T-shaped sliding groove 10 and the T-shaped sliding block can increase the stability of the lifting plate 4 during movement, the reinforcing plate 11 between the T-shaped sliding block and the lifting plate 4 can increase the bearing weight of the lifting plate 4, the limiting bolt 91 is inserted into the through hole and screwed into the threaded hole during use, so that the baffle 8 is limited, the parts on the lifting plate 4 can be prevented from sliding out through the baffle 8, and when the parts with larger weight on the lifting plate 4 need to be moved out, the limiting bolt 91 is firstly screwed out of the threaded hole, so that the baffle 8 can rotate around the hinged point to the side face of the lifting plate 4, and the parts can be directly moved out of the lifting plate 4.
In the description of the present invention, it is to be understood that the indicated orientations or positional relationships are based on the orientations or positional relationships shown in the drawings and are only for convenience in describing the present invention and simplifying the description, but are not intended to indicate or imply that the indicated devices or elements must have a particular orientation, be constructed and operated in a particular orientation, and are not to be construed as limiting the present invention.
In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly attached, detachably attached, or integrated; can be mechanically or electrically connected; the terms may be directly connected or indirectly connected through an intermediate, and may be communication between two elements or interaction relationship between two elements, unless otherwise specifically limited, and the specific meaning of the terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides a dedicated jacking equipment of electromechanical installation, includes bottom plate (1) and fixes casing (2) at bottom plate (1) top, its characterized in that: the lifting mechanism is characterized in that a supporting plate (3) is vertically fixed at the top of the shell (2), a lifting plate (4) is arranged on one side of the supporting plate (3), a driving component (5) is arranged between the lifting plate (4) and the bottom plate (1), the driving component (5) comprises a movable groove, a driving block (51) and a threaded rod (52), a transmission component (6) is arranged in the shell (2), the transmission component (6) comprises a gear steering gear (61), a transmission disc (62) and a crank (63), a power component (7) is arranged on the bottom plate (1), the power component (7) comprises a driving motor (71), a rotary disc (72) and a transmission belt (73), a placing groove is formed in the top of the lifting plate (4), two sides of the placing groove are respectively hinged with a baffle (8), and a limiting component (9) is arranged between the baffle (8) and the lifting plate (4), the limiting assembly (9) comprises a through hole, a threaded hole and a limiting bolt (91).
2. The special lifting device for electromechanical installation of claim 1, wherein: the supporting plate (3) is provided with a T-shaped sliding groove (10) along the height direction, and one side of the lifting plate (4) is fixed with a T-shaped sliding block which is matched with the T-shaped sliding groove (10).
3. The special lifting device for electromechanical installation of claim 1, wherein: the supporting plate (3) is provided with a movable groove along the height direction, one side of the lifting plate (4) is fixed with a driving block (51), a threaded rod (52) is arranged in the movable groove along the length direction of the movable groove, the threaded rod (52) is connected with the supporting plate (3) through a bearing, and the threaded rod (52) is in threaded connection with the driving block (51).
4. The special lifting device for electromechanical installation of claim 1, wherein: casing (2) one side is fixed with gear steering ware (61), gear steering ware (61) output and threaded rod (52) fixed connection, gear steering ware (61) input end fixedly connected with driving plate (62), driving plate (62) opposite side fixedly connected with crank (63).
5. The special lifting device for electromechanical installation of claim 1, wherein: bottom plate (1) top is fixed with driving motor (71), driving motor (71) output end fixedly connected with carousel (72), carousel (72) with the cover is equipped with driving belt (73) between driving disc (62).
6. The special lifting device for electromechanical installation of claim 1, wherein: a through hole is formed in one side of the lifting plate (4), a threaded hole is formed in the position, corresponding to the through hole, of the baffle (8), and a limiting bolt (91) is inserted into the through hole and is matched with the threaded hole in a limiting bolt (91) mode.
7. The lifting device special for electromechanical installation according to claim 2, characterized in that: and a reinforcing plate (11) is fixed between the T-shaped sliding block and the lifting plate (4).
