Abstract
The utility model discloses an intelligent maintenance device for aluminum products, which comprises a workbench, wherein a clamping mechanism is arranged on the surface of the workbench, an installation frame is fixedly connected to the upper surface of the workbench, a threaded rod is rotatably connected to the inner wall of the installation frame, a driving motor is fixedly connected to the surface of the installation frame, the output end of the driving motor penetrates through the installation frame and is fixedly connected with the threaded rod, a placing table is fixedly connected to the upper surface of the workbench, a baffle box is fixedly connected to the surface of the workbench, and a spray head is fixedly connected to the inner wall of the baffle box. According to the utility model, the aluminum plate is placed on the placing table, the aluminum plate is clamped through the clamping block, the driving motor drives the clamping mechanism to move through the matching of the threaded rod and the screw hole, the spray head sprays cleaning liquid, the brush roll cleans the surface of the aluminum plate, the cleaning roll group is wiped dry, and only the aluminum plate needs to be placed, so that the intelligent cleaning device is more intelligent and the labor intensity of workers is reduced.
Description
Technical Field
The utility model relates to the technical field of aluminum product maintenance, in particular to an intelligent maintenance device for an aluminum product.
Background
At present, an aluminum veneer is a building decoration material processed and formed by adopting a fluorocarbon spraying technology after chromizing and other treatments, organic or inorganic stains are easily attached to the surface of the aluminum veneer in the production and processing process of the aluminum veneer, and the organic or inorganic stains need to be treated, so that the spraying effect is better.
The intelligent maintenance device for the aluminum products in the prior art is not intelligent enough, so that the labor intensity of workers is high.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art and provides an intelligent maintenance device for aluminum products.
In order to achieve the purpose, the utility model adopts the following technical scheme: an intelligent maintenance device for aluminum products comprises a workbench, wherein a clamping mechanism is arranged on the surface of the workbench, an installation rack is fixedly connected to the upper surface of the workbench, a threaded rod is rotatably connected to the inner wall of the installation rack, a driving motor is fixedly connected to the surface of the installation rack, the output end of the driving motor penetrates through the installation rack and is fixedly connected with the threaded rod, a placing table is fixedly connected to the upper surface of the workbench, a baffle box is fixedly connected to the surface of the workbench, a spray head is fixedly connected to the inner wall of the baffle box, a brush roll is rotatably connected to the inner wall of the baffle box, a cleaning roll set is arranged on the inner wall of the baffle box, a turnover groove is formed in the upper surface of the workbench, a starting motor is fixedly connected to the surface of the baffle box, a belt pulley is fixedly connected to the output end of the starting motor, the clamping mechanism comprises a moving block, and a sliding groove is formed in the surface of the moving block, the surface of the moving block is fixedly connected with an electric turntable, the surface of the electric turntable is fixedly connected with a connecting disc, the surface of the connecting disc is fixedly connected with an electric push rod, the output end of the electric push rod is fixedly connected with a clamping block, and the surface of the moving block is provided with a screw hole.
As a further description of the above technical solution:
the lower surface of the workbench is fixedly connected with a water tank, and the interior of the water tank is communicated with the turnover groove.
As a further description of the above technical solution:
the lower fixed surface of workstation is connected with the supporting leg, the fixed surface of supporting leg is connected with the splice bar.
As a further description of the above technical solution:
the surface of the water tank is fixedly connected with the supporting legs through connecting ribs, and bottom feet are fixedly connected with the bottoms of the supporting legs.
As a further description of the above technical solution:
the surface of the placing table is provided with a slot, and the shape of the slot is matched with the clamping block.
As a further description of the above technical solution:
the inner wall of the screw hole is in threaded connection with the threaded rod, and the surface of the threaded rod is provided with a wear-resistant coating.
As a further description of the above technical solution:
the inner wall of the sliding groove is connected with the workbench in a sliding mode, and the clamping mechanisms are symmetrically distributed on the front side and the back side of the workbench.
As a further description of the above technical solution:
the surface of the clamping block is fixedly connected with an anti-slip pad, and the electric push rods are symmetrically distributed by taking the axis of the connecting disc as a center.
The utility model has the following beneficial effects:
1. compared with the prior art, this aluminium product intelligence curing means, aluminum plate are put and are being placed the bench, carry out the centre gripping to aluminum plate through the grip block, and driving motor passes through the threaded rod and removes with the cooperation drive fixture of screw, and the shower nozzle sprays the washing liquid, and the brush roll clears up aluminum plate's surface, and the cleaning roller group is wiped futilely, only need place aluminum plate can, more intelligent, reduction staff's intensity of labour.
2. Compared with the prior art, this aluminium product intelligence curing means removes aluminum plate to roll-over groove department, and electric turntable drives the aluminum plate turn-over, clears up aluminum plate's another side, and the angle of clearance is wider, and the slipmat cushions not fragile aluminum plate when the centre gripping, and increase frictional force promotes the centre gripping effect.
3. Compared with the prior art, this aluminium product intelligence curing means collects waste water through the water tank, carries out reuse, reduces the wasting of resources, and the splice bar is consolidated the water tank, promotes the fastness of water tank, and the shape and the grip block adaptation of slot, grip block can insert the slot, place the platform and do not influence the grip block centre gripping.
Drawings

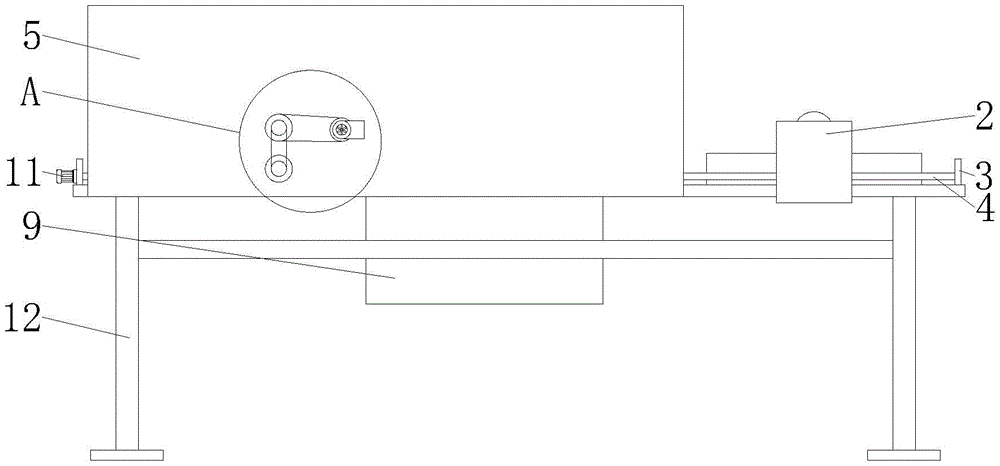

FIG. 1 is a schematic view of an overall structure of an intelligent maintenance device for aluminum products according to the present invention;
FIG. 2 is a partial top view of an intelligent maintenance device for aluminum products according to the present invention;
FIG. 3 is a schematic view of an internal structure of a baffle box of the intelligent maintenance device for aluminum products, provided by the utility model;
FIG. 4 is an enlarged view of a structure A in FIG. 1 of the intelligent maintenance device for aluminum products according to the present invention;
fig. 5 is a schematic structural view of a clamping mechanism of the intelligent maintenance device for aluminum products provided by the utility model.
Illustration of the drawings:
1. a work table; 2. a clamping mechanism; 3. a mounting frame; 4. a threaded rod; 5. a gear box; 6. a spray head; 7. A brush roll; 8. cleaning the roller set; 9. a water tank; 10. a turnover groove; 11. a drive motor; 12. supporting legs; 13. A pick-up motor; 14. a belt pulley; 15. a placing table; 16. a slot; 201. a moving block; 202. a sliding groove; 203. an electric turntable; 204. a connecting disc; 205. an electric push rod; 206. a clamping block; 207. a screw hole; 208. a non-slip mat.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-5, the utility model provides an intelligent maintenance device for aluminum products, which comprises: the clamping device comprises a workbench 1, a clamping mechanism 2 is arranged on the surface of the workbench 1, an installation frame 3 is fixedly connected to the upper surface of the workbench 1, a threaded rod 4 is rotatably connected to the inner wall of the installation frame 3, a driving motor 11 is fixedly connected to the surface of the installation frame 3, the output end of the driving motor 11 penetrates through the installation frame 3 to be fixedly connected with the threaded rod 4, a placing table 15 is fixedly connected to the upper surface of the workbench 1, the threaded rod 4 is driven to rotate through the driving motor 11, the clamping mechanism 2 is driven to move, supporting legs 12 are fixedly connected to the lower surface of the workbench 1, connecting ribs are fixedly connected to the surfaces of the supporting legs 12, and the stability of the supporting legs 12 is improved;
the surface of the workbench 1 is fixedly connected with a baffle box 5, a baffle curtain is arranged on the side face, away from a driving motor 11, of the baffle box 5, a spray head 6 is fixedly connected to the inner wall of the baffle box 5, the spray head 6 is externally connected with a water source (a water source can be cleaning liquid), a brush roller 7 is rotatably connected to the inner wall of the baffle box 5, a cleaning roller set 8 is arranged on the inner wall of the baffle box 5, a turnover groove 10 is formed in the upper surface of the workbench 1, a starting motor 13 is fixedly connected to the surface of the baffle box 5, a belt pulley 14 is fixedly connected to the output end of the starting motor 13, the output end of the starting motor 13 penetrates through the belt pulley 14 to be fixedly connected with the brush roller 7, the starting motor 13 directly drives the brush roller 7, the starting motor 13 drives the cleaning roller set 8 through the matching of the belt pulley 14 and a belt, and the cleaning roller set 8 is mutually driven through the matching of the belt pulley 14 and the belt;
the clamping mechanism 2 comprises a moving block 201, a sliding groove 202 is formed in the surface of the moving block 201, an electric turntable 203 is fixedly connected to the surface of the moving block 201, a connecting disc 204 is fixedly connected to the surface of the electric turntable 203, an electric push rod 205 is fixedly connected to the surface of the connecting disc 204, a clamping block 206 is fixedly connected to the output end of the electric push rod 205, a screw hole 207 is formed in the surface of the moving block 201, the electric push rod 205 pushes the clamping block 206 to clamp an aluminum plate, and the electric turntable 203 drives the aluminum plate to rotate;
the lower surface of the workbench 1 is fixedly connected with a water tank 9, the interior of the water tank 9 is communicated with a turnover groove 10, the water tank 9 collects waste water for reuse, resource waste is reduced, the surface of the water tank 9 is fixedly connected with supporting legs 12 through connecting ribs, bottom feet are fixedly connected to the bottoms of the supporting legs 12, and the water tank 9 is reinforced;
the surface of the placing table 15 is provided with a slot 16, the shape of the slot 16 is matched with that of the clamping block 206, the clamping block 206 can be inserted into the slot 16, and the placing table 15 does not influence the clamping of the clamping block 206;
the inner wall of the screw hole 207 is in threaded connection with the threaded rod 4, the clamping mechanism 2 is driven through the matching of the threaded rod 4 and the screw hole 207, the surface of the threaded rod 4 is provided with a wear-resistant coating, and the service life of the threaded rod 4 is prolonged;
the inner wall of the sliding groove 202 is connected with the workbench 1 in a sliding manner, the moving direction of the clamping mechanism 2 is limited, and the clamping mechanisms 2 are symmetrically distributed on the front side and the back side of the workbench 1;
the fixed surface of grip block 206 is connected with slipmat 208, and not fragile aluminum plate increases frictional force, promotes the centre gripping effect, and electric putter 205 uses the axle center department of connection pad 204 to be central symmetry distribution.
The working principle is as follows: when the aluminum plate cleaning machine is used, an aluminum plate is placed on the placing table 15, the electric push rod 205 of the electric push rod 205 pushes the clamping block 206 to clamp the aluminum plate, the driving motor 11 drives the threaded rod 4 to rotate, the clamping mechanism 2 is driven to move through the matching of the threaded rod 4 and the screw hole 207, the spray head 6 sprays cleaning liquid, the brush roller 7 cleans the surface of the aluminum plate, the cleaning roller group 8 is wiped dry, the aluminum plate is moved to the turnover groove 10, the electric rotary table 203 drives the turnover face of the aluminum plate, and the other face of the aluminum plate is cleaned.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the utility model.
Claims (8)
1. The utility model provides an aluminium product intelligence curing means, includes workstation (1), its characterized in that: the clamping mechanism (2) is arranged on the surface of the workbench (1), the upper surface of the workbench (1) is fixedly connected with an installation frame (3), the inner wall of the installation frame (3) is rotatably connected with a threaded rod (4), the surface of the installation frame (3) is fixedly connected with a driving motor (11), the output end of the driving motor (11) penetrates through the installation frame (3) to be fixedly connected with the threaded rod (4), and the upper surface of the workbench (1) is fixedly connected with a placing table (15);
the surface of the workbench (1) is fixedly connected with a baffle box (5), the inner wall of the baffle box (5) is fixedly connected with a spray head (6), the inner wall of the baffle box (5) is rotatably connected with a brush roll (7), the inner wall of the baffle box (5) is provided with a cleaning roll set (8), the upper surface of the workbench (1) is provided with a turnover groove (10), the surface of the baffle box (5) is fixedly connected with a starting motor (13), and the output end of the starting motor (13) is fixedly connected with a belt disc (14);
the clamping mechanism (2) comprises a moving block (201), a sliding groove (202) is formed in the surface of the moving block (201), an electric turntable (203) is fixedly connected to the surface of the moving block (201), a connecting disc (204) is fixedly connected to the surface of the electric turntable (203), an electric push rod (205) is fixedly connected to the surface of the connecting disc (204), a clamping block (206) is fixedly connected to the output end of the electric push rod (205), and a screw hole (207) is formed in the surface of the moving block (201).
2. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the lower surface of the workbench (1) is fixedly connected with a water tank (9), and the inside of the water tank (9) is communicated with the turnover groove (10).
3. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the lower fixed surface of workstation (1) is connected with supporting leg (12), the fixed surface of supporting leg (12) is connected with the splice bar.
4. The intelligent maintenance device of aluminum products of claim 2, characterized in that: the surface of the water tank (9) is fixedly connected with the supporting legs (12) through connecting ribs, and bottom feet are fixedly connected with the bottoms of the supporting legs (12).
5. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the surface of the placing table (15) is provided with a slot (16), and the shape of the slot (16) is matched with the clamping block (206).
6. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the inner wall of the screw hole (207) is in threaded connection with the threaded rod (4), and the surface of the threaded rod (4) is provided with a wear-resistant coating.
7. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the inner wall of the sliding groove (202) is connected with the workbench (1) in a sliding mode, and the clamping mechanisms (2) are symmetrically distributed on the front side and the back side of the workbench (1).
8. The intelligent maintenance device of aluminum products of claim 1, characterized in that: the surface of the clamping block (206) is fixedly connected with a non-slip mat (208), and the electric push rods (205) are symmetrically distributed by taking the axis of the connecting disc (204) as the center.
