CN216171117U - Integral deodorization adsorption equipment - Google Patents
Integral deodorization adsorption equipment Download PDFInfo
- Publication number
- CN216171117U CN216171117U CN202122869809.6U CN202122869809U CN216171117U CN 216171117 U CN216171117 U CN 216171117U CN 202122869809 U CN202122869809 U CN 202122869809U CN 216171117 U CN216171117 U CN 216171117U
- Authority
- CN
- China
- Prior art keywords
- module
- box body
- water curtain
- water
- box
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Disinfection, Sterilisation Or Deodorisation Of Air (AREA)
Abstract
The utility model discloses an integral type deodorization adsorption device which comprises a box body, wherein an air inlet is formed in the right side of the box body, an air suction door cover is arranged at the input end of the air inlet, a water curtain module and a filtering module are sequentially arranged in the box body along the air inlet, a water storage tank is arranged at the bottom of the box body and is connected with the water curtain module, a fixing plate is arranged at the upper left part of the box body, a UV light oxygen module, an evaporator and a low-temperature plasma purifier are sequentially arranged on the fixing plate from right to left, an air outlet module is arranged at the upper left part of the outer side of the box body and is communicated with the output end of the low-temperature plasma purifier. The waste gas purification device provided by the utility model can be used for preliminarily filtering and purifying waste gas through the water curtain nozzle and the filter element, dissociating and exciting malodorous substance molecules in the waste gas through the UV photo-oxygen module, controlling the humidity of the purified gas through the evaporator, and further purifying the gas through the low-temperature plasma purifier to reach a dischargeable state.
Description
Technical Field
The utility model relates to the technical field of environment-friendly tools, in particular to integral deodorization adsorption equipment.
Background
The reverse osmosis membrane is an artificial semipermeable membrane with certain characteristics and is made by simulating a biological semipermeable membrane, and is a core component of a reverse osmosis technology. The principle of reverse osmosis technology is to separate these substances according to the selective permeability of reverse osmosis membrane under the action of osmotic pressure of solution. The reverse osmosis membrane can be polluted on the surface of the membrane after being used for a period of time, such as surface scaling and membrane surface blockage, and meanwhile, the water permeability of the membrane is reduced due to the compaction effect of the membrane, so that the reverse osmosis membrane needs to be replaced and cleaned. When the membrane element is replaced and cleaned, the length of the membrane shell is long, the membrane element arranged at the innermost part of the membrane element is not easy to push out, the membrane element can be pushed out from the membrane shell only by means of auxiliary tools such as a long rod and the like and by force application of a plurality of persons, time and labor are wasted, the membrane element is pushed by the plurality of persons, the membrane element can quickly fly out and fall on the ground and be broken due to excessive force application, the operating personnel can be injured by the quickly flying membrane element, and potential safety hazards exist.
Chinese patent (No. CN209128007U), it discloses a water treatment reverse osmosis membrane element changes specialized tool, through the supporting seat, there is at least one through hole along its length direction on the supporting seat, wherein the activity joint has a pressure bar in a through hole, the top of one side of supporting seat opposite to pressure bar is fixed with the clamp, the side of pressure bar opposite to clamp is fixed with the articulated seat, the articulated seat is articulated with the push rod, the end face of push rod opposite to the articulated seat is fixed with the roof, plan to use the crow bar principle to push out the membrane element from the membrane shell, in order to change and wash, and can prevent the membrane element from damaging and destroying, prevent the emergence of the potential safety hazard while improving work efficiency.
This scheme still has some weak points in using, because the length of film element differs, appears crow bar through-hole very easily and does not lead to the problem that can not push out the film element to the upper, simultaneously, because the casing of a lot of film elements adopts aluminium system or plastics material, needs the butt on the casing when adopting the depression bar to prize, also causes the condition that the casing damaged very easily. Therefore, it is necessary to further improve the utility of the membrane element replacement tool.
SUMMERY OF THE UTILITY MODEL
The utility model discloses an integral deodorization adsorption device, which mainly aims to overcome the defects and shortcomings in the prior art.
The technical scheme adopted by the utility model is as follows:
the utility model provides an integral deodorization adsorption equipment, includes the box, the right side of box is equipped with the air inlet, and the input of this air inlet is equipped with the door casing of breathing in, install water curtain module, filter module along the air inlet in proper order in the box, the bottom half is equipped with the catch basin, and this catch basin is connected with the water curtain module, the upper left portion of box is equipped with the fixed plate, has installed UV light oxygen module, evaporimeter and low temperature plasma purifier from the right side to a left side on this fixed plate in proper order, the upper left portion of the box outside is equipped with the module of giving vent to anger, should give vent to anger the module with low temperature plasma purifier's output intercommunication.
Furthermore, the air outlet module comprises a horizontal exhaust pipe, an exhaust fan and a vertical exhaust pipe, wherein the exhaust fan is arranged between the horizontal exhaust pipe and the vertical exhaust pipe.
Furthermore, a dosing box body is arranged below the exhaust fan and is connected with the water storage tank.
Furthermore, the UV light oxygen module comprises a UV-C lamp tube, photocatalyst clapboards and a filter plate, wherein the UV lamp tube is provided with a plurality of rows, the photocatalyst clapboards are correspondingly arranged on the right side of the UV lamp tube, and the filter plate is arranged on the right side of the photocatalyst clapboards.
Furthermore, the water curtain module comprises two water curtain nozzles and two circulating water pumps, wherein the circulating water pumps are arranged above the water curtain nozzles and are connected with the water storage tank through pipelines.
Furthermore, the bottom of the evaporator is provided with a water tank, and the front side of the water tank is provided with a drain hole.
Furthermore, an arc-shaped plate is arranged between the fixing plate and the filtering module.
Furthermore, a water level floating ball is arranged on one side of the water storage tank.
As can be seen from the above description of the present invention, compared with the prior art, the present invention has the following advantages:
1. firstly, arranging a water curtain module, a filtering module and a water storage tank in a box body, and performing primary filtering and purification on waste gas by using a water curtain spray head of the water curtain module and a filter element of the filtering module; secondly, dissociating and exciting malodorous substance molecules in the waste gas by a UV-C lamp tube and a photocatalyst clapboard of a UV photo-oxygen module at the left upper part of the box body by adopting a photo-oxygen catalysis technology, and decomposing and converting the malodorous substance molecules into harmless components such as CO2, H2O and the like; and finally, the gas is further purified by a low-temperature plasma purifier to reach a dischargeable state, and is sucked and discharged into the air by an exhaust fan.
2. The UV light oxygen module is characterized in that a dosing box body is arranged below the exhaust fan, the dosing box body is arranged in parallel with the box body and communicated with the box body, appropriate agents and dosage can be added according to different waste gas types and waste gas discharge volumes, an arc plate is arranged between a fixing plate and a filtering module in an inner cavity of the box body, and waste gas can easily enter the UV light oxygen module and is not attached to the inner wall of the box body.
Drawings

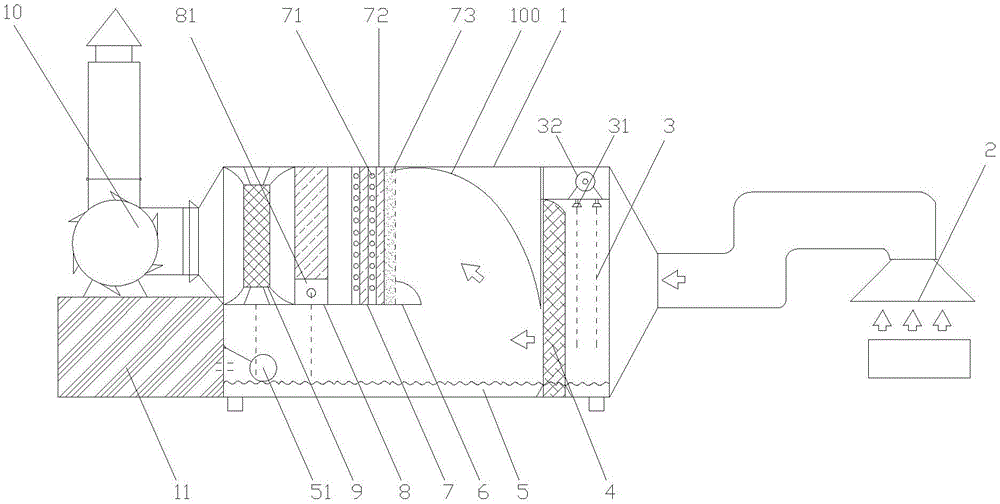

Fig. 1 is a schematic structural view of the present invention.
Detailed Description
Embodiments of the present invention will be further described with reference to the accompanying drawings.
As shown in fig. 1, an integral deodorization adsorption equipment, includes box 1, the right side of box 1 is equipped with the air inlet, and the input of this air inlet is equipped with the door casing 2 of breathing in, install water curtain module 3, filter module 4 along the air inlet in proper order in the box 1, box 1 bottom is equipped with catch basin 5, and this catch basin 5 is connected with water curtain module 3, the upper left portion of box 1 is equipped with fixed plate 6, has installed UV light oxygen module 7, evaporimeter 8 and low temperature plasma purifier 9 from the right side to the left side in proper order on this fixed plate 6, the upper left portion in the box 1 outside is equipped with the module of giving vent to anger, should give vent to anger the module with the output intercommunication of low temperature plasma purifier 9.
Furthermore, the air outlet module comprises a horizontal exhaust pipe, an exhaust fan 10 and a vertical exhaust pipe, wherein the exhaust fan 10 is arranged between the horizontal exhaust pipe and the vertical exhaust pipe.
Furthermore, a medicine adding box body 11 is arranged below the exhaust fan 10, and the medicine adding box body 11 is connected with the water storage tank 5.
Furthermore, the UV photo-oxidation module 7 includes UV-C lamp tubes 71, photocatalyst partition plates 72 and filter plates 73, wherein the UV lamp tubes 71 are arranged in several rows, the photocatalyst partition plates 72 are correspondingly arranged on the right side of the UV lamp tubes 71, and the filter plates 73 are arranged on the right side of the photocatalyst partition plates 72.
Furthermore, the water curtain module 3 comprises two water curtain nozzles 31 and two circulating water pumps 32, wherein the circulating water pumps 32 are arranged above the water curtain nozzles 31, and the circulating water pumps 32 are connected with the water storage tank 5 through pipelines.
Further, a water tank 81 is provided at the bottom of the evaporator 8, and a water discharge hole is provided at the front side of the water tank 81.
Furthermore, an arc-shaped plate 100 is arranged between the fixing plate 6 and the filter module 4.
Furthermore, a water level float 51 is arranged on one side of the water storage tank 5.
As can be seen from the above description of the present invention, compared with the prior art, the present invention has the following advantages:
1. firstly, arranging a water curtain module, a filtering module and a water storage tank in a box body, and performing primary filtering and purification on waste gas by using a water curtain spray head of the water curtain module and a filter element of the filtering module; secondly, dissociating and exciting malodorous substance molecules in the waste gas by a UV-C lamp tube and a photocatalyst clapboard of a UV photo-oxygen module at the left upper part of the box body by adopting a photo-oxygen catalysis technology, and decomposing and converting the malodorous substance molecules into harmless components such as CO2, H2O and the like; and finally, the gas is further purified by a low-temperature plasma purifier to reach a dischargeable state, and is sucked and discharged into the air by an exhaust fan.
2. The UV light oxygen module is characterized in that a dosing box body is arranged below the exhaust fan, the dosing box body is arranged in parallel with the box body and communicated with the box body, appropriate agents and dosage can be added according to different waste gas types and waste gas discharge volumes, an arc plate is arranged between a fixing plate and a filtering module in an inner cavity of the box body, and waste gas can easily enter the UV light oxygen module and is not attached to the inner wall of the box body.
The above description is only an embodiment of the present invention, but the design concept of the present invention is not limited thereto, and any insubstantial modifications of the present invention using this concept shall fall within the scope of infringing the present invention.
Claims (8)
1. An integral deodorization adsorption equipment which is characterized in that: the power distribution box comprises a box body, the right side of box is equipped with the air inlet, and the input of this air inlet is equipped with the door casing of breathing in, install water curtain module, filter module in proper order along the air inlet in the box, the bottom half is equipped with the catch basin, this catch basin with the water curtain module is connected, the upper left portion of box is equipped with the fixed plate, has installed UV light oxygen module, evaporimeter and low temperature plasma purifier from the right side to a left side in proper order on this fixed plate, the upper left portion of the box outside is equipped with the module of giving vent to anger, should give vent to anger the module with the output intercommunication of low temperature plasma purifier.
2. A unitary deodorizing adsorbent device according to claim 1, wherein: the air outlet module comprises a horizontal exhaust pipe, an exhaust fan and a vertical exhaust pipe, wherein the exhaust fan is arranged between the horizontal exhaust pipe and the vertical exhaust pipe.
3. An integrated deodorizing and adsorbing device according to claim 2, wherein: and a dosing box body is arranged below the exhaust fan and is connected with the water storage tank.
4. A unitary deodorizing adsorbent device according to claim 1, wherein: the UV light oxygen module comprises a UV-C lamp tube, photocatalyst clapboards and a filter plate, wherein the UV-C lamp tube is provided with a plurality of rows, the photocatalyst clapboards are correspondingly arranged on the right side of the UV-C lamp tube, and the filter plate is arranged on the right side of the photocatalyst clapboards.
5. A unitary deodorizing adsorbent device according to claim 1, wherein: the water curtain module includes water curtain shower nozzle and circulating water pump, the water curtain shower nozzle has two, circulating water pump set up in water curtain shower nozzle top, circulating water pump pass through the pipeline with the catch basin is connected.
6. A unitary deodorizing adsorbent device according to claim 1, wherein: the bottom of the evaporator is provided with a water tank, and the front side of the water tank is provided with a drain hole.
7. A unitary deodorizing adsorbent device according to claim 1, wherein: an arc-shaped plate is arranged between the fixed plate and the filtering module.
8. A unitary deodorizing adsorbent device according to claim 1, wherein: and a water level floating ball is arranged on one side of the water storage tank.
