Abstract

The utility model belongs to the technical field of computer desks, and specifically discloses a multifunctional computer desk, comprising a desk body, a groove is formed on the outer wall of the upper end of the desk body, and a support plate is rotatably connected to the inner wall of the groove, and the support The inner wall of the plate is provided with a positioning groove, and L-shaped rubber plates are slidably inserted on both sides of the upper end of the support plate, and the lower ends of the two L-shaped rubber plates are fixedly connected with a limit block. Some computer desks not only have the function of storage, but also can locate multiple lines connected between the computer and the host, so that the multiple lines are neatly arranged, which is beneficial to the user to connect the multiple lines between the computer and the host. It also facilitates the positioning of the books without the need for users to hold the unfolded books to prevent the books from automatically closing, which is beneficial for the users to check data on the computer with the help of books, making the existing computer desks versatile.

Description

A multifunctional computer desk

technical field

The utility model belongs to the technical field of computer desks, and specifically discloses a multifunctional computer desk.

Background technique

Computer desk is a kind of desk used to put computer, and it is a very important office and daily necessities. Modern computer desks are of various styles and materials, and their designs are also diversified. In addition to placing computers, the existing computer desks only have storage. The function of the computer is relatively simple. There will be multiple lines connected between the computer and the host, but the placement of the multiple lines is usually messy. The existing computer desk cannot locate the multiple lines, which is not conducive to the connection between the users. Multiple lines between the computer and the host are managed. The user usually uses the book to check the information on the computer. However, after the book is unfolded, if the user does not hold the unfolded book, the book will be automatically closed. The computer desk cannot be positioned by books, which makes it inconvenient for users to operate, and it is not conducive for users to look up materials on the computer with the help of books.

Utility model content

In view of this, the present invention is used to solve the problems existing in the background technology, and proposes a multifunctional computer desk.

In order to achieve the above purpose, the present utility model provides a multifunctional computer desk, comprising a desk body, a groove is formed on the outer wall of the upper end of the desk body, and a support plate is rotatably connected to the inner wall of the groove, and the support plate is The inner wall is provided with a positioning groove, and L-shaped rubber plates are slidably inserted on both sides of the upper end of the support plate. The inner top of the rubber plate is provided with a rectangular groove, the inner wall of the groove is provided with a square groove corresponding to the two limit blocks, and the inner side of the groove is fixedly connected with a fixed block, and the lower end of the support plate is rotated and connected There is a connecting plate, an adjusting piece is arranged between the connecting plate and the groove, and a wire guide is arranged on the upper end of the table body.

Preferably, slots are provided on both sides of the upper end of the support plate, and the two L-shaped rubber plates are respectively slidably matched with the two slots.

Preferably, the adjusting member includes a clamping block and a plurality of clamping grooves, the clamping block is fixedly connected to the end of the connecting plate, the plurality of clamping grooves are all opened at the inner bottom end of the groove, and the plurality of clamping grooves Arranged in a linear array, the card blocks are inserted into one of the card slots.

Preferably, the wire guide includes a lower positioning plate, the lower positioning plate is fixedly connected to the outer wall of the upper end of the table body near the rear edge, and the upper end of the lower positioning plate is fixedly installed with the upper positioning plate through fasteners, and the lower positioning plate is A plurality of semicircular grooves are opened on the outer wall of one end corresponding to the positioning plate and the upper positioning plate.

Preferably, the fastener includes two splicing plates, the two splicing plates are fixedly connected to the side walls at both ends of the upper positioning plate, respectively, and the inner walls of the splicing plate and the lower positioning plate are screwed through and fastened together. bolt.

Preferably, the L-shaped rubber plate is made of polytetrafluoroethylene material, and a connecting block is fixedly connected to the upper edge of the inner side surface of the positioning groove.

Compared with the prior art, the utility model has the following beneficial effects: the existing computer desk not only has the function of storage, but also can locate multiple lines connected between the computer and the host, so that the multiple lines can be placed in a position. Neatly placed, it is helpful for the user to manage the multiple lines connected between the computer and the host computer, and at the same time, it is convenient for the positioning of the book, without the need for the user to hold the unfolded book to prevent the book from automatically closing Books refer to the information on the computer, making the existing computer desks versatile.

Description of drawings

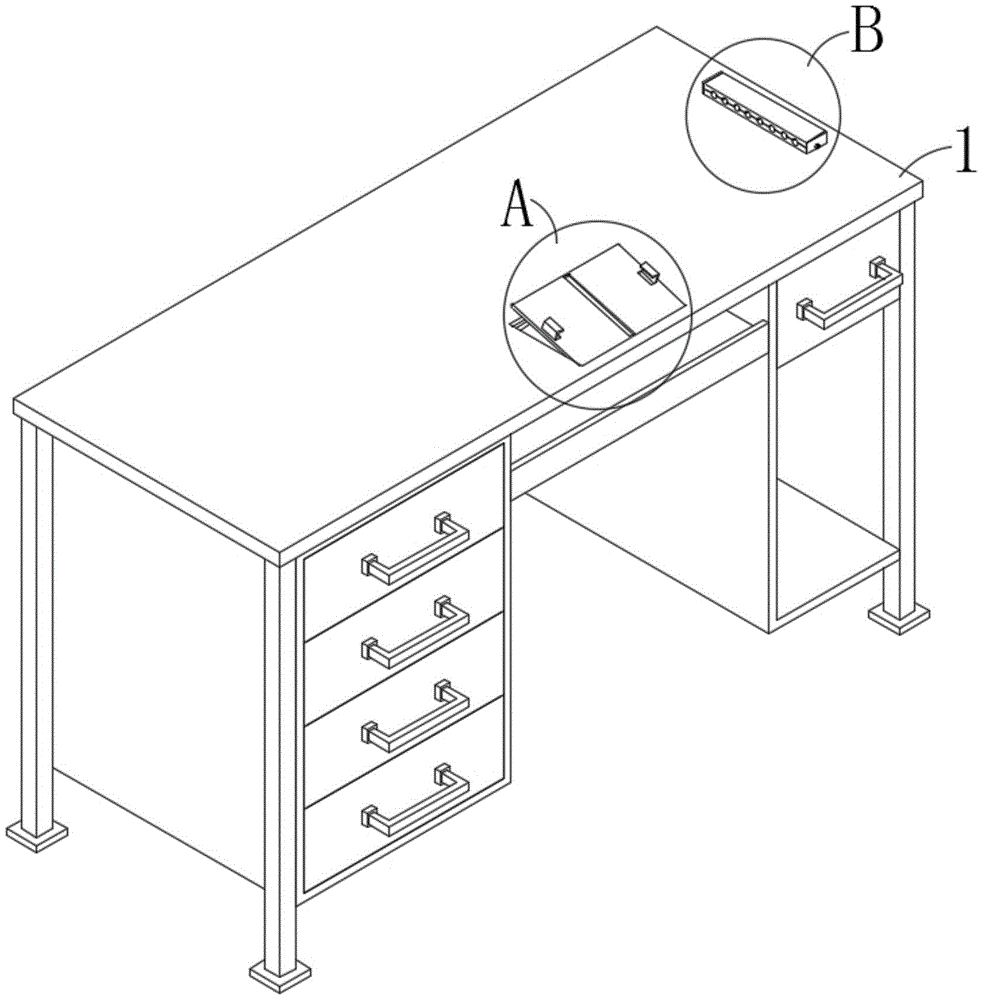

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the structural representation of A place in Fig. 1;

Fig. 3 is the structural representation at B in Fig. 1;

4 is a display diagram of the connecting block, the slot, the connecting plate and the card block of the present invention;

Fig. 5 is the display diagram of the groove place of the present utility model;

Fig. 6 is the structural representation at C in Fig. 5;

FIG. 7 is a display diagram of the L-shaped rubber plate and the limiting block of the present invention.

In the figure: 1. Table body; 2. Connecting block; 3. Support plate; 4. L-shaped rubber plate; 5. Rectangular groove; 6. Positioning groove; 7. Groove; 8. Lower positioning plate; 9. Upper positioning plate; 10, semicircular slot; 11, splice plate; 12, bolt; 13, slot; 14, connecting plate; 15, clip; 16, clip slot; 17, fixed block; 18, square slot; 19, limit block.

Detailed ways

In order to be able to understand the above-mentioned objects, features and advantages of the present invention more clearly, the present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments.

Many specific details are set forth in the following description to facilitate a full understanding of the present invention. However, the present invention can also be implemented in other ways different from those described herein. Therefore, the present invention is not limited to the specific details disclosed below. Example limitations.

A multifunctional computer desk as shown in Figures 1-7 includes a table body 1, a groove 7 is formed on the outer wall of the upper end of the table body 1, the inner wall of the groove 7 is rotatably connected with a support plate 3, and the inner wall of the support plate 3 A positioning groove 6 is provided, and L-shaped rubber plates 4 are slidably inserted on both sides of the upper end of the supporting plate 3. The lower ends of the two L-shaped rubber plates 4 are fixedly connected to the limit block 19, and the outer wall of the upper end of the supporting plate 3 corresponds to two L-shaped rubber plates 4. The inner top of the rubber plate 4 is provided with a rectangular groove 5, the inner wall of the groove 7 is provided with a square groove 18 corresponding to the two limit blocks 19, and the inner side of the groove 7 is fixedly connected with a fixed block 17. A connecting plate 14 is rotatably connected to the lower end of the table 3 , an adjustment piece is arranged between the connecting plate 14 and the groove 7 , and a wire guide is arranged on the upper end of the table body 1 .

Slots 13 are provided on both sides of the upper end of the support plate 3, and the two L-shaped rubber plates 4 are slidably matched with the two slots 13 respectively. slide.

The adjusting member includes a clamping block 15 and a plurality of clamping grooves 16, the clamping block 15 is fixedly connected to the end of the connecting plate 14, the plurality of clamping grooves 16 are all opened at the inner bottom end of the groove 7, and the plurality of clamping grooves 16 are linear. Array layout, the card block 15 is inserted in one of the card slots 16, turn the support plate 3 clockwise and then turn the connecting plate 14, and the card block 15 at the end of the connecting plate 14 corresponds to the other card slot 16 and then rotate counterclockwise The supporting plate 3 and the connecting plate 14 will drive the clamping blocks 15 to be inserted into the other card slots 16 , so as to facilitate the adjustment of the inclination angle of the supporting plate 3 .

The wire guide includes a lower positioning plate 8, the lower positioning plate 8 is fixedly connected to the upper end outer wall of the table body 1 near the rear edge, and the upper end of the lower positioning plate 8 is fixedly installed with an upper positioning plate 9 through fasteners, and the lower positioning plate 8. A plurality of semicircular grooves 10 are opened on the outer wall of one end corresponding to the upper positioning plate 9. By setting fasteners, the upper positioning plate 9 can be removed from the lower positioning plate 8. On the computer, a plurality of lines are then placed in the interior of the plurality of semicircular grooves 10, and finally, after the plurality of lines are connected to the host, the upper positioning plate 9 is fixed on the lower positioning plate 8 by fasteners, and then there are more The lines are arranged in an orderly manner, which is beneficial for the user to manage the multiple lines connected between the computer and the host.

The fasteners include two splicing plates 11, the two splicing plates 11 are fixedly connected to the side walls at both ends of the upper positioning plate 9, respectively, and bolts 12 are screwed through the inner walls of the splicing plate 11 and the lower positioning plate 8, and are rotated. When the bolts 12 are pulled out, the upper positioning plate 9 can be held to drive the two splicing plates 11 to leave the lower positioning plate 8 together, so that the upper positioning plate 9 can be easily removed.

The L-shaped rubber plate 4 is made of PTFE material, and the connecting block 2 is fixedly connected to the upper edge of the inner side of the positioning groove 6. According to the characteristics of PTFE, the L-shaped rubber plate 4 has a long service life. Block 2, when the supporting plate 3 is accommodated in the groove 7, the supporting plate 3 can be rotated by placing a finger in the space between the connecting block 2 and the positioning groove 6, which is very convenient.

Working principle: By setting the wire guides, the multiple lines connected between the computer and the host are placed neatly, which is helpful for the user to manage the multiple lines connected between the computer and the host. When the user needs to use books on the computer When looking up information, the book can be placed on the pallet 3, and the middle of the book can be placed in the positioning groove 6, then the book can be unfolded, and the unfolded book can be placed on the two L-shaped rubber plates 4. Below the inner top, then press the two L-shaped rubber sheets 4 respectively. The L-shaped rubber sheets 4 can slide in the slot 13, and the two L-shaped rubber sheets 4 can press the edge of the unfolded book to avoid unfolding. The opened book is automatically closed. Because there is a certain friction between the L-shaped rubber plate 4 and the slot 13, the position of the L-shaped rubber plate 4 is not easily changed, and the unfolded book can be positioned, which is convenient for users to use the book. When looking up data on the computer, by setting the connecting plate 14 and the adjusting member, rotating the supporting plate 3 clockwise, then rotating the connecting plate 14 and then rotating the supporting plate 3 counterclockwise, the angle of the supporting plate 3 can be easily adjusted, thereby facilitating the adjustment of the book's swing. The angle can be adjusted to meet the viewing needs of different users. When the support plate 3 is not used, first rotate the connecting plate 14 to fit the support plate 3, and then turn the support plate 3 counterclockwise until it is accommodated in the groove 7. , the support plate 3 can be attached to the upper end of the fixing block 17, the connecting plate 14 can be in the groove 7, and then the two L-shaped rubber plates 4 can be pressed down, and the horizontal end of the L-shaped rubber plates 4 can be stored in the rectangular groove 5. Inside, the limit block 19 under the L-shaped rubber plate 4 and the vertical end of the L-shaped rubber plate 4 can be stored in the square groove 18, which ensures the flatness of the table top of the table body 1 and will not affect the table body 1. Normal use.

In the present utility model, terms such as "installation", "connection", "connection" and "fixation" should be understood in a broad sense. For example, "connection" may be a fixed connection, a detachable connection, or an integral connection. ; can be directly connected or indirectly connected through an intermediary. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood according to specific situations.

In the description of this specification, where the terms "one embodiment," "some embodiments," "specific embodiments," etc. appear in description, it means that the specific features, structures, materials, or characteristics described in connection with the embodiment or example are contained in in at least one embodiment or example of the present invention. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or instance. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The basic principles, main features and advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions describe only the principles of the present invention. There are various changes and improvements that fall within the scope of the claimed invention. The scope of protection claimed by the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a multifunctional computer desk, includes the table body (1), its characterized in that: a groove (7) is formed in the outer wall of the upper end of the table body (1), a supporting plate (3) is rotatably connected to the inner wall of the groove (7), a positioning groove (6) is formed in the inner wall of the supporting plate (3), l-shaped rubber plates (4) are inserted into the two sides of the upper end of the supporting plate (3) in a sliding way, the lower ends of the two L-shaped rubber plates (4) are fixedly connected with limiting blocks (19), rectangular grooves (5) are respectively arranged on the outer wall of the upper end of the supporting plate (3) corresponding to the top ends of the inner sides of the two L-shaped rubber plates (4), the inner wall of the groove (7) is provided with square grooves (18) corresponding to the two limit blocks (19), and the inner side surface of the groove (7) is fixedly connected with a fixed block (17), the lower end of the supporting plate (3) is rotatably connected with a connecting plate (14), an adjusting piece is arranged between the connecting plate (14) and the groove (7), and a wire guiding piece is arranged at the upper end of the table body (1).

2. A multifunctional computer desk as recited in claim 1, wherein: slots (13) are formed in two sides of the upper end of the supporting plate (3), and the two L-shaped rubber plates (4) are in sliding fit with the two slots (13) respectively.

3. A multifunctional computer desk as recited in claim 1, wherein: the adjusting piece comprises a clamping block (15) and a plurality of clamping grooves (16), the clamping block (15) is fixedly connected to the end portion of the connecting plate (14), the clamping grooves (16) are formed in the bottom end of the inner portion of the groove (7), the clamping grooves (16) are arranged in a linear array mode, and the clamping block (15) penetrates through the inner portion of one clamping groove (16).

4. A multifunctional computer desk as recited in claim 1, wherein: the wire guiding piece comprises a lower positioning plate (8), the lower positioning plate (8) is fixedly connected to the outer wall of the upper end of the table body (1) and close to the edge of the rear portion, an upper positioning plate (9) is fixedly mounted at the upper end of the lower positioning plate (8) through a fastener, and a plurality of semicircular grooves (10) are formed in the outer wall of one end, corresponding to the upper positioning plate (9), of the lower positioning plate (8).

5. A multifunctional computer desk as recited in claim 4, wherein: the fastener comprises two splicing plates (11), the two splicing plates (11) are respectively and fixedly connected to the side walls of the two ends of the upper positioning plate (9), and bolts (12) are screwed on the splicing plates (11) and the inner walls of the lower positioning plate (8) in a penetrating mode.

6. A multifunctional computer desk as recited in claim 1, wherein: l type rubber slab (4) are made by the polytetrafluoroethylene material, the inside side upper portion edge fixedly connected with connecting block (2) of constant head tank (6).
