CN216092040U

CN216092040U - Multifunctional auxiliary training body builder for gymnastics

Info

Publication number: CN216092040U
Application number: CN202122631629.4U
Authority: CN
Inventors: 盛洪涛; 杨艳生; 史文虹
Original assignee: Chifeng University
Current assignee: Chifeng University
Priority date: 2021-10-30
Filing date: 2021-10-30
Publication date: 2022-03-22
Anticipated expiration: 2031-10-30

Abstract

The utility model discloses a multifunctional gymnastic auxiliary training fitness device, which comprises a branch pipe, wherein a support rod penetrates through the bottom of the branch pipe, a first bolt penetrates through the bottom of one side of the branch pipe, a transverse plate is welded at the top of the branch pipe, limiting blocks are fixedly connected to two sides of the bottom of the transverse plate, and a guide rod is fixedly connected to the side, opposite to the limiting blocks, of the transverse plate. The utility model has the advantages of height adjustment according to the self requirement, stable bottom support and buffer support for the user, and solves the problems that the existing gymnastic device is simple, the flying ring is used for training most of the exercises aiming at one part of the body, the arms can be trained only but the legs can not be supported and exercised, the height of the training personnel can not be adjusted according to the self requirement conveniently, meanwhile, the bottom does not have a stable support structure, the buffer support can not be carried out on the user, and the applicability of the gymnastic device is reduced.

Description

Multifunctional auxiliary training body builder for gymnastics

Technical Field

The utility model relates to the technical field of fitness equipment, in particular to a multifunctional auxiliary training fitness equipment for gymnastics.

Background

Along with the improvement of living standard, people put more energy into health, corresponding fitness industry is advanced all the time, the development reaches unprecedented height, various fitness equipment is full of wealth, more and more people are put into the gymnasium, however, due to different working properties or different preferences of people, part of people cannot frequently go to the gymnasium to exercise, only can buy the fitness equipment to exercise at home by oneself, the flying ring only has swinging actions and simple suspension, and as an auxiliary means for gymnastic training, the flying ring is favorable for cultivating rhythm of actions, and the coordination ability of the body is improved.

Present gymnastics fitness equipment is fairly simple and easy, and the rings action is when training, and the most is tempered to a position of health specially, can only train the arm and can't reach and support the exercise to the shank, and the training personnel of being not convenient for adjust the height according to the needs of self, and the bottom does not have stable bearing structure simultaneously, can not cushion the support to the user, has reduced gymnastics fitness equipment's suitability.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a gymnastic multifunctional auxiliary training fitness device which has the advantages of being capable of adjusting height according to self needs, stable in bottom support and capable of buffering and supporting a user, and solves the problems that the existing gymnastic fitness device is simple, most of flying rings are specially used for exercising one part of a body during training, only arms can be trained but legs cannot be supported and exercised, training personnel cannot adjust the height according to the self needs conveniently, meanwhile, the bottom of the gymnastic multifunctional auxiliary training fitness device is not provided with a stable support structure, the user cannot be buffered and supported, and the applicability of the gymnastic fitness device is reduced.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a multi-functional training fitness equipment of gymnastics, includes the branch pipe, the bottom of branch pipe is run through and is provided with branch, the bottom of branch pipe one side is run through and is provided with first bolt, the top welding of branch pipe has the diaphragm, the equal fixedly connected with stopper in both sides of diaphragm bottom, the relative one side fixedly connected with guide bar of stopper, the equal movable sleeve in both sides on guide bar surface is equipped with the uide bushing, the front side of uide bushing is run through and is provided with the second bolt, stay cord fixedly connected with rings are passed through to the bottom of uide bushing, the relative one side of branch all has the carousel through bull stick swing joint, the top fixedly connected with running-board of the relative one side of carousel, the bottom fixedly connected with supporting mechanism of branch, the bottom fixedly connected with balance mechanism of the relative one side of branch.

Preferably, the supporting mechanism includes first backup pad, the bottom fixed connection of first backup pad and branch, the both sides of first backup pad inner chamber all are provided with the second backup pad, one side of second backup pad extends to the outside of first backup pad, the top of first backup pad is run through and is provided with the third bolt, the bottom of third bolt run through to the inner chamber of first backup pad and with first backup pad threaded connection, the bottom of third bolt and the surface contact of second backup pad.

Preferably, the balance mechanism includes the base, the both sides of base all with branch fixed connection, the first spring of top fixedly connected with of base, the top fixedly connected with balance plate of first spring, the equal fixedly connected with sleeve pipe in four corners of balance plate bottom, sheathed tube inner wall fixedly connected with second spring, the bottom fixedly connected with bracing piece of second spring, the bracing piece run through the sleeve pipe and with the top fixed connection of base.

Preferably, a piece fixedly connected with horizontal pole is passed through at the top of base, the equal movable sleeve in both sides on horizontal pole surface is equipped with the movable sleeve, there is the connecting rod through pivot swing joint between the bottom of balance plate and the top of movable sleeve, the both sides on horizontal pole surface all are equipped with the third spring, the top fixedly connected with foam-rubber cushion of balance plate.

Preferably, the rear side of the second bolt penetrates through the inner cavity of the guide sleeve and is in threaded connection with the guide sleeve, and the rear side of the second bolt is in contact with the front side of the guide rod.

Preferably, a clamping groove is formed in one side of the supporting rod, and one end of the first bolt penetrates through an inner cavity of the clamping groove and is in threaded connection with the branch pipe.

Compared with the prior art, the utility model has the following beneficial effects:

the utility model has the advantages that the height can be adjusted according to the self requirement, the bottom support is stable, and the buffer support is carried out on the user through the matching of the branch pipe, the support rod, the first bolt, the transverse plate, the limiting block, the guide rod, the guide sleeve, the second bolt, the hanging ring, the rotary plate, the pedal plate, the support mechanism and the balance mechanism, and solves the problems that the existing gymnastic device is simple, the hanging ring is used for exercising most parts of the body, only the arm can be exercised and the leg can not be supported and exercised, the height of the training personnel can not be adjusted according to the self requirement, and the bottom does not have a stable support structure, the user can not be supported in a buffer manner, and the applicability of the gymnastic device is reduced.

Drawings

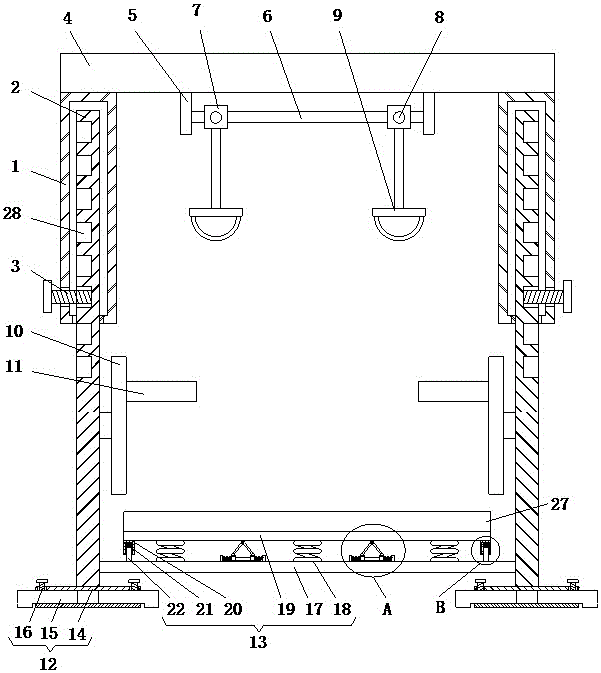

FIG. 1 is a schematic cross-sectional view of the structure of the present invention;

FIG. 2 is a left side view of the structure of the present invention;

FIG. 3 is a schematic front view of the structure of the present invention;

FIG. 4 is an enlarged view of a portion of A in FIG. 1 according to the present invention;

FIG. 5 is an enlarged view of a portion of B in FIG. 1 according to the present invention.

In the figure: the device comprises a support pipe 1, a support rod 2, a first bolt 3, a transverse plate 4, a limiting block 5, a guide rod 6, a guide sleeve 7, a second bolt 8, a lifting ring 9, a rotary table 10, a pedal 11, a supporting mechanism 12, a balancing mechanism 13, a first supporting plate 14, a second supporting plate 15, a third bolt 16, a base 17, a first spring 18, a balancing plate 19, a sleeve 20, a second spring 21, a supporting rod 22, a cross rod 23, a movable sleeve 24, a connecting rod 25, a third spring 26, a sponge cushion 27 and a clamping groove 28.

Detailed Description

Referring to fig. 1-5, a gymnastic multifunctional auxiliary training body builder comprises a branch pipe 1, a support rod 2 is arranged at the bottom of the branch pipe 1 in a penetrating manner, a first bolt 3 is arranged at the bottom of one side of the branch pipe 1 in a penetrating manner, a transverse plate 4 is welded at the top of the branch pipe 1, limiting blocks 5 are fixedly connected to two sides of the bottom of the transverse plate 4, a guide rod 6 is fixedly connected to one side opposite to the limiting blocks 5, a guide sleeve 7 is movably sleeved at two sides of the surface of the guide rod 6, a second bolt 8 is arranged at the front side of the guide sleeve 7 in a penetrating manner, a hanging ring 9 is fixedly connected to the bottom of the guide sleeve 7 through a pull rope, a rotary table 10 is movably connected to one side opposite to the support rod 2 through a rotary rod, a pedal 11 is fixedly connected to the top of one side opposite to the rotary table 10, a support mechanism 12 is fixedly connected to the bottom of the support rod 2, a balance mechanism 13 is fixedly connected to the bottom of one side opposite to the support rod 2, the support mechanism 12 comprises a first support plate 14, the first supporting plate 14 is fixedly connected with the bottom of the supporting rod 2, two sides of an inner cavity of the first supporting plate 14 are respectively provided with a second supporting plate 15, one side of the second supporting plate 15 extends to the outside of the first supporting plate 14, the top of the first supporting plate 14 is provided with a third bolt 16 in a penetrating way, the bottom of the third bolt 16 penetrates into the inner cavity of the first supporting plate 14 and is in threaded connection with the first supporting plate 14, the bottom end of the third bolt 16 is in contact with the surface of the second supporting plate 15, the second supporting plate 15 can be fixed by arranging the third bolt 16, the balancing mechanism 13 comprises a base 17, two sides of the base 17 are respectively and fixedly connected with the supporting rod 2, the top of the base 17 is fixedly connected with a first spring 18, the top end of the first spring 18 is fixedly connected with a balancing plate 19, four corners at the bottom of the balancing plate 19 are respectively and fixedly connected with a sleeve 20, and the inner wall of the sleeve 20 is fixedly connected with a second spring 21, the bottom end of the second spring 21 is fixedly connected with a supporting rod 22, the supporting rod 22 penetrates through the sleeve 20 and is fixedly connected with the top of the base 17, the balance plate 19 is conveniently balanced and stably supported by arranging the first spring 18, gravity generated when a user stands on the balance plate 19 is buffered, the sleeve 20 can be buffered and supported by arranging the second spring 21, the top of the base 17 is fixedly connected with a cross rod 23 through a supporting block, two sides of the surface of the cross rod 23 are movably sleeved with movable sleeves 24, a connecting rod 25 is movably connected between the bottom of the balance plate 19 and the top of the movable sleeves 24 through a rotating shaft, two sides of the surface of the cross rod 23 are sleeved with third springs 26, the top of the balance plate 19 is fixedly connected with a sponge cushion 27, the movable sleeves 24 are buffered and supported by arranging the third springs 26, and the sponge cushion 27 is arranged to facilitate buffer protection of the user, the rear side of second bolt 8 runs through to the inner chamber of uide bushing 7 and with uide bushing 7 threaded connection, the rear side of second bolt 8 and the front side contact of guide bar 6, through setting up second bolt 8, be convenient for fix uide bushing 7, draw-in groove 28 has been seted up to one side of branch 2, the one end of first bolt 3 runs through to the inner chamber of draw-in groove 28 and with branch pipe 1 threaded connection, through setting up first bolt 3 and draw-in groove 28, be convenient for fix branch 2 and branch pipe 1.

The bolt is a mechanical part, and means that only one spiral groove thread is arranged on a cylinder, and a cylindrical threaded fastener matched with a nut needs to be matched with the nut and is used for fastening and connecting two parts with through holes, and if the nut is screwed off from the bolt, the two parts can be separated.

When the support device is used, when the support height is adjusted, the vertically moving branch pipe 1 drives the transverse plate 4 and the hanging ring 9 to vertically move, the first bolt 3 is rotated to be in threaded connection with the branch pipe 1, the first bolt 3 is extended to the inner cavity of the clamping groove 28 to fix the support rod 2, when the bottom support area is increased, the second support plate 15 is moved to extend out of the first support plate 14, the second bolt 8 is rotated to be in threaded connection with the first support plate 14, the second bolt 8 is extended to the inner cavity of the first support plate 14 and is in contact with the surface of the second support plate 15, the second support plate 15 is fixed to increase the contact area with the ground, the hanging ring 9 is pulled by standing on the pedal plate 11 through feet, the squatting pedal plate is rotated to perform telescopic motion, arm force and leg force are driven to simultaneously move, when a user falls to the top of the sponge pad 27, the user is protected by buffering through the sponge pad 27, the balance plate 19 is stressed to compress the first spring 18, carry out the buffering support to balance plate 19 through first spring 18, balance plate 19 drives sleeve pipe 20 and moves down compression second spring 21, support buffering through second spring 21 to sleeve pipe 20, balance plate 19 drives connecting rod 25 and removes, connecting rod 25 promotes 24 lateral shifting extrusion third springs 26 of movable sleeve, support buffering to movable sleeve 24 through third springs 26, thereby support buffering to balance plate 19, thereby support buffering to the user.

In summary, the following steps: this multi-functional training fitness equipment of gymnastics, through branch pipe 1, branch 2, first bolt 3, diaphragm 4, stopper 5, guide bar 6, uide bushing 7, second bolt 8, rings 9, carousel 10, running-board 11, the cooperation of supporting mechanism 12 and balance mechanism 13, it is simpler and easier to have solved current gymnastics fitness equipment, the rings action is when training, mostly take exercise to a position of health specially, can only train the arm and can't reach and support the exercise to the shank, be not convenient for training personnel adjust the height according to the needs of self, the bottom does not have stable support structure simultaneously, can not cushion the support to the user, the problem of gymnastics fitness equipment suitability has been reduced.

Claims

1. The utility model provides a multi-functional training fitness equipment of gymnastics, includes branch pipe (1), its characterized in that: the bottom of the branch pipe (1) is provided with a support rod (2) in a penetrating manner, the bottom of one side of the branch pipe (1) is provided with a first bolt (3) in a penetrating manner, the top of the branch pipe (1) is welded with a transverse plate (4), two sides of the bottom of the transverse plate (4) are fixedly connected with limit blocks (5), one side, opposite to the limit blocks (5), is fixedly connected with a guide rod (6), two sides of the surface of the guide rod (6) are movably sleeved with a guide sleeve (7), the front side of the guide sleeve (7) is provided with a second bolt (8) in a penetrating manner, the bottom of the guide sleeve (7) is fixedly connected with a lifting ring (9) through a pull rope, one side, opposite to the support rod (2) is movably connected with a rotary plate (10) through a rotary rod, the top of one side, opposite to the rotary plate (10) is fixedly connected with a pedal plate (11), and the bottom of the support rod (2) is fixedly connected with a support mechanism (12), the bottom of one side opposite to the supporting rod (2) is fixedly connected with a balance mechanism (13).

2. A multi-functional training aid as claimed in claim 1, wherein: supporting mechanism (12) are including first backup pad (14), the bottom fixed connection of first backup pad (14) and branch (2), the both sides of first backup pad (14) inner chamber all are provided with second backup pad (15), one side of second backup pad (15) extends to the outside of first backup pad (14), the top of first backup pad (14) is run through and is provided with third bolt (16), the bottom of third bolt (16) run through to the inner chamber of first backup pad (14) and with first backup pad (14) threaded connection, the bottom of third bolt (16) and the surface contact of second backup pad (15).

3. A multi-functional training aid as claimed in claim 1, wherein: balance mechanism (13) includes base (17), the both sides of base (17) all with branch (2) fixed connection, the first spring (18) of top fixedly connected with of base (17), top fixedly connected with balance plate (19) of first spring (18), the equal fixedly connected with sleeve pipe (20) in four corners of balance plate (19) bottom, the inner wall fixedly connected with second spring (21) of sleeve pipe (20), the bottom fixedly connected with bracing piece (22) of second spring (21), bracing piece (22) run through sleeve pipe (20) and with the top fixed connection of base (17).

4. A multi-functional training aid as claimed in claim 3, wherein: the top of base (17) is through a piece fixedly connected with horizontal pole (23), the equal movable sleeve in both sides on horizontal pole (23) surface is equipped with movable sleeve (24), there is connecting rod (25) through pivot swing joint between the bottom of balance plate (19) and the top of movable sleeve (24), the both sides on horizontal pole (23) surface all are equipped with third spring (26), the top fixedly connected with foam-rubber cushion (27) of balance plate (19).

5. A multi-functional training aid as claimed in claim 1, wherein: the rear side of the second bolt (8) penetrates through the inner cavity of the guide sleeve (7) and is in threaded connection with the guide sleeve (7), and the rear side of the second bolt (8) is in contact with the front side of the guide rod (6).

6. A multi-functional training aid as claimed in claim 1, wherein: a clamping groove (28) is formed in one side of the supporting rod (2), and one end of the first bolt (3) penetrates through an inner cavity of the clamping groove (28) and is in threaded connection with the branch pipe (1).
