Abstract
The utility model discloses a water outlet assembly for a heating water dispenser, which comprises a water tank and a water outlet part, wherein the water outlet part is communicated with the water tank, water in the water tank flows out of the water outlet part, the water outlet part comprises a first water outlet part and a second water outlet part, and a tea making cup is detachably mounted on the second water outlet part. The tea making device is ingenious and reasonable in structural design and high in practicability, the design of the two water outlet parts is adopted, cold and hot water can be obtained through the first water outlet part, the second water outlet part is matched with the tea making cup, a proper tea bag can be placed in the tea making cup, so that the tea making function is realized, the well-brewed tea can be directly obtained from the second water outlet part, the use function of the water drinking device is increased, the user experience feeling of the water drinking device is better, the tea making cup is detachably mounted, the tea making cup can be conveniently detached and taken, and the cleaning of the inner part of the tea making cup and the replacement of the tea bag are facilitated.
Description
Technical Field
The utility model belongs to the technical field of heating and drinking devices, and particularly relates to a water outlet assembly for a heating and drinking device.
Background
With the improvement of living standard and the development of water purification technology, the health of drinking water has become the focus of attention of people. Because the existing water is conveyed through a pipeline and contains a lot of impurities and bacteria, the water is safer to drink after being heated. The water drinking device with the heating function can heat water so as to obtain hot water. But current watering device's function singleness, watering device's play water portion can only realize the acquirement of hot and cold water, has restricted watering device's use and has experienced the sense.
Disclosure of Invention
The utility model aims to provide a technical scheme of a water outlet assembly for a heating water dispenser aiming at the defects in the prior art, the structural design is ingenious and reasonable, the practicability is high, the design of two water outlet parts is adopted, cold and hot water is obtained through the first water outlet part, a tea bag can be placed in the tea making cup through the matching of the second water outlet part and the tea making cup, so that the tea making function is realized, the tea making cup can directly obtain the well-brewed tea water from the second water outlet part, the use function of the water dispenser is increased, the user experience of the water dispenser is better, the tea making cup is detachably mounted, the tea making cup can be conveniently detached and taken, and the cleaning of the inner part of the tea making cup and the replacement of the tea bag are facilitated.
In order to solve the technical problems, the utility model adopts the following technical scheme:
the water outlet assembly for the heating water dispenser comprises a water tank and a water outlet part, wherein the water outlet part is communicated with the water tank, water in the water tank flows out of the water outlet part, the water outlet part comprises a first water outlet part and a second water outlet part, and a tea making cup is detachably mounted on the second water outlet part.
Further, the second goes out water portion including footstock and the base that distributes from top to bottom, the footstock is linked together with the water tank, the cup of making tea matches the joint between footstock and base, reasonable in design, the water tank can match the card to go into between footstock and the base through the side of first play water portion of flat push, the installation and the dismantlement of the cup of making tea of can being convenient for, the footstock passes through the pipeline and is linked together with the water tank, and the top of the cup of making tea is the opening form, make water enter into the cup of making tea from the footstock, steep the tea bag in the cup of making tea, and there is the delivery port bottom the base, can make the tea in the cup of making tea finally flow out from the delivery port of base bottom after the end of making tea.
Furthermore, a valve core assembly is arranged in the outlet section of the tea making cup, a connecting rod is arranged below the valve core assembly, the connecting rod is rotatably installed on the base and swings through an electromagnet, so that the valve core assembly is lifted through the swinging connecting rod, the outlet section of the tea making cup is opened, the valve core assembly is arranged on the outlet section at the bottom of the tea making cup, the hot water can be ensured to stay in the tea making cup through the valve core assembly, the brewing time is ensured, after the brewing time is up, the tea taking key is pressed down, the electromagnet is powered on, a guide push rod in the electromagnet moves downwards, one end of the connecting rod below the guide push rod is pushed, the other end of the connecting rod below the valve core assembly is enabled to tilt upwards and rise, the valve core assembly above is lifted, the outlet section is opened, the tea in the tea making cup can flow downwards from the outlet section and then flows out through a water outlet of the base, the tea taking process is convenient and simple, the automatic operation is realized, and the control can be realized only by pressing keys.
Further, the case subassembly includes the case body and the pressure spring that resets, the upper portion of case body is provided with the gasket, the gasket is spacing to be sheltered from on the top surface of export section, the lower part of case body and the pressure spring that resets all are located export section, the pressure spring cover that resets is established in the outside of case body, and reasonable in design, the area of gasket is greater than the top surface open area of export section for the gasket can shelter from the top surface of export section totally sealedly, guarantees sealed effect, ensures to dash and steep in-process tea and can not flow out from export section, press the button until dashing and steep the end, open export section top surface.
Furthermore, the bottom of the valve core body is provided with a limiting bulge, the reset pressure spring is limited between the limiting bulge and the top surface of the outlet section, the reset pressure spring is compressed in the jacking and upward moving process of the valve core body, so that the reset downward movement of the valve core body is realized through the resilience force of the reset pressure spring, the opened outlet section is sealed and shielded, the structural design is ingenious and reasonable, the reset pressure spring is just limited between the top surface of the outlet section and the limiting bulge through the design of the limiting bulge, when the electromagnet pushes the valve core body to ascend through the connecting rod to open the outlet section, the reset pressure spring can be compressed in the upward moving process of the valve core body, after the electromagnet automatically cuts off the power supply after the set time for obtaining the tea water is reached, the guide rod moves upward, the connecting rod resets under the action of the gravity of the connecting rod, the valve core body moves downward and resets under the resilience force of the reset pressure spring until the sealing sheet is butted to cover the top surface of the outlet section, the outlet section is shielded and sealed, waiting for the next brewing.
Further, be provided with the filter mantle in the cup of making tea, the filter mantle cover is established in the top of export section, and the design through the filter mantle can be so that the tea that finally acquires must pass through the filtration edulcoration of filter mantle, avoids the particulate matter in the tea bag together to go out water portion outflow from the second, influences the experience of reality and feels.
Further, all be provided with the filtration pore on the lateral wall of filter mantle and the top lateral wall, all set up the filtration pore on lateral wall and the top lateral wall, can guarantee the filter effect of filter mantle, filter simultaneously from a plurality of faces, guarantee the outflow rate of tea.
Due to the adoption of the technical scheme, the utility model has the following beneficial effects:
the tea making device is ingenious and reasonable in structural design and strong in practicability, the design of the two water outlet parts is adopted, cold and hot water can be obtained through the first water outlet part, the second water outlet part is matched with the tea making cup, a proper tea bag can be placed in the tea making cup, so that the tea making function is realized, the well-brewed tea can be directly obtained from the second water outlet part, the use function of the water drinking device is increased, the user experience of the water drinking device is better, the tea making cup is detachably mounted, the tea making cup can be conveniently detached and taken, and therefore the cleaning of the inner part of the tea making cup and the replacement of the tea bag are facilitated.
The water outlet part is divided into a first water outlet part and a second water outlet part, the first water outlet part is used for obtaining cold and hot water, the second water outlet part is used for obtaining tea water by brewing, when the tea water is brewed, hot water enters the second water outlet part and enters the tea making cup from the top seat to brew the tea bag in the tea making cup, the outlet section at the bottom of the tea making cup is provided with a valve core component, the valve core component seals and shields the outlet section to ensure the retention of the hot water in the tea making cup and ensure the brewing time, after the brewing time is up, the tea taking key is pressed down, the electromagnet is electrified, the guide push rod in the electromagnet moves downwards, the guide push rod pushes one end of the connecting rod below the lower part to enable the other end of the connecting rod below the valve core component to tilt upwards so as to lift the valve core body above and move upwards, the outlet section is opened, and the tea water in the tea making cup can flow downwards from the water outlet section, the delivery port of process through the base again flows, and it is convenient simple to get the tea process, and automation mechanized operation only needs just can be controlled through the button, and after getting tea and reaching the settlement time, the electromagnet was automatic to be switched off, and the guide push rod shifts up, and the connecting rod is heavier owing to the tip that is located case body below for the connecting rod rotates under self action of gravity and resets, and case body then moves down and shelters from the export section once more sealedly under the resilience of the pressure spring that resets.
Drawings
The utility model will be further described with reference to the accompanying drawings in which:
FIG. 1 is a schematic view of the installation position of the water outlet part on the water dispenser of the present invention;

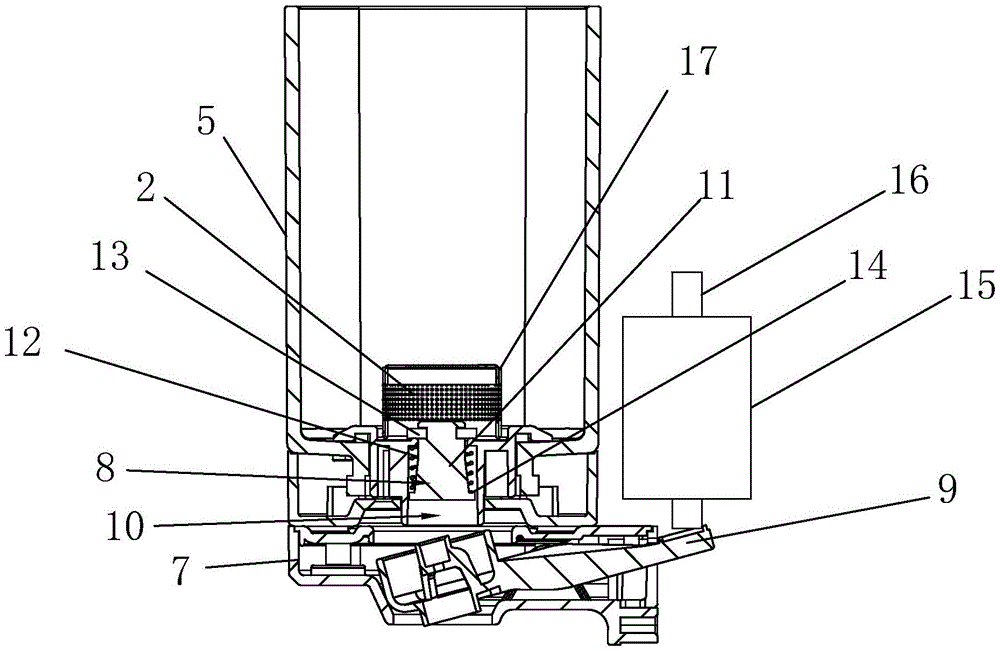

FIG. 2 is a schematic structural view of a state when the valve core assembly seals and shields the outlet section of the tea making cup according to the present invention;
FIG. 3 is a schematic structural view of a state in the process that the electromagnet is electrified and pushes the valve core body through the connecting rod;
fig. 4 is a schematic structural view of the tea making cup of the present invention.
In the figure: 1-a water tank; 2-filtering holes; 3-a first water outlet part; 4-a second water outlet part; 5-tea making cup; 6-a top seat; 7-a base; 8-a valve core assembly; 9-a connecting rod; 10-an outlet section; 11-a valve core body; 12-resetting a pressure spring; 13-sealing piece; 14-a limit bump; 15-an electromagnet; 16-a guide push rod; 17-a filter mantle.
Detailed Description
As shown in fig. 1 to 4, the water outlet assembly for a heating drinking device of the present invention comprises a water tank 1, and further comprises a water outlet portion, wherein the water outlet portion is communicated with the water tank 1, water in the water tank 1 flows out from the water outlet portion, the water outlet portion comprises a first water outlet portion 3 and a second water outlet portion 4, and a tea making cup 5 is detachably mounted on the second water outlet portion 4. The tea making device is ingenious and reasonable in structural design and strong in practicability, the design of the two water outlet parts is adopted, cold and hot water can be obtained through the first water outlet part 3, the second water outlet part 4 is matched with the tea making cup 5, a proper tea bag can be placed in the tea making cup 5, so that a tea making function is realized, the well-brewed tea can be directly obtained from the second water outlet part 4, the use function of the water drinking device is increased, the user experience of the water drinking device is better, the tea making cup 5 is detachably mounted, the tea making cup 5 can be conveniently detached and taken, and therefore the cleaning of the inner part of the tea making cup 5 and the replacement of the tea bag are facilitated.
The second goes out water portion 4 including footstock 6 and the base 7 that distributes from top to bottom, footstock 6 is linked together with water tank 1, the cup of making tea 5 matches the joint between footstock 6 and base 7, and reasonable in design, water tank 1 can match the card to be gone into between footstock 6 and the base 7 through the side of first play water portion 3 through the flat push, the installation and the dismantlement of cup of making tea 5 can be convenient for, footstock 6 is linked together through pipeline and water tank 1, and the top of cup of making tea 5 is the opening form, make water enter into cup of making tea 5 from footstock 6, the tea bag in the cup of making tea 5 dashes and steep, and there is the delivery port bottom of base 7, can make the tea in the cup of making tea 5 finally flow out from the delivery port bottom of base 7 after making tea.
A valve core component 8 is arranged in an outlet section 10 of the tea making cup 5, a connecting rod 9 is arranged below the valve core component 8, the connecting rod 9 is rotatably installed on a base 7, the connecting rod 9 swings through an electromagnet 15, so that the valve core component 8 is lifted through the swinging connecting rod 9, the outlet section 10 of the tea making cup 5 is opened, the valve core component 8 is arranged on the outlet section 10 at the bottom of the tea making cup 5, the hot water can be ensured to stay in the tea making cup 5 through the valve core component 8, the brewing time is ensured, after the brewing time is reached, a tea taking key is pressed, the electromagnet 15 is electrified, a guide push rod 16 in the electromagnet 15 moves downwards, the guide push rod 16 pushes one end of the connecting rod 9 below, the other end of the connecting rod 9 below the valve core component 8 is lifted upwards, the valve core component 8 above is lifted, the outlet section 10 is opened, and the tea in the tea making cup 5 can flow downwards from the outlet section, and then flows out from the water outlet of the base 7, the tea taking process is convenient and simple, the automatic operation is realized, and the tea taking device can be controlled only by pressing a key.
The valve core assembly 8 comprises a valve core body 11 and a reset pressure spring 12, a sealing sheet 13 is arranged on the upper portion of the valve core body 11, the sealing sheet 13 is limited and shielded on the top surface of the outlet section 10, the lower portion of the valve core body 11 and the reset pressure spring 12 are both located in the outlet section 10, the reset pressure spring 12 is sleeved on the outer side of the valve core body 11, the design is reasonable, the area of the sealing sheet 13 is larger than the opening area of the top surface of the outlet section 10, the sealing sheet 13 can completely shield and seal the top surface of the outlet section 10, the sealing effect is guaranteed, it is guaranteed that tea water cannot flow out of the outlet section 10 in the brewing process, a key is pressed until the brewing process is finished, and the top surface of the outlet section 10 is opened.
The bottom of the valve core body 11 is provided with a limit bulge 14, the reset pressure spring 12 is limited between the limit bulge 14 and the top surface of the outlet section 10, the reset pressure spring 12 is compressed in the jacking and upward moving process of the valve core body 11, so that the reset and downward moving of the valve core body 11 is realized through the resilience force of the reset pressure spring 12, the opened outlet section 10 is sealed and shielded, the structural design is ingenious and reasonable, through the design of the limit bulge 14, the reset pressure spring 12 is just limited between the top surface of the outlet section 10 and the limit bulge 14, when the electromagnet pushes the valve core body 11 to rise through the connecting rod 9 to open the outlet section 10, the reset pressure spring 12 is compressed in the upward moving process of the valve core body 11, after the set time of tea water acquisition is reached, the electromagnet is automatically powered off, the guide push rod 16 moves upward, the connecting rod 9 resets under the self gravity, and the valve core body 11 resets downward under the resilience force of the reset pressure spring 12, until the sealing sheet 13 is abutted against and covers the top surface of the outlet section 10, the outlet section 10 is shielded and sealed, and the next brewing is waited.
Be provided with filter mantle 17 in the cup of making tea 5, filter mantle 17 covers the top of establishing at export section 10, and the design through filter mantle 17 can make the tea that finally obtains must pass through filter mantle 17's filtration edulcoration, avoids the particulate matter in the tea bag together to flow out from second play water portion 4, influences the experience of reality and feels. All be provided with on the lateral wall of filter mantle 17 and the top lateral wall and cross filtration pore 18, all set up on lateral wall and the top lateral wall and cross filtration pore 18, can guarantee the filter mantle 17's filter effect, filter simultaneously from a plurality of faces, guarantee the outflow rate of tea.
In the utility model, the water outlet parts are a first water outlet part 3 and a second water outlet part 4, the first water outlet part 3 is used for obtaining cold and hot water, the second water outlet part 4 is used for brewing tea water, when the tea water is brewed, hot water enters the second water outlet part 4 and enters the tea making cup 5 from the top seat 6 to brew a tea bag in the tea making cup 5, the valve core component 8 is arranged on the outlet section 10 at the bottom of the tea making cup 5, the valve core component 8 seals and shields the outlet section 10 to ensure the stay of the hot water in the tea making cup 5 and the brewing time, when the brewing time reaches, the electromagnet 15 is electrified by pressing a tea taking key, the guide push rod 16 in the electromagnet 15 moves downwards, the guide push rod 16 pushes one end of the connecting rod 9 below the valve core component 8, so that the other end of the connecting rod 9 below the valve core component 8 tilts upwards to lift the valve core body 11 above, and opens the outlet section 10, make the tea in the cup 5 of making tea can follow the play water section and down flow, flow through the delivery port of base 7 again, it is convenient simple to get the tea process, automation mechanized operation, only need just can control through the button, reach the settlement time when getting tea after, the automatic outage of electromagnet, the guide push rod 16 shifts up, and connecting rod 9 is heavier owing to the tip that is located case body 11 below, make connecting rod 9 rotate under self action of gravity and reset, and case body 11 then moves down under the resilience of pressure spring 12 that resets and shelters from outlet section 10 sealed once more.
The above is only a specific embodiment of the present invention, but the technical features of the present invention are not limited thereto. Any simple variations, equivalent substitutions or modifications based on the present invention to achieve substantially the same technical effects are within the scope of the present invention.
Claims (7)
1. The utility model provides a heating is play water subassembly for watering device, includes the water tank, its characterized in that: still include water outlet portion, water outlet portion with the water tank is linked together, water in the water tank is followed water outlet portion flows out, water outlet portion includes first water outlet portion and second water outlet portion, demountable installation has the cup of making tea on the second water outlet portion.
2. The water outlet assembly for a heated water dispenser of claim 1, further comprising: the second water outlet part comprises a top seat and a base which are vertically distributed, the top seat is communicated with the water tank, and the tea making cup is clamped between the top seat and the base in a matching manner.
3. The water outlet assembly for a heated water dispenser of claim 2, further comprising: the tea making device is characterized in that a valve core assembly is arranged in the outlet section of the tea making cup, a connecting rod is arranged below the valve core assembly, the connecting rod is rotatably mounted on the base, and the connecting rod swings through an electromagnet, so that the valve core assembly is jacked up through the swinging connecting rod, and the outlet section of the tea making cup is opened.
4. A water outlet assembly for a heated water dispensing device as claimed in claim 3, wherein: the valve core assembly comprises a valve core body and a reset pressure spring, a sealing sheet is arranged on the upper portion of the valve core body and is limited and shielded on the top surface of the outlet section, the lower portion of the valve core body and the reset pressure spring are both located in the outlet section, and the reset pressure spring is sleeved on the outer side of the valve core body.
5. The water outlet assembly for a heated water drinking device as claimed in claim 4, wherein: the bottom of the valve core body is provided with a limiting bulge, the reset pressure spring is limited between the limiting bulge and the top surface of the outlet section, and the reset pressure spring is compressed in the jacking and upward moving process of the valve core body, so that the reset and downward movement of the valve core body is realized through the resilience force of the reset pressure spring, and the outlet section after being opened is sealed and shielded.
6. A water outlet assembly for a heated water dispensing device as claimed in claim 3, wherein: a filter mantle is arranged in the tea making cup, and the filter mantle covers the upper part of the outlet section.
7. The water outlet assembly for a heated water drinking device as claimed in claim 6, wherein: and the outer side wall and the top side wall of the filter cover are both provided with filter holes.
