Abstract
The utility model discloses a fixing device of an artery fixer, which relates to the field of clinical care and comprises a self-adhesive tape main body, wherein a thickened sponge layer is arranged at the middle position of the front end of the self-adhesive tape main body; this fixing device layer of artery fixer can provide the cushioning effect to patient's pressurized position, further can prevent that the butterfly wing of artery fixer from leading to patient's pressure nature damage with skin contact for a long time directly, be favorable to patient's safety, self-adhesive rubberized fabric main part is safe ventilative, easy fixed simultaneously, can change the length between fixed band and No. two fixed bands, thereby can carry out the elasticity according to the size of limbs and adjust, patient's comfort level has been improved, the use is simple, the convenience is fixed artery fixer, the cost of manufacture is lower simultaneously, and the popularization is convenient.
Description
Technical Field
The utility model relates to the field of clinical care, in particular to a fixing device of an artery fixator.
Background
The fixing of artery fixer all the time is the problem of waiting to solve in the clinical care work, how convenient quick fix the fixer well, and can bring the comparatively comfortable treatment environment of patient, the challenge that nursing staff needs to face.
The existing artery fixator is not easy to fix, the butterfly wing material of the artery fixator is hard, pressure damage is easily caused by long-term contact with skin, the comfort level of a patient is influenced, tightness adjustment cannot be carried out according to the size of the limb of the patient, the comfort level of the patient is influenced, and therefore the fixing device of the artery fixator is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a fixing device of an artery fixator, which solves the problems that the existing artery fixator provided in the background technology is not easy to fix, the butterfly wing of the artery fixator is hard in material, pressure injury is easily caused by long-term contact with skin, the comfort degree of a patient is influenced, tightness adjustment cannot be performed according to the size of the limb of the patient, and the comfort degree of the patient is influenced.
In order to achieve the purpose, the utility model provides the following technical scheme:
fixing device of artery fixer, including the self-adhesive rubberized fabric main part, the front end intermediate position of self-adhesive rubberized fabric main part is provided with the thickening sponge layer, the both sides on thickening sponge layer and the intermediate position that is located the self-adhesive rubberized fabric main part are provided with fixed band and No. two fixed bands respectively, the front end surface position of self-adhesive rubberized fabric main part is provided with the adhesive linkage.
As a further scheme of the utility model, the thickening sponge layer is fixedly connected with the self-adhesive tape main body, and the size of the thickening sponge layer is larger than that of the butterfly wing of the artery fixator.
As a further scheme of the utility model, release paper is arranged on the adhesive layer and positioned at four groups of corner positions of the self-adhesive tape main body.
As a further scheme of the self-adhesive sponge, the first fixing belt is located on the left side of the thickening sponge layer, the second fixing belt is located on the right side of the thickening sponge layer, and the tail ends of the first fixing belt and the second fixing belt are fixedly connected with the self-adhesive sponge main body.
As a further scheme of the utility model, a magic tape sticking strip is arranged at the front end of the first fixing belt and close to the edge of the left side, and a magic tape base is arranged at the rear end of the second fixing belt and close to the edge of the right side.
As a further scheme of the utility model, the magic tape is matched with the magic tape base, and the first fixing band is connected with the second fixing band through the magic tape matching with the magic tape base.
Compared with the prior art, the utility model has the beneficial effects that: the fixing device of the artery fixator is provided with the thickening sponge layer, and the size of the thickening sponge layer is larger than that of the butterfly wing of the artery fixator, so that medical workers can provide a buffer effect on the pressed part of a patient by using the thickening sponge layer, and further can prevent the pressure injury of the patient caused by the long-term direct contact between the butterfly wing of the artery fixator and the skin, the safety of the patient is facilitated, the self-adhesive cloth main body is used for safely ventilating, and meanwhile, the fixing device is easy to fix;
this fixing device of artery fixer is provided with fixed band and No. two fixed bands, and medical personnel can change the length between fixed band and No. two fixed bands through adjusting the position that the magic was pasted the strip and was pasted on the base on the magic to can carry out the elasticity according to the size of limbs and adjust, improved patient's comfort level, and the user mode is simple, conveniently fixes artery fixer, and the cost of manufacture is lower simultaneously, the facilitate promotion.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic reverse side view of the self-adhesive tape body of the present invention;

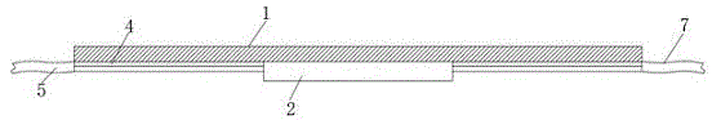

fig. 3 is a partial cross-sectional view of the present invention.
In the figure: 1. a self-adhesive tape main body; 2. thickening the sponge layer; 3. an adhesive layer; 4. release paper; 5. a first fixing belt; 6. a magic tape sticking strip; 7. a second fixing belt; 8. magic tape base.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: fixing device of artery fixer, including self-adhesive tape main part 1, the front end intermediate position of self-adhesive tape main part 1 is provided with thickening sponge layer 2, and thickening sponge layer 2's both sides and the intermediate position that is located self-adhesive tape main part 1 are provided with fixed band 5 and No. two fixed bands 7 respectively, and the front end surface position of self-adhesive tape main part 1 is provided with adhesive linkage 3.
Thickening sponge layer 2 and 1 fixed connection of self-adhesive tape main part, thickening sponge layer 2's size is greater than the butterfly wing size of artery fixer, four group's corner positions that just are located self-adhesive tape main part 1 on the adhesive linkage 3 all are provided with from type paper 4, because thickening sponge layer 2's size is greater than the butterfly wing size of artery fixer, consequently medical personnel can provide the cushioning effect to patient pressurized position through using thickening sponge layer 2, further can prevent that the butterfly wing of artery fixer from direct and skin contact leads to patient's pressure nature damage for a long time, be favorable to patient's safety, and use from 1 safe ventilative of adhesive tape main part, easy fixed simultaneously.
A fixed band 5 is located the left side of thickening sponge layer 2, No. two fixed bands 7 are located the right side of thickening sponge layer 2, the end of a fixed band 5 and No. two fixed bands 7 all with 1 fixed connection of self-adhesive tape main part, the front end of a fixed band 5 just is provided with magic tape adhesive strip 6 near left side border position, the rear end of No. two fixed bands 7 just is close to right side border position and is provided with magic tape base 8, magic tape adhesive strip 6 pastes 8 looks adaptations with the magic, a fixed band 5 is pasted 6 cooperation magic tape base 8 through the magic and is connected with No. two fixed bands 7.
Through the technical scheme: medical personnel can change the length between fixed band 5 and No. two fixed bands 7 through adjusting the position that magic subsides sticky strip 6 on base 8 is pasted to the magic to can carry out the elasticity according to the size of limbs and adjust, improve patient's comfort level, the using-way is simple, conveniently fixes artery fixer, and the cost of manufacture is lower simultaneously, facilitate promotion.
The working principle is as follows: for the fixing device of the artery fixator, firstly, a thickening sponge layer 2 on a self-adhesive cloth main body 1 is aligned to a butterfly wing part on the artery fixator, then a first fixing band 5 is connected with a second fixing band 7 through a magic tape adhesive strip 6 matched with a magic tape base 8, so that the self-adhesive cloth main body 1 is fixed on a patient, medical personnel can change the length between the first fixing band 5 and the second fixing band 7 by adjusting the position of the magic tape adhesive strip 6 on the magic tape base 8, thereby being capable of adjusting the tightness according to the size of limbs, improving the comfort level of the patient, being simple in use mode, being convenient for fixing the artery fixator, simultaneously being low in manufacturing cost and convenient to popularize, then taking off a release paper 4 from an adhesive layer 3, enabling the adhesive layer 3 to be attached to the skin by pressing the self-adhesive cloth main body 1, and further reinforcing the artery fixator, because the size of thickening sponge layer 2 is greater than the butterfly wing size of artery fixer, consequently medical personnel can provide the cushioning effect to patient's pressurized position through using thickening sponge layer 2, further can prevent that the butterfly wing of artery fixer from direct and skin contact for a long time leading to patient's pressure nature damage, is favorable to patient's safety, and uses from adhesive tape main part 1 safe ventilative, easily fixed simultaneously.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (6)
1. Fixing device of artery fixer, including self-adhesive tape main part (1), its characterized in that, the front end intermediate position of self-adhesive tape main part (1) is provided with thickening sponge layer (2), the both sides of thickening sponge layer (2) and the intermediate position that is located self-adhesive tape main part (1) are provided with fixed band (5) and No. two fixed bands (7) respectively, the front end surface position of self-adhesive tape main part (1) is provided with adhesive linkage (3).
2. The fixing device of the artery fixator in claim 1, wherein the thickening sponge layer (2) is fixedly connected with the self-adhesive tape main body (1), and the size of the thickening sponge layer (2) is larger than the size of the wing of the artery fixator.
3. The fixing device of the artery fixator in claim 1 is characterized in that release paper (4) is arranged on the adhesive layer (3) and at four corner positions of the self-adhesive plaster main body (1).
4. The fixing device of the artery fixator in accordance with claim 1, wherein the first fixing strap (5) is located on the left side of the thickening sponge layer (2), the second fixing strap (7) is located on the right side of the thickening sponge layer (2), and the ends of the first fixing strap (5) and the second fixing strap (7) are fixedly connected with the self-adhesive tape main body (1).
5. The fixing device of artery fixator in accordance with claim 4, wherein the front end of the first fixing strap (5) near the left edge is provided with a magic tape (6), and the rear end of the second fixing strap (7) near the right edge is provided with a magic tape base (8).
6. The fixing device of artery fixator in claim 5, wherein the magic tape (6) is matched with the magic tape base (8), and the first fixing strap (5) is connected with the second fixing strap (7) through the magic tape (6) matching with the magic tape base (8).
