Abstract
本实用新型涉及肾移植手术技术领域，且公开了一种肾移植手术用专用转移箱，包括箱体，所述箱体的顶部固定安装有箱盖。该肾移植手术用专用转移箱，通过下双向弹簧伸缩杆能够对放置箱上下进行缓冲，上双向弹簧伸缩杆能够对放置箱左右进行晃动，由此减少了放置箱的晃动，从而充分为放置箱进行减震，通过设置冷水机箱、压力泵、进水管、出水管、开关阀和冷却水管、温度传感器和显示屏幕，显示屏幕通过温度传感器与放置箱的接触，可使得显示屏幕显示放置箱的实际温度，从而根据显示屏幕的温度启动停止压力泵或者打开关闭开关阀，让肾脏位于放置箱内最适宜的温度，从而方便对肾脏进行存储，解决了减震效果差、存储条件差的问题。
The utility model relates to the technical field of kidney transplantation operation, and discloses a special transfer box for kidney transplantation operation, which comprises a box body, and a box cover is fixedly installed on the top of the box body. In the special transfer box for kidney transplantation, the lower two-way spring telescopic rod can buffer the placing box up and down, and the upper two-way spring telescopic rod can shake the placing box left and right, thereby reducing the shaking of the placing box, so as to provide sufficient space for the placing box. For shock absorption, by setting the cold water box, pressure pump, water inlet pipe, water outlet pipe, switch valve and cooling water pipe, temperature sensor and display screen, the display screen can contact the placement box through the temperature sensor, so that the display screen can display the actual condition of the placement box. According to the temperature of the display screen, the pressure pump can be started and stopped or the switch valve can be opened and closed, so that the kidneys are located at the most suitable temperature in the storage box, which facilitates the storage of the kidneys and solves the problems of poor shock absorption and poor storage conditions.
Description
Technical Field
The utility model relates to the technical field of kidney transplantation operations, in particular to a special transfer box for a kidney transplantation operation.
Background
The popular expression of kidney transplantation is also called kidney replacement, namely, the kidney of a healthy person is transplanted to a patient with kidney lesion and kidney function loss, a human body has a left kidney and a right kidney, usually, one kidney can support normal metabolic demand, when the kidney functions on both sides are lost, the kidney transplantation is the most ideal treatment method, when chronic renal insufficiency develops to the terminal stage, the treatment can be carried out by using the kidney transplantation method, and the kidney transplantation is divided into autologous kidney transplantation, allogeneic kidney transplantation and xenogenic kidney transplantation because the kidney source is different.
To the special case that shifts of present used kidney transplantation operation, the shock attenuation effect of the special case that shifts of present kidney transplantation operation is poor, leads to in the transfer process, and the inside rocks of depositing the case makes taking place of the incessant kidney acutely rock the damage that leads to the kidney, and the special storage condition who shifts the case of kidney transplantation operation in addition is not good for the kidney shifts to take out after accomplishing unavoidably, so proposed a special case that shifts of kidney transplantation operation and solved the above-mentioned problem that proposes.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Aiming at the defects of the prior art, the utility model provides the special transfer box for the kidney transplantation operation, which has the advantages of good damping effect and excellent storage condition and solves the problems of poor damping effect and poor storage condition.
(II) technical scheme
In order to achieve the purposes of good damping effect and excellent storage condition, the utility model provides the following technical scheme: a special transfer box for kidney transplantation operation comprises a box body, wherein a box cover is fixedly installed at the top of the box body, a cold water machine box is fixedly installed at the right side of the box body, a pressure pump is fixedly installed at the right side of the box body and positioned at the top of the cold water machine box, a display screen is fixedly installed at the front of the box body, fixing strips are fixedly installed at the left side and the right side of the inner wall of the box body, sliding grooves are formed in the opposite sides of the two fixing strips, installation blocks are fixedly installed at the left side and the right side of the inner top wall of the box body, lower bidirectional spring telescopic rods are fixedly installed at the tops of the installation blocks, upper bidirectional spring telescopic rods are fixedly installed at the tops of the lower bidirectional spring telescopic rods, abutting blocks are fixedly installed at one sides, close to the sliding grooves, of the upper bidirectional spring telescopic rods, far away from the abutting blocks, a placing box is fixedly installed at one side, and a temperature sensor is fixedly installed at the bottom of the placing box, the inside fixed mounting who places the case has condenser tube, the roof threaded connection who places the case has the locking closure.
Preferably, the tank cover is in threaded connection with the tank body through bolts, handles are fixedly mounted on the left side and the right side of the tank body respectively, the handles are L-shaped, the tank body is fixedly connected with the cold water tank through a support block, and the tank body is fixedly connected with the pressure pump through a cushion block.
Preferably, the left side fixed mounting of force pump has the inlet tube with condenser tube fixed connection, the left side fixed mounting of cooling water machine case has the outlet pipe with condenser tube fixed connection, the surface fixed mounting of outlet pipe has the ooff valve.
Preferably, the outer side of the abutting block is fixedly provided with a roller which is in contact with the sliding groove, and the roller is made of stainless steel.
Preferably, the temperature sensor is electrically connected to the display screen.
Preferably, the freezing point solution is contained in the containing box, and the cooling water pipe is spiral.
(III) advantageous effects
Compared with the prior art, the utility model provides a special transfer box for kidney transplantation operation, which has the following beneficial effects:
this kidney transplantation operation is with special transfer case, through setting up the installation piece, two-way spring telescopic link down, go up two-way spring telescopic link, support the piece, spout and gyro wheel, two-way spring telescopic link can cushion from top to bottom placing the case down, it can rock to place the case about, thereby reduced the rocking of placing the case, thereby fully carry out the shock attenuation for placing the case, through setting up cold water machine case, the force pump, the inlet tube, the outlet pipe, ooff valve and condenser tube, temperature sensor and display screen, display screen passes through the contact of temperature sensor with placing the case, can make display screen show the actual temperature of placing the case, thereby start according to the temperature of display screen and stop the force pump or open and close ooff valve, let the kidney be located and place the incasement optimum temperature, thereby conveniently save the kidney, the shock attenuation effect is poor, the problem of being poor is solved, Poor storage condition.
Drawings

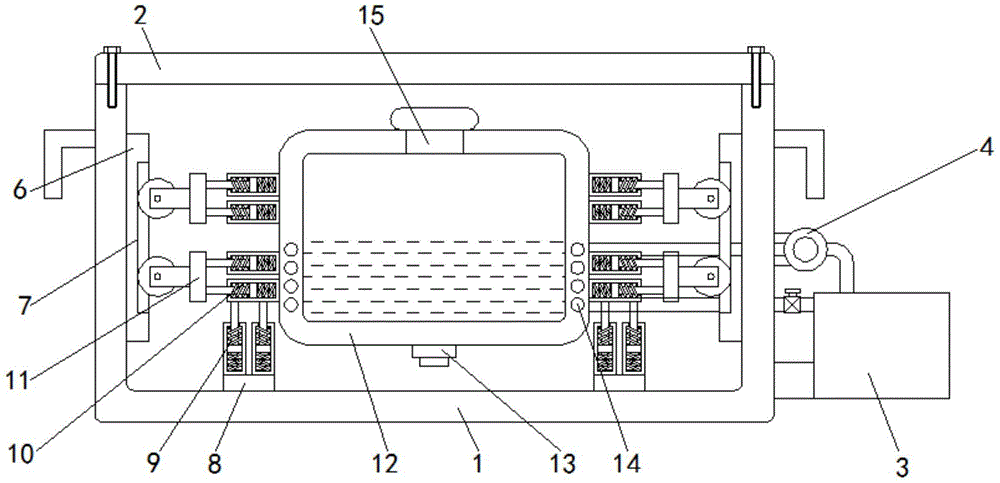

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic front view of the structure of the present invention.
In the figure: the device comprises a box body 1, a box cover 2, a cold water machine box 3, a pressure pump 4, a display screen 5, a fixing strip 6, a sliding groove 7, an installation block 8, a bidirectional spring telescopic rod 9, an upper bidirectional spring telescopic rod 10, a supporting block 11, a placing box 12, a temperature sensor 13, a cooling water pipe 14 and a locking cover 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Referring to fig. 1-2, a special transfer box for kidney transplantation surgery comprises a box body 1, a box cover 2 is fixedly installed on the top of the box body 1, the box cover 2 is in threaded connection with the box body 1 through bolts, handles are fixedly installed on the left side and the right side of the box body 1, the handles are in an L shape, the box body 1 is fixedly connected with a cold water box 3 through a support block, the box body 1 is fixedly connected with a pressure pump 4 through a cushion block, the right side of the box body 1 is fixedly provided with the cold water box 3, the right side of the box body 1 is fixedly provided with the pressure pump 4 on the top of the cold water box 3, the left side of the pressure pump 4 is fixedly provided with a water inlet pipe fixedly connected with a cooling water pipe 14, the left side of the cold water box 3 is fixedly provided with a water outlet pipe fixedly connected with the cooling water pipe 14, the outer surface of the water outlet pipe is fixedly provided with a switch valve, the front surface of the box body 1 is fixedly provided with a display screen 5, the left side and the right side of the inner wall of the box body 1 are fixedly provided with fixing strips 6, spout 7 has all been seted up to the offside of two fixed strips 6, the equal fixed mounting in the interior roof left and right sides of box 1 has installation piece 8, two-way spring telescopic link 9 under the top fixed mounting of installation piece 8, two-way spring telescopic link 10 is gone up to two-way spring telescopic link 9's top fixed mounting down, one side fixed mounting that goes up two-way spring telescopic link 10 and be close to spout 7 has support piece 11, support piece 11's outside fixed mounting has the gyro wheel that contacts with spout 7, the material of gyro wheel is the stainless steel, it has place case 12 to go up one side fixed mounting that two-way spring telescopic link 10 kept away from support piece 11, the inside of placing case 12 has contained freezing point solution, condenser tube 14's shape is the spiral, the bottom fixed mounting of placing case 12 has temperature sensor 13, temperature sensor 13 is connected with display screen 5 electricity, the inside fixed mounting of placing case 12 has condenser tube 14, the roof threaded connection of placing case 12 has locking closure 15.
In conclusion, according to the special transfer box for kidney transplantation operation, the lower bidirectional spring telescopic rod 9 can buffer the placing box 12 up and down, the upper bidirectional spring telescopic rod 10 can rock left and right of the placing box 12 by arranging the mounting block 8, the lower bidirectional spring telescopic rod 9, the abutting block 11, the sliding groove 7 and the rollers, so that the rocking of the placing box 12 is reduced, the shock absorption of the placing box 12 is fully realized, the display screen 5 can display the actual temperature of the placing box 12 by arranging the cold water machine box 3, the pressure pump 4, the water inlet pipe, the water outlet pipe, the switch valve, the cooling water pipe 14, the temperature sensor 13 and the display screen 5, and the display screen 5 is in contact with the placing box 12 through the temperature sensor 13, so that the display screen 5 can start and stop the pressure pump 4 or open and close the switch valve according to the temperature of the display screen 5, and the kidney is located at the optimum temperature in the placing box 12, therefore, the kidney is conveniently stored, and the problems of poor damping effect and poor storage condition are solved.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a kidney transplantation operation is with special transfer case, includes box (1), its characterized in that: the box is characterized in that a box cover (2) is fixedly mounted at the top of the box body (1), a cold water machine box (3) is fixedly mounted at the right side of the box body (1), a pressure pump (4) is fixedly mounted at the top of the cold water machine box (3) at the right side of the box body (1), a display screen (5) is fixedly mounted at the front of the box body (1), fixing strips (6) are fixedly mounted at the left side and the right side of the inner wall of the box body (1), sliding grooves (7) are formed in the opposite sides of the two fixing strips (6), mounting blocks (8) are fixedly mounted at the left side and the right side of the inner top wall of the box body (1), a lower bidirectional spring telescopic rod (9) is fixedly mounted at the top of the lower bidirectional spring telescopic rod (9), an upper bidirectional spring telescopic rod (10) is fixedly mounted at one side of the upper bidirectional spring telescopic rod (10) close to the sliding grooves (7), a support block (11), go up two-way spring telescopic link (10) and keep away from one side fixed mounting of piece (11) and place case (12), the bottom fixed mounting who places case (12) has temperature sensor (13), the inside fixed mounting who places case (12) has cooling water pipe (14), the roof threaded connection who places case (12) has locking closure (15).
2. The special transfer case for kidney transplantation surgery as set forth in claim 1, wherein: case lid (2) pass through bolt and box (1) threaded connection, the equal fixed mounting in the left and right sides of box (1) has the handle, and the shape of handle is L shape, box (1) is through a piece and cold water machine case (3) fixed connection, box (1) is through cushion and force pump (4) fixed connection.
3. The special transfer case for kidney transplantation surgery as set forth in claim 1, wherein: the left side fixed mounting of force pump (4) has the inlet tube with cooling water pipe (14) fixed connection, the left side fixed mounting of cooling water machine case (3) has the outlet pipe with cooling water pipe (14) fixed connection, the fixed surface of outlet pipe installs the ooff valve.
4. The special transfer case for kidney transplantation surgery as set forth in claim 1, wherein: and the outer side of the abutting block (11) is fixedly provided with a roller which is in contact with the sliding groove (7), and the roller is made of stainless steel.
5. The special transfer case for kidney transplantation surgery as set forth in claim 1, wherein: the temperature sensor (13) is electrically connected with the display screen (5).
6. The special transfer case for kidney transplantation surgery as set forth in claim 1, wherein: the freezing point solution is contained in the containing box (12), and the cooling water pipe (14) is spiral.
