CN216035685U - Support member and accommodation box - Google Patents

Abstract

The utility model relates to the technical field of packaging in general, in particular to a support piece and a containing box, the support piece is used as a lining piece of the containing box, the support piece is provided with two cavities, the two cavities can be used for placing articles respectively, the articles can be placed reasonably, the packaging space utilization rate is improved, the stability of the product is ensured, thereby the protection of the articles is improved, a first cover plate part and a second cover plate part can be connected with a main body part or not, after the articles are placed in the upper cavity, the first cover plate part and the second cover plate part are sequentially covered, the first cover plate part is covered above the second cover plate part in a pressing way, the articles are prevented from falling out, the unpacking experience of consumers can be enhanced, a partition part, the first cover plate part and the second cover plate part can be made of paperboards, compared with the existing products with large plastic structures and large draft angles, the product stability of the support piece is good, the gap is small after the support piece is matched with the inner wall of the containing box, the packaging cost is low.

Description

Support member and accommodation box

Technical Field

The present application relates generally to the field of packaging technology, and more particularly, to a support and a receptacle.

Background

At present, the portable packing design of simple carton is adopted to small-size sensor packing on the market, and the cardboard surrounds and forms one and hold the chamber, and product and accessory are all placed one and are held the intracavity, and put unreasonablely, and space utilization is low, and at the in-process of transportation or pile storage, the product is unstable, therefore the protectiveness is also relatively poor.

SUMMERY OF THE UTILITY MODEL

In the summary section a series of concepts in a simplified form is introduced, which will be described in further detail in the detailed description section. This summary is not intended to identify key features or essential features of the claimed subject matter, nor is it intended to be used as an aid in determining the scope of the claimed subject matter.

In order to solve the technical problem that unreasonable and the poor protection effect of packing is put to current product and accessory packing, this application provides a support piece and holds the box.

In order to realize the purpose of the utility model, the following technical scheme is adopted in the application:

a support, comprising:

a main body part provided with a cavity;

the partition part is connected with the main body part and divides the concave cavity into an upper cavity and a lower cavity;

the first cover plate part is used for covering the cavity positioned above the two cavities; and

and the second cover plate part is pressed above the first cover plate part in a pressing way and covers the concave cavity.

Further, in some embodiments of the present disclosure, the partition and/or the second cover portion are respectively provided with a force application structure, so that a force is applied to the partition and/or the second cover portion through the force application structure.

Further, in some embodiments of the present disclosure, the force application structure includes a through hole or a protrusion.

Further, in some embodiments of the present disclosure, the two cavities are a first cavity and a second cavity, respectively, and the second cavity is located above the first cavity;

the first cavity comprises a first cavity and a second cavity, and the first cavity and the second cavity are located on two adjacent sides of the second cavity.

Further, in some embodiments of the present disclosure, the partition includes a first bending piece and a second bending piece, and the first bending piece, the second bending piece and the main body surround to form the first cavity or the second cavity.

Further, in some embodiments of this application scheme, above-mentioned support piece includes paper folding, paper folding includes the main part the partition portion first apron portion reaches the second apron portion, the partition portion first apron portion reaches the second apron portion respectively with main part body coupling, first apron portion reaches the second apron portion is provided with the tongue of inserting respectively, the partition portion is provided with the support tongue, paper folding forms support piece.

Further, in some embodiments of the present application, the main body portion includes a side wall plate and a bottom plate that surround to form the cavity, the side wall plate is provided with a connection tongue piece, and the connection tongue piece is used for end-to-end connection of the side wall plate;

the bottom plate includes four burst of joint complex, the partition portion first apron portion the second apron portion reaches the side wall board is connected with one respectively the burst, with four in the folding paper folding process the burst joint forms the bottom plate.

An accommodating box is provided with the supporting piece.

Further, in some embodiments of the present disclosure, the accommodating box further includes a substrate, the substrate is placed above the support, and the substrate is provided with a placing groove.

Further, in some embodiments of the present disclosure, the substrate is provided with a handle slot at an edge of the placement slot.

According to the technical scheme, the support piece has the advantages and positive effects that:

the scheme of the application provides a supporting piece, the supporting piece can be used as a lining piece for containing a box, the supporting piece comprises a main body part, a separating part, a first cover plate part and a second cover plate part, the main body part is provided with a cavity, the separating part is connected with the main body part, the cavity is separated into an upper cavity and a lower cavity by the separating part, the first cover plate part is used for covering the cavity above the two cavities, the second cover plate part is used for covering the cavity, the two cavities can be used for placing articles respectively, the articles can be placed reasonably, the packaging space utilization rate is improved, the stability of the product is ensured, the protection of the articles is improved, the first cover plate part and the second cover plate part can be connected with the main body part or not connected with the main body part, after the articles are placed in the upper cavity, the first cover plate part and the second cover plate part are sequentially covered, the first cover plate part is pressed and covered above the second cover plate part, the articles are prevented from falling out, and the box opening experience of consumers can be enhanced, partition portion, first apron portion and second apron portion can adopt the cardboard, and for the big product of current plastic construction and drawing die gradient, support piece product stability is good, and support piece is little with holding box inner wall cooperation back gap, and packaging cost is low.

This application scheme still provides one kind and holds the box, holds and has placed above-mentioned support piece in the box, and two upper and lower cavitys are placed to support piece itself, and two cavitys place different article simultaneously, make product packaging form diversified, rationalize, and reinforcing consumer's unpacking experience also can only be located the cavity of top and put article, and the cavity that is located the below improves the protectiveness to the product as cushion chamber.

Drawings

The accompanying drawings, which are incorporated in and constitute a part of this specification, illustrate embodiments consistent with the utility model and together with the description, serve to explain the principles of the utility model.

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings used in the description of the embodiments or the prior art will be briefly described below, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without inventive exercise.

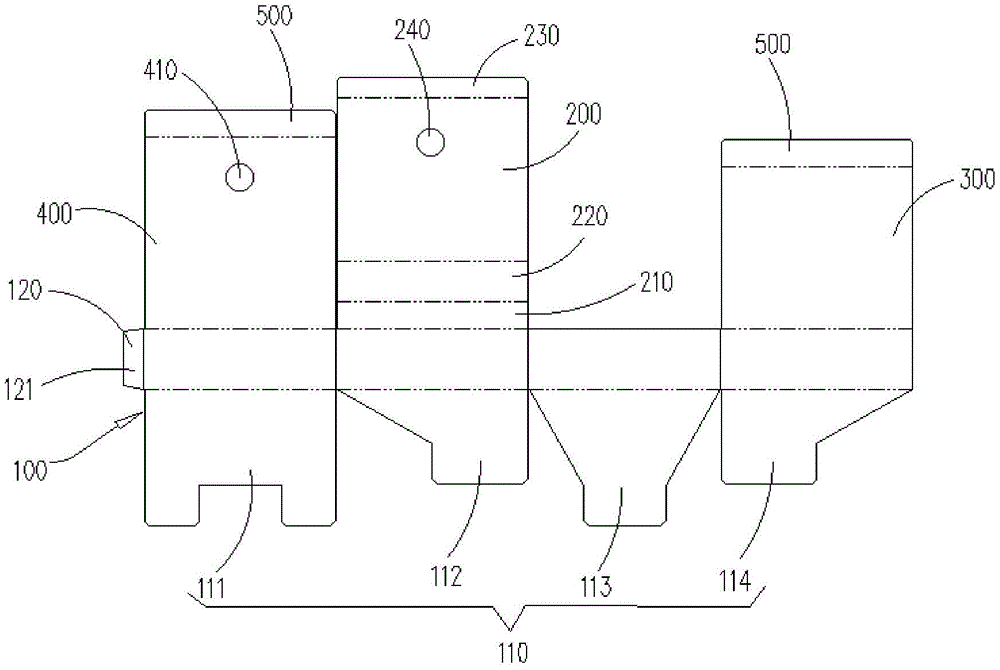

FIG. 1 is a schematic illustration of a support member shown with a folded paper unfolded according to an exemplary embodiment.

FIG. 2 is a schematic illustration in partial cross-section of a support according to an exemplary embodiment.

Fig. 3 is a partially cut-away schematic structural view of a first cover plate portion and a second cover plate portion of a support according to an exemplary embodiment.

FIG. 4 is a schematic view, partially in section, of an accommodation box with a support mounted thereto, according to an exemplary embodiment.

Wherein the reference numerals are as follows:

10-a box body; 20-a support; 30-a substrate; 40-a box cover;

31-placing grooves; 32-a hand buckling groove;

100-a main body portion; 200-a partition; 300-a first cover plate portion; 400-a second cover plate portion; 500-inserting tongue;

110-a base plate; 120-side wall panels; 130-a first cavity; 140-a second cavity;

111-a first tongue; 112-a second tongue; 113-a third tongue; 114-a fourth tongue;

121-connecting tongues;

131-a first cavity; 132-a second cavity;

210-a first bending piece; 220-a second bending piece; 230-a support tongue; 240 — a first via; 410-second via.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present application clearer, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are some embodiments of the present application, but not all embodiments. All other embodiments obtained by persons of ordinary skill in the art based on the embodiments in the present application are within the scope of the present application without inventive efforts, and therefore, the following detailed description of the embodiments of the present invention provided in the drawings is not intended to limit the scope of the claimed invention but only to represent selected embodiments of the present invention. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

At present, the small sensor package on the market adopts the portable package design of a simple paper box, the paper board surrounds to form a containing cavity, products and accessories are all placed in the containing cavity, the placing is unreasonable, the space utilization rate is low, the products are unstable and have poor protection in the process of transportation or stacking and storage, and in order to solve the technical problems that the existing electronic product package is unreasonable in placing and poor in package protection effect, the application provides a support member 20 and a containing box, the support member 20 can be used as a lining member of the containing box, the support member 20 comprises a main body part 100, a partition part 200, a first cover plate part 300 and a second cover plate part 400, the main body part 100 is provided with a cavity, the partition part 200 is connected with the main body part 100, the cavity is divided into an upper cavity and a lower cavity by the partition part 200, the first cover plate part 300 is used for covering the cavity above the two cavities, the second cover plate part 400 is used for covering the cavity, article can be placed respectively to two cavitys, make article put rationally, promote packing space utilization, guarantee the stability of product, thereby improve the protection to article, main part 100 can be connected to first apron portion 300 and second apron portion 400, also can not be connected with main part 100, article are placed in the cavity of top back, first apron portion 300 and second apron portion 400 are closed to the lid in proper order, first apron portion 300 gland in second apron portion 400 top, prevent that article from falling out, can also strengthen consumer's unpacking experience, partition 200, first apron portion 300 and second apron portion 400 can adopt the cardboard that has the tongue piece structure, product big for current plastic construction and draft gradient, support piece 20 product stability is good, support piece 20 is little with holding box inner wall cooperation back gap, the packing cost is low.

This application scheme still provides one kind and holds the box, holds and has placed above-mentioned support piece 20 in the box, and support piece 20 itself has two upper and lower cavitys, and two cavitys place different article simultaneously, make product packaging form diversified, rationalize, and reinforcing consumer's unpacking experience also can place article in the cavity that only is located the top, and the cavity that is located the below improves the protectiveness to the product as cushion chamber.

FIG. 1 is a schematic illustration of a folded paper unfolded of a support member 20 according to an exemplary embodiment. Fig. 2 is a partially cut-away schematic structural view of one type of support member 20 shown in accordance with an exemplary embodiment. Fig. 3 is a partially cut-away schematic structural view illustrating a state in which a first cover plate 300 and a second cover plate 400 of a supporter 20 according to an exemplary embodiment are opened. Fig. 4 is a partially cut-away schematic view of a housing box mounting support 20 according to an exemplary embodiment.

Referring to fig. 1 to 4, the present invention provides a supporting member 20 and an accommodating box, the supporting member 20 is used as a lining of the accommodating box, the supporting member 20 includes a main body 100, a partition 200, a first cover plate 300, a second cover plate 400 and a tongue 500, the main body 100 has a cavity, the partition 200 connects the main body 100, the partition 200 partitions the cavity into an upper cavity and a lower cavity, the two cavities are respectively defined as a first cavity 130 and a second cavity 140, the second cavity 140 is located above the first cavity 130, the first cavity 130 includes a first cavity 131 and a second cavity 132, the first cavity 131 and the second cavity 132 are located at two adjacent sides of the second cavity 140, and with reference to the placement state in fig. 2, the first cavity 131 is located at a side position of the second cavity 140, and the second cavity 132 is located below the second cavity 140.

The first cover part 300 and the second cover part 400 are respectively connected with the main body part 100, the first cover part 300 covers the second cavity 140, the second cover part 400 covers the cavity, the first cover part 300 and the second cover part 400 are positioned at two adjacent sides of the main body part 100, and the second cover part 400 is planed and cut off in fig. 2 and 3. Support member 20 places behind holding the box, and when the user opened, need open and hold box, second apron portion 400 and first apron portion 300, combine human engineering, improved consumer's the experience of unpacking.

Partition 200 and/or second apron 400 are provided with application of force structure, application of force structure includes through-hole or bellying, convenience of customers passes through application of force structure and exerts the effort to partition 200 and second apron 400, cavity and first cavity 130 are conveniently opened, in the embodiment of the application, partition 200 and second apron 400 are equipped with application of force structure respectively, application of force structure is for running through the first through-hole 240 that partition 200 set up on the partition 200, application of force structure on the second apron is for running through the second through-hole 410 that the second apron set up, furthermore, technical personnel in the art also can set up application of force structure at first apron 300, make things convenient for opening of second cavity 140, make the convenient simple of mode of unpacking.

When the support 20 is used, if fewer articles need to be placed, only the second cavity 140 may be selected to place the articles, the first cavity 131 may serve as a buffer cavity in the side direction of the articles, and the second cavity 132 may serve as a buffer cavity below the articles, so as to improve the protection of the articles.

The existing product is mostly packaged by matching a plurality of materials, for example, the outer shell adopts a gray paperboard, the inner liner adopts a buffer material such as polyethylene foam or pearl wool and the like which can deform under external excitation, and the two are matched for use, so that the material cost is high, the environment is influenced, and the recovery is not facilitated; also there is the buffering inside lining that adopts plastic uptake shaping to pack, but processing cost is high, and there is the inclination in the drawing die, has the gap with the packing carton inner wall, poor stability, and when pearl cotton, expanded polystyrene used as the inside lining, the mould opening cost of substrate 30 mould was high, and some polyester material produced the peculiar smell easily, influences consumer's experience. In the embodiment of the present application, the supporting member 20 is formed by folding a folded paper, and as shown in fig. 1, fig. 2 and fig. 3, the folded paper has a main body portion 100, a partition portion 200, a first cover portion 300 and a second cover portion 400, the partition portion 200, the first cover portion 300 and the second cover portion 400 are integrally connected to the main body portion 100, and the first cover portion 300 and the second cover portion 400 are respectively provided with a tongue 500, so as to ensure the stability of the first cover portion 300 and the second cover portion 400 after being covered.

The main body part 100 comprises a side wall plate 120 and a bottom plate 110 which surround to form a cavity, the side wall plate 120 is divided into four parts by three creases, the side wall plate 120 is provided with a connecting tongue piece 121, the connecting tongue piece 121 is used for connecting the side wall plate 120 end to end, the bottom plate 110 comprises four split pieces matched with a clamping manner, a partition part 200, a first cover plate part 300, a second cover plate part 400 and the side wall plate 120 are respectively connected with one split piece, the four split pieces are clamped to form the bottom plate 110 in the folding process of folded paper, specifically, referring to fig. 1, the four split pieces are a first tongue piece 111, a second tongue piece 112, a third tongue piece 113 and a fourth tongue piece 114 respectively, the second tongue piece 112 and the fourth tongue piece 114 are respectively pressed on the part of the first tongue piece 111, the third tongue piece 113 is pressed on the part of the second tongue piece 112 and the fourth tongue piece 114, the part of the third tongue piece 113 is inserted below the first tongue piece 111, the forming of the bottom plate 110 is completed, the forming manner of the bottom plate 110 is simple, support member 20 is the cuboid structure, and the support member 20 equipment and the transportation of being convenient for, in this application embodiment, during the folded paper folding process, only need once bond to lateral wall 120 through connection tongue piece 121, a paper shaping, and the processing cost is low, and folded paper can adopt 300g/m²-400g/m²The white cardboard has good forming effect and buffering effect, and solves the problems that the existing polyester materials are easy to generate peculiar smell and the pattern drawing product is inclined and deformed.

The partition 200 is used for partitioning the inner cavity of the main body 100, in the folding process, the partition 200 extends from one side of the inner cavity to the opposite side, in order to ensure the stability of the partition 200, in the embodiment of the present application, the partition 200 is provided with a supporting tongue 230, the supporting tongue 230 abuts against the bottom plate 110, the length of the supporting tongue 230 extending relative to the partition 200 is the height of the second cavity 132, i.e. the distance from the bottom plate 110 to the partition 200, the partition 200 is provided with a first fold and a second fold, the first fold and the second fold are located between the middle of the partition 200 and the edge connected with the main body 100, the first fold and the second fold are arranged in parallel, the partition 200 is bent to form a first bending piece 210 along the first fold, the partition 200 is bent to form a second bending piece 220 along the second fold, the first bending piece 210, the second bending piece 220 and the side wall plate 120 enclose to form a first cavity 131, the first bending piece 210 is parallel to the bottom plate 110, the second bending piece 220 is perpendicular to the bottom plate 110, and those skilled in the art can change the dimensions of the first bending piece 210, the second bending piece 220 and the supporting tongue 230 during the design process according to the use requirement, so as to adjust the size of the first cavity 130 to adapt to different types of products.

Referring to fig. 4, the embodiment of the present application further provides an accommodating box, the supporting member 20 is placed in the accommodating box, the accommodating box is of a rectangular parallelepiped structure, the accommodating box includes a box body 10 and a box cover 40, the box body 10 and the box cover 40 are in a nested fit of a heaven and earth box structure, the box body 10 has a box cavity, the supporting member 20 is placed in the box cavity, the bottom plate 110 is attached to the bottom wall of the box cavity, and the side wall plate 120 is attached to the side wall of the box cavity.

Article quantity, the kind placed as required, there is the box cavity degree of depth that technical staff can design to be fit for in this field, in fig. 4, the degree of depth in box cavity is greater than support piece 20's height, support piece 20 places in the box cavity, second apron 400 still has certain space to the port department in box cavity, it still includes substrate 30 to hold the box, substrate 30 places in support piece 20 top, substrate 30 be provided with standing groove 31, standing groove 31 sets up, and then the three space of placing of arranging about separating out in the box cavity, be the space in standing groove 31 from last to down, second cavity 140 and first cavity 130, can separately pack product and accessory, make article put rationally, promote inner chamber space utilization, guarantee the stability of product. In the embodiment of the present application, the substrate 30 may be made of polystyrene, which has good buffering performance.

The technical personnel in the field can place the product in standing groove 31, substrate 30 is provided with attacker's groove 32 at standing groove 31's notch edge, attacker's groove 32 and standing groove 31 intercommunication, consumer's finger stretches out the product application of force from attacker's groove 32, make things convenient for taking out of product, place the accessory at first cavity 130 and second cavity 140, the consumer sees the product earlier after unpacking, promote the propagation of product culture, leave the impressive for the consumer, after the consumer takes out the product, can open or take out support piece 20, the whole process of unpacking is convenient simple.

To sum up, the embodiment of the present application provides a supporting member 20 and a containing box, the supporting member 20 is used as an inner lining member of the containing box, the supporting member 20 is formed by folding a piece of paper and only needs to be fixed once through an external material, the supporting member 20 has a cavity, the partition 200 is used as an interlayer to partition the cavity into a first cavity 130 and a second cavity 140, the first cover plate 300 is used for covering the second cavity 140, the second cover plate 400 is used for covering the cavity, the two cavities can be used for respectively placing objects, so that the objects can be reasonably placed, the packaging space utilization rate is improved, the stability of the product is ensured, the protection of the objects is improved, after the objects are placed in the first cavity 130 and the second cavity 140, the first cover plate 300 and the second cover plate 400 are sequentially covered, the first cover plate 300 is pressed and covered above the second cover plate 400, the objects are prevented from falling out, and the box opening experience of a consumer can be enhanced in the box opening process, for current plastic construction and the big product of drawing die gradient, support piece 20 product stability is good, and support piece 20 is little with holding box inner wall cooperation back gap, and packaging cost is low.

It is noted that, in this document, relational terms such as "first" and "second," and the like, may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

The foregoing are merely exemplary embodiments of the present invention, which enable those skilled in the art to understand or practice the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the general inventive concept. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.

Claims (10)

1. A support, comprising:

a main body part (100) provided with a cavity;

the separating part (200) is connected with the main body part (100) and separates the cavity into an upper cavity and a lower cavity;

a first cover plate portion (300) for covering the cavity located above the two cavities; and

and a second cover plate part (400) which is pressed above the first cover plate part (300) and covers the concave cavity.

2. The support according to claim 1, characterized in that the partition (200) and/or the second cover plate part (400) are provided with a force application structure, respectively, for applying a force to the partition (200) and/or the second cover plate part (400) by means of the force application structure.

3. The support of claim 2, wherein the force applying structure comprises a through hole or a boss.

4. The support according to claim 1, characterized in that the two cavities are a first cavity (130) and a second cavity (140), respectively, the second cavity (140) being located above the first cavity (130);

the first cavity (130) comprises a first cavity and a second cavity, the first cavity and the second cavity being located on adjacent sides of the second cavity (140).

5. The support member as claimed in claim 4, wherein the partition (200) comprises a first bending piece (210) and a second bending piece (220), and the first bending piece (210), the second bending piece (220) and the main body (100) surround to form the first cavity or the second cavity.

6. The support member according to claim 1, wherein the support member comprises a folded paper, the folded paper comprises the main body portion (100), the partition portion (200), the first cover plate portion (300) and the second cover plate portion (400) are respectively and integrally connected with the main body portion (100), the first cover plate portion (300) and the second cover plate portion (400) are respectively provided with an insertion tongue (500), the partition portion (200) is provided with a support tongue (230), and the folded paper is folded to form the support member.

7. The support according to claim 6, wherein the main body (100) comprises a side wall plate (120) and a bottom plate (110) enclosing the cavity, the side wall plate (120) being provided with a connecting tongue (121), the connecting tongue (121) being used for end-to-end connection of the side wall plate (120);

bottom plate (110) are including four burst of joint complex, partition portion (200) first apron portion (300) second apron portion (400) reach side wall board (120) are connected with one respectively the burst, with four in the folding paper folding process the burst joint forms bottom plate (110).

8. An accommodation box characterized in that the support member of any one of claims 1 to 7 is installed.

9. The containment box according to claim 8, characterised in that it further comprises a substrate (30), the substrate (30) being placed above the support and the substrate (30) being provided with a placement slot (31).

10. The containment box according to claim 9, characterised in that the substrate (30) is provided with a gripping groove (32) at the edge of the resting groove (31).
