The utility model discloses an electric welding device for building construction, which comprises a base, wherein a supporting plate is bolted on the right side of the top of the base, an electric welding machine body is bolted on the right side of the top of the base, a box body is bolted on the left side of the top of the base, a fixing mechanism is arranged in an inner cavity of the box body, through grooves matched with the fixing mechanism are formed in two sides of the front side of the top of the box body, and an operating table is bolted on the front side of the top of the box body. According to the electric welding device, the gears, the fixed rods, the moving seat, the fixed seat, the supporting rod, the movable seat, the first sliding groove, the first sliding block and the clamping frame are matched, the rotation of the gears can drive the clamping frame to move reversely, so that the clamping frame can clamp and fix a processed object without manually fixing the object by a user, an electric welding machine body can conveniently and accurately weld the object, the welding quality of the object is effectively improved, and the problem that the traditional electric welding device for building engineering construction is poor in fixing effect is solved.

Description

Electric welding device for building construction
Technical Field
The utility model relates to the field of constructional engineering, in particular to an electric welding device for building construction.
Background
The building engineering refers to an engineering entity formed by the construction of various building buildings and their auxiliary facilities and the installation of lines, pipes and equipment matched with them, wherein the building buildings refer to the engineering which has top covers, beams, columns, walls, foundations and can form internal spaces and meet the requirements of people for production, living, study and public activities.
Often need weld various articles in the building engineering work progress, a welding set can be used usually, however current welding set is when welding the article, the article still needs artifical manual support, thereby the skew easily takes place, can not carry out accurate welding to the article, thereby the welding quality to the article has been reduced, the while user is manual also the accident easily appears to the article support, there is the threat to user's life safety, thereby it is poor to lead to current for the building engineering construction electric welding set fixed effect.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide an electric welding device for building construction to solve the problems in the background technology.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an electric welding device for construction, includes the base, the right side bolt at base top has the backup pad, the right side bolt at base top has the electric welding body, the left side bolt at base top has the box, the inner chamber of box is provided with fixed establishment, the logical groove of using with the fixed establishment cooperation is all seted up to the positive both sides in box top, the positive bolt at box top has the operation panel.
Preferably, the fixing mechanism comprises an air cylinder, a rack plate, a gear, a fixing rod, a moving seat, a fixing seat, a supporting rod, a movable seat, a first sliding groove, a first sliding block and a clamping frame, the air cylinder is bolted to the back of the right side of the inner cavity of the box body, the rack plate is bolted to a piston rod of the air cylinder, the gear is meshed to the bottom of the rack plate, a rotating shaft is bolted to the inner cavity of the gear, the back of the rotating shaft is rotatably connected with the back of the inner cavity of the box body through a bearing, the fixing rod is bolted to the front of the gear, the moving seat is slidably connected to both sides of the bottom of the inner cavity of the box body, the fixing seat is bolted to both sides of the top of the inner cavity of the box body, the movable plate is slidably connected to both sides of the inner cavity of the fixing seat in a transverse direction, the supporting rod is bolted to the bottom of the movable plate, the movable seat is provided with a limiting groove matched with the fixing rod, the front of dead lever runs through to the front of spacing groove and bolt has a spacing piece, the both sides of sliding seat all are bolted to have the connecting block, remove the seat in opposite directions one side and seted up first spout, the inner chamber sliding connection of first spout has the first slider that uses with the connecting block cooperation, the top bolt of removing the seat has the holding frame, the top of holding frame runs through to the top in logical groove.
Preferably, the two sides of the bottom of the inner cavity of the box body are provided with second sliding grooves, and the inner cavity of each second sliding groove is connected with a second sliding block matched with the moving seat for use in a sliding mode.
Preferably, the connecting plates are bolted to two sides of the top of the inner cavity of the box body, a first sliding rod is bolted to one opposite side of each connecting plate, a first sliding sleeve is connected to the surface of each first sliding rod in a sliding mode, and the bottom of each first sliding sleeve is bolted to the center of the top of the rack plate.
Preferably, the clamping frame inlays in the bottom of one side in opposite directions and is equipped with the second sliding sleeve, and the inner chamber sliding connection of second sliding sleeve has the second slide bar, the outside of second slide bar and the top bolt of box inner chamber both sides, one side bolt in opposite directions of second slide bar has the limiting plate, the surface cover of second slide bar is equipped with first spring, the outside and the one side bolt in opposite directions of clamping frame of first spring, the outside bolt of one side in opposite directions of first spring and limiting plate.
Preferably, the front and the back of the bottom of one opposite side of the moving seat are both bolted with fixed blocks, and one opposite side of the fixed blocks is bolted with a second spring.
Preferably, the top of the left side of the supporting plate is bolted with a positioning block, and the left side of the positioning block is bolted with a hook matched with the electric welding machine body for use.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the electric welding device, the air cylinder is matched with the rack plate, a power source is provided for the rotation of the gear, the fixed rod, the movable seat, the fixed seat, the supporting rod, the movable seat, the first sliding groove, the first sliding block and the clamping frame are matched, the rotation of the gear can drive the clamping frame to move reversely, so that the clamping frame can effectively clamp and fix a processed object, the object does not need to be manually fixed by a user, a certain protection effect is achieved for the user, meanwhile, the electric welding machine body can conveniently and accurately weld the object, the object is prevented from being deviated, the welding quality of the object is effectively improved, and the problem that the traditional electric welding device for building engineering construction is poor in fixing effect is solved.
2. The utility model ensures that the moving seat can move stably through the matching of the second sliding chute and the second sliding block, thereby the movable seat can stably drive the clamping frame to fix the object, the rack plate is prevented from being inclined in the moving process through the matching of the first sliding rod and the first sliding sleeve, the rack plate can be supported in a sliding way when moving, the stability of the clamping frame when fixing objects is further enhanced through the matching of the second sliding rod, the second sliding sleeve and the first spring, meanwhile, the clamping frame can fix the object more firmly, the moving seat is prevented from moving too fast to influence the fixing effect of the clamping frame on the object through the matching of the second spring, meanwhile, the movable base is elastically buffered, and a welding head on the electric welding machine body can be suspended through the matching of the hook, so that a user can weld the object conveniently.
Drawings

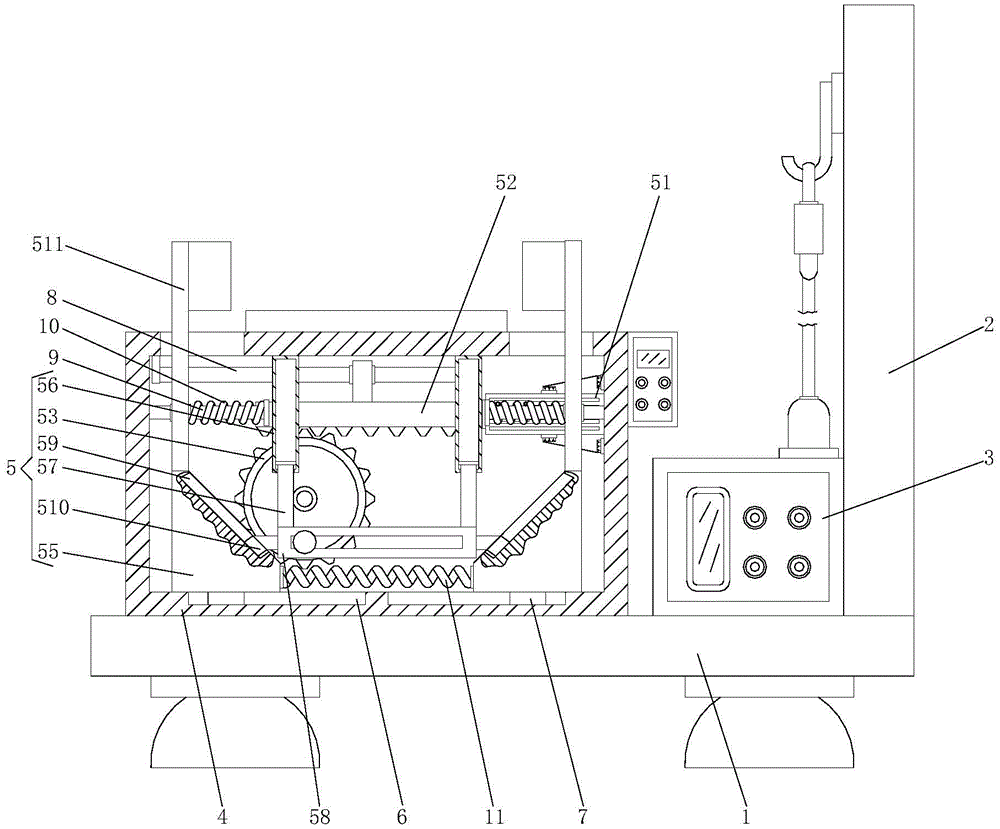

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a partial sectional top view of the structure of the case of the present invention;
fig. 3 is a perspective view showing the structure of the case of the present invention.
In the figure: 1. a base; 2. a support plate; 3. an electric welding machine body; 4. a box body; 5. a fixing mechanism; 51. a cylinder; 52. a rack plate; 53. a gear; 54. fixing the rod; 55. a movable seat; 56. a fixed seat; 57. a support bar; 58. a movable seat; 59. a first chute; 510. a first slider; 511. a clamping frame; 6. a second chute; 7. a second slider; 8. a first slide bar; 9. a second slide bar; 10. a first spring; 11. a second spring.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front", "rear", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, such as "connected," which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, an embodiment of the present invention is shown: an electric welding device for building construction comprises a base 1, a supporting plate 2 is bolted on the right side of the top of the base 1, an electric welding machine body 3 is bolted on the right side of the top of the base 1, a box body 4 is bolted on the left side of the top of the base 1, a fixing mechanism 5 is arranged in an inner cavity of the box body 4, through grooves matched with the fixing mechanism 5 for use are formed in two front sides of the top of the box body 4, an operating platform is bolted on the front side of the top of the box body 4, a power source is provided for rotation of a gear 53 through matching of an air cylinder 51 and a rack plate 52, a clamping frame 511 can be driven to move in the reverse direction through rotation of the gear 53, a fixed rod 54, a movable seat 55, a fixed seat 56, a supporting rod 57, a movable seat 58, a first sliding groove 59, a first sliding block 510 and the clamping frame 511 are matched, the clamping frame 511 can effectively clamp and fix a processed object without manual operation of a user, play certain guard action to the user, the electric welding body 3 of also being convenient for simultaneously carries out accurate welding to the article, avoids the article to take place the skew, has effectively improved the welding quality of article, has solved the poor problem of traditional for building engineering construction electric welding device fixed effect.
The fixing mechanism 5 comprises an air cylinder 51, a rack plate 52, a gear 53, a fixing rod 54, a moving seat 55, a fixed seat 56, a supporting rod 57, a moving seat 58, a first sliding groove 59, a first sliding block 510 and a clamping frame 511, the air cylinder 51 is bolted on the back surface of the right side of the inner cavity of the box body 4, the rack plate 52 is bolted on the piston rod of the air cylinder 51 to provide a power source for the rotation of the gear 53, the gear 53 is meshed at the bottom of the rack plate 52, a rotating shaft is bolted on the inner cavity of the gear 53, the back surface of the rotating shaft is rotationally connected with the back surface of the inner cavity of the box body 4 through a bearing, the fixing rod 54 is bolted on the front surface of the gear 53, the moving seat 55 is slidably connected on both sides of the bottom of the inner cavity of the box body 4, the fixed seat 56 is bolted on both sides of the top of the inner cavity of the box body 4, the moving plate is slidably connected on both sides of the inner cavity of the fixed seat 56 transversely, the supporting rod 57 is bolted on the bottom of the moving plate 57, the bottom of the supporting rod 57 penetrates through the bottom of the fixed seat 56 and is bolted with the moving seat 58, the spacing groove that uses with the dead lever 54 cooperation is seted up in the front of sliding seat 58, the front of dead lever 54 runs through to the front of spacing groove and bolted connection has a spacing block, the both sides of sliding seat 58 all bolted connection have the connecting block, first spout 59 has been seted up to the opposite one side of removal seat 55, the inner chamber sliding connection of first spout 59 has the first slider 510 that uses with the connecting block cooperation, the top bolt of removal seat 55 has holding frame 511, the top of holding frame 511 runs through to the top that leads to the groove, gear 53's rotation can drive holding frame 511 and carry out reverse movement, thereby holding frame 511 can carry out effective centre gripping to the processing article and fix, need not the manual article of user and fix, play certain guard action to the user, the electric welding body 3 of also being convenient for simultaneously carries out accurate welding, avoid the article to take place the skew, the welding quality of article has effectively been improved.
Second spout 6 has all been seted up to the both sides of box 4 inner chamber bottom, and the inner chamber sliding connection of second spout 6 has and removes second slider 7 that seat 55 cooperation was used for remove seat 55 and can steadily remove, thereby make and remove seat 55 and can steadily drive holding frame 511 and fix the article.
The connecting plates are bolted to the two sides of the top of the inner cavity of the box body 4, the first sliding rod 8 is bolted to one opposite side of the connecting plates, the first sliding sleeve 8 is connected to the surface of the first sliding rod in a sliding mode, the bottom of the first sliding sleeve is bolted to the center of the top of the rack plate 52, the rack plate 52 is prevented from being inclined in the moving process, and the rack plate 52 is supported in a sliding mode in the moving process.
The bottom of the opposite side of the clamping frame 511 is embedded with a second sliding sleeve, the inner cavity of the second sliding sleeve is slidably connected with a second sliding rod 9, the outer side of the second sliding rod 9 is bolted with the tops of the two sides of the inner cavity of the box body 4, one opposite side of the second sliding rod 9 is bolted with a limiting plate, the surface of the second sliding rod 9 is sleeved with a first spring 10, the outer side of the first spring 10 is bolted with one opposite side of the clamping frame 511, one opposite side of the first spring 10 is bolted with the outer side of the limiting plate, the stability of the clamping frame 511 in the fixing process of the object is further enhanced, and meanwhile, the clamping frame 511 is more firmly fixed to the object.
The front and the back of the bottom of the opposite side of the moving seat 55 are bolted with fixed blocks, and the opposite side of the fixed blocks is bolted with a second spring 11, so that the fixed effect of the clamping frame 511 on the object is prevented from being influenced by the excessively high moving speed of the moving seat 55, and meanwhile, the moving seat 55 is elastically buffered.
The locating piece is bolted to the left top of the supporting plate 2, and the hook matched with the electric welding machine body 3 is bolted to the left side of the locating piece, so that a welding head on the electric welding machine body 3 can be hung, and a user can weld an object conveniently.
The working principle is as follows: during operation, the user places the article on the operation panel surface, the user starts the work of cylinder 51 through the controller afterwards, the piston rod of cylinder 51 drives rack plate 52 and steadily moves left through first sliding sleeve, then rack plate 52 drives gear 53 anticlockwise rotation, gear 53 drives dead lever 54 anticlockwise rotation this moment, then dead lever 54 drives sliding seat 58 rebound, sliding seat 58 drives bracing piece 57 rebound, sliding seat 58 drives through first slider 510 and moves the synchronous inboard removal of seat 55 here simultaneously, thereby it drives the synchronous inboard removal of holding frame 511 to move seat 55, until holding frame 511 fixes the article centre gripping, the manual electric welding body 3 of taking of last user welds the article, thereby can accomplish the accurate welding operation to the article high-efficiently.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (7)

1. The utility model provides an electric welding device for construction, includes base (1), its characterized in that: the right side bolt at base (1) top has connect backup pad (2), the right side bolt at base (1) top has connected electric welding body (3), the left side bolt at base (1) top has connected box (4), the inner chamber of box (4) is provided with fixed establishment (5), the logical groove that uses with fixed establishment (5) cooperation is all seted up to the positive both sides in box (4) top, the front bolt at box (4) top has connected the operation panel.
2. The electric welding device for building construction according to claim 1, characterized in that: the fixing mechanism (5) comprises an air cylinder (51), a rack plate (52), a gear (53), a fixing rod (54), a moving seat (55), a fixing seat (56), a supporting rod (57), a movable seat (58), a first sliding chute (59), a first sliding block (510) and a clamping frame (511), the air cylinder (51) is bolted on the back side of the right side of the inner cavity of the box body (4), the rack plate (52) is bolted on the piston rod of the air cylinder (51), the gear (53) is meshed at the bottom of the rack plate (52), a rotating shaft is bolted on the inner cavity of the gear (53), the back side of the rotating shaft is rotatably connected with the back side of the inner cavity of the box body (4) through a bearing, the fixing rod (54) is bolted on the front side of the gear (53), the moving seats (55) are slidably connected on two sides of the bottom of the inner cavity of the box body (4), the fixing seats (56) are bolted on two sides of the top of the inner cavity of the box body (4), the utility model discloses a fixing base, including fixing base (56), fixing base (55), movable seat (58), first spout (59), the inner chamber sliding connection of first spout (59) has first slider (510) with the connecting block cooperation use, the top bolt of moving seat (55) has clamping frame (511), the top of clamping frame (511) runs through to the top of logical groove.
3. The electric welding device for building construction according to claim 2, characterized in that: second spout (6) have all been seted up to the both sides of box (4) inner chamber bottom, the inner chamber sliding connection of second spout (6) has second slider (7) with remove seat (55) cooperation use.
4. The electric welding device for building construction according to claim 2, characterized in that: the connecting plates are bolted to two sides of the top of the inner cavity of the box body (4), a first sliding rod (8) is bolted to one opposite side of each connecting plate, a first sliding sleeve is connected to the surface of each first sliding rod (8) in a sliding mode, and the bottom of each first sliding sleeve is bolted to the center of the top of the rack plate (52).
5. The electric welding device for building construction according to claim 2, characterized in that: the bottom of holding frame (511) one side in opposite directions inlays and is equipped with the second sliding sleeve, and the inner chamber sliding connection of second sliding sleeve has second slide bar (9), the outside of second slide bar (9) and the top bolt of box (4) inner chamber both sides, one side bolt in opposite directions of second slide bar (9) has the limiting plate, the surface cover of second slide bar (9) is equipped with first spring (10), the outside of first spring (10) and one side bolt in opposite directions of holding frame (511), one side bolt in opposite directions of first spring (10) and the outside bolt of limiting plate.
6. The electric welding device for building construction according to claim 2, characterized in that: the front and the back of the bottom of one opposite side of the movable seat (55) are respectively bolted with a fixed block, and one opposite side of the fixed block is bolted with a second spring (11).
7. The electric welding device for building construction according to claim 1, characterized in that: the left top of the supporting plate (2) is bolted with a positioning block, and the left side of the positioning block is bolted with a hook matched with the electric welding machine body (3).
