CN216018657U

CN216018657U - Automatic trap lamp of collection insect corpse

Info

Publication number: CN216018657U
Application number: CN202121945238.3U
Authority: CN
Inventors: 朱伯韬
Original assignee: Nantong Cs Lighting Co ltd
Current assignee: Nantong Cs Lighting Co ltd
Priority date: 2021-08-18
Filing date: 2021-08-18
Publication date: 2022-03-15
Anticipated expiration: 2031-08-18

Abstract

The utility model discloses an insect trap lamp capable of automatically collecting insect corpses, which belongs to the field of insect trap lamps and comprises a base, wherein a first motor is fixedly installed inside the base, a rotary rod is fixedly sleeved on an output shaft of the first motor, a brush is fixedly installed at the bottom of the rotary rod, a conveying pipe is fixedly sleeved inside the base, a collecting box is fixedly connected to one side of the base, a protective shell is fixedly connected to the top of the base, a top plate is fixedly connected to the top of the protective shell, a scraping mechanism is fixedly installed at the bottom of the top plate, and an insect killing mechanism is fixedly installed at the bottom of the top plate; through setting up a motor, rotary rod, conveyer pipe, brush and collecting box, can hit the insect corpse after killing to the moth-killing lamp and collect, the conveyer pipe carries the collecting box with the corpse, has avoided the corpse of insect can scatter at the periphery, and very influences sanitation to be convenient for carry out centralized processing to the corpse of insect.

Description

Automatic trap lamp of collection insect corpse

Technical Field

The utility model belongs to the technical field of trap lamps, and particularly relates to a trap lamp capable of automatically collecting insect corpses.

Background

The traditional deinsectization mainly uses pesticides, which not only brings the problem of pesticide residue in vegetables and soil and causes pollution to the agricultural ecological environment, but also endanger the health and safety of human bodies and the high quality and high efficiency of agricultural production, and the pesticide causes a great deal of pollution to the environment in the production process, researches show that the insects have phototaxis, and particularly at night, the insects fly towards the direction of the light after seeing the light and gather around the light, because many insects are harmful to crops such as dealer and fruit trees, people make various trap lamps by utilizing the characteristic that the insects tend to shine, however, after most of the existing trap lamps kill the insects, the corpses of the insects can be scattered around, which greatly affects the environmental sanitation, and killed insects may be stuck on a high-voltage power grid, and need to be cleaned manually, so that time and labor are wasted, and the insect attracting lamp capable of automatically collecting insect corpses is provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an insect attracting lamp for automatically collecting insect corpses, which solves the problems in the background technology.

In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides an automatic trap lamp of collection insect corpse, includes the base, the inside fixed mounting of base has a motor, fixed the cup jointing has the rotary rod on the output shaft of a motor, the bottom fixed mounting of rotary rod has the brush, the fixed cup jointing in inside of base has the conveyer pipe, one side fixedly connected with collecting box of base, the top fixedly connected with protecting crust of base, the top fixedly connected with roof of protecting crust, the bottom fixed mounting of roof has scraping mechanism, the bottom fixed mounting of roof has insecticidal mechanism, the inside of roof has trap lamp body through installation mechanism fixed mounting.

In a preferred embodiment, the top end of the conveying pipe is positioned below the brush, the bottom end of the conveying pipe penetrates and extends to the inside of the collecting box, and the bottom of the brush is in close contact with the top of the base.

As a preferred embodiment, the protective shell is made of transparent plastic, and a plurality of insect inlet holes are formed outside the protective shell.

As a preferred embodiment, strike off the mechanism and include No. two motors, the top of No. two motor fixed mounting roof, the fixed cover has been connected with the screw rod on the output shaft of No. two motors, the bottom fixedly connected with gag lever post of roof, the scraper blade has been cup jointed in the outside activity of gag lever post.

As a preferred embodiment, the scraper is movably sleeved outside the screw, an internal thread is formed inside the scraper, and the internal thread of the scraper is matched with the external thread of the screw.

As a preferred embodiment, the pest killing mechanism comprises an electric network and a lead, the electric network is fixedly installed at the bottom of the top plate, and the electric network is electrically connected with an external circuit through the lead.

As a preferred embodiment, the mounting mechanism comprises a mounting plate and screws, the bottom of the mounting plate is fixedly provided with the trap lamp body, the outside of the mounting plate is matched with the top of the top plate, and the mounting plate is fixedly arranged on the top of the top plate through the screws.

In a preferred embodiment, the scraping means is located between the protective casing and the insecticidal means, and the scraping means is located directly above the brush.

Compared with the prior art, the utility model has the beneficial effects that:

according to the insect trapping lamp capable of automatically collecting the insect corpses, the motor, the rotating rod, the conveying pipe, the brush and the collecting box are arranged, the insect corpses killed by the insect trapping lamp can be collected, the corpses are conveyed to the collecting box through the conveying pipe, the situation that the environmental sanitation is affected due to the fact that the insect corpses are scattered around is avoided, and therefore the insect corpses can be conveniently and intensively treated;

according to the trap lamp capable of automatically collecting the insect corpses, the second motor, the power grid, the screw rod, the scraper and the limiting rod are arranged, when the insect corpses are adhered to the power grid, the screw rod drives the scraper to hang down the insects, the problem that the killed insects are adhered to the high-voltage power grid, manual cleaning is needed, time and labor are wasted is solved, and convenience is brought to the cleaning of the insects;

this automatic trap lamp of collecting insect corpse, through setting up the mounting panel, when the trap lamp body takes place to damage, dismantle the mounting panel, take out the mounting panel along with the trap lamp body to the maintenance of trap lamp body has brought the facility.

Drawings

FIG. 1 is a schematic front view of the structure of the present invention;

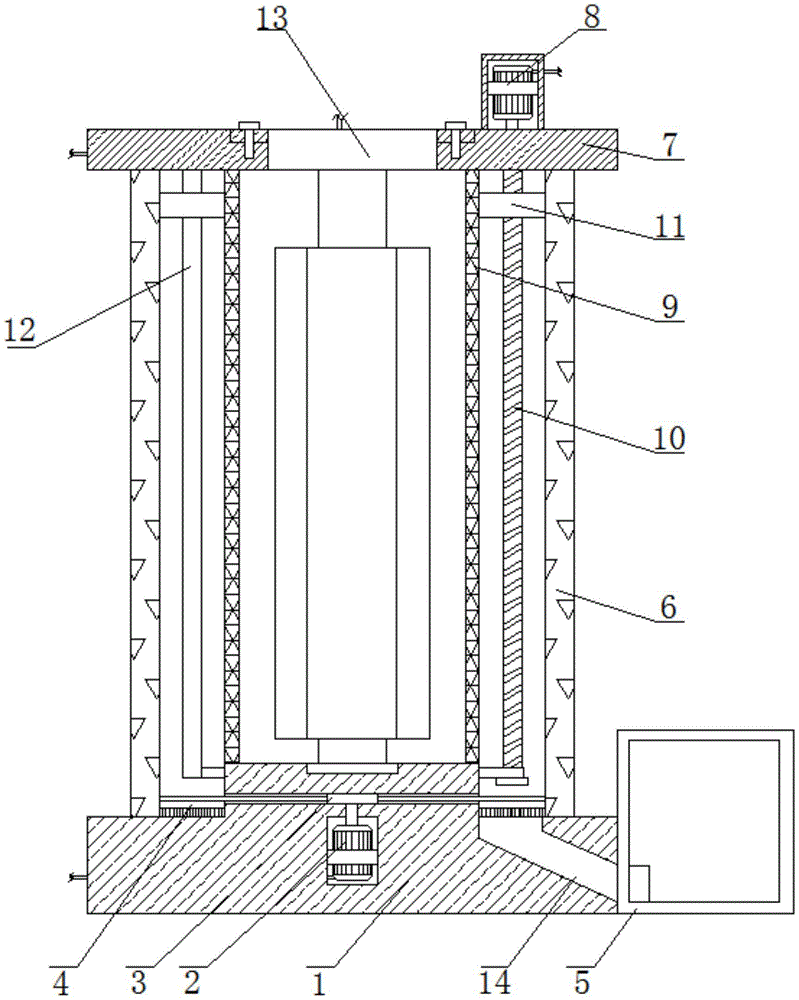

FIG. 2 is a front partial cross-sectional view of the structure of the present invention;

FIG. 3 is a three-dimensional view of the squeegee of the present invention.

In the figure: 1. a base; 2. a first motor; 3. rotating the rod; 4. a brush; 5. a collection box; 6. a protective shell; 7. a top plate; 8. a second motor; 9. a power grid; 10. a screw; 11. a squeegee; 12. a limiting rod; 13. mounting a plate; 14. a delivery pipe.

Detailed Description

The present invention will be further described with reference to the following examples.

The following examples are intended to illustrate the utility model but are not intended to limit the scope of the utility model. The conditions in the embodiments can be further adjusted according to specific conditions, and simple modifications of the method of the present invention based on the concept of the present invention are within the scope of the claimed invention.

Referring to fig. 1 and 2, the utility model provides an insect attracting lamp for automatically collecting insect corpses, comprising a base 1, in order to conveniently perform centralized treatment on the insect corpses, a first motor 2 is fixedly installed inside the base 1, a rotary rod 3 is fixedly sleeved on an output shaft of the first motor 2, a brush 4 is fixedly installed at the bottom of the rotary rod 3, a conveying pipe 14 is fixedly sleeved inside the base 1, a collecting box 5 is fixedly connected to one side of the base 1, the top end of the conveying pipe 14 is positioned below the brush 4, the bottom end of the conveying pipe 14 penetrates and extends into the collecting box 5, the bottom of the brush 4 is in close contact with the top of the base 1, when the insect corpses fall to the top of the base 1, the first motor 2 is started, the output shaft of the first motor 2 drives the rotary rod 3 to rotate, so that the rotary rod 3 drives the brush 4 to clean the insect corpses on the top of the base 1, the corpse of the insects drops through the delivery pipe 14 to the inside of the collection tank 5, thereby facilitating the collective disposal of the corpse of the insects.

Referring to fig. 1, 2 and 3, in order to clean the dead body of the insect, a protective shell 6 is fixedly connected to the top of a base 1, the protective shell 6 is made of transparent plastic, a plurality of insect inlet holes are formed in the outer portion of the protective shell 6, a top plate 7 is fixedly connected to the top of the protective shell 6, an insect killing mechanism is fixedly installed at the bottom of the top plate 7, the insect killing mechanism comprises a power grid 9, the power grid 9 is fixedly installed at the bottom of the top plate 7, the power grid 9 is electrically connected with an external circuit, a scraping mechanism is located between the protective shell 6 and the insect killing mechanism, the scraping mechanism is located right above a brush 4, a scraping mechanism is fixedly installed at the bottom of the top plate 7, the scraping mechanism comprises a second motor 8, the second motor 8 is fixedly installed at the top of the top plate 7, a screw rod 10 is fixedly sleeved on an output shaft of the second motor 8, a limiting rod 12 is fixedly connected to the bottom of the top plate 7, a scraping plate 11 is movably sleeved outside the limiting

rod

12, 11 activities of scraper blade cup joint in the outside of screw rod 10, the internal thread is seted up to the inside of scraper blade 11, the internal thread of scraper blade 11 and the external screw thread looks adaptation of screw rod 10, the circuit of switch-on moth-killing lamp body, make the insect advance to enter into the moth-killing lamp through the hole of protecting crust 6 inside, switch-on dropping of electric wire netting 9, hit the insect and kill, glue when too much insect in the outside of electric wire netting 9, start No. two motor 8, No. two motor 8's output shaft drives screw rod 10 and rotates, make screw rod 10 drive scraper blade 11 carry out the screw motion in the outside of screw rod 10, and then strike off the insect of electric wire netting 9 outside, the insect of having avoided killing glues on electric wire netting 9, need artifical clearance, very waste time and energy's problem, thereby the clearance for the insect has brought the facility.

Referring to fig. 2, in order to facilitate maintenance of the trap lamp body, the trap lamp body is fixedly mounted inside the top plate 7 through a mounting mechanism, the mounting mechanism includes a mounting plate 13, the trap lamp body is fixedly mounted at the bottom of the mounting plate 13, the outside of the mounting plate 13 is matched with the top of the top plate 7, the mounting plate 13 is fixedly mounted at the top of the top plate 7 through screws, when the trap lamp body is damaged, the screws at the top of the mounting plate 13 are taken down, the mounting plate 13 is taken out together with the trap lamp body, and therefore convenience is brought to maintenance of the trap lamp body.

The working principle and the using process of the utility model are as follows: firstly, a circuit of a trap lamp body is switched on, insects enter the trap lamp through holes of a protective shell 6, the electric network 9 is switched on to drop, the insects are killed, when too many insects are adhered to the outside of the electric network 9, a second motor 8 is started, an output shaft of the second motor 8 drives a screw rod 10 to rotate, the screw rod 10 drives a scraper 11 to perform threaded motion on the outside of the screw rod 10, then the insects on the outside of the electric network 9 are scraped, the problem that the killed insects are adhered to the electric network 9 and need to be manually cleaned is solved, time and labor are wasted, convenience is brought to cleaning of the insects, then when dead bodies of the insects fall to the top of a base 1, a first motor 2 is started, an output shaft of the first motor 2 drives a rotary rod 3 to rotate, and the rotary rod 3 drives a brush 4 to clean the dead bodies of the insects on the top of the base 1, the corpse of insect drops to the inside of collection box 5 through conveyer pipe 14, and then is convenient for carry out centralized processing to the corpse of insect, when the moth-killing lamp body takes place to damage at last, takes off the screw at mounting panel 13 top, takes out mounting panel 13 together with the moth-killing lamp body to the maintenance of moth-killing lamp body has brought the facility.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides an automatic trap lamp of collection insect corpse, includes base (1), its characterized in that: the utility model discloses a pest killing lamp, including base (1), the inside fixed mounting of base (1) has motor (2), fixed cover on the output shaft of motor (2) has connect rotary rod (3), the bottom fixed mounting of rotary rod (3) has brush (4), the inside fixed of base (1) has cup jointed conveyer pipe (14), one side fixedly connected with collecting box (5) of base (1), the top fixedly connected with protecting crust (6) of base (1), the top fixedly connected with roof (7) of protecting crust (6), the bottom fixed mounting of roof (7) has scraping mechanism, the bottom fixed mounting of roof (7) has insecticidal mechanism, the inside of roof (7) has the moth-killing lamp body through installation mechanism fixed mounting.

2. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: the top end of the conveying pipe (14) is located below the brush (4), the bottom end of the conveying pipe (14) penetrates through and extends into the collecting box (5), and the bottom of the brush (4) is in close contact with the top of the base (1).

3. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: the protective shell (6) is made of transparent plastic, and a plurality of insect inlet holes are formed in the outer portion of the protective shell (6).

4. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: strike off the mechanism and include No. two motor (8), the top of No. two motor (8) fixed mounting roof (7), fixed cover on the output shaft of No. two motor (8) has connect screw rod (10), the bottom fixedly connected with gag lever post (12) of roof (7), scraper blade (11) have been cup jointed in the outside activity of gag lever post (12).

5. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 4, wherein: the scraper (11) is movably sleeved outside the screw (10), internal threads are formed in the scraper (11), and the internal threads of the scraper (11) are matched with the external threads of the screw (10).

6. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: insecticidal mechanism includes electric wire netting (9) and wire, electric wire netting (9) fixed mounting is in the bottom of roof (7), electric wire netting (9) pass through wire electric connection with external circuit.

7. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: installation mechanism includes mounting panel (13) and screw, the bottom fixed mounting of mounting panel (13) has the moth-killing lamp body, the outside of mounting panel (13) and the top looks adaptation of roof (7), mounting panel (13) are through the top of screw fixed mounting at roof (7).

8. The insect attracting lamp for automatically collecting the dead bodies of insects as claimed in claim 1, wherein: the scraping mechanism is positioned between the protective shell (6) and the insect killing mechanism and is positioned right above the hairbrush (4).
