Abstract
The utility model discloses a COB fire-fighting emergency light source with an indicator light, which comprises a COB light source substrate and a COB chip body arranged on the COB light source substrate, wherein an indicator light source is fixed on the COB chip body, a power supply welding base point electrically connected with the COB chip body is fixed on the COB light source substrate, and a control welding base point electrically connected with the indicator light source is also fixed on the COB light source substrate. The COB chip body and the indicating light source are effectively combined into a whole, so that the installation cost is reduced, the COB chip body and the indicating light source are connected through the power source welding base point and the control welding base point, the lighting of the COB chip body and the control welding base point is independent, the emergency and indicating requirements can be met, the electric connection operation is convenient, the use is stable and reliable, the applicability is high, and the practicability is good.
Description
Technical Field
The utility model belongs to the technical field of fire-fighting emergency lamps, and particularly relates to a COB fire-fighting emergency light source with an indicator lamp.
Background
Fire emergency light is a common structure, it is mainly by the casing, fix emergency light source and lamp shade in the casing and constitute, its user demand that can satisfy general condition, but its function is comparatively limited, and when needs realize normal illumination, need additionally to increase illumination structure and the circuit structure that corresponds, it is the relatively independent structure with emergency light source, not only greatly increased the cost, but also can influence emergency light source's overall stationarity, the dismouting is also comparatively inconvenient simultaneously, so suitability and practicality receive the restriction.
Disclosure of Invention
The utility model aims to provide a COB fire-fighting emergency light source with an indicator light, which is reasonable in structural arrangement and high in applicability.
The technical scheme for realizing the purpose of the utility model is that the COB fire-fighting emergency light source with the indicator lamp comprises a COB light source substrate and a COB chip body arranged on the COB light source substrate, wherein an indicator light source is fixed on the COB chip body, a power supply welding base point electrically connected with the COB chip body is fixed on the COB light source substrate, and a control welding base point electrically connected with the indicator light source is also fixed on the COB light source substrate.
The indicating light source is a flickering light source, and the indicating light source flickers and lights when the control welding base point is controlled to weld the control lead.
Or, the indication light source may be a normally bright light source with different colors, and the indication light source lights up with different colors when the control welding base point is controlled to weld the control lead.
COB light source base plate is circular and has seted up two installation round holes, and two installation round holes are in COB light source base plate's diameter both ends.
The utility model has the positive effects that: the COB chip body and the indicating light source are effectively combined into a whole, so that the installation cost is reduced, the COB chip body and the indicating light source are connected through the power source welding base point and the control welding base point, the lighting of the COB chip body and the control welding base point is independent, the emergency and indicating requirements can be met, the electric connection operation is convenient, the use is stable and reliable, the applicability is high, and the practicability is good.
Drawings
In order that the present disclosure may be more readily and clearly understood, reference is now made to the following detailed description of the present disclosure taken in conjunction with the accompanying drawings, in which:

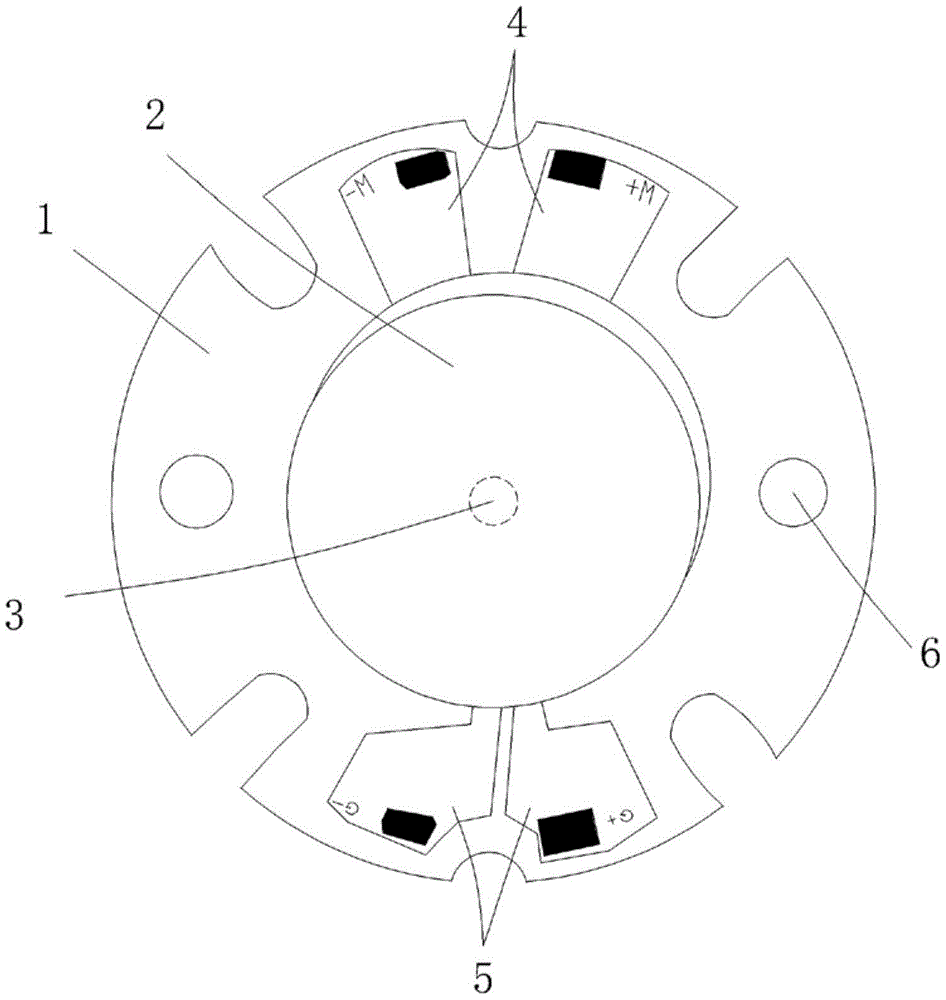

FIG. 1 is a schematic structural diagram of the present invention.
Detailed Description
(example 1)
Fig. 1 shows an embodiment of the present invention, wherein fig. 1 is a schematic structural diagram of the present invention.
See fig. 1, a COB fire control emergency light source with pilot lamp, include COB light source base plate 1 and set up COB chip body 2 on COB light source base plate 1, in this embodiment, the COB chip body is prior art's common chip body, be fixed with pilot light source 3 on the COB chip body, in this embodiment, the pilot light source is the same with the light source size on the COB chip body, only connects alone, makes the independent control of COB light source and the COB light source on the COB chip body, be fixed with on the COB light source base plate with power welding basic point 4 that the COB chip body electricity is connected, in the figure, for M-and M + show, still be fixed with on the COB light source base plate with control welding basic point 5 that the pilot light source electricity is connected is shown for G-and G + in the figure.
The indicating light source is a flickering light source, and the indicating light source flickers and lights when the control welding base point is controlled to weld the control lead. In a normal state, the indicating light source indicates by blinking.
In the actual use process, the indicating light source is a normally bright light source with different colors, and when the control welding base point is controlled to weld the control lead, the indicating light source is bright with different colors. In this embodiment, the color of the light source may be red, yellow, green, or the like, and different colors may be lit up when the light source is used, thereby achieving the purpose of indication.
COB light source base plate is circular and has seted up two installation round holes 6, and two installation round holes are in COB light source base plate's diameter both ends. The emergency lamp is provided with two mounting round holes, and can be fixed in an emergency lamp shell or on a circuit board through screws during mounting, so that the emergency lamp is convenient and reliable to mount.
The COB chip body and the indicating light source are effectively combined into a whole, so that the installation cost is reduced, the COB chip body and the indicating light source are connected through the power source welding base point and the control welding base point, the lighting of the COB chip body and the control welding base point is independent, the emergency and indicating requirements can be met, the electric connection operation is convenient, the use is stable and reliable, the applicability is high, and the practicability is good.
The standard parts used in the present embodiment can be purchased directly from the market, and the non-standard structural parts described in the specification can also be obtained directly by processing according to the common general knowledge of the prior art without any doubt, and the connection mode of the parts adopts the conventional means matured in the prior art, and the machines, parts and equipment adopt the conventional models in the prior art, so that the detailed description is not given here.
It should be understood that the above-described embodiments of the present invention are merely examples for clearly illustrating the present invention, and are not intended to limit the embodiments of the present invention. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. And are neither required nor exhaustive of all embodiments. And such obvious changes and modifications which fall within the spirit of the utility model are deemed to be covered by the present invention.
Claims (4)
1. The utility model provides a COB fire control emergency light source with pilot lamp, includes COB light source base plate and sets up COB chip body on the COB light source base plate, its characterized in that: be fixed with the pilot light source on the COB chip body, be fixed with on the COB light source base plate with the power welding basic point that COB chip body electricity is connected, still be fixed with on the COB light source base plate with the control welding basic point that pilot light source electricity is connected.
2. The COB fire-fighting emergency light source with indicator light of claim 1, characterized in that: the indicating light source is a flickering light source, and the indicating light source flickers and lights when the control welding base point is controlled to weld the control lead.
3. The COB fire-fighting emergency light source with indicator light of claim 1, characterized in that: the indicating light source is a normally bright light source with different colors, and when the control welding base point is controlled to weld the control lead, the indicating light source is bright with different colors.
4. A COB fire emergency light source with indicator light according to claim 2 or claim 3, characterized in that: COB light source base plate is circular and has seted up two installation round holes, and two installation round holes are in COB light source base plate's diameter both ends.
