CN215960944U

CN215960944U - Dental comprehensive treatment chair with disinfection device

Info

Publication number: CN215960944U
Application number: CN202122269407.2U
Authority: CN
Inventors: 杨健成
Original assignee: Kunlin Technology Shenzhen Co ltd
Current assignee: Kunlin Technology Shenzhen Co ltd
Priority date: 2021-09-17
Filing date: 2021-09-17
Publication date: 2022-03-08
Anticipated expiration: 2031-09-17

Abstract

The utility model discloses a dental comprehensive treatment chair with a disinfection device, which comprises a base, wherein a cushion is fixedly arranged at the top end of the base, a backrest is fixedly arranged on one side of the cushion, a chute is arranged on one side of the backrest, the inner wall of the chute is connected with a waist cushion in a sliding manner, an adjusting component is arranged on one side of the backrest, a disinfection box is fixedly arranged on one side of the base, the disinfection component is fixedly arranged inside the disinfection box, and a box door is hinged to the front middle part of the disinfection box, so that the dental comprehensive treatment chair has the beneficial effects that: the waist cushion slides on the inner wall of the sliding groove, and the limiting rod is inserted into the adjacent clamping hole, so that the position of the waist cushion can be adjusted by the therapeutic chair; the virus in the gas in the disinfection box is killed through three ultraviolet tube, and the inside of rethread heating pipe to the disinfection box heats, and the heat disinfects to the apparatus that uses among the medical procedure with medical instrument's surface contact, makes medical personnel's treatment in-process need not to carry medical instrument repeatedly and disinfects.

Description

Dental comprehensive treatment chair with disinfection device

Technical Field

The utility model relates to a treatment chair, in particular to a dental comprehensive treatment chair with a disinfection device, and belongs to the technical field of medical instruments.

Background

The dental comprehensive treatment chair is widely applied to clinical oral medical treatment, and has the advantages of multifunction, intellectualization and the like which are recognized by a large number of oral patients and dentists. However, in clinical practice, the backrest cushion of the treatment chair cannot support asian patients well, the waist part is often in a suspended state, and the person lies and sits on the treatment chair for a long time to treat, so that the waist part often suffers from the phenomena of ache and the like; in addition, when the existing treatment chair is used, medical staff need to carry and disinfect medical appliances repeatedly, and the use is very inconvenient.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a dental comprehensive treatment chair with a disinfection device, which aims to solve the problems that the treatment chair proposed in the background art is easy to damage the waist of a patient, and medical instruments need to be repeatedly carried and disinfected in the treatment process.

In order to achieve the purpose, the utility model provides the following technical scheme: a dental comprehensive treatment chair with a disinfection device comprises a base, wherein a cushion is fixedly arranged at the top end of the base, a backrest is fixedly arranged on one side of the cushion, an adjusting component is arranged on one side of the top end of the backrest, the adjusting component comprises a sliding groove, a waist cushion, a limiting groove, a plurality of clamping rods, a plurality of clamping holes, a connecting rod, a reset spring and a limiting rod, the sliding groove is formed in one side of the backrest, the inner wall of the sliding groove is connected with the waist cushion in a sliding manner, the limiting groove is formed in one side of the base, the clamping rods which are arranged at equal intervals are fixedly arranged in the limiting groove, clamping holes are formed in the middle parts of the clamping rods, the connecting rod is fixedly arranged in the middle part of one side of the waist cushion, the reset spring is fixedly connected to one end of the connecting rod, the limiting rod matched with the plurality of clamping holes is fixedly connected to one end of the reset spring, the disinfection box is fixedly arranged on one side of the base, the disinfection component is fixedly arranged in the disinfection box, a box door is hinged to the middle of the front side of the disinfection box, and a handle is fixedly arranged in the middle of the box door.

According to a preferred technical scheme, the disinfection component comprises an air-draft type heat dissipation fan, a heating pipe, three ultraviolet lamp tubes, three instrument placing grooves and six elastic clamping pieces, the air-draft type heat dissipation fan is fixedly arranged on the back face of a box door, the heating pipe is fixedly arranged on one side inside the disinfection box, the three ultraviolet lamp tubes are fixedly arranged at the top end inside the disinfection box at equal intervals, the three instrument placing grooves are arranged at the bottom end inside the disinfection box at equal intervals, the elastic clamping pieces are fixedly arranged on two sides inside the three instrument placing grooves, and a plurality of heat dissipation holes are formed in the back face of the disinfection box.

As a preferred technical scheme of the utility model, the top end of one side of the sterilizing box is fixedly provided with a temperature controller, a detection probe of the temperature controller is fixedly arranged inside the sterilizing box, and the air-draft type heat dissipation fan is electrically connected with a power supply through the temperature controller.

As a preferred technical scheme of the utility model, the inside of each of the plurality of heat dissipation holes is fixedly provided with an activated carbon layer.

In a preferred embodiment of the present invention, a handrail is fixedly provided on one side of the top end of the seat cushion.

As a preferred technical scheme of the utility model, a plurality of massage bumps are fixedly arranged on the surface of the waist cushion.

As a preferred technical scheme of the utility model, a switch panel is fixedly arranged in the middle of one side of the disinfection box, a heating tube switch and an ultraviolet lamp tube switch are respectively arranged on the surface of the switch panel, and the heating tube and the three ultraviolet lamp tubes are respectively electrically connected with a power supply through the heating tube switch and the ultraviolet lamp tube switch.

Compared with the prior art, the utility model has the beneficial effects that: according to the dental comprehensive treatment chair with the disinfection device, the waist cushion is pushed to slide on the inner wall of the sliding groove, when the waist cushion is at a proper height, the limiting rod is inserted into the adjacent clamping hole, so that the position of the waist cushion can be adjusted according to patients without body height and body shape, and the waist of the patient is effectively prevented from being in a suspended state; viruses in gas in the disinfection box are killed by the three ultraviolet lamp tubes, so that bacteria and viruses in the gas are prevented from being adhered to the surface of medical instruments, the interior of the disinfection box is heated by the heating pipe, and the heat is contacted with the surface of the medical instruments to disinfect the instruments used in the medical process, so that medical workers do not need to repeatedly carry the medical instruments to disinfect in the treatment process, and the labor amount of the medical workers is saved; the active carbon layers can effectively prevent the peculiar smell generated by virus killing from overflowing out of the treatment chair.

Drawings

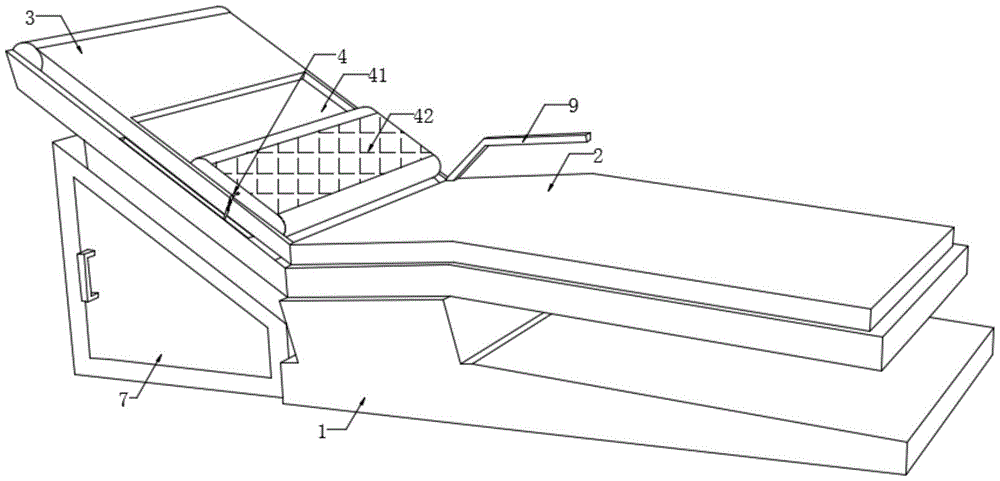

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic cross-sectional view of the present invention;

FIG. 3 is a schematic structural view of the present invention;

fig. 4 is an enlarged schematic view of the structure at a in fig. 3 according to the present invention.

In the figure: 1. a base; 2. a cushion; 3. backing up; 4. an adjustment assembly; 41. a chute; 42. Waist cushion; 43. a limiting groove; 44. a clamping rod; 45. a clamping hole; 46. a connecting rod; 47. a return spring; 48. a limiting rod; 5. a sterilizing assembly; 51. a sterilizing box; 52. an air-draft heat-dissipating fan; 53. heating a tube; 54. an ultraviolet lamp tube; 55. an instrument placement slot; 56. an elastic clip; 6. a temperature controller; 7. a box door; 8. heat dissipation holes; 9. a handrail; 11. a switch panel.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

Referring to fig. 1-4, the utility model provides a dental comprehensive treatment chair with a disinfection device, comprising a base 1, a cushion 2 is fixedly arranged at the top end of the base 1, a backrest 3 is fixedly arranged at one side of the cushion 2, an adjusting component 4 is arranged at one side of the top end of the backrest 3, the adjusting component 4 comprises a sliding chute 41, a waist cushion 42, a limiting groove 43, a plurality of clamping rods 44, a plurality of clamping holes 45, a connecting rod 46, a return spring 47 and a limiting rod 48, the sliding chute 41 is arranged at one side of the backrest 3, the inner wall of the sliding chute 41 is connected with the waist cushion 42 in a sliding manner, the limiting groove 43 is arranged at one side of the base 1, the inside of the limiting groove 43 is fixedly provided with a plurality of clamping rods 44 arranged at equal intervals, the middle parts of the plurality of clamping rods 44 are all provided with the clamping holes 45, the middle part of one side of the waist cushion 42 is fixedly provided with the connecting rod 46, one end of the connecting rod 46 is fixedly connected with the return spring 47, one end of the return spring 47 is fixedly connected with the limiting rod 48 matched with the plurality of the clamping holes 45, one side of the base 1 is fixedly provided with a disinfection box 51, a disinfection component 5 is fixedly arranged inside the disinfection box 51, the middle of the front surface of the disinfection box 51 is hinged with a box door 7, and the middle of the box door 7 is fixedly provided with a handle.

Preferably, the disinfecting assembly 5 comprises an air-draft type heat-radiating fan 52, a heating pipe 53, three ultraviolet lamp tubes 54, three instrument placing grooves 55 and six elastic clamping pieces 56, the air-draft type heat-radiating fan 52 is fixedly arranged on the back of the box door 7, the heating pipe 53 is fixedly arranged on one side inside the disinfecting box 51, the three ultraviolet lamp tubes 54 are fixedly arranged on the top end inside the disinfecting box 51 at equal intervals, the three instrument placing grooves 55 are arranged at the bottom end inside the disinfecting box 51 at equal intervals, the elastic clamping pieces 56 are fixedly arranged on two sides inside the three instrument placing grooves 55, a plurality of heat-radiating holes 8 are formed in the back of the disinfecting box 51, the gas inside the disinfecting box 51 is disinfected through the three ultraviolet lamp tubes 54, and the heat emitted by the heating pipe 53 disinfects the medical instruments in the three instrument placing grooves 55, so that the virus disinfection efficiency on the surface of the medical instruments is improved; the top end of one side of the sterilizing box 51 is fixedly provided with the temperature controller 6, a detection probe of the temperature controller 6 is fixedly arranged inside the sterilizing box 51, the air-draft type heat dissipation fan 52 is electrically connected with a power supply through the temperature controller 6, the air-draft type heat dissipation fan 52 is controlled to dissipate heat inside the sterilizing box 51 through the temperature controller 6, the medical staff is prevented from being scalded by heat generated after virus in the sterilizing box 51 is killed, and the medical staff can conveniently take and place medical instruments; an active carbon layer is fixedly arranged inside each of the heat dissipation holes 8, so that peculiar smell generated in the virus killing process is prevented from overflowing the inside of the disinfection box 51; one side of the top end of the cushion 2 is fixedly provided with an armrest 9, and the armrest 9 can save more labor when a patient uses the treatment chair; the surface of the waist cushion 42 is fixedly provided with a plurality of massage bumps, which is convenient for massaging the waist of the patient, and prevents the comfort of the patient from being reduced due to too long medical treatment time; the middle part of one side of the sterilizing box 51 is fixedly provided with a switch panel 11, the surface of the switch panel 11 is respectively provided with a heating tube switch and an ultraviolet lamp tube switch, the heating tube 53 and the three ultraviolet lamp tubes 54 are respectively electrically connected with a power supply through the heating tube switch and the ultraviolet lamp tube switch, and the heating tube 53 and the three ultraviolet lamp tubes 54 can be controlled by a worker conveniently.

When in specific use, the dental comprehensive treatment chair with the disinfection device comprises the following steps that firstly, the temperature range of a temperature controller 6 with the model of REX-C100 is set to be 30-40 ℃, the top end of a limiting rod 48 is pulled to separate the bottom end of the limiting rod 48 from one clamping hole 45, meanwhile, a reset spring 47 is compressed, then a patient sits at the top end of a cushion 2 and moves a waist cushion 42, when the waist cushion 42 moves to a proper position, the limiting rod 48 is inserted into the clamping holes 45 which are close to each other, the reset spring 47 resets to fix the waist cushion 42 at the waist of the patient, when medical care personnel need to disinfect the medical instruments in the process of treating the patient, a box door 7 is rotated through a handle, then three elastic clamping pieces 56 on the same side are buckled, the medical instruments are respectively placed in three instrument placing grooves 55, and the three elastic clamping pieces 56 reset to fix the medical instruments, then, the box door 7 is closed and the heating pipe switch and the ultraviolet lamp switch on the surface of the switch panel 11 are opened, the heating pipe 53 heats the inside of the sterilizing box 51, the light irradiated by the three ultraviolet lamps 54 sterilizes the virus inside the sterilizing box 51, so as to prevent the adhesion of the bacteria and virus in the gas inside the sterilizing box 51 on the surface of the medical apparatus, the heat inside the sterilizing box 51 sterilizes the apparatus inside the three apparatus placing grooves 55, the temperature controller 6 is opened after the virus sterilization is completed, the detection probe of the temperature controller 6 detects the temperature inside the sterilizing box 51, when the detection temperature is higher than 40 ℃, the temperature controller 6 controls the air-draft type heat dissipation fan 52 to dissipate heat inside the sterilizing box 51, and the heat flows out of the sterilizing box 51 through the plurality of heat dissipation holes 8.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a take degassing unit's dentistry comprehensive therapy chair, includes base (1), its characterized in that, the fixed cushion (2) that is equipped with in top of base (1), one side of cushion (2) is fixed to be equipped with back (3), spout (41) have been seted up to one side of back (3), the inner wall sliding connection of spout (41) has waist cushion (42), one side of back (3) is equipped with adjusting part (4), one side of base (1) is fixed to be equipped with disinfect box (51), the fixed disinfection subassembly (5) that are equipped with in inside of disinfect box (51), the positive middle part of disinfect box (51) articulates there is chamber door (7), the fixed handle that is equipped with in middle part of chamber door (7), fixed handrail (9) that are equipped with in one side on cushion (2) top.

2. The dental unit-therapy chair with a disinfection device as claimed in claim 1, wherein: adjusting part (4) include spout (41), waist cushion (42), spacing groove (43), a plurality of kelly (44), a plurality of card hole (45), connecting rod (46), reset spring (47) and gag lever post (48), spacing groove (43) are seted up one side of base (1), fixed kelly (44) that are equipped with a plurality of equidistance setting in inside of spacing groove (43), a plurality of card hole (45) have all been seted up at the middle part of kelly (44), the fixed connecting rod (46) that are equipped with in middle part of waist cushion (42) one side, the one end fixedly connected with reset spring (47) of connecting rod (46), the one end fixedly connected with and a plurality of card hole (45) assorted gag lever post (48) of reset spring (47).

3. The dental unit-therapy chair with a disinfection device as claimed in claim 1, wherein: disinfection subassembly (5) are including induced draft formula heat dissipation fan (52), heating pipe (53), three ultraviolet tube (54), three apparatus standing groove (55) and six elastic clamping piece (56), induced draft formula heat dissipation fan (52) are fixed to be set up at the back of chamber door (7), heating pipe (53) are fixed to be set up in the inside one side of disinfect box (51), and are three ultraviolet tube (54) are impartial apart from fixed setting on the inside top of disinfect box (51), and are three apparatus standing groove (55) are impartial apart from seting up in the inside bottom of disinfect box (51), and are three the inside both sides of apparatus standing groove (55) are all fixed and are equipped with elastic clamping piece (56), a plurality of louvre (8) have been seted up at the back of disinfect box (51).

4. A dental unit chair with a disinfection device as claimed in claim 3, characterized in that: the top of disinfect box (51) one side is fixed and is equipped with temperature controller (6), the fixed inside that sets up in disinfect box (51) of test probe of temperature controller (6), induced draft formula heat dissipation fan (52) are through temperature controller (6) and power electric connection.

5. A dental unit chair with a disinfection device as claimed in claim 3, characterized in that: and the inside of the heat dissipation holes (8) is fixedly provided with an activated carbon layer.

6. The dental unit-therapy chair with a disinfection device as claimed in claim 1, wherein: the surface of the waist cushion (42) is fixedly provided with a plurality of massage bumps.

7. A dental unit chair with a disinfection device as claimed in claim 3, characterized in that: the middle part of one side of the sterilizing box (51) is fixedly provided with a switch panel (11), the surface of the switch panel (11) is respectively provided with a heating pipe switch and an ultraviolet lamp tube switch, and the heating pipe (53) and the three ultraviolet lamp tubes (54) are respectively electrically connected with a power supply through the heating pipe switch and the ultraviolet lamp tube switch.
