CN215899980U - Animal husbandry animal doctor is with animal drenching medicine device

Info

Publication number: CN215899980U
Application number: CN202122049806.8U
Authority: CN
Inventors: 付明新; 斯庆脑日布; 李海燕; 其他发明人请求不公开姓名
Original assignee: Si Qingnaoribu
Current assignee: Si Qingnaoribu
Priority date: 2021-08-29
Filing date: 2021-08-29
Publication date: 2022-02-25
Anticipated expiration: 2031-08-29

Abstract

The utility model discloses a veterinary drug filling device for livestock and poultry, which comprises a shell, wherein a through hole is formed in one side of the top of an inner cavity of the shell, a drug storage tank is communicated with the top of the through hole, a drug inlet is formed in the top of the drug storage tank, a movable plate is movably connected with the inner cavity of the shell, a push rod is fixedly connected to the left side of the movable plate, a grab handle is fixedly connected to the left side of the bottom of the shell, and a drug outlet pipe is communicated with the right side of the shell. According to the utility model, through the arrangement of the first threaded rod, the connecting rod, the rotating handle, the gear, the second threaded rod, the threaded sleeve, the fixed rod and the ball, the mouth adjusting effect is achieved, the operation is convenient for a user, the working efficiency is greatly improved, the phenomenon that an animal bites workers in the medicine irrigation process is avoided, the quick medicine irrigation effect is achieved through the arrangement of the movable plate, the push rod, the fixed block and the spring, the working time is saved, and the working strength of the user is reduced.

Description

Animal husbandry animal doctor is with animal drenching medicine device

Technical Field

The utility model relates to the technical field of livestock breeding, in particular to an animal drenching device for livestock and poultry.

Background

The animal husbandry and veterinary profession culture has theories and technologies related to animal feed preparation, breeding technology, feeding management and epidemic disease diagnosis and control, can be used for high-grade skill type talents of livestock farm production technology and management, animal outpatient service, feed and veterinary drug marketing, and human beings obtain foods such as meat, milk, eggs and fat and light industrial raw materials such as skins, hairs, feathers and bones through livestock husbandry or animal husbandry, and support the planting industry by livestock service, animal manure and the like.

The animal need be treated with the drenching device when sick, and present drenching device does not possess the effect of strutting the animal mouth, takes place easily that the animal bites staff's phenomenon, causes very big injury to staff's health, simultaneously also greatly reduced the efficiency of work.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide an animal drenching device for livestock and poultry, which has the advantage of mouth adjustment and solves the problems that the traditional drenching device does not have the effect of opening the mouth of an animal, so that the phenomenon that the animal bites workers easily occurs, the body of the workers is greatly injured, and the working efficiency is greatly reduced.

In order to achieve the purpose, the utility model provides the following technical scheme: a drug filling device for animals for veterinary use comprises a shell, wherein a through hole is formed in one side of the top of an inner cavity of the shell, the top of the through hole is communicated with a drug storage tank, a drug inlet is formed in the top of the drug storage tank, a movable plate is movably connected to the inner cavity of the shell, a push rod is fixedly connected to the left side of the movable plate, a grab handle is fixedly connected to the left side of the bottom of the shell, a drug outlet pipe is communicated with the right side of the shell, a box body is fixedly connected to the right sides of the top and the bottom of the shell, a first threaded rod is connected to the inner cavity of the box body in a threaded manner, a connecting rod is fixedly connected to one side of the first threaded rod, a rotating handle is fixedly connected to the outer part of the box body in a penetrating manner, a gear is meshed with the surface of the first threaded rod, a second threaded rod is fixedly connected to the inner cavity of the gear, and a threaded sleeve is connected to the surface of the second threaded rod, one side of the threaded sleeve is fixedly connected with a fixing rod, and one side of the fixing rod penetrates through the external fixedly connected with ball of the box body.

Preferably, one side of the inner cavity of the box body is fixedly connected with a sliding rod, the other side of the threaded sleeve is fixedly connected with a sliding block, and the inner cavity of the sliding block is slidably connected to the surface of the sliding rod.

Preferably, the surface of the grab handle is sleeved with a rubber sleeve, and the inner cavity of the rubber sleeve is fixedly connected to the surface of the grab handle through an adhesive.

Preferably, the surface of the box body is movably connected with a box door through a hinge, and the surface of the shell is fixedly connected with a visual window.

Preferably, the top and the bottom on the left side of the movable plate are fixedly connected with fixing blocks, and one side of each fixing block is fixedly connected with a spring.

Preferably, one side fixedly connected with stopper of play pencil top and bottom, and the left side fixed connection of stopper in the right side of casing.

Compared with the prior art, the utility model has the following beneficial effects:

1. according to the utility model, through the arrangement of the first threaded rod, the connecting rod, the rotating handle, the gear, the second threaded rod, the threaded sleeve, the fixed rod and the ball, the mouth adjusting effect is achieved, the operation by a user is convenient, the working efficiency is greatly improved, the phenomenon that an animal bites workers in the medicine irrigation process is avoided, the quick medicine irrigation effect is achieved through the arrangement of the movable plate, the push rod, the fixed block and the spring, the working time is saved, the working strength of the user is reduced, meanwhile, the problem that the existing medicine irrigation device does not have the effect of propping open the mouth of the animal, the phenomenon that the animal bites the workers easily is solved, the body of the workers is greatly injured, and the working efficiency is greatly reduced.

2. The sliding rod is arranged to limit the sliding block, so that the vibration of the sliding block during operation is reduced, the stability of the sliding block is greatly improved, a user can conveniently maintain and repair the inner cavity of the box body through the arrangement of the box door, and the service life of the box body is prolonged.

Drawings

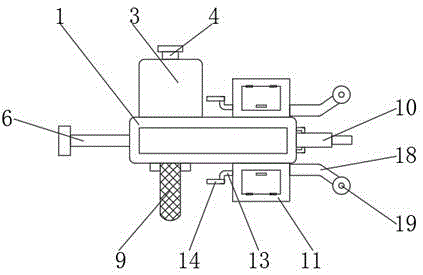

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a sectional view showing the internal structure of the case according to the present invention;

fig. 3 is a sectional view showing the internal structure of the case of the present invention.

In the figure: 1. a housing; 2. a through hole; 3. a medicine storage tank; 4. a medicine inlet; 5. a movable plate; 6. a push rod; 7. a fixed block; 8. a spring; 9. a handle; 10. a medicine outlet pipe; 11. a box body; 12. a first threaded rod; 13. a connecting rod; 14. turning a handle; 15. a gear; 16. a second threaded rod; 17. a threaded sleeve; 18. fixing the rod; 19. and (4) a ball.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.

In the description herein, it is to be understood that the terms "center," "upper," "lower," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings to facilitate the description of the patent and to simplify the description, but do not indicate or imply that the referenced device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus are not to be considered limiting of the patent. In the description of the present application, it should be noted that unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "disposed" are to be construed broadly and can, for example, be fixedly connected, disposed, detachably connected, disposed, or integrally connected and disposed. The specific meaning of the above terms in this patent may be understood by those of ordinary skill in the art as appropriate.

Referring to fig. 1-3, a drug filling device for livestock and poultry, comprises a housing 1, a through hole 2 is formed on one side of the top of an inner cavity of the housing 1, a drug storage tank 3 is communicated with the top of the through hole 2, a drug inlet 4 is formed on the top of the drug storage tank 3, a movable plate 5 is movably connected to the inner cavity of the housing 1, fixed blocks 7 are fixedly connected to the top and the bottom of the left side of the movable plate 5, a spring 8 is fixedly connected to one side of the fixed block 7, a push rod 6 is fixedly connected to the left side of the movable plate 5, a grab handle 9 is fixedly connected to the left side of the bottom of the housing 1, a rubber sleeve is sleeved on the surface of the grab handle 9, the inner cavity of the rubber sleeve is fixedly connected to the surface of the grab handle 9 through an adhesive, a drug outlet pipe 10 is communicated to the right side of the housing 1, limit blocks are fixedly connected to the top and one side of the bottom of the drug outlet pipe 10, the left side of the limit blocks is fixedly connected to the right side of the housing 1, a box body 11 is fixedly connected to the right side of the top and the bottom of the housing 1, the surface of the box body 11 is movably connected with a box door through a hinge, a user can conveniently maintain and repair the inner cavity of the box body 11 by arranging the box door, the service life of the box body 11 is prolonged, the surface of the shell 1 is fixedly connected with a visual window, one side of the inner cavity of the box body 11 is fixedly connected with a slide bar, the slide bar is limited by arranging the slide bar, the shake of the slide bar during operation is reduced, the stability of the slide bar is greatly increased, the other side of the thread sleeve 17 is fixedly connected with the slide bar, the inner cavity of the slide bar is connected with the surface of the slide bar in a sliding way, the inner cavity of the box body 11 is in threaded connection with a first threaded rod 12, one side of the first threaded rod 12 is fixedly connected with a connecting rod 13, one side of the connecting rod 13 penetrates through to the outer part of the box body 11 and is fixedly connected with a rotating handle 14, the surface of the first threaded rod 12 is engaged with a gear 15, the inner cavity of the gear 15 is fixedly connected with a second threaded rod 16, and the surface of the second threaded rod 16 is connected with the thread sleeve 17, one side of the threaded sleeve 17 is fixedly connected with a fixed rod 18, one side of the fixed rod 18 penetrates through the outer part of the box body 11 and is fixedly connected with a round ball 19, through the arrangement of the first threaded rod 12, the connecting rod 13, the rotating handle 14, the gear 15, the second threaded rod 16, the threaded sleeve 17, the fixed rod 18 and the round ball 19, the mouth adjusting effect is achieved, the operation is convenient for a user, the working efficiency is greatly improved, the phenomenon that the worker is bitten by animals in the medicine irrigation process is avoided, through the arrangement of the movable plate 5, the push rod 6, the fixed block 7 and the spring 8, the effect of fast filling the medicine is achieved, the working time is saved, the working intensity of a user is reduced, simultaneously solves the problems that the prior drenching device does not have the effect of opening the mouth of the animal and is easy to bite workers by the animal, causing great harm to the body of the working personnel and greatly reducing the working efficiency.

All the components in the utility model are universal standard components or components known by those skilled in the art, the structure and principle of the components can be known by technical manuals or conventional experimental methods, meanwhile, the standard components used in the application document can be purchased from the market, the components in the application document can be customized according to the description of the specification and the accompanying drawings, the specific connection mode of each component adopts the conventional means of mature bolts, rivets, welding and the like in the prior art, the machinery, the components and equipment adopt the conventional models in the prior art, the control mode is automatically controlled through a controller, the control circuit of the controller can be realized through simple programming of those skilled in the art, the components belong to the common knowledge in the art, and the application document is mainly used for protecting mechanical devices, so the detailed explanation of the control mode and circuit connection is omitted, no specific description will be made herein.

When in use, firstly, a user conveys the medicine to the inner cavity of the medicine storage tank 3 through the medicine inlet 4, secondly, the medicine is conveyed to the inner cavity of the through hole 2 through the medicine storage tank 3, the medicine is conveyed to the inner cavity of the shell 1 through the through hole 2, the user places the fixing rod 18 and the round ball 19 in the oral cavity of an animal, then the rotating handle 14 is rotated, the connecting rod 13 is driven to rotate through the rotating handle 14, the first threaded rod 12 is driven to rotate through the connecting rod 13, the gear 15 is driven to rotate through the first threaded rod 12, the second threaded rod 16 is driven to rotate through the gear 15, the threaded sleeve 17 is driven to move through the second threaded rod 16 under the matching of the sliding rod and the sliding groove, the fixing rod 18 is driven to move through the threaded sleeve 17, the round ball 19 is driven to move through the fixing rod 18, the movement is stopped when the medicine is moved to a proper position, and finally, the user pushes the push rod 6, the push rod 6 drives the movable plate 5 to move to one side under the matching of the fixed block 7 and the spring 8, the medicine liquid is conveyed to the inner cavity of the medicine outlet pipe 10 through the movable plate 5, and the medicine liquid is conveyed to the oral cavity of the animal through the medicine outlet pipe 10.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a poultry animal doctor is with animal drenching medicine device, includes casing (1), its characterized in that: the medicine storage tank is characterized in that a through hole (2) is formed in one side of the top of an inner cavity of the shell (1), a medicine storage tank (3) is communicated with the top of the through hole (2), a medicine inlet (4) is formed in the top of the medicine storage tank (3), a movable plate (5) is movably connected to the inner cavity of the shell (1), a push rod (6) is fixedly connected to the left side of the movable plate (5), a grab handle (9) is fixedly connected to the left side of the bottom of the shell (1), a medicine outlet pipe (10) is communicated with the right side of the shell (1), a box body (11) is fixedly connected to the top and the right side of the bottom of the shell (1), a first threaded rod (12) is connected to the inner cavity of the box body (11) in a threaded manner, a connecting rod (13) is fixedly connected to one side of the first threaded rod (12), a rotating handle (14) is fixedly connected to the outer portion of the box body (11) in a manner, one side of the connecting rod (13), the surface meshing of first threaded rod (12) has gear (15), the inner chamber fixedly connected with second threaded rod (16) of gear (15), the surperficial threaded connection of second threaded rod (16) has thread bush (17), one side fixedly connected with dead lever (18) of thread bush (17), one side of dead lever (18) is run through to outside fixedly connected with ball (19) of box (11).

2. The animal husbandry and veterinary animal watering device according to claim 1, characterized in that: one side of the inner cavity of the box body (11) is fixedly connected with a sliding rod, the other side of the threaded sleeve (17) is fixedly connected with a sliding block, and the inner cavity of the sliding block is connected to the surface of the sliding rod in a sliding mode.

3. The animal husbandry and veterinary animal watering device according to claim 1, characterized in that: the surface of the grab handle (9) is sleeved with a rubber sleeve, and the inner cavity of the rubber sleeve is fixedly connected to the surface of the grab handle (9) through an adhesive.

4. The animal husbandry and veterinary animal watering device according to claim 1, characterized in that: the surface of the box body (11) is movably connected with a box door through a hinge, and the surface of the shell body (1) is fixedly connected with a visual window.

5. The animal husbandry and veterinary animal watering device according to claim 1, characterized in that: the top and the bottom on the left side of the movable plate (5) are fixedly connected with fixing blocks (7), and one side of each fixing block (7) is fixedly connected with a spring (8).

6. The animal husbandry and veterinary animal watering device according to claim 1, characterized in that: go out one side fixedly connected with stopper of pencil (10) top and bottom, and the left side fixed connection of stopper in the right side of casing (1).
