Abstract
本实用新型涉及升降平台技术领域，且公开了一种智能建造用施工升降平台，解决了目前市场上现有的建造用施工升降平台将物料输送至一定高度后，升降平台与装卸平台之间存在一定的距离，使得施工人员在高空作业时容易受到限制，不便于施工的问题，其包括安装底座和升降装置，所述升降装置安装于安装底座的顶端，升降装置的顶端安装有升降平台，升降平台的顶端两侧对称安装有第一护栏；通过设置有正反电机、丝杆、第一开槽和第二开槽等各组件，能够实现移动板和第三护栏的同时移出，即当物料输送到一定高度后，可以通过将移动板和第三护栏移出而起到一个承接的作用，便于施工人员对物料进行装卸，有利于施工的进行。
The utility model relates to the technical field of lifting platforms, and discloses a construction lifting platform for intelligent construction, which solves the problem of the existing construction lifting platforms on the market currently transporting materials to a certain height, and the existence of existing between the lifting platform and the loading and unloading platform is solved. A certain distance makes it easy for construction personnel to be restricted when working at heights, which is inconvenient for construction. It includes an installation base and a lifting device. The lifting device is installed on the top of the installation base, and a lifting platform is installed on the top of the lifting device. A first guardrail is installed symmetrically on both sides of the top of the platform; by arranging components such as a positive and negative motor, a screw, a first slot and a second slot, the moving plate and the third guardrail can be moved out at the same time, that is, when the material After conveying to a certain height, it can play a role of undertaking by removing the moving plate and the third guardrail, which is convenient for the construction personnel to load and unload the materials, which is conducive to the construction.
Description
Technical Field
The utility model belongs to the technical field of lifting platforms, and particularly relates to a construction lifting platform for intelligent construction.
Background
Various materials and tools such as bricks, concrete, shovel blades and the like are needed in the building construction process; the lifting platform is a multifunctional hoisting loading and unloading mechanical device, which can be divided into a fixed type and a movable type, wherein the movable type is divided into straight arm type, crank arm type, scissor type, telescopic cylinder type, mast type and other aluminum alloy lifting platforms, and the fixed type comprises a scissor type lifting platform, a guide rail type lifting platform, a chain type lifting platform, a loading and unloading platform, an attached type electric construction platform and the like.
The construction that has now on the market carries the material to the take the altitude after with construction lift platform, has certain distance between lift platform and the loading platform for constructor receives the restriction when high altitude construction easily, is not convenient for construct.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model provides the construction lifting platform for intelligent construction, which effectively solves the problems that after the existing construction lifting platform for construction in the market in the background art conveys materials to a certain height, a certain distance exists between the lifting platform and the loading and unloading platform, so that constructors are easily limited during aloft work and are inconvenient to construct.
In order to achieve the purpose, the utility model provides the following technical scheme: the utility model provides a construction lift platform is used in intelligence construction, including installation base and elevating gear, elevating gear installs in the top of installation base, elevating platform is installed on elevating gear's top, first guardrail is installed to elevating platform's top bilateral symmetry, the second guardrail is installed to one side of first guardrail, the bottom and the lift platform's of second guardrail top are connected, the protection door body is installed to the opposite side of first guardrail, first fluting has been seted up to the base and the side of first guardrail, the second fluting has been seted up at one side middle part of lift platform, first fluting switches on with the second fluting mutually, install auxiliary assembly in the first fluting.
Preferably, the auxiliary assembly comprises a moving plate installed in the second groove, connecting plates are symmetrically installed on two sides of the top end of the moving plate, a thread groove is formed in the middle of each connecting plate, and a third guardrail is installed on the top end of each connecting plate.
Preferably, the thread groove is internally provided with a screw rod meshed with the thread groove, and one end of the screw rod penetrating through the lifting platform is provided with a first belt pulley.
Preferably, a second belt pulley is installed on one side of the first belt pulley, a rotating shaft at one end of the second belt pulley is connected with the outer wall of the lifting platform, a third belt pulley is installed at the other end of the second belt pulley, a positive and negative motor is installed at one end of the third belt pulley, a fixing rod is installed at the bottom end of the positive and negative motor, and the fixing rod is connected with the outer wall of the lifting platform.
Preferably, the second belt pulley is connected with one of the first belt pulleys through a first belt, and the third belt pulley is connected with the other first belt pulley through a second belt.
Preferably, the first guardrail comprises a rectangular mounting frame mounted at the top end of the lifting platform, guardrail rods are symmetrically mounted in the rectangular mounting frame at equal intervals, and the third guardrail is mounted between the two groups of guardrail rods.
Compared with the prior art, the utility model has the beneficial effects that:
(1) during work, the forward and reverse motors, the screw rod, the first groove, the second groove and other components are arranged, so that the movable plate and the third guardrail can be moved out simultaneously, namely after materials are conveyed to a certain height, the movable plate and the third guardrail can be moved out to play a bearing role, so that constructors can conveniently load and unload the materials, and construction is facilitated;
(2) the lateral movement of movable plate and third guardrail provides driving force, and the driving mode makes the removal of movable plate and third guardrail comparatively stable, is favorable to going on of material loading and unloading through being provided with each subassembly such as first belt pulley, second belt pulley, third belt pulley and first belt.
Drawings
The accompanying drawings, which are included to provide a further understanding of the utility model and are incorporated in and constitute a part of this specification, illustrate embodiments of the utility model and together with the description serve to explain the principles of the utility model and not to limit the utility model.
In the drawings:

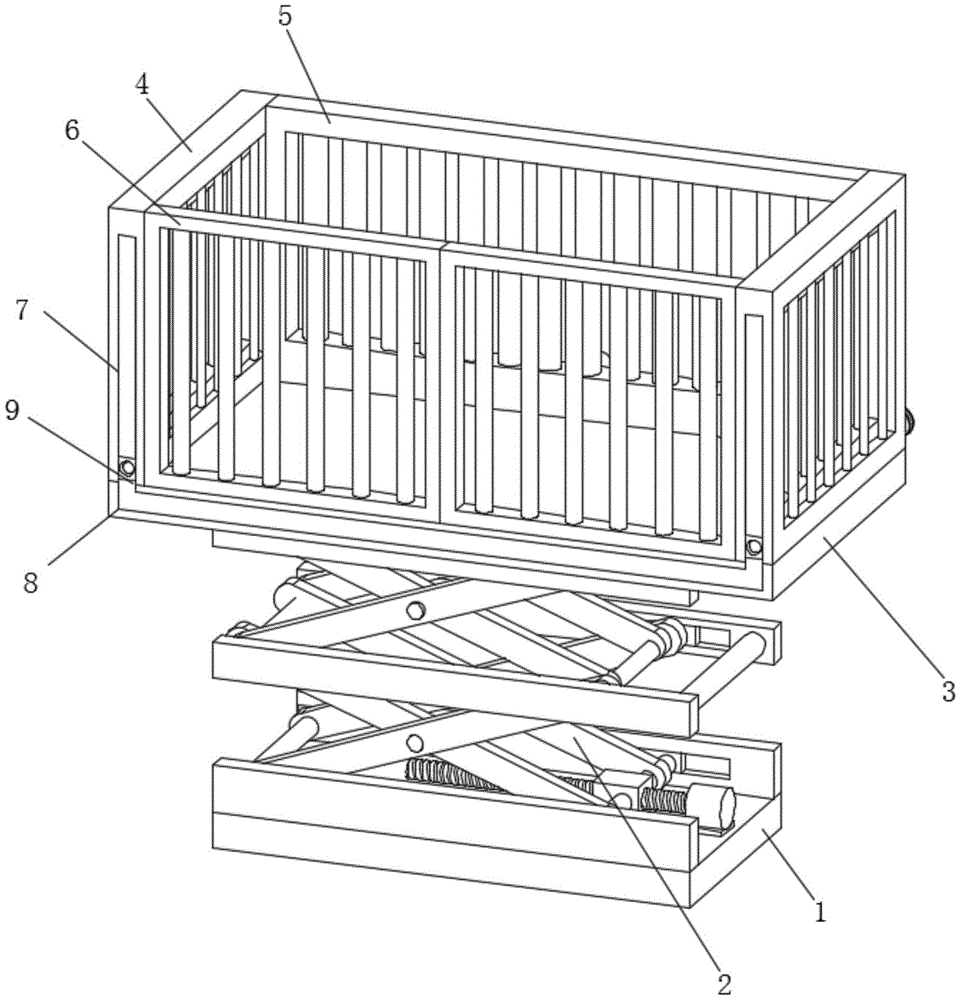

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of a second guardrail mounting structure of the present invention;
FIG. 3 is a schematic view of the auxiliary assembly of the present invention;
FIG. 4 is a schematic view of a lead screw structure according to the present invention;
fig. 5 is a schematic view of a first guard rail installation structure of the present invention.
In the figure: 1. installing a base; 2. a lifting device; 3. a lifting platform; 4. a first guardrail; 5. a second guard rail; 6. a protective door body; 7. a first slot; 8. a second slot; 9. an auxiliary component; 10. moving the plate; 11. a connecting plate; 12. a third guardrail; 13. a screw rod; 14. a first pulley; 15. a second pulley; 16. a third belt pulley; 17. a positive and negative motor; 18. a first belt; 19. a second belt; 20. a rectangular mounting bracket; 21. guard rails; 22. a thread groove.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments; all other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In a first embodiment, as shown in fig. 1 to 5, the utility model includes an installation base 1 and a lifting device 2, the lifting device 2 is installed at the top end of the installation base 1, a lifting platform 3 is installed at the top end of the lifting device 2, first guardrails 4 are symmetrically installed on two sides of the top end of the lifting platform 3, a second guardrail 5 is installed on one side of the first guardrail 4, the bottom end of the second guardrail 5 is connected with the top end of the lifting platform 3, a protective door body 6 is installed on the other side of the first guardrail 4, first slots 7 are formed in the bottom edge and the side edge of the first guardrail 4, a second slot 8 is formed in the middle of one side of the lifting platform 3, the first slot 7 is communicated with the second slot 8, and an auxiliary assembly 9 is installed in the first slot 7.
In the second embodiment, on the basis of the first embodiment, the auxiliary assembly 9 includes a moving plate 10 installed in the second slot 8, connecting plates 11 are symmetrically installed on two sides of the top end of the moving plate 10, a threaded groove 22 is formed in the middle of the connecting plate 11, a third guardrail 12 is installed on the top end of the connecting plate 11, the first guardrail 4 includes a rectangular installation frame 20 installed on the top end of the lifting platform 3, guardrail bars 21 are symmetrically installed in the rectangular installation frame 20 at equal intervals, the third guardrail 12 is installed between two groups of guardrail bars 21, a screw rod 13 engaged with the threaded groove 22 is installed in a threaded manner, a first belt pulley 14 is installed at one end of the screw rod 13 penetrating through the lifting platform 3, a second belt pulley 15 is installed at one side of the first belt pulley 14, a rotating shaft at one end of the second belt pulley 15 is connected with the outer wall of the lifting platform 3, a third belt pulley 16 is installed at the other end of the second belt pulley 15, a positive and negative motor 17 is installed at one end of the third belt pulley 16, a fixed rod is installed at the bottom end of the positive and negative motor 17 and connected with the outer wall of the lifting platform 3, the second belt pulley 15 is connected with one first belt pulley 14 through a first belt 18, and the third belt pulley 16 is connected with the other first belt pulley 14 through a second belt 19;
when a user needs to convey high-altitude materials, the user only needs to place the materials in the lifting platform 3, then the lifting device 2 is started, the lifting device 2 conveys the materials to a required height, then the forward and reverse motor 17 is started, the rotation of the forward and reverse motor 17 drives the third belt pulley 16 and the second belt pulley 15 to rotate, the third belt pulley 16 and the second belt pulley 15 drive the first belt pulley 14 to rotate through the first belt 18 and the second belt 19, the rotation of the first belt pulley 14 drives the screw rod 13 to rotate, due to the arrangement of the first slot 7 and the second slot 8, the rotation of the screw rod 13 drives the connecting plate 11 to move, the moving plate 11 drives the moving plate 10 and the third guardrail 12 to move out laterally until the moving plate 10 and the third guardrail 12 move to required bearing positions, then a constructor can unload the materials, and after unloading is completed, the forward and reverse motor 17 is started to rotate reversely, the moving plate 10 and the third guard rail 12 are reset.
The working principle is as follows: when the high-altitude material conveying device works, when a user needs to convey high-altitude materials, the user only needs to place the materials in the lifting platform 3, then the lifting device 2 is started, the lifting device 2 conveys the materials to a required height, then the forward and reverse motor 17 is started, the forward and reverse motor 17 rotates to drive the third belt pulley 16 and the second belt pulley 15 to rotate, the third belt pulley 16 and the second belt pulley 15 drive the first belt pulley 14 to rotate through the first belt 18 and the second belt 19, the first belt pulley 14 rotates to drive the screw rod 13 to rotate, due to the arrangement of the first slot 7 and the second slot 8, the screw rod 13 rotates to drive the connecting plate 11 to move, the connecting plate 11 moves to drive the moving plate 10 and the third guardrail 12 to move out laterally until the moving plate 10 and the third guardrail 12 move to required bearing positions, then constructors unload the materials, and after unloading is completed, the forward and reverse motor 17 is started to rotate reversely, the moving plate 10 and the third guard rail 12 are reset.
Claims (6)
