Abstract
The utility model discloses a circulating water cooling device for an injection mold, and relates to the technical field of injection mold cooling. This circulating water cooling device for injection mold, including mount table, cooling body, injection mold mechanism and discharge mechanism, the top fixed mounting of mount table has the second mould, and two sets of holes have been seted up to the bottom of second mould, and two sets of holes have been seted up at the top of mount table, and the inboard fixed mounting of mount table has the mounting panel. This circulating water cooling device for injection mold can collect the water that absorbs the heat in cooling water tank, when treating that the water tank internal water will take out to the greatest extent, the start-up of valve is controlled again, turns on the water in the water tank, makes the product cold even, the easy ejection of compact, reduction in production cost improves product quality, can be through the flexible of spring, to the product drawing of patterns, the product is released to first mould lift control push rod, carries out the ejection of compact to the product, reduces artificial intervention, reduces the potential safety hazard, improves work efficiency.
Description
Technical Field
The utility model relates to the technical field of cooling of injection molds, in particular to a circulating water cooling device for an injection mold.
Background
At present, when the circulating water cooling device of the injection mold on the market is cooled, the cooling is uneven, the production efficiency is reduced, the demolding is difficult or the demolding fails, the production cost is improved, the production resources are wasted, manual discharging is needed, and potential safety hazards exist.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve at least one technical problem in the prior art, and provides a circulating water cooling device for an injection mold, which can solve the problems of low production efficiency, high production cost and potential safety hazard.
In order to achieve the purpose, the utility model provides the following technical scheme: a circulating water cooling device for an injection mold comprises an installation table, a cooling mechanism, an injection molding mechanism and a discharging mechanism, wherein a second mold is fixedly installed at the top of the installation table, two groups of holes are formed in the bottom of the second mold, two groups of holes are formed in the top of the installation table, and an installation plate is fixedly installed on the inner side of the installation table;
the cooling mechanism is arranged at the bottom of the mounting platform, a water tank is fixedly mounted at the top of the mounting plate, a water pump is fixedly mounted at the top of the water tank, a cooling water tank is fixedly mounted on the inner side of the mounting platform, and another group of water pumps is fixedly mounted at the top of the cooling water tank;
the injection molding mechanism is arranged at the top of the mounting table and is positioned above the cooling mechanism;
and the discharging mechanism is arranged at the top of the mounting table and is positioned above the second die.
Preferably, the cooling mechanism comprises a water tank, a water pump, a refrigerator, a cooling water tank, a valve and a water guide pipe, a water inlet is arranged on the outer side of the water tank, a water inlet pipeline is fixedly arranged in the water inlet, a knob is fixedly arranged at one end of the water inlet pipeline, a water outlet is arranged on the outer side of the water tank, a water outlet pipeline is fixedly arranged in the water outlet, one end of the water outlet pipeline is fixedly connected with the input end of the water pump, the output end of the water pump is fixedly connected with a water inlet pipeline, the water inlet pipeline penetrates through a group of holes and is fixedly arranged in the group of holes to be communicated with the inside of the second mold, a water inlet hole is arranged at the top of the water tank, a water guide pipe is fixedly arranged in the water inlet hole, a refrigerator is fixedly arranged in the water inlet hole, a water outlet hole is arranged at the bottom of the cooling water tank, and a water inlet hole is arranged at the top of the water guide pipe fixedly connected with the water outlet hole, go into water entrance to a cave internal fixation and have the pipeline, the output fixed connection pipeline of another group water pump, the input fixedly connected with of another group water pump pipeline that draws water, the pipeline that draws water passes another group entrance to a cave and fixed connection link up with the second mould is inside in another group hole, fixed mounting has the valve on the outer wall of aqueduct, can collect the water that absorbs the heat in cooling water tank, treat when the water tank internal water will take out to the greatest extent, the start-up of valve is controlled again, drains in to the water tank.
Preferably, the injection molding mechanism comprises a mounting frame, a cylinder, a telescopic rod, a first mold and a second mold, the mounting frame is fixedly mounted at the top of the mounting frame, the cylinder is fixedly mounted at the top of the mounting frame, a perforation is formed in the top of the mounting frame, the free end of the cylinder penetrates through the perforation and the telescopic rod is fixedly mounted at the free end of the cylinder, the first mold is fixedly mounted at the bottom of the telescopic rod, the second mold is fixedly mounted at the top of the mounting frame, the working efficiency is improved, the structure is simple, the use is convenient, the practicability is high, and the popularization and the use are facilitated.
Preferably, discharge mechanism includes the spring, the push pedal, the roof, the connecting rod, the push rod, installation pole and deflector, the bottom fixed mounting of first mould has two sets of springs, the bottom fixed mounting of two sets of springs has the push pedal, the top fixed mounting of mount table has another two sets of springs, the top fixed mounting of spring has the roof, circular entrance to a cave has been seted up at the top of roof, the roof overlaps on the outer wall of second mould through circular entrance to a cave, the top fixed mounting of mount table has the installation pole, the top fixed mounting of installation pole has the deflector, the rectangle entrance to a cave has been seted up in the outside of deflector, pass the push rod in the rectangle entrance to a cave, the articulated connecting rod of installing in the outside of first mould, the connecting rod is installed with the push rod is articulated, can be through the flexible of spring, to the product drawing of patterns, the product is released to first mould lift control push rod, carry out the material to the product.
Preferably, the outside of push pedal and the inboard laminating of first mould, the inboard laminating of the inboard and the outside of second mould of roof, the connecting rod is the slope setting, reduces artificial intervention, reduces the potential safety hazard.
Preferably, the inside hollow cavity that is provided with of second mould, the bottom of push rod and the top laminating of second mould make the product catch a cold evenly, the ejection of compact easily, reduction in production cost improves product quality.
Compared with the prior art, the utility model has the beneficial effects that:
(1) this circulating water cooling device for injection mold uses through the cooperation of water tank, water pump, refrigerator, coolant tank, valve and aqueduct, can collect the water that absorbs the heat in coolant tank, treats that the water tank water-logging will take out when to the greatest extent, and the start-up of valve is controlled again, drains in to the water tank, makes the product receive cold evenly, and easy ejection of compact reduces manufacturing cost, improves product quality.
(2) This circulating water cooling device for injection mold uses through the cooperation of mounting bracket, cylinder, telescopic link, first mould, second mould and, can release the product through the flexible of spring to the product drawing of patterns, first mould lift control push rod, carries out the ejection of compact to the product, reduces artificial intervention, reduces the potential safety hazard, improves work efficiency, simple structure, and convenient to use, the practicality is strong, is favorable to promoting and using.
Drawings
The utility model is further illustrated with reference to the following figures and examples:

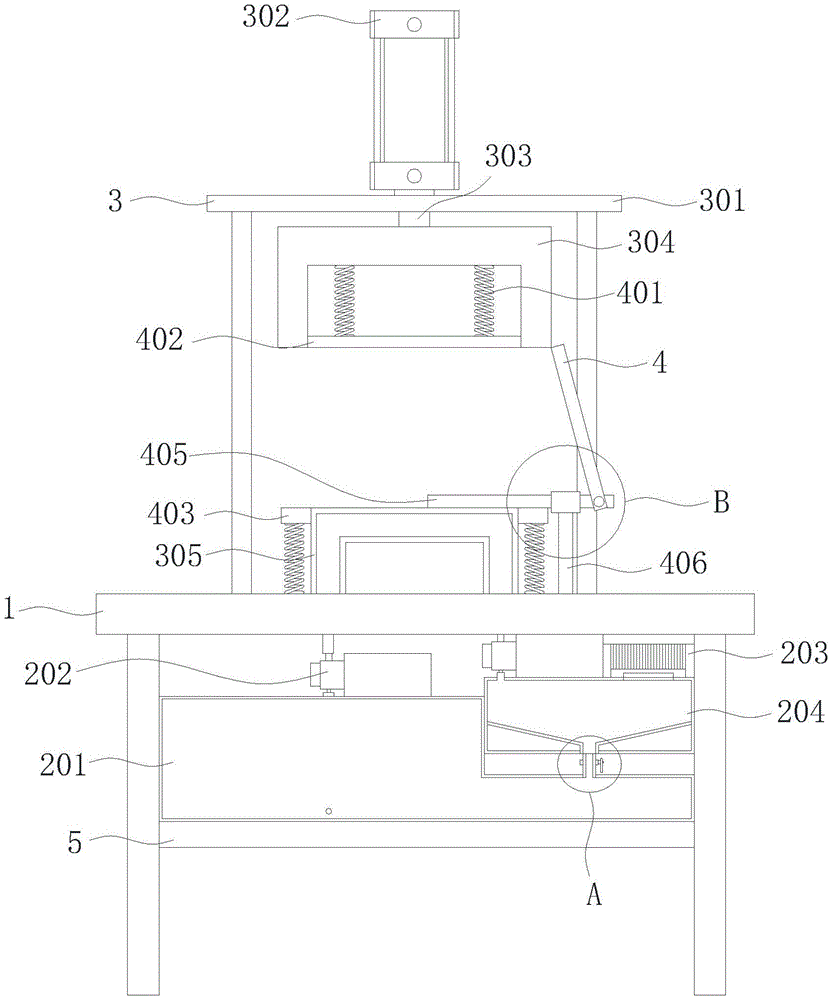

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an enlarged view of portion A of the present invention;
FIG. 3 is an enlarged view of the portion B of the present invention.
Reference numerals: the device comprises a mounting table 1, a cooling mechanism 2, a water tank 201, a water pump 202, a refrigerator 203, a cooling water tank 204, a valve 205, a water guide pipe 206, an injection molding mechanism 3, a mounting frame 301, a cylinder 302, an expansion rod 303, a first mold 304, a second mold 305, a discharging mechanism 4, a spring 401, a push plate 402, a top plate 403, a connecting rod 404, a push rod 405, a mounting rod 406, a guide plate 407 and a mounting plate 5.
Detailed Description
Reference will now be made in detail to the present preferred embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to like elements throughout.
In the description of the present invention, it should be understood that the orientation or positional relationship referred to in the description of the orientation, such as the upper, lower, front, rear, left, right, etc., is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention.
In the description of the present invention, greater than, less than, exceeding, etc. are understood as excluding the present numbers, and the above, below, inside, etc. are understood as including the present numbers. If the first and second are described for the purpose of distinguishing technical features, they are not to be understood as indicating or implying relative importance or implicitly indicating the number of technical features indicated or implicitly indicating the precedence of the technical features indicated.
In the description of the present invention, unless otherwise explicitly limited, terms such as arrangement, installation, connection and the like should be understood in a broad sense, and those skilled in the art can reasonably determine the specific meanings of the above terms in the present invention in combination with the specific contents of the technical solutions.
The first embodiment is as follows:
referring to fig. 1-3, the present invention provides a technical solution: a circulating water cooling device for an injection mold comprises an installation platform 1, a cooling mechanism 2, an injection molding mechanism 3 and a discharging mechanism 4, wherein a second mold 305 is fixedly installed at the top of the installation platform 1, two groups of holes are formed in the bottom of the second mold 305, two groups of holes are formed in the top of the installation platform 1, and an installation plate 5 is fixedly installed on the inner side of the installation platform 1; the cooling mechanism 2 is arranged at the bottom of the mounting platform 1, the top of the mounting plate 5 is fixedly provided with a water tank 201, the top of the water tank 201 is fixedly provided with a water pump 202, the inner side of the mounting platform 1 is fixedly provided with a cooling water tank 204, and the top of the cooling water tank 204 is fixedly provided with another group of water pumps 202; the injection molding mechanism 3 is arranged at the top of the mounting table 1 and is positioned above the cooling mechanism 2; the discharging mechanism 4 is disposed on the top of the mounting table 1 and above the second mold 305.
Further, the cooling mechanism 2 includes a water tank 201, a water pump 202, a refrigerator 203, a cooling water tank 204, a valve 205 and a water guide pipe 206, a water inlet is disposed at an outer side of the water tank 201, a water inlet pipe is fixedly mounted in the water inlet, a knob is fixedly mounted at one end of the water inlet pipe, a water outlet is disposed at an outer side of the water tank 201, a water outlet pipe is fixedly mounted in the water outlet, one end of the water outlet pipe is fixedly connected to an input end of the water pump 202, an output end of the water pump 202 is fixedly connected to a water inlet pipe, the water inlet pipe penetrates through a group of holes and is fixedly mounted in the group of holes to be communicated with the inside of the second mold 305, a water inlet hole is disposed at a top of the water tank 201, a water guide pipe 206 is fixedly mounted in the water inlet hole, a water inlet is disposed at a top of the cooling water tank 204, the refrigerator 203 is fixedly mounted in the water inlet hole, a water outlet is disposed at a bottom of the cooling water guide pipe 204, go into water entrance to a cave internal fixation and have the pipeline, another group's water pump 202 output fixed connection pipeline, another group's water pump 202 input fixedly connected with pipeline that draws water, the pipeline that draws water passes another group entrance to a cave and fixed connection link up with second mould 305 is inside in another group hole, fixed mounting has valve 205 on the outer wall of aqueduct 206, can collect the water that absorbs the heat in cooling water tank 204, treat that the water in the water tank 201 will be taken out to the greatest extent, the start-up of valve 205 is controlled again, the water of draining in to the water tank 201.
Example two:
please refer to fig. 1-3, on the basis of the first embodiment, the injection molding mechanism 3 includes a mounting frame 301, 3023, an expansion link 303, a cylinder 302, a first mold 304 and a second mold 305, the top fixed mounting of the mounting table 1 has the mounting frame 301, the top fixed mounting of the mounting frame 301 has the cylinder 302, the top of the mounting frame 301 has been provided with a through hole, the free end of the cylinder 302 passes through the through hole and is fixedly provided with the expansion link 303, the bottom fixed mounting of the expansion link 303 has the first mold 304, the top fixed mounting of the mounting table 1 has the second mold 305, the work efficiency is improved, the structure is simple, the use is convenient, the practicability is strong, and the popularization and the use are facilitated.
Further, the discharging mechanism 4 comprises springs 401, a push plate 402, a top plate 403, connecting rods 404, a push rod 405, mounting rods 406 and guide plates 407, two groups of springs 401 are fixedly mounted at the bottom of the first mold 304, the push plate 402 is fixedly mounted at the bottom of the two groups of springs 401, another two groups of springs 401 are fixedly mounted at the top of the mounting table 1, the top of the springs 401 is fixedly mounted with the top plate 403, a circular hole is formed at the top of the top plate 403, the top plate 403 is sleeved on the outer wall of the second mold 305 through the circular hole, the mounting rods 406 are fixedly mounted at the top of the mounting table 1, the guide plates 407 are fixedly mounted at the top of the mounting rods 406, rectangular holes are formed at the outer sides of the guide plates 407, the push rods 405 penetrate through the rectangular holes, the connecting rods 404 are hinged to the outer side of the first mold 304, the connecting rods 404 are hinged to the push rods 405, and can demould products through the extension and retraction of the springs 401, the first mold 304 is lifted to control the push rod 405 to push out the product, so as to discharge the product.
Still further, the outer side of the push plate 402 is attached to the inner side of the first mold 304, the inner side of the top plate 403 is attached to the outer side of the second mold 305, and the connecting rod 404 is obliquely arranged, so that manual intervention is reduced, and potential safety hazards are reduced.
Furthermore, a hollow cavity is arranged inside the second mold 305, and the bottom of the push rod 405 is attached to the top of the second mold 305, so that the product is cooled uniformly, the material is discharged easily, the production cost is reduced, and the product quality is improved.
The working principle is as follows: rotating a knob to fill water into the water tank 201, controlling the starting of the water pump 202, pumping out water in the water tank 201 by the water pump 202, conveying the water into the second mold 305 through a water outlet pipeline and a water inlet pipeline, cooling the outer side of the second mold 305, controlling the starting of the air cylinder 302, freely lifting the air cylinder 302 to drive the first mold 304 to descend, simultaneously moving one end of a push rod 405 to the outer side of a top plate 403, descending the first mold 304 to be attached to the top of the top plate 403, compressing a spring 401, performing injection molding on the mold, cooling the water in the second mold 305 by the water in the second mold 305, controlling the starting of the other group of water pumps 202, pumping out the water which absorbs heat in the second mold 305 by the water pump 202, conveying the water into the cooling water tank 204 through a water pumping pipeline and a pipeline, controlling the starting of the refrigerator 203, cooling the water in the cooling water tank 204, and controlling the opening of a valve 205 when the water in the water tank 201 is pumped out, discharging water into the water tank 201, cooling the outer side of the second die 305 in a circulating manner, controlling the free lifting of the air cylinder 302, lifting the first die 304, rebounding the spring 401, demolding the product, moving the push rod 405, ejecting the product and discharging the product.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the above embodiments, and various changes can be made within the knowledge of those skilled in the art without departing from the gist of the present invention.
Claims (6)
1. The utility model provides a circulating water cooling device for injection mold, includes mount table (1), cooling body (2), injection molding machine constructs (3) and discharge mechanism (4), its characterized in that: a second die (305) is fixedly installed at the top of the installation table (1), two groups of holes are formed in the bottom of the second die (305), two groups of holes are formed in the top of the installation table (1), and an installation plate (5) is fixedly installed on the inner side of the installation table (1);
the cooling mechanism (2) is arranged at the bottom of the mounting platform (1), the top of the mounting plate (5) is fixedly provided with a water tank (201), the top of the water tank (201) is fixedly provided with a water pump (202), the inner side of the mounting platform (1) is fixedly provided with a cooling water tank (204), and the top of the cooling water tank (204) is fixedly provided with another group of water pumps (202);
the injection molding mechanism (3) is arranged at the top of the mounting table (1) and is positioned above the cooling mechanism (2);
and the discharging mechanism (4) is arranged at the top of the mounting table (1) and is positioned above the second die (305).
2. The circulating water cooling device for the injection mold according to claim 1, characterized in that: the cooling mechanism (2) comprises a water tank (201), a water pump (202), a refrigerator (203), a cooling water tank (204), a valve (205) and a water guide pipe (206), wherein a water inlet is formed in the outer side of the water tank (201), a water inlet pipeline is fixedly installed in the water inlet, a knob is fixedly installed at one end of the water inlet pipeline, a water outlet is formed in the outer side of the water tank (201), a water outlet pipeline is fixedly installed in the water outlet pipeline, one end of the water outlet pipeline is fixedly connected with the input end of the water pump (202), the output end of the water pump (202) is fixedly connected with a water inlet pipeline, the water inlet pipeline penetrates through a group of holes and is fixedly installed in the group of holes to be communicated with the inside of a second mold (305), a water inlet hole is formed in the top of the water tank (201), the water guide pipe (206) is fixedly installed in the water inlet hole, an air inlet is formed in the top of the cooling water tank (204), and the refrigerator (203) is fixedly installed in the air inlet hole, the apopore has been seted up to the bottom of coolant tank (204), the entrance to water entrance to a cave has been seted up at the top of the one end fixed connection apopore coolant tank (204) of aqueduct (206), fixed mounting has the pipeline in the entrance to a cave, the output fixed connection pipeline of another group water pump (202), the input fixedly connected with of another group water pump (202) pipeline that draws water, the pipeline that draws water passes another group entrance to a cave and fixed connection link up with second mould (305) inside in another group hole, fixed mounting has valve (205) on the outer wall of aqueduct (206).
3. The circulating water cooling device for the injection mold according to claim 1, characterized in that: injection moulding mechanism (3) include mounting bracket (301), cylinder (302), telescopic link (303), first mould (304) and second mould (305), the top fixed mounting of mount table (1) has mounting bracket (301), the top fixed mounting of mounting bracket (301) has cylinder (302), the perforation has been seted up at the top of mounting bracket (301), the free end of cylinder (302) passes perforation and fixed mounting has telescopic link (303), the bottom fixed mounting of telescopic link (303) has first mould (304), the top fixed mounting of mount table (1) has second mould (305).
4. The circulating water cooling device for the injection mold according to claim 1, characterized in that: the discharging mechanism (4) comprises springs (401), a push plate (402), a top plate (403), a connecting rod (404), a push rod (405), a mounting rod (406) and a guide plate (407), wherein two groups of springs (401) are fixedly mounted at the bottom of the first die (304), the push plate (402) is fixedly mounted at the bottom of the two groups of springs (401), the other two groups of springs (401) are fixedly mounted at the top of the mounting table (1), the top plate (403) is fixedly mounted at the top of the springs (401), a circular hole is formed in the top of the top plate (403), the top plate (403) is sleeved on the outer wall of the second die (305) through the circular hole, the mounting rod (406) is fixedly mounted at the top of the mounting table (1), the guide plate (407) is fixedly mounted at the top of the mounting rod (406), a rectangular hole is formed in the outer side of the guide plate (407), the push rod (405) passes through the rectangular hole, the connecting rod (404) is hinged to the outer side of the first die (304), the connecting rod (404) is hinged with the push rod (405).
5. The circulating water cooling device for the injection mold according to claim 4, wherein: the outer side of the push plate (402) is attached to the inner side of the first die (304), the inner side of the top plate (403) is attached to the outer side of the second die (305), and the connecting rod (404) is obliquely arranged.
6. The circulating water cooling device for the injection mold according to claim 3, characterized in that: a hollow cavity is arranged in the second die (305), and the bottom of the push rod (405) is attached to the top of the second die (305).
