CN215836629U

CN215836629U - Artificial bait

Info

Publication number: CN215836629U
Application number: CN202120693251.8U
Authority: CN
Inventors: 赵昇浩
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-04-06
Filing date: 2021-04-06
Publication date: 2022-02-18
Anticipated expiration: 2031-04-06

Abstract

The patent application provides a realistic fishing bait, which has a fish-shaped bait body, the bait body is formed by a detachable combination of a fish head part and a fish body part, and the combined bait body has a cavity for holding real fish bait, The cavity wall is provided with a plurality of through holes for dispersing flavor, and the cavity of the fish head part or the fish body part is provided with a light-emitting micro-rod and its insertion part. The technical solution has the advantages of more efficient trapping of various predatory fish, soft-shelled squid and octopus in deep water, and basically does not consume edible bait, which greatly increases the fun of night fishing.

Description

Artificial bait

Technical Field

The present application relates to fishing articles, and more particularly to fishing lure devices for trapping fish, cuttlefish, octopus, and the like.

Background

In fishing, particularly sea fishing, a lure simulating fish or other aquatic animals is generally used, and the lure is made to assume various simulated swimming forms by various techniques of a fisherman, so that a predator is attracted to go up to a hook. In order to improve the attraction to the predators, the used artificial bait not only needs to be close to the simulated fish in image, but also sprays a fluorescent layer or adds a metal bright sheet on the surface of the artificial bait, but the deep water layer is dark and deep, so that enough light is difficult to be generated to enable the fluorescent layer or the bright sheet to generate light reflection like the simulated fish, and the light reflection and attraction effect is poor; another method for assisting in improving attraction of predators is to spread edible baits in a fishing water area, attract fish schools by a bait laying method, the attracted fish schools can bypass the artificial baits to eat and cannot achieve the effect of attracting to fish, the using amount and the effect of the edible baits are not obvious, and the method and the existing baits are not easy to meet requirements, and are particularly suitable for fishing by fishermen at night.

Disclosure of Invention

The invention aims to make up the defects of the existing artificial bait products in the fidelity and the food calling performance, and provides the artificial bait with high simulation in multiple modes and high trapping efficiency, which has the technical advantages of good trapping effect, almost no consumption of edible bait, simple structure and convenient use.

The application provides a simulation bait technical scheme, its main technical content is: a kind of artificial bait, have the body of bait of the fish shape, its one end is fixed with the fishwire loop, another end is fixed with the fishbone, this body of bait is formed by part of fish head and part of fish body of the detachable combination, and the bait after combining has cavity pocket used for containing the true fish bait, said cavity wall offer several diffuse flavor thru holes, there are luminescent microscler and its cartridge part in the cavity pocket of its part of fish head or part of fish body.

In one preferred embodiment of the above-mentioned overall technical solution, the through holes are round holes, longitudinal fusiform holes along the bait body, longitudinal dentate or wavy holes along the bait body, and transverse dentate or arc holes along the bait body.

In one preferred embodiment of the above overall technical solution, the through hole is a trumpet-shaped hole with a small opening on the inner wall of the cavity.

In a preferred embodiment of the above whole solution, the maximum width of the through hole is smaller than the maximum body width of the cavity for accommodating the minimum real fish bait.

In one preferred item of the above overall technical solution, the light-emitting micro-rod is a disposable cylindrical light-emitting body plastically packaged by a flexible insulating light-transmitting material.

In a preferred embodiment of the above overall technical solution, the insertion portion includes a plurality of vertical plates which are arranged in a circumferentially equal manner in the cavity and protrude toward the center line, and each vertical plate forms an insertion guide groove surrounding the light emitting micro-rod at the center.

One preference of above-mentioned whole technical scheme, luminous little stick, form by capsule cap portion and the combination of needle type lithium cell, capsule cap portion include bag shell, LED lamp pearl and insulating backing ring, wherein the bag shell has the printing opacity or semi-transparent insulating blind pipe of closed bag bottom, LED lamp pearl embedding bag bottom, the backing ring arrange in the capsule shell body, relative with LED lamp pearl pin end, the negative pole pin of LED lamp pearl is followed the bag shell wall and is spilt the backing ring, positive pole pin is followed the bag shell wall and is spilt the backing ring, via the outer terminal surface of backing ring around the mesopore of backing ring, needle type lithium cell surface cover is equipped with the sealing washer, along the sealed insert constitution of bag shell mouth of pipe.

The application discloses a simulation bait technical scheme, have the simulation on the physique that is close fish, after the built-in edible bait in addition, still possess the simulation in smell, supplementary effectual luminous means, can more efficient trap various predatory fishes, first squid, octopus in deep waters, and basically can not have the consumption of edible bait, and its trapping performance obtains obviously improving. The technical scheme also has the advantages of simple structure and low cost, and particularly greatly increases the fun of night fishing.

Drawings

Fig. 1, 3, 5 and 6 are overall structural diagrams of multiple embodiments of the present patent application.

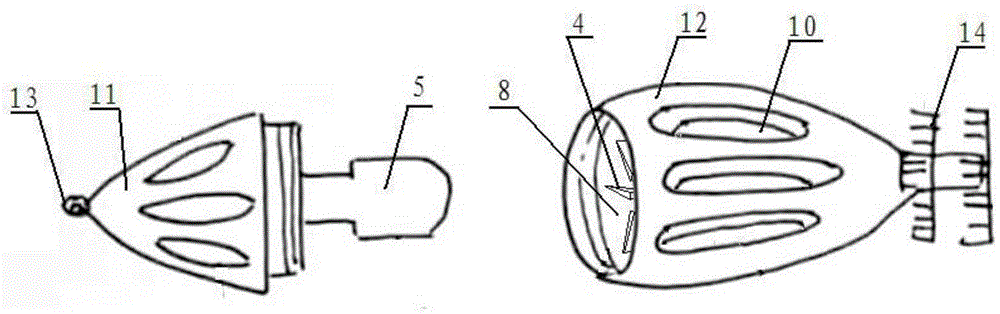

Fig. 2 is an exploded perspective view of the present patent application.

Fig. 4 is an overall cross-sectional view of the present patent application.

FIG. 7 is a cross-sectional structural view of an embodiment of a luminescent micro-rod.

Detailed Description

The utility model provides an emulation bait, as shown in the figure, this emulation bait has the bait body 1 of fish shape, and the one end of the bait body 1 is fixed with fish tape ring 2, the other end is fixed with angles thorn 3, angles thorn 3 as shown in the figure for the curved thorn of coaxial multilayer.

The bait body 1 is formed by spirally connecting a fish head part 11 and a fish body part 12, the combined bait body 1 is provided with a cavity 8 for containing real fish bait 6, and the cavity wall of the cavity 8 is provided with a plurality of smell dissipating through holes 10. The through holes 10 may be circular holes, as shown in fig. 3, may be fusiform holes along the longitudinal direction of the bait body 1, as shown in fig. 1 and 2, may be teeth or wave-shaped holes along the longitudinal direction of the bait body 1, or may be teeth or arc-shaped holes transverse to the bait body 1, as shown in fig. 5.

The maximum width of the through holes 10 is smaller than the maximum body width of the smallest real fish bait 6 contained in the cavity 8, so that the real fish bait 6 is prevented from sliding out of the bait body 1.

The through holes 10 are horn-shaped holes with small openings on the inner wall of the cavity, so that the taste of the real fish bait 6 can be more easily spread outwards, and more surrounding water bodies can be stirred, so that the bait body 1 has a more true swimming state in water and attracts predators.

The cavity 8 of the fish head part 11 or the fish body part 12 of the bait body 1 is provided with a luminous micro-rod 5 and an inserting part thereof.

The light-emitting micro-rod 5 can be a disposable cylindrical light-emitting body which is plastically packaged by a flexible insulating light-transmitting material. The luminous bodies on the market can emit light after being manually bent back and forth.

The inserting part, as shown in fig. 2 and 4, includes a plurality of vertical plates 4 which are arranged in the cavity 8 at equal intervals in the circumferential direction and protrude towards the center line, and each vertical plate 4 forms an inserting guide groove 40 surrounding the light emitting micro-rod 5 in the center. The luminous micro-rod 5 is inserted into an insertion guide groove 40 in the center of the vertical plate 4, real fish bait 6 is filled between the fish head part 11 and the fish body part 12, and the two parts are combined into a complete bait body 1 in a spiral way; the vertical plate 4 also forms a plurality of separation plates for real fish bait 6, and one real fish bait 6 is placed in each separation cavity, so that the real fish taste is more uniform and spread outwards. The fishing line is tied well at the fishing line ring 2, and put into the deep water layer, the taste of real fish bait 6 is outwards given off by thru hole 10, and the light of luminous microballon 5 not only can see through transparent or translucent bait body 1 and outwards radiate, still can see through thru hole 10 and radiate away, including the effect of imitating true of bait body 1 itself, extremely strong to predators such as fish, cuttlefish, octopus, can drop into operation again after a fishing, hardly produces the consumption of edible bait.

Fig. 7 shows another embodiment of the luminescent micro-rod. The luminous micro-rod 5 is formed by combining a capsule cap part and a needle type lithium battery 48, wherein the capsule cap part comprises a capsule shell 49, LED lamp beads 41 and an insulating backing ring 45, the capsule shell 49 is a light-transmitting or semi-light-transmitting insulating blind tube with a sealed capsule bottom, the LED lamp beads 41 are embedded into the capsule bottom, the backing ring 45 is arranged in a tube body of the capsule shell 49 and is opposite to the pin ends of the LED lamp beads 41, a negative electrode pin 43 of the LED lamp beads 41 extends out of the backing ring 45 along the capsule shell wall, a positive electrode pin 42 extends out of the backing ring 45 along the capsule shell wall, the outer end face of the backing ring 45 winds into a middle hole of the backing ring 45, a sealing ring 46 is sleeved on the surface of the needle type lithium battery 48 and is hermetically inserted along a capsule shell tube opening 44, the shell is connected with the negative electrode pin 43 of the LED lamp beads 41, the positive electrode pin 47 is connected with the positive electrode pin 42 of the backing ring 45, and a loop is communicated for luminescence.

Claims

1. A realistic fishing bait, having a fish-shaped bait body (1), one end of which is fixed with a fishing line loop (13), and the other end is fixed with a fishing thorn (14), characterized in that the bait body (1) is made of fish. The head part (11) and the fish body part (12) are detachably assembled, and the assembled bait body (1) has a cavity (8) for containing real fish bait (6), and the cavity ( 8) The cavity wall is provided with a number of through-holes (10) for dispersing flavor, and the cavity (8) of the fish head part (11) or the fish body part (12) is provided with a light-emitting micro-rod (5) and its insertion device. department.

2 . The realistic fishing bait according to claim 1 , wherein the through hole ( 10 ) is a circular hole, a fusiform hole along the longitudinal direction of the bait body, a toothed or corrugated hole along the longitudinal direction of the bait body, or a transverse hole of the bait body. 3 . Toothed or curved holes.

3. The realistic fishing lure according to claim 1 or 2, wherein the through hole (10) is a trumpet-shaped hole with a small opening in the inner wall of the cavity.

4. The realistic fishing bait according to claim 1 or 2, characterized in that, the maximum width of the through hole (10) is smaller than the maximum width of the fish body in the cavity (8) for accommodating the smallest real fish bait.

5 . The realistic fishing lure according to claim 1 , wherein the light-emitting micro-rod ( 5 ) is a disposable cylindrical light-emitting body plastic-sealed with a flexible insulating light-transmitting material. 6 .

6 . The realistic fishing bait according to claim 1 , wherein the insertion part comprises a plurality of vertical plates ( 4 ) which are arranged in equal parts in the circumferential direction of the cavity and protrude toward the center line, and each vertical plate ( 4) An insertion guide groove (40) surrounding the light-emitting microrod (5) is formed in the center.

7 . The realistic fishing lure according to claim 1 , wherein the light-emitting micro-rod ( 5 ) is composed of a cap part and a needle-type lithium battery ( 48 ), and the cap part comprises A capsule shell (49), an LED lamp bead (41) and an insulating gasket (45), wherein the capsule shell (49) is a light-transmitting or semi-transparent insulating blind tube with a closed capsule bottom, and the LED lamp bead (41) Embedded in the bottom of the capsule, the gasket (45) is placed in the tube body of the capsule shell (49), opposite to the pin end of the LED lamp bead (41), and the negative pin (43) of the LED lamp bead (41) is along the capsule. The gasket (45) protrudes from the shell wall, the positive pin (42) protrudes out of the gasket (45) along the shell wall, and is wound into the middle hole of the gasket (45) through the outer end surface of the gasket (45). A sealing ring (46) is sheathed on the surface of the battery (48), and is formed by being sealed and inserted along the mouth (44) of the capsule shell.
