Abstract
本实用新型公开了一种新型精密零部件生产用抛光装置，包括抛光机主体，所述抛光机主体内前后端中部均固定连接有夹座，所述夹座内部远离通孔的一端均固定连接有第一液压杆，所述通孔均均匀分布在工作台中部，所述工作台底端中部前后两侧均固定连接有过滤网，所述过滤网之间底部滑动连接有集尘仓，所述过滤网远离集尘仓的一端均分别正对着风扇，所述风扇均固定连接有第一电机，所述第一电机分别固定连接在抛光机主体内中下部中侧。本实用新型中，通过几者之间的结合，使得在装置工作时，可以通过第一电机带动风扇转动，从而产生负压，将工作时产生的碎屑通过通孔吸入集尘仓，等待集中处理，值得大力推广。
The utility model discloses a novel polishing device for the production of precision parts, which comprises a polishing machine main body, wherein a clamping seat is fixedly connected in the middle of the front and rear ends of the polishing machine main body, and the inner end of the clamping seat away from a through hole is fixedly connected There is a first hydraulic rod, the through holes are evenly distributed in the middle of the worktable, the front and rear sides of the middle of the bottom end of the worktable are fixedly connected with filter screens, and the bottom of the filter screens is slidably connected with a dust collection bin, so The ends of the filter screen away from the dust collecting bin are respectively facing the fans, and the fans are all fixedly connected with a first motor, and the first motors are respectively fixedly connected to the middle, lower and middle sides of the main body of the polishing machine. In the utility model, through the combination of several, when the device is working, the first motor can drive the fan to rotate, so as to generate negative pressure, and the debris generated during operation is sucked into the dust collection bin through the through hole, waiting to be concentrated. It is worth promoting vigorously.
Description
Technical Field
The utility model relates to the field of machining, in particular to a novel polishing device for producing precision parts.
Background
Polishing refers to a processing method for reducing the roughness of the surface of a workpiece by mechanical, chemical or electrochemical action to obtain a bright and flat surface, and is a method for modifying the surface of the workpiece by using a polishing tool and abrasive particles or other polishing media, and polishing can not improve the dimensional accuracy or geometric accuracy of the workpiece, but aims to obtain a smooth surface or mirror gloss, and sometimes is used for eliminating gloss (extinction), usually a polishing wheel is used as the polishing tool, the polishing wheel is generally formed by stacking multiple layers of canvas, felt or leather, two sides of the polishing wheel are clamped by metal circular plates, and the rim of the polishing wheel is coated with a polishing agent formed by uniformly mixing micro-powder abrasive, grease and the like.
Chinese patent document CN213615805U discloses a precision parts polishing grinding device, including workstation, organism and condenser, the workstation top is provided with the installation base, installation base top middle part is provided with the organism, beneficial effect lies in: the utility model discloses a through setting up cantilever support, the light, the slide, telescopic link and magnifying glass, can adjust the illumination angle of light through cantilever support, increase operational environment's luminance, then adjust the horizontal position and the vertical height of magnifying glass through slide and telescopic link, make things convenient for the staff to observe the polishing progress of part, improve the precision of polishing, through setting up condenser, gas-supply pipe and jet orifice, can produce cooling gas through the condenser, and carry to the jet orifice through the gas-supply pipe and cool down the part, make things convenient for the staff to take the part, simultaneously, cooling gas can fast extinguish the spark, avoid causing the injury to the staff, but in the process of using it, it still has two shortcomings, firstly, it can not realize the centre gripping to the part of different size, specification, secondly, it can not carry out effectual processing to the piece that produces when polishing, causing environmental pollution and even harm to human body.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the defects in the prior art, and provides a novel polishing device for producing precision parts.
In order to achieve the purpose, the utility model adopts the following technical scheme: a polishing device for producing novel precision parts comprises a polishing machine main body, wherein clamping seats are fixedly connected at the middle parts of the front end and the rear end in the polishing machine main body, one end of the interior of the clamping seat far away from the through holes is fixedly connected with a first hydraulic rod, the through holes are uniformly distributed in the middle of the workbench, the front side and the rear side of the middle part of the bottom end of the workbench are fixedly connected with filter screens, a dust collecting bin is connected at the bottom part between the filter screens in a sliding way, the front side and the rear side of the middle part of the top end in the polishing machine main body are both fixedly connected with a shell, the top end in the shell is both fixedly connected with a second hydraulic rod, the bottom ends of the second hydraulic rods are fixedly connected to the top end of the supporting plate, a second motor is arranged in the middle of the top end of the supporting plate, the end, far away from the dust collection bin, of the filter screen is respectively opposite to the fans, the fans are fixedly connected with first motors, and the first motors are respectively and fixedly connected to the middle side of the middle lower part in the polishing machine body.
As a further description of the above technical solution:
and a penetrating vent is arranged on the lower side wall of one end of the first motor, which is far away from the fan.
As a further description of the above technical solution:
the middle part of the right end outside the dust collection bin is fixedly connected with a handle.
As a further description of the above technical solution:
and one end of the first hydraulic rod, which is close to the through hole, is fixedly connected with a clamping block.
As a further description of the above technical solution:
the workbench is fixedly connected to the lower side of the middle part in the polishing machine body.
As a further description of the above technical solution:
the middle part is provided with the guard gate on the burnishing machine main part left end.
As a further description of the above technical solution:
the bottom end of the second motor penetrates through the supporting plate and is in threaded connection with a polishing plate.
As a further description of the above technical solution:
the first motor and the fan are symmetrically distributed.
The utility model has the following beneficial effects:
1. according to the polishing machine, the clamping seats are fixedly connected to the middle portions of the front end and the rear end in the polishing machine body, the first hydraulic rods are fixedly connected to the ends, far away from the through holes, of the clamping seats, the through holes are uniformly distributed in the middle of the workbench, the clamping blocks are fixedly connected to the ends, close to the through holes, of the first hydraulic rods, and through combination of the clamping blocks, the first hydraulic rods can drive the clamping blocks to stretch and relax, so that parts with different sizes and specifications can be clamped, and the working range of the polishing machine is greatly improved.
2. According to the utility model, through holes are used, the through holes are uniformly distributed in the middle of the workbench, filter screens are fixedly connected to the front side and the rear side of the middle of the bottom end of the workbench, a dust collection bin is connected to the bottom of the filter screens in a sliding manner, one ends of the filter screens, far away from the dust collection bin, are respectively opposite to the fans, the fans are respectively fixedly connected with first motors, the first motors are respectively fixedly connected to the middle and lower middle sides in the main body of the polishing machine, the lower side wall of one end, far away from the fans, of each first motor is provided with a through vent, the middle of the right end of the outer part of the dust collection bin is fixedly connected with a handle, a protective door is arranged in the upper middle of the left end of the main body of the polishing machine, and through the combination of the first motors, the fan can be driven to rotate by the first motor when the device works, so as to generate negative pressure, debris generated during the work can be sucked into the dust collection bin through the through holes, and can be treated in a centralized manner, and the device is worth of popularization.
Drawings

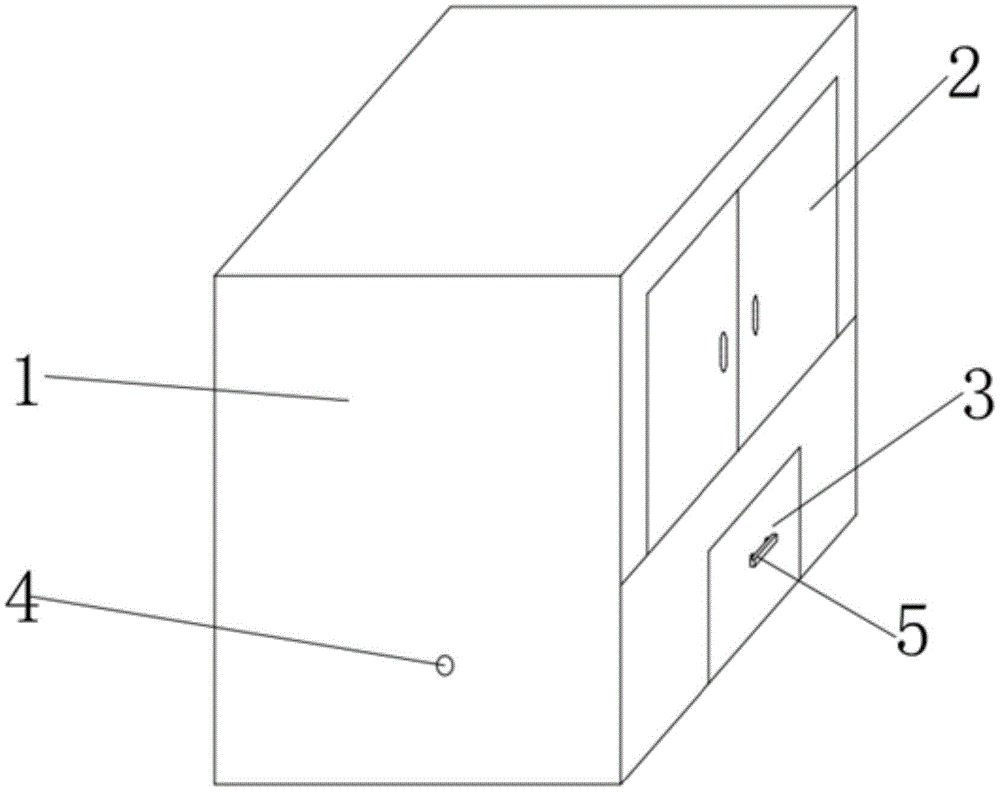

FIG. 1 is a perspective view of a polishing apparatus for manufacturing a novel precision part according to the present invention;
FIG. 2 is a side cross-sectional view of a polishing apparatus for manufacturing a novel precision part according to the present invention;
fig. 3 is a front cross-sectional view of the polishing device for producing a novel precision part according to the present invention.
Illustration of the drawings:
1. a polisher body; 2. a protective door; 3. a dust collection bin; 4. a vent; 5. a handle; 6. a first motor; 7. a first hydraulic lever; 8. a holder; 9. a second motor; 10. a housing; 11. a second hydraulic rod; 12. a support plate; 13. polishing the plate; 14. a clamping block; 15. a work table; 16. a through hole; 17. a fan; 18. and (4) a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", etc., indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, but do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, one embodiment of the present invention is provided: a novel polishing device for producing precise parts comprises a polishing machine main body 1, wherein clamping seats 8 are fixedly connected to the middle portions of the front end and the rear end in the polishing machine main body 1 and used for fixing an internal first hydraulic rod 7, the end, far away from a through hole 16, of each clamping seat 8 is fixedly connected with the first hydraulic rod 7, the first hydraulic rods 7 can stretch, the through holes 16 are uniformly distributed in the middle of a workbench 15 and used for enabling fragments to pass through, filter screens 18 are fixedly connected to the front side and the rear side of the middle portion of the bottom end of the workbench 15 and used for filtering the fragments, a dust collecting bin 3 is slidably connected to the bottom between the filter screens 18 and used for collecting the fragments and dust, a shell 10 is fixedly connected to the front side and the rear side of the middle portion of the top end in the polishing machine main body 1 and used for protecting an internal second hydraulic rod 11, a second hydraulic rod 11 is fixedly connected to the top end in the shell 10, the second hydraulic rod 11 can stretch, the bottom end of the second hydraulic rod 11 is fixedly connected to the top end of a supporting plate 12, the flexible backup pad 12 that can drive of second hydraulic stem 11 goes up and down, 12 top middle parts of backup pad are provided with second motor 9, second motor 9 can rotate, the one end that dust collection bin 3 was kept away from to filter screen 18 is equallyd divide and is just facing fan 17 respectively, fan 17 rotates and produces the negative pressure, thereby collect the piece, the dust, the first motor 6 of the equal fixedly connected with of fan 17, first motor 6 rotates and can drive fan 17 and rotate, first motor 6 is fixed connection in burnishing machine main part 1 middle and lower part medial flank respectively, make it fixed.
The working principle is as follows: firstly, clamping seats 8 are fixedly connected to the middle portions of the front end and the rear end in a polishing machine main body 1, one ends, far away from through holes 16, of the clamping seats 8 are fixedly connected with first hydraulic rods 7, the through holes 16 are uniformly distributed in the middle portion of a workbench 15, clamping blocks 14 are fixedly connected to the ends, close to the through holes 16, of the first hydraulic rods 7, through combination of the clamping blocks, the first hydraulic rods 7 can drive the clamping blocks 14 to stretch and relax, so that parts with different sizes and specifications can be clamped, the working range of the device is greatly improved, meanwhile, the through holes 16 are used, the through holes 16 are uniformly distributed in the middle portion of the workbench 15, filter screens 18 are fixedly connected to the front side and the rear side of the middle portion of the bottom end of the workbench 15, a dust collection bin 3 is connected to the bottoms of the filter screens 18 in a sliding mode, one ends, far away from the dust collection bin 3, of the filter screens 18 respectively face the fans 17, and the fans 17 are fixedly connected with first motors 6, first motor 6 fixed connection is middle and lower part medial side in burnishing machine main part 1 respectively, first motor 6 is kept away from all to be provided with the vent 4 that runs through on the lateral wall under the one end of fan 17, 3 outside right-hand member middle part fixedly connected with handles 5 in dust collection bin, the middle part is provided with guard gate 2 on the 1 left end of burnishing machine main part, through the combination between several, make at the device during operation, can drive fan 17 through first motor 6 and rotate, thereby produce the negative pressure, the piece that produces during operation inhales dust collection bin 3 through-hole 16, wait for centralized processing, be worth wideling popularize.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the utility model.
Claims (8)
1. The utility model provides a novel production of accurate spare part is with polishing device, includes burnishing machine main part (1), its characterized in that: the polishing machine is characterized in that a clamping seat (8) is fixedly connected to the middle of the front end and the rear end in a polishing machine main body (1), one end, far away from a through hole (16), of the clamping seat (8) is fixedly connected with a first hydraulic rod (7), the through hole (16) is uniformly distributed in the middle of a workbench (15), filter screens (18) are fixedly connected to the front side and the rear side of the middle of the bottom end of the workbench (15), a dust collection bin (3) is connected to the bottom of the filter screens (18) in a sliding mode, a shell (10) is fixedly connected to the front side and the rear side of the middle of the top end in the polishing machine main body (1), a second hydraulic rod (11) is fixedly connected to the top end in the shell (10), the bottom end of the second hydraulic rod (11) is fixedly connected to the top end of a supporting plate (12), a second motor (9) is arranged in the middle of the top end of the supporting plate (12), far away from the dust collection bin (3), of the filter screens (18) are respectively opposite to a fan (17), the polishing machine is characterized in that the fans (17) are fixedly connected with first motors (6), and the first motors (6) are respectively and fixedly connected to the middle lower portion inside the polishing machine main body (1).
2. The polishing device for producing the novel precision part according to claim 1, wherein: and a penetrating vent (4) is arranged on the lower side wall of one end of the first motor (6) far away from the fan (17).
3. The polishing device for producing the novel precision part according to claim 1, wherein: the middle part of the right end outside the dust collection bin (3) is fixedly connected with a handle (5).
4. The polishing device for producing the novel precision part according to claim 1, wherein: and one end of the first hydraulic rod (7) close to the through hole (16) is fixedly connected with a clamping block (14).
5. The polishing device for producing the novel precision part according to claim 1, wherein: the workbench (15) is fixedly connected to the lower side of the middle part in the polishing machine main body (1).
6. The polishing device for producing the novel precision part according to claim 1, wherein: the middle part of the left end of the polishing machine main body (1) is provided with a protective door (2).
7. The polishing device for producing the novel precision part according to claim 1, wherein: the bottom end of the second motor (9) penetrates through the supporting plate (12) and is connected with a polishing plate (13) in a threaded mode.
8. The polishing device for producing the novel precision part according to claim 1, wherein: the first motor (6) and the fan (17) are symmetrically distributed.
