Abstract
The utility model discloses a treatment and health care dual-purpose cervical vertebra pillow, which relates to the field of traditional Chinese medical treatment instruments and comprises a pillow main body, wherein a through hole is formed in the middle position of the pillow main body, a treatment taking and placing component is movably arranged in the through hole, a first zipper is arranged at the rear end of the pillow main body, the pillow main body is designed to be cuboid, the through hole penetrates through the pillow main body, and the through hole is designed to be circular; this dual-purpose type cervical vertebra pillow of treatment and health care can also provide the buffering to the neck when providing the support to patient's neck, makes things convenient for the patient to use, and when the treatment, will treat to get to put the subassembly and take out from the through-hole, can avoid patient's face and ear to receive the extrusion, can improve patient's comfort level, conveniently replace traditional chinese medicine package one in the traditional chinese medicine storage compartment and the traditional chinese medicine package two in the cavity, be favorable to patient's treatment, and easy operation can improve medical personnel's work efficiency.
Description
Technical Field
The utility model relates to the field of traditional Chinese medicine treatment instruments, in particular to a cervical vertebra pillow for treatment and health care.
Background
The cervical vertebrae are the important supporting joints of the human body and are located below the head and above the thoracic vertebrae. If the head is the thought center of the human body, the cervical vertebra is the only support for supporting the center organ, the importance of the cervical vertebra part is visible, generally, the cervical spondylosis is considered to be caused by that the muscles and bones can not be nourished due to the decline of qi and blood of the old, or the neck and neck are wounded, so that the channels and collaterals are blocked and the circulation of qi and blood is not smooth, modern people sit still for a long time, mobile phones and computers can not leave the hands of the people, and shoulder and neck injuries can occur after a long period of time, wherein the cervical spondylosis is the most common, the cervical spondylosis needs to be treated early, the traditional Chinese medicine has a plurality of magical formulas for treating early and middle-term cervical spondylosis, the plaster formula application therapy is a very long-history therapy, and has the advantages of simple use, low cost, safety and no pain, the plaster formula is decocted by adopting Chinese herbal medicines, is transdermally absorbed after being applied to an affected part, so that the concentration of the local medicine is obviously increased, and local capillary vessels are expanded by medicine components, promoting local blood circulation, improving the nutrition of the tissues of the affected part, eliminating aseptic inflammation and achieving the purpose of treatment.
When the neck plaster therapy is clinically carried out, the time required by one-time neck plaster therapy is 30min, a patient is required to lie on the bed for irradiation by an infrared lamp all the time, the existing pillow or mattress is a plane, human face auricle and the like protrude outwards, discomfort is caused by long-time compression, the plaster is easy to shift by habitual left and right turning, the curative effect is influenced, and therefore the neck pillow for the treatment and the health care is provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a treatment and health care dual-purpose cervical vertebra pillow, which solves the problems that when the neck plaster treatment is clinically carried out in the background technology, the time required by one-time neck plaster treatment is 30min, a patient is required to lie on the bed for full time and is irradiated by an infrared lamp, the existing pillow or mattress is a plane, the auricle and the like of the face of the patient protrude outwards, discomfort is caused by long-time compression, and the plaster is easy to shift and the curative effect is influenced due to habitual left and right face turning.
In order to achieve the purpose, the utility model provides the following technical scheme: a treatment and health care dual-purpose cervical vertebra pillow comprises a pillow main body, wherein a through hole is formed in the middle of the pillow main body, a treatment taking and placing assembly is movably arranged in the through hole, and a first zipper is arranged at the rear end of the pillow main body;
the treatment taking and placing assembly is made of a cylinder, and a second zipper is arranged on one side of the cylinder.
Preferably, the pillow main body is designed to be cuboid, and the through hole penetrates through the pillow main body and is designed to be circular.
Preferably, the cylinder is matched with the through hole, and the treatment taking and placing assembly is movably arranged in the middle of the pillow main body through the through hole.
Preferably, a traditional Chinese medicine storage bin is arranged inside the pillow main body, a cavity is arranged inside the cylinder, a first traditional Chinese medicine bag is arranged at the bottom end of the traditional Chinese medicine storage bin, a first sponge pad is arranged at the upper end of the traditional Chinese medicine storage bin and positioned on the first traditional Chinese medicine bag, a second traditional Chinese medicine bag and a second sponge pad are arranged in the cavity, and the second sponge pad is positioned above the second traditional Chinese medicine bag.
Preferably, the traditional Chinese medicine storage bin is separated from the outside through a first zipper, and the cavity is separated through a second zipper.
Compared with the prior art, the utility model has the beneficial effects that: the treatment and health care dual-purpose cervical vertebra pillow is provided with a first spongy cushion and a second spongy cushion, the first spongy cushion and the second spongy cushion are respectively arranged inside the pillow main body and the cylinder, and the first traditional Chinese medicine bag in the traditional Chinese medicine storage bin and the second traditional Chinese medicine bag in the cavity are matched to provide support for the neck of a patient and simultaneously provide buffering for the neck of the patient, so that the pillow is convenient for the patient to use, and in the treatment process, the treatment taking and placing assembly is taken out from the through hole, so that the face and the ear of the patient can be prevented from being extruded, and the comfort level of the patient can be improved;
this dual-purpose type cervical vertebra pillow of treatment and health care is provided with a zip fastener and No. two zip fasteners, opens the back with a zip fastener and No. two zip fasteners when the user of service, and the convenience is replaced traditional chinese medicine package one in the traditional chinese medicine storage compartment and the traditional chinese medicine package two in the cavity, is favorable to patient's treatment, and easy operation can improve medical personnel's work efficiency.
Drawings
FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a partial schematic view of the present invention;

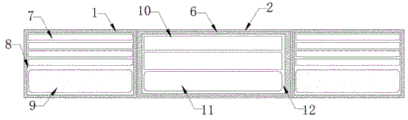

fig. 3 is a cross-sectional view of the present invention.
In the figure: 1. a pillow body; 2. a through hole; 3. a treatment delivery assembly; 4. a first zipper; 5. a second zipper; 6. a cylinder; 7. a first sponge cushion; 8. a Chinese medicine storage bin; 9. a first Chinese medicine bag; 10. a second sponge cushion; 11. a second traditional Chinese medicine bag; 12. a cavity.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Example 1:
referring to fig. 1-2, the present invention provides a technical solution: a dual-purpose cervical vertebra pillow for treatment and health care comprises a pillow body 1, a through hole 2 is formed in the middle of the pillow body 1, a treatment taking and placing component 3 is movably arranged in the through hole 2, and a first zipper 4 is arranged at the rear end of the pillow body 1.
The pillow main body 1 is designed to be cuboid, the through hole 2 penetrates through the pillow main body 1 to be formed, the through hole 2 is designed to be circular, the therapeutic taking and placing component 3 is made of a cylinder 6, a second zipper 5 is arranged on one side of the cylinder 6, the cylinder 6 is matched with the through hole 2, and the therapeutic taking and placing component 3 is movably installed in the middle of the pillow main body 1 through the through hole 2.
When using, because the inside of pillow main part 1 and cylinder 6 is provided with foam-rubber cushion one 7 and two foam-rubber cushion 10 respectively, can also provide the buffering to the neck when the traditional chinese medicine package in the cooperation traditional chinese medicine storage 8 one 9 and the traditional chinese medicine package in the cavity 12 can provide the support to the patient neck, make things convenient for the patient to use, and when the treatment, get the treatment and put subassembly 3 and take out from through-hole 2, can avoid patient's face and ear to receive the extrusion, can improve patient's comfort level.
Example 2:
referring to fig. 1-3, the present invention provides a technical solution: a dual-purpose cervical vertebra pillow for treatment and health care further comprises a traditional Chinese medicine storage bin 8, a cavity 12 is formed in the cylinder 6, a first traditional Chinese medicine bag 9 is arranged at the bottom end of the traditional Chinese medicine storage bin 8, a first spongy cushion 7 is arranged at the upper end of the traditional Chinese medicine storage bin 8 and located on the first traditional Chinese medicine bag 9, a second traditional Chinese medicine bag 11 and a second spongy cushion 10 are arranged in the cavity 12, and the second spongy cushion 10 is located above the second traditional Chinese medicine bag 11.
The traditional Chinese medicine storage bin 8 is separated from the outside through a first zipper 4, and the cavity 12 is separated through a second zipper 5.
Specifically, after a user opens the first zipper 4 and the second zipper 5, the first traditional Chinese medicine bag 9 in the traditional Chinese medicine storage bin 8 and the second traditional Chinese medicine bag 11 in the cavity 12 can be replaced, treatment of a patient is facilitated, operation is simple, and working efficiency of medical workers can be improved.
The working principle is as follows: for the treatment and health care dual-purpose cervical vertebra pillow, firstly, the first zipper 4 and the second zipper 5 are opened, the first traditional Chinese medicine bag 9 and the second traditional Chinese medicine bag 11 are respectively placed in the traditional Chinese medicine storage bin 8 and the cavity 12, then the first zipper 4 and the second zipper 5 are tightly closed, when in normal use, the treatment taking and placing component 3 is placed in the through hole 2, because the sponge cushion I7 and the sponge cushion II 10 are respectively arranged inside the pillow main body 1 and the cylinder 6, the treatment taking and placing component 3 is taken out from the through hole 2 when in treatment, the face and the ears of a patient can be prevented from being squeezed, the comfort level of the patient can be improved, when in use, after a user opens the first zipper 4 and the second zipper 5, can replace the first traditional Chinese medicine bag 9 in the traditional Chinese medicine storage bin 8 and the second traditional Chinese medicine bag 11 in the cavity 12, is beneficial to the treatment of patients, is simple to operate, and can improve the working efficiency of medical personnel.
The above description is only for the preferred embodiment of the present invention, but the scope of the present invention is not limited thereto, and any person skilled in the art should be considered to be within the technical scope of the present invention, and equivalent alternatives or modifications according to the technical solution of the present invention and the inventive concept thereof should be covered by the scope of the present invention.
Claims (5)
1. A treatment and health care dual-purpose cervical vertebra pillow comprises a pillow main body (1), and is characterized in that a through hole (2) is formed in the middle of the pillow main body (1), a treatment taking and placing assembly (3) is movably arranged in the through hole (2), and a first zipper (4) is arranged at the rear end of the pillow main body (1);
the treatment taking and placing assembly (3) is made of a cylinder (6), and a second zipper (5) is arranged on one side of the cylinder (6).
2. The cervical pillow for both treatment and health care according to claim 1, characterized in that the pillow body (1) is designed as a rectangular parallelepiped, and the through holes (2) are opened through the pillow body (1), the through holes (2) being designed as a circle.
3. The cervical pillow for treatment and health care of the claim 2, characterized in that the cylinder (6) is adapted to the through hole (2), the treatment taking and placing component (3) is movably installed in the middle of the pillow body (1) through the through hole (2).
4. The cervical vertebra pillow for treatment and health care according to claim 1, wherein a traditional Chinese medicine storage bin (8) is arranged inside the pillow body (1), a cavity (12) is arranged inside the cylinder (6), a first traditional Chinese medicine bag (9) is arranged at the bottom end of the traditional Chinese medicine storage bin (8), a first sponge cushion (7) is arranged at the upper end of the traditional Chinese medicine storage bin (8) and located on the first traditional Chinese medicine bag (9), a second traditional Chinese medicine bag (11) and a second sponge cushion (10) are arranged in the cavity (12), and the second sponge cushion (10) is located above the second traditional Chinese medicine bag (11).
5. The cervical pillow for treatment and health care of the both types of claim 4, wherein the traditional Chinese medicine storage compartment (8) is separated from the outside by a first zipper (4), and the cavity (12) is separated by a second zipper (5).
