Extrusion material ceiling structure
Technical Field
The utility model relates to the technical field of suspended ceilings, in particular to a suspended ceiling structure made of extruded materials.
Background
The suspended ceiling is an extremely important link for interior decoration, and the prior art discloses an extrusion type suspended ceiling structure as in the Chinese patent application with the application number of 202011005677.6, and the extrusion type suspended ceiling structure comprises a fixing piece, a keel, a connecting piece and a suspended ceiling plate, wherein the fixing piece comprises a first fixing plate and a second fixing plate, the first fixing plate is provided with a through hole, the second fixing plate is provided with a groove, at least one part of the keel is positioned in the groove, the keel is provided with a keel hole, the suspended ceiling plate is provided with a dovetail groove, the connecting piece comprises a first plate body, a second plate body and a connecting column, the projection of the first plate body on the surface of the second plate body is perpendicular to the second plate body, and the projection of the keel hole on the surface of the suspended ceiling plate is perpendicular to the dovetail groove. This type of furred ceiling structure mainly has following problem: 1. when the large plane is integrally installed, the whole top surface is heavy, so that labor and time are consumed during installation; 2. a large amount of secondary processing is needed on site before installation, and the overall installation efficiency is low.
SUMMERY OF THE UTILITY MODEL
The utility model aims to solve the problems in the prior art and provides an extruded material ceiling structure which is simple in structure, convenient and efficient to install, time-saving and labor-saving.
The purpose of the utility model is realized by the following technical scheme:
an extruded material ceiling structure comprises a plurality of suspension rods arranged on a roof, a plurality of first clamping keels arranged in parallel at the lower ends of the suspension rods, a plurality of second clamping keels vertically clamped at the lower ends of the first clamping keels, a plurality of unit extrusion plates arranged at the lower ends of the second clamping keels, bending extrusion plates connected between the high-low unit extrusion plates, and lamp grooves arranged at the lower unit extrusion plates and close to the inner side ends of the ceiling;
first card formula fossil fragments lower extreme is equipped with a plurality of even joint in interval, the joint both sides all are equipped with hook portion up, second card formula fossil fragments upper end is equipped with two couples in opposite directions.
The assembly of the whole suspended ceiling structure can be realized only by using two types of extrusion plates, wherein the high-position top and the low-position top can be formed by mutually splicing a plurality of unit extrusion plates, namely, the high-position top and the low-position top can be installed one by one during installation, so that the problems of overweight and inconvenient installation of the whole suspended ceiling are avoided; the high-low position tops can be connected through the bending extrusion plate, and the lamp groove can be formed by surrounding the cut bending extrusion plate and the low-position extrusion plate between the high-low position tops. In conclusion, the utility model has simple structure, convenient and efficient installation and time and labor saving. The structure is matched and connected with two opposite hook parts at the lower end of the first clamping type keel through two opposite hooks at the upper end of the second clamping type keel so as to realize the connection between the two groups of keels; wherein, two couples of second card formula fossil fragments can cooperate with the hook portion that carries on the back of the body on the joint of difference according to actual distance.
Preferably, the first clamping type keel comprises a first horizontal plate and two first vertical plates which are oppositely arranged below the first horizontal plate, the first horizontal plate is provided with a plurality of connecting holes for connecting the hanger rods, and the lower ends of the two first vertical plates are respectively provided with a plurality of clamping connectors which are uniformly spaced. The first horizontal plate is connected with the hanger rod through the connecting hole and matched with the nut, and meanwhile, the height of the first clamping type keel can be adjusted through the fixing position of the nut according to actual needs; all be equipped with the joint on two first risers, can ensure its stability of being connected with second card formula fossil fragments.
Preferably, the second clamping type keel comprises a second horizontal plate and two second vertical plates which are oppositely arranged above the second horizontal plate, and the upper ends of the two second vertical plates are provided with the hooks. Wherein, the second horizontal plate is used for extruding the board through connecting element such as bolt or adhesive, and two second risers make the couple can block smoothly in the joint of first card formula fossil fragments through the elasticity of self, realize stable connection.
Preferably, the upper side surface of the unit extrusion plate is provided with at least two clamping grooves, and the clamping grooves are fixedly connected with the second clamping type keels through an adhesive, so that the connection mode is more convenient and efficient, and has better stability without forming holes on the unit extrusion plate; and every unit is extruded and is connected with two second card formula keels on the board at least, can further ensure the stability of unit extrusion board installation.
Preferably, the unit extrusion plate comprises an upper panel and a lower panel which are parallel to each other, and a plurality of support ribs arranged between the two panels, wherein the unit extrusion plate is provided with reinforcing ribs at positions where the clamping grooves are formed. The unit extrusion plate is simple in structure, material-saving, light in weight and convenient to install and operate, and reinforcing ribs are arranged at the clamping grooves with small thickness to ensure structural strength.
Preferably, the two ends of the unit extrusion plates are respectively provided with a tenon and a mortise which are matched with each other, so that the adjacent unit extrusion plates can be tightly connected, and meanwhile, the structural stability and the surface smoothness of the whole suspended ceiling are ensured.
Preferably, the bending extrusion plate comprises a vertical plate and horizontal plates vertically arranged on the same side of the upper end and the lower end of the vertical plate, and the end part of at least one horizontal plate is provided with the tenon or the mortise. The upper horizontal plate and the lower horizontal plate face to the same side, so that the horizontal plates are prevented from being exposed on the inner side of the whole suspended ceiling, and the attractiveness is ensured; the tenon or the mortise are arranged to provide a plurality of connection modes for the bent extrusion plate connection unit extrusion plate so as to improve the applicability.
In the present invention, the light trough is preferably composed of the bent extruded plate, the lower unit extruded plate, and the cut bent extruded plate. The lamp groove is installed without other types of extruded parts, a right-angle structure is obtained by cutting and bending the extrusion plates, the right-angle structure is connected to the end part of the unit extrusion plate at the lower position, and the right-angle structure, the unit extrusion plate and the bending extrusion plate connected with the extrusion plates at the higher and lower positions form the lamp groove together.
The utility model has the advantages that:
1. the whole structure is simple, the installation is convenient and efficient, and time and labor are saved;
2. only two types of extrusion plates are adopted, so that the mass production and the implementation are facilitated;
3. the unit extrusion plates are in a plug-in structure, so that the unit extrusion plates are more convenient to disassemble and assemble and are convenient to recycle.
Drawings

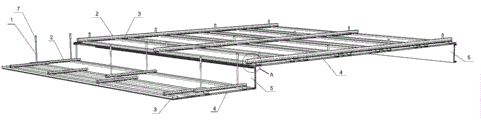

FIG. 1 is a schematic view of an installation configuration of an extruded material ceiling structure of the present invention;
FIG. 2 is a schematic perspective view of an extruded material ceiling construction according to the present invention;
FIG. 3 is an enlarged schematic view of the structure at A in FIG. 2;
FIG. 4 is a schematic view of a unit extrusion plate according to the present invention;
FIG. 5 is a schematic structural view of a bent extrusion plate according to the present invention;
in the figure: 1-a suspender; 2-a first snap-in keel; 3-a second clip keel; 4-unit extrusion plate; 5-bending the extrusion plate; 6-lamp groove; 7-expansion bolts; 221-a bayonet joint; 2211-hook; 321-a hook; 21-a first horizontal plate; 22-a first riser; 31-a second horizontal plate; 32-a second riser; 411-card slot; 41-a panel; 42-support ribs; 43-reinforcing ribs; 51-vertical plates; 52-horizontal plate.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings and specific embodiments.
The utility model provides an extrude material furred ceiling structure, includes many installs in jib 1 of roof, locates many first card formula fossil fragments 2, perpendicular joint in many of the many parallel arrangement of 1 lower extreme of jib 1 many second card formula fossil fragments 3, locate many of the polylith unit extrusion plate 4 of second card formula fossil fragments 3 lower extreme, connect the extrusion plate 5 of bending between the high low bit unit extrusion plate, locate the low bit unit and extrude the light trough 6 that the panel is close to the furred ceiling medial extremity.
The assembly of the whole suspended ceiling structure can be realized only by using two types of extrusion plates, wherein the high-position top and the low-position top can be formed by mutually splicing a plurality of unit extrusion plates, namely, the high-position top and the low-position top can be installed one by one during installation, so that the problems of overweight and inconvenient installation of the whole suspended ceiling are avoided; the high-low position tops can be connected through the bending extrusion plate, and the lamp groove can be formed by surrounding the cut bending extrusion plate and the low-position extrusion plate between the high-low position tops. In conclusion, the utility model has simple structure, convenient and efficient installation and time and labor saving.
Specifically, 2 lower extremes of first card formula fossil fragments are equipped with a plurality of even joint 221 in interval, joint 221 both sides all are equipped with hook 2211 up, 3 upper ends of second card formula fossil fragments are equipped with two couples 321 in opposite directions. The structure is matched and connected with two opposite hook parts at the lower end of the first clamping type keel through two opposite hooks at the upper end of the second clamping type keel so as to realize the connection between the two groups of keels; wherein, two couples of second card formula fossil fragments can cooperate with the hook portion that carries on the back of the body on the joint of difference according to actual distance.
The first clamping type keel 2 comprises a first horizontal plate 21 and two first vertical plates 22 arranged below the first horizontal plate 21 relatively, a plurality of connecting holes for connecting the suspender 1 are formed in the first horizontal plate 21, and a plurality of clamping connectors 221 which are uniformly spaced are arranged at the lower ends of the two first vertical plates 22. The first horizontal plate is connected with the hanger rod through the connecting hole and matched with the nut, and meanwhile, the height of the first clamping type keel can be adjusted through the fixing position of the nut according to actual needs; all be equipped with the joint on two first risers, can ensure its stability of being connected with second card formula fossil fragments. The second clip type keel 3 comprises a second horizontal plate 31 and two second vertical plates 32 oppositely arranged above the second horizontal plate 31, and the upper ends of the two second vertical plates 32 are provided with the hooks 321. Wherein, the second horizontal plate is used for extruding the board through connecting element such as bolt or adhesive, and two second risers make the couple can block smoothly in the joint of first card formula fossil fragments through the elasticity of self, realize stable connection. The upper side surface of the unit extrusion plate 4 is at least provided with two clamping grooves 411, the clamping grooves 411 are fixedly connected with the second clamping type keel 3 through an adhesive, the connection mode is more convenient and efficient, and meanwhile, the unit extrusion plate has better stability and does not need to be provided with holes; and every unit is extruded and is connected with two second card formula keels on the board at least, can further ensure the stability of unit extrusion board installation.
In addition, the unit extrusion plate 4 includes two upper and lower parallel panels 41 and a plurality of support ribs 42 disposed between the two panels 41, and the unit extrusion plate 4 is provided with a reinforcing rib 43 at the position where the clamping groove 411 is disposed. The unit extrusion plate is simple in structure, material-saving, light in weight and convenient to install and operate, and reinforcing ribs are arranged at the clamping grooves with small thickness to ensure structural strength. And 4 both ends of unit extrusion plate are equipped with tenon and tongue-and-groove of mutually supporting respectively to can zonulae occludens between the adjacent unit extrusion plate, ensure the structural stability and the surface smoothness of whole furred ceiling simultaneously.
The bending extrusion plate 5 comprises a vertical plate 51 and a horizontal plate 52 vertically arranged on the same side of the upper end and the lower end of the vertical plate 51, and the tenon or the mortise is arranged at the end part of at least one horizontal plate. The upper horizontal plate and the lower horizontal plate face to the same side, so that the horizontal plates are prevented from being exposed on the inner side of the whole suspended ceiling, and the attractiveness is ensured; the tenon or the mortise are arranged to provide a plurality of connection modes for the extrusion plates of the bending extrusion plate connection unit so as to improve the applicability, and the tenon can be respectively processed at the end part of one horizontal plate, the mortise is processed at the end part of the other horizontal plate in consideration of the convenience of production and processing, and the vertical position is adjusted according to the requirement in the actual installation.
Further, the light trough 6 is composed of the bending extrusion plate 5, a lower unit extrusion plate, and a cut bending extrusion plate. The lamp groove is installed without other types of extruded parts, a right-angle structure is obtained by cutting and bending the extrusion plates, the right-angle structure is connected to the end part of the unit extrusion plate at the lower position, and the right-angle structure, the unit extrusion plate and the bending extrusion plate connected with the extrusion plates at the higher and lower positions form the lamp groove together.
In summary, the installation method of the extruded material ceiling structure is as follows:
step 1, installing a base layer: installing a plurality of suspension rods 1 on a roof by using expansion bolts 7, wherein the suspension rods with different lengths are selected for installation according to the height required by the high-low position roof;
step 2, installing a plurality of first clamping keels 2 at the lower ends of the plurality of hanging rods 1 through nuts;
step 3, installing a high-position top: the second clamping type keel 3 is installed in the clamping groove 411 of the unit extrusion plates 4 through an adhesive, then the plurality of unit extrusion plates 4 are sequentially installed below the high-position first clamping type keel through the clamping connection of the second clamping type keel 3 and the first clamping type keel 2, and adjacent unit extrusion plates are inserted through tenons and mortises;
step 4, mounting the bending extrusion plate 5 on the high-position top side through a screw;
step 5, installing a low-position top or closing plate:
the lower part is provided with a hanging rod and a first clamping keel, the second clamping keel is installed on the unit extrusion plates by using an adhesive, then the plurality of unit extrusion plates are sequentially installed below the lower part of the first clamping keel through the clamping connection of the second clamping keel and the first clamping keel, and the lower unit extrusion plates and the bending extrusion plates are inserted through tenons and mortises; cutting off the unit extrusion plate at the side of the lower position, mounting a second clamping type keel, and then fixedly connecting the second clamping type keel to the wall through a screw to be used as a closing plate for closing;
the lower part of the bending extrusion plate is not provided with a suspender and a first clamping keel, and the unit extrusion plate (whether to cut according to actual width selection) is directly installed to the lower end of the bending extrusion plate through an adhesive to be used as a closing plate, wherein a horizontal plate at the lower end of the bending extrusion plate is connected in a clamping groove of the lower unit extrusion plate through the adhesive;
and 6, cutting the bending extrusion plate 5 to form a right-angle structure (namely cutting off the middle part of the vertical plate of the bending extrusion plate), inserting the tenon or the mortise of the horizontal plate left in the right-angle structure with the end part of the low-level unit extrusion plate, and installing an angle code between the tenon or the mortise and the end part of the low-level unit extrusion plate for fixing so that the right-angle structure, the low-level unit extrusion plate and the bending extrusion plate connected with the high-level top and the low-level top jointly form a lamp slot.
The above description is only a preferred embodiment of the present invention, and the present invention is not limited to the above embodiment, and any changes or substitutions that can be easily made by those skilled in the art within the technical scope of the present invention should be covered by the protection scope of the present invention. Therefore, the protection scope of the present invention shall be subject to the protection scope of the claims.

Claims (8)

1. The extruded material ceiling structure is characterized by comprising a plurality of suspension rods arranged on a roof, a plurality of first clamping keels arranged in parallel and arranged at the lower ends of the suspension rods, a plurality of second clamping keels vertically clamped at the lower ends of the first clamping keels, a plurality of unit extrusion plates arranged at the lower ends of the second clamping keels, bending extrusion plates connected between the high-low unit extrusion plates, and lamp grooves arranged at the lower unit extrusion plates and close to the inner side ends of the suspended ceiling;
first card formula fossil fragments lower extreme is equipped with a plurality of even joint in interval, the joint both sides all are equipped with hook portion up, second card formula fossil fragments upper end is equipped with two couples in opposite directions.
2. The extruded material ceiling structure of claim 1, wherein the first snap-in keel comprises a first horizontal plate and two first vertical plates oppositely arranged below the first horizontal plate, the first horizontal plate is provided with a plurality of connecting holes for connecting the hanger rods, and the lower ends of the two first vertical plates are provided with a plurality of snap joints uniformly spaced.
3. The extruded material ceiling structure of claim 1, wherein the second snap-in keel comprises a second horizontal plate and two second vertical plates oppositely arranged above the second horizontal plate, and the hooks are arranged at the upper ends of the two second vertical plates.
4. The extruded material ceiling structure of claim 1, wherein at least two clamping grooves are formed in the upper side surface of the unit extrusion plate, and the clamping grooves are fixedly connected with the second clamping type keels through an adhesive.
5. The extruded material ceiling structure of claim 4, wherein the unit extrusion plate comprises an upper panel and a lower panel which are parallel to each other, and a plurality of support ribs arranged between the two panels, and the unit extrusion plate is provided with the reinforcing ribs at the positions where the clamping grooves are formed.
6. The extruded material ceiling structure of claim 1, wherein the unit extrusion plates are provided at both ends thereof with a tenon and a mortise, respectively, which are engaged with each other.
7. The extruded material ceiling structure of claim 6, wherein the bending extrusion plate comprises a vertical plate and a horizontal plate vertically arranged on the same side of the upper end and the lower end of the vertical plate, and the tenon or the mortise is arranged at the end of at least one horizontal plate.
8. The extruded material ceiling structure of claim 1, wherein the light trough is formed by the bent extrusion plates, the unit extrusion plates at the lower position and the bent extrusion plates after being cut.
