Abstract
本实用新型属于输送设备配件领域，涉及一种胶带机输送系统，包括胶带机通廊和转运站，以及设置在胶带机通廊内的胶带机，胶带机包括上托辊组、下托辊组、中间架、支腿以及由上胶带、下胶带组成的输送带，下胶带下方设置有与下胶带形成密封腔室的密封罩；下托辊组无中部托辊，仅由左、右两侧托辊构成；本发明的下胶带下方设置有密封罩，减少了胶带运输过程回程撒料、扬尘对外部环境的污染；下托辊组无中部托辊，仅由左、右两侧托辊构成，由于胶带中部所粘附的物料往往是最多的，通过无中部托辊的设置型式，不仅降低了设备投资，而且有利于粘附物料无遮挡地自然下落至位于正下方的密封罩，有利于胶带机的检修维护。
The utility model belongs to the field of conveying equipment accessories, and relates to a belt conveyor conveying system, comprising a belt conveyor corridor and a transfer station, and a belt conveyor arranged in the belt conveyor corridor. The belt conveyor comprises an upper idler set and a lower idler set , the middle frame, the legs and the conveyor belt composed of the upper tape and the lower tape. The lower tape is provided with a sealing cover that forms a sealing chamber with the lower tape; the lower roller group has no middle roller, only the left and right sides It is composed of idler rollers; a sealing cover is arranged under the lower belt of the present invention, which reduces the pollution to the external environment caused by the backhaul of the belt and the dust; , Since the material adhered to the middle of the tape is often the most, the setting type without the middle idler not only reduces the equipment investment, but also facilitates the natural fall of the adhering material to the sealing cover located directly below without obstruction, which is beneficial to Overhaul and maintenance of tape machine.
Description
Technical Field
The utility model belongs to the field of conveying equipment accessories and relates to a conveying system of an adhesive tape machine.
Background
In the process of conveying bulk materials, the belt conveyor often needs a lot of manpower to perform material scattering and cleaning operation due to the fact that a sweeper is poor in cleaning effect and fails, a rubber belt deviates, belt surface vibration and other factors to cause material scattering on the way of a return section. At present, two belt surface cleaners are usually arranged at a roller at the head part of an adhesive tape machine for material scattering of a return segment, but the material cleaning effect is often influenced by the fact that the cleaners are easy to loosen, a scraping plate is worn and fails, and the mounting is not proper. Meanwhile, part of materials with strong viscosity and high moisture are easy to adhere to the surface of the adhesive tape, and the two cleaners can not be cleaned, so that a large amount of scattering materials are generated below the surface of the tape in the subsequent return section, particularly in the return section close to the head roller. Therefore, the phenomenon of material scattering of the adhesive tape machine along the way, especially the phenomenon of material scattering at the return section close to the head roller is serious, which is a common problem, not only causes material loss and pollution of the operation environment, but also needs to spend a great deal of manpower to perform material cleaning operation, increases the production and maintenance cost, and is a technical problem to be solved urgently.
SUMMERY OF THE UTILITY MODEL
In view of this, the present invention provides a conveyor system for an adhesive tape machine, which combines the characteristics of the conveyor mode of the adhesive tape machine and designs an arrangement structure of the adhesive tape machine for facilitating the return cleaning.
In order to achieve the purpose, the utility model provides the following technical scheme: a kind of adhesive tape machine conveying system, including the belt conveyor vestibule and transfer station, and the adhesive tape machine set up in belt conveyor vestibule, the adhesive tape machine includes the upper idler set, lower idler set, middle shelf, landing leg and conveyer belt made up of upper tape, lower tape, there is a sealed cowling forming sealed cavity with lower tape below the lower tape; the lower carrier roller group is not provided with a middle carrier roller and only consists of a left carrier roller and a right carrier roller.
Optionally, two ends of the sealing cover are respectively connected to the supports of the left and right lower carrier roller sets or connected to the support legs at two sides, and are in a shape of a 'V'.
Optionally, the left and right lower carrier roller sets are respectively installed on two sides of the middle frame in an inclined manner with a high outside and a low inside.
Optionally, a pinch roller for assisting the tape to form a groove is further arranged above the lower tape.
Optionally, a fixed cleaning device is arranged in the sealing cover at a position close to the head of the adhesive tape machine, and the fixed cleaning device is a scraper cleaning device.
Optionally, a movable cleaning device reciprocating along the longitudinal direction of the adhesive tape machine is arranged in the sealing cover, and the movable cleaning device provides power through a rechargeable battery arranged on the movable cleaning device, or a winding device, or a sliding contact line arranged along the longitudinal direction of the corridor.
Optionally, more than one access door of the sealing cover is arranged on the side wall of the sealing cover.
Optionally, the bottom of the sealing cover is provided with a material collecting device, and the material collecting device comprises a blanking chute communicated with the sealing cover and a material collecting hopper located below the blanking chute.
The utility model has the beneficial effects that:
(1) in the utility model, the sealing cover is arranged below the lower adhesive tape, so that the pollution of return scattering and dust to the external environment in the adhesive tape transportation process is reduced;
(2) in the utility model, the sealing cover arranged below the lower adhesive tape is V-shaped to form a scattered material collecting surface, and different types of cleaning devices are combined to facilitate the regular or automatic cleaning of the scattered material in the return stroke of the adhesive tape machine;
(3) in the utility model, the lower carrier roller group is not provided with a middle carrier roller and only consists of a left carrier roller and a right carrier roller; because the material that the sticky tape middle part adhered often is the most, through the type of setting that does not have middle part bearing roller, not only reduced equipment investment, be favorable to moreover the adhesion material not have the sealed cowling that naturally falls to being located directly below sheltering from, be favorable to the maintenance of sticky tape machine.
Additional advantages, objects, and features of the utility model will be set forth in part in the description which follows and in part will become apparent to those having ordinary skill in the art upon examination of the following or may be learned from practice of the utility model. The objectives and other advantages of the utility model may be realized and attained by the means of the instrumentalities and combinations particularly pointed out hereinafter.
Drawings
For the purposes of promoting a better understanding of the objects, aspects and advantages of the utility model, reference will now be made to the following detailed description taken in conjunction with the accompanying drawings in which:

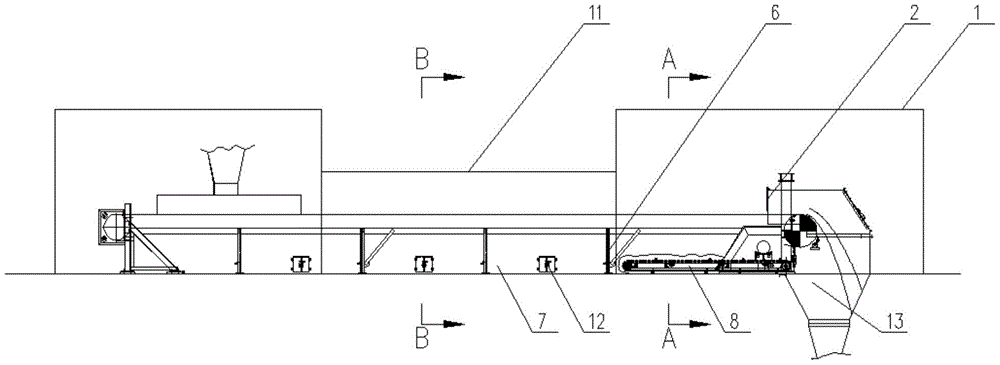

fig. 1 is a front view of an embodiment 1 of a conveyor system of an adhesive tape machine of the present invention;
FIG. 2 is a view A-A of FIG. 1;
FIG. 3 is a view B-B of FIG. 1;
FIG. 4 is a front view of an embodiment 2 of a conveyor system of an adhesive tape machine of the present invention;
fig. 5 is a view C-C in fig. 4.
Reference numerals: the device comprises a transfer station 1, a belt conveyor 2, an upper carrier roller group 3, a middle frame 4, a lower carrier roller group 5, supporting legs 6, a sealing cover 7, a cleaning device 8, a lower rubber belt 9, an upper rubber belt 10, a belt conveyor gallery 11, a sealing cover access door 12, a head blanking hopper 13, a pinch roller 14, a head material collecting device 15 and a tail material collecting device 16.
Detailed Description
The embodiments of the present invention are described below with reference to specific embodiments, and other advantages and effects of the present invention will be easily understood by those skilled in the art from the disclosure of the present specification. The utility model is capable of other and different embodiments and of being practiced or of being carried out in various ways, and its several details are capable of modification in various respects, all without departing from the spirit and scope of the present invention. It should be noted that the drawings provided in the following embodiments are only for illustrating the basic idea of the present invention in a schematic way, and the features in the following embodiments and examples may be combined with each other without conflict.
Wherein the showings are for the purpose of illustrating the utility model only and not for the purpose of limiting the same, and in which there is shown by way of illustration only and not in the drawings in which there is no intention to limit the utility model thereto; to better illustrate the embodiments of the present invention, some parts of the drawings may be omitted, enlarged or reduced, and do not represent the size of an actual product; it will be understood by those skilled in the art that certain well-known structures in the drawings and descriptions thereof may be omitted.
The same or similar reference numerals in the drawings of the embodiments of the present invention correspond to the same or similar components; in the description of the present invention, it should be understood that if there is an orientation or positional relationship indicated by terms such as "upper", "lower", "left", "right", "front", "rear", etc., based on the orientation or positional relationship shown in the drawings, it is only for convenience of description and simplification of description, but it is not an indication or suggestion that the referred device or element must have a specific orientation, be constructed in a specific orientation, and be operated, and therefore, the terms describing the positional relationship in the drawings are only used for illustrative purposes, and are not to be construed as limiting the present invention, and the specific meaning of the terms may be understood by those skilled in the art according to specific situations.
In the specific embodiment 1, the method comprises the following steps of,
referring to fig. 1 to 3, a conveyor system of an adhesive tape machine includes a belt conveyor gallery 11, a transfer station 1, and an adhesive tape machine 2 disposed inside the belt conveyor gallery 11, where the adhesive tape machine 2 includes an upper carrier roller set 3, a lower carrier roller set 5, a middle frame 4, support legs 6, and a conveyor belt composed of an upper adhesive tape 10 and a lower adhesive tape 9, a sealing cover 7 is disposed below the lower adhesive tape 9, and two ends of the sealing cover 7 are respectively connected to the supports of the left and right lower carrier roller sets 5 or the support legs 6 at two sides, and are in a "V" shape; the lower carrier roller group 5 has no middle carrier roller and only consists of a left carrier roller and a right carrier roller, and the left carrier roller and the right carrier roller are respectively arranged at two sides of the bottom of the middle frame 4.
In this embodiment, the left and right lower carrier roller groups 5 are attached to both sides of the intermediate frame 4 in an inclined manner with a high outer side and a low inner side.
In the present embodiment, a fixed cleaning device 8 is provided in the seal cover 7 at a position close to the head of the tape dispenser, and the fixed cleaning device 8 is a blade cleaning device.
In the present embodiment, a seal cover access door 12 is provided on a side wall of the seal cover 7.
In this embodiment, the operation steps of the belt conveyor conveying system are as follows:
s1, a sealing cover 7 positioned below a lower adhesive tape 9 is of a V-shaped structure to form a material scattering and collecting surface, and materials carried by the return stroke of the lower adhesive tape 9 fall into the material scattering and collecting surface along the inner wall of the sealing cover 7;
s2, the fixed cleaning device 8 automatically cleans the return scattering materials of the head section of the adhesive tape machine in the sealing cover 7 to a head blanking hopper 13, and the return scattering materials except the head section of the adhesive tape machine in the sealing cover 7 are periodically cleaned manually through a sealing cover access door 12 on the side wall of the sealing cover.
In the specific embodiment 2, the method comprises the following steps of,
as shown in fig. 4 and 5, the present embodiment is different from embodiment 1 mainly in that:
in the present embodiment, the cleaning device 8 is a movable cleaning device, and is provided with a rechargeable battery itself;
in this embodiment, the lower carrier roller group 5 is composed of left and right lower carrier rollers, and each lower carrier roller is composed of two independent carrier rollers;
in the embodiment, a pinch roller 14 for assisting the grooving of the adhesive tape is arranged above the lower adhesive tape;
in the embodiment, the sealing cover 7 is provided with a material collecting device, and the material collecting device comprises a head material collecting device 15 and a tail material collecting device 16; the aggregate device comprises a blanking chute communicated with the sealing cover and an aggregate bin positioned below the blanking chute.
The embodiment also provides the working steps of the belt conveyor conveying system:
s1, a sealing cover 7 positioned below a lower adhesive tape is in a V-shaped structure to form a material scattering and collecting surface, and materials carried by a return stroke of the lower adhesive tape 9 fall into the material scattering and collecting surface along the inner wall of the sealing cover 7;
s2, a movable cleaning device 8 arranged in the sealing cover 7 and used for collecting the platform surface starts to work, the movable cleaning device runs from the tail end to the head end of the adhesive tape machine gallery 11 along the length direction of the adhesive tape machine gallery 11, and return-stroke scattering materials are pushed to a discharge opening of a head collecting device 15 through a cleaning scraper arranged on the cleaning device 8; after the cleaning device 8 reaches the head end, the cleaning device rotates 180 degrees around the cleaning device to adjust the driving direction, and the cleaning device continues to drive from the head end to the tail end of the belt conveyor corridor 11 along the length direction of the belt conveyor corridor 11, so that the return scattered materials which are not completely cleaned are pushed to a discharge opening of the tail collecting device 16; and circulating the steps, and meanwhile, naturally dropping the return scattering materials collected by the collecting device into the collecting hopper through the discharge opening and the blanking chute under the action of gravity so as to be cleaned manually and periodically.
Finally, the above embodiments are only intended to illustrate the technical solutions of the present invention and not to limit the present invention, and although the present invention has been described in detail with reference to the preferred embodiments, it will be understood by those skilled in the art that modifications or equivalent substitutions may be made on the technical solutions of the present invention without departing from the spirit and scope of the technical solutions, and all of them should be covered by the claims of the present invention.
