Abstract
The utility model discloses a high-strength screw fastening device for processing, relates to the technical field of screw processing, and aims to solve the problem that the existing screw fastening device is inconvenient to install and detach. The lower extreme of mounting platform is provided with the connecting block, the lower extreme of connecting block is provided with first slider, the below of first slider is provided with the slide rail, mounting platform's upper end is provided with fixed connection structure, the last bolt of screwing that is provided with of fixed connection structure, fixed connection structure's upper end is provided with the push rod cylinder, one side of push rod cylinder is provided with cylinder connection structure, be provided with the push rod in the push rod cylinder, one side of push rod cylinder is provided with solid fixed ring, the one end of push rod is provided with fixed knot structure, one side of fixed knot structure is provided with first mounting plate, one side of first mounting plate is provided with the second mounting plate, be provided with the spout in the middle of the mounting platform is inside, be provided with the second slider in the spout.
Description
Technical Field
The utility model relates to the technical field of screw machining, in particular to a high-strength screw fastening device for machining.
Background
In conventional devices, as in application No.: 201920356739.4, respectively; the name is as follows: a screw fastening processing device. The device includes: the handle ball comprises a base plate, wherein the left side and the right side of the lower surface of the base plate are fixedly connected with stainless steel underframe, the upper surface of the base plate is fixedly connected with a slideway base plate, the upper surface of the slideway base plate is provided with a carrying plate a and a carrying plate b, the carrying plate b is positioned on the right side of the carrying plate a, the upper surface of the slideway base plate is clamped with a small linear bearing, a screw rod is sleeved in the small linear bearing, and the top end of the screw rod penetrates through a pulling plate and is fixedly connected with the outer surface of the handle ball; through setting up and examining the board, examine when examining the removal of inspection board and being close to each other for two, examine the inspection board and can clip and fix the mounting panel for the mounting panel can not produce the displacement of inclining when being installed the screw, consequently examine the inspection board more stable and can not rock when removing, consequently the screw also can fix the position when being twisted and move, and the screw can not be the slope form, consequently the effect of installing on the fixed plate is better.
However, the screw fastening device has the problem of inconvenient installation and disassembly; therefore, the existing requirements are not satisfied, and for this reason we propose a high-strength screw fastening device for machining.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a high-strength screw fastening device for processing, which aims to solve the problem that the existing screw fastening device proposed in the background technology is inconvenient to mount and dismount.
In order to achieve the purpose, the utility model provides the following technical scheme: a high-strength screw fastening device for processing comprises an installation platform, wherein a connecting block is arranged at the lower end of the installation platform and fixedly connected with the lower end of the installation platform, a fixing screw is arranged on the connecting block and is in through connection with the connecting block, a first sliding block is arranged at the lower end of the connecting block and is fixedly connected with the lower end of the connecting block, a sliding rail is arranged below the first sliding block and is in sliding connection with the first sliding block, a fixed connection structure is arranged at the upper end of the installation platform and is fixedly connected with the upper end of the installation platform, a screwing bolt is arranged on the fixed connection structure and is in through connection with the fixed connection structure, a push rod cylinder is arranged at the upper end of the fixed connection structure and is fixedly connected with the upper end of the fixed connection structure, one side of push rod cylinder is provided with cylinder connection structure, and one side fixed connection of cylinder connection structure and push rod cylinder, be provided with the push rod in the push rod cylinder, one side of push rod cylinder is provided with solid fixed ring, and one side fixed connection of solid fixed ring and push rod cylinder, the one end of push rod is provided with fixed knot structure, and the one end fixed connection of fixed knot structure and push rod, one side of fixed knot structure is provided with first mounting plate, and one side flange joint of first mounting plate and fixed knot structure, one side of first mounting plate is provided with the second mounting plate, be provided with the spout in the middle of the mounting platform is inside, be provided with the second slider in the spout, and second slider and spout sliding connection.
Preferably, the upper end of the second sliding block is provided with a screw clamping structure, the screw clamping structure is fixedly connected with the upper end of the second sliding block, and an inclined opening is formed in an opening of the screw clamping structure.
Preferably, the inner wall of the screw clamping structure is provided with a spring assembly, and the spring assembly is fixedly connected with the inner wall of the screw clamping structure.
Preferably, one end of the spring assembly is provided with a clamping plate, and the clamping plate is fixedly connected with one end of the spring assembly.
Preferably, the first fastening plate is provided with a positioning groove, the second fastening plate is provided with a positioning column, and the positioning column is fixedly connected with the second fastening plate.
Preferably, the first fastening plate and the second fastening plate are provided with fastening grooves, the fastening grooves are provided with rubber pads, and the rubber pads are fixedly connected with the fastening grooves.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the utility model, through the arrangement of the mounting platform, the first sliding block, the sliding rail, the second sliding block and the sliding groove, the mounting platform provides a mounting field for other components, so that the device can be conveniently and integrally moved, the first sliding block horizontally moves on the sliding rail, the second sliding block horizontally moves in the sliding groove, the first sliding block, the sliding rail, the second sliding block and the sliding groove are respectively provided with the convex block and the groove, the convex block and the groove are convenient for integrally mounting and dismounting the first sliding block and the second sliding block together with the components mounted on the first sliding block and the second sliding block, the mounting can be completed only by aligning and pushing the convex block and the groove, and the dismounting can be directly and integrally taken out, so that the problem that the mounting and dismounting of the conventional screw fastening device are inconvenient is solved.
2. Through the setting of first mounting plate, second mounting plate, constant head tank, reference column, fastening groove, rubber pad, the mutual adaptation of fastening groove in the first mounting plate and the second mounting plate, its fastening inslot portion is provided with the rubber pad to increase the stability that the screw adds man-hour, very high work efficiency, the setting of reference column and constant head tank can prevent that the fastening groove from taking place the dislocation.
Drawings

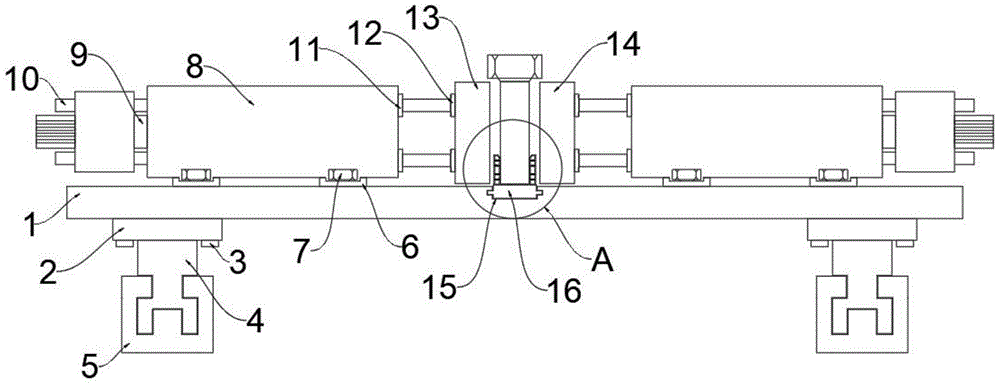

FIG. 1 is a schematic view showing the overall construction of a screw fastening device according to the present invention;
FIG. 2 is an enlarged view of a portion A of the screw fastening device of the present invention;
FIG. 3 is a schematic structural view of a first fastening plate and a second fastening plate of the screw fastening device of the present invention;
in the figure: 1. mounting a platform; 2. connecting blocks; 3. fixing screws; 4. a first slider; 5. a slide rail; 6. a fixed connection structure; 7. screwing the bolt; 8. a push rod cylinder; 9. a cylinder connection structure; 10. a push rod; 11. a fixing ring; 12. a fixed structure; 13. a first fastening plate; 14. a second fastening plate; 15. a chute; 16. a second slider; 17. a screw clamping structure; 18. a bevel opening; 19. a spring assembly; 20. a splint; 21. positioning a groove; 22. a positioning column; 23. a fastening groove; 24. and (7) a rubber pad.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments.
Referring to fig. 1-3, an embodiment of the present invention is shown: a high-strength screw fastening device for processing comprises an installation platform 1, wherein the lower end of the installation platform 1 is provided with a connecting block 2, the connecting block 2 is fixedly connected with the lower end of the installation platform 1, the upper part of the connecting block 2 is provided with a fixing screw 3, the fixing screw 3 is in through connection with the connecting block 2, the lower end of the connecting block 2 is provided with a first slider 4, the first slider 4 is fixedly connected with the lower end of the connecting block 2, the lower part of the first slider 4 is provided with a slide rail 5, the slide rail 5 is in sliding connection with the first slider 4, the upper end of the installation platform 1 is provided with a fixed connection structure 6, the fixed connection structure 6 is fixedly connected with the upper end of the installation platform 1, a screwing bolt 7 is arranged on the fixed connection structure 6, the screwing bolt 7 is in through connection with the fixed connection structure 6, the upper end of the fixed connection structure 6 is provided with a push rod cylinder 8, and the push rod cylinder 8 is fixedly connected with the upper end of the fixed connection structure 6, one side of push rod cylinder 8 is provided with cylinder connection structure 9, and one side fixed connection of cylinder connection structure 9 and push rod cylinder 8, be provided with push rod 10 in the push rod cylinder 8, one side of push rod cylinder 8 is provided with solid fixed ring 11, and solid fixed ring 11 and one side fixed connection of push rod cylinder 8, the one end of push rod 10 is provided with fixed knot structure 12, and the one end fixed connection of fixed knot structure 12 and push rod 10, one side of fixed knot structure 12 is provided with first mounting plate 13, and one side flange joint of first mounting plate 13 and fixed knot structure 12, one side of first mounting plate 13 is provided with second mounting plate 14, be provided with spout 15 in the middle of mounting platform 1 is inside, be provided with second slider 16 in the spout 15, and second slider 16 and spout 15 sliding connection.
Further, the upper end of the second slider 16 is provided with a screw clamping structure 17, the screw clamping structure 17 is fixedly connected with the upper end of the second slider 16, an inclined opening 18 is formed in an opening of the screw clamping structure 17, and the screw can be conveniently inserted into the inclined opening 18.
Further, the inner wall of the screw clamping structure 17 is provided with a spring assembly 19, and the spring assembly 19 is fixedly connected with the inner wall of the screw clamping structure 17, and the spring assembly 19 is convenient for clamping the inserted screw.
Further, one end of the spring assembly 19 is provided with a clamping plate 20, and the clamping plate 20 is fixedly connected with one end of the spring assembly 19, and the clamping plate 20 is matched with the spring assembly 19 to clamp the inserted screw.
Further, be provided with constant head tank 21 on the first mounting plate 13, be provided with reference column 22 on the second mounting plate 14, and reference column 22 and second mounting plate 14 fixed connection, first mounting plate 13 and second mounting plate 14 are used for clamping screw, the processing of being convenient for.
Further, fastening grooves 23 are formed in the first fastening plate 13 and the second fastening plate 14, rubber pads 24 are arranged on the fastening grooves 23, the rubber pads 24 are fixedly connected with the fastening grooves 23, the rubber pads 24 can play a role in further fastening, meanwhile, stability in screw machining is improved, and work efficiency is improved.
The working principle is as follows: when the screw clamping structure is used, firstly, a screw to be processed is fixed in the screw clamping structure 17, an inclined opening 18 is arranged on an opening of the screw clamping structure 17, the inclined opening 18 is convenient for clamping the screw, after the screw is placed in the screw clamping structure, the screw is clamped by the spring assembly 19 and the clamping plate 20, then the second sliding block 16 below the screw clamping structure 17 slides along the sliding groove 15 to drive the screw clamping structure 17 to slide to a processing area, then the push rod cylinder 8 is started, the first fastening plate 13 and the second fastening plate 14 are contacted with the screw by pushing the push rod 10, then the screw is fastened, rubber pads 24 are arranged in the fastening grooves 23 in the first fastening plate 13 and the second fastening plate 14, the rubber pads 24 increase the stability during screw processing and increase the working efficiency, and when the screw is processed, in addition, the first sliding block 4, the sliding rail 5, the second sliding block 16 and the sliding groove 15 are all provided with convex blocks and grooves, the lug and the groove are convenient for the integral installation and disassembly of the first slider 4 and the second slider 16 together with the components installed on the first slider, the installation can be completed only by aligning the lug and the groove and pushing the lug and the groove, the disassembly is directly and integrally taken out, and the problem that the existing screw fastening device is inconvenient to install and disassemble is solved.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present invention may be embodied in other specific forms without departing from the spirit or essential attributes thereof. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. A high strength screw fastener for processing, includes mounting platform (1), its characterized in that: the lower end of the mounting platform (1) is provided with a connecting block (2), the connecting block (2) is fixedly connected with the lower end of the mounting platform (1), a fixing screw (3) is arranged on the connecting block (2), the fixing screw (3) is in through connection with the connecting block (2), the lower end of the connecting block (2) is provided with a first sliding block (4), the first sliding block (4) is fixedly connected with the lower end of the connecting block (2), a sliding rail (5) is arranged below the first sliding block (4), the sliding rail (5) is in sliding connection with the first sliding block (4), the upper end of the mounting platform (1) is provided with a fixed connecting structure (6), the fixed connecting structure (6) is fixedly connected with the upper end of the mounting platform (1), a screwing bolt (7) is arranged on the fixed connecting structure (6), and the screwing bolt (7) is in through connection with the fixed connecting structure (6), the upper end of the fixed connection structure (6) is provided with a push rod cylinder (8), the push rod cylinder (8) is fixedly connected with the upper end of the fixed connection structure (6), one side of the push rod cylinder (8) is provided with a cylinder connection structure (9), the cylinder connection structure (9) is fixedly connected with one side of the push rod cylinder (8), a push rod (10) is arranged in the push rod cylinder (8), one side of the push rod cylinder (8) is provided with a fixing ring (11), the fixing ring (11) is fixedly connected with one side of the push rod cylinder (8), one end of the push rod (10) is provided with a fixing structure (12), the fixing structure (12) is fixedly connected with one end of the push rod (10), one side of the fixing structure (12) is provided with a first fastening plate (13), the first fastening plate (13) is connected with a flange on one side of the fixing structure (12), a second fastening plate (14) is arranged beside the first fastening plate (13), a sliding groove (15) is formed in the middle of the inside of the mounting platform (1), a second sliding block (16) is arranged in the sliding groove (15), and the second sliding block (16) is connected with the sliding groove (15) in a sliding mode.
2. A high-strength screw fastening device for processing according to claim 1, characterized in that: the upper end of the second sliding block (16) is provided with a screw clamping structure (17), the screw clamping structure (17) is fixedly connected with the upper end of the second sliding block (16), and an inclined opening (18) is formed in an opening of the screw clamping structure (17).
3. A high-strength screw fastening device for processing according to claim 2, characterized in that: the inner wall of the screw clamping structure (17) is provided with a spring assembly (19), and the spring assembly (19) is fixedly connected with the inner wall of the screw clamping structure (17).
4. A high-strength screw fastening device for processing according to claim 3, characterized in that: one end of the spring assembly (19) is provided with a clamping plate (20), and the clamping plate (20) is fixedly connected with one end of the spring assembly (19).
5. A high-strength screw fastening device for processing according to claim 1, characterized in that: be provided with constant head tank (21) on first mounting plate (13), be provided with reference column (22) on second mounting plate (14), and reference column (22) and second mounting plate (14) fixed connection.
6. A high-strength screw fastening device for processing according to claim 5, characterized in that: fastening grooves (23) are formed in the first fastening plate (13) and the second fastening plate (14), rubber pads (24) are arranged on the fastening grooves (23), and the rubber pads (24) are fixedly connected with the fastening grooves (23).
