The utility model relates to the technical field of beds for furniture, and particularly discloses a student apartment bed, which comprises a bed plate frame, a baffle plate is arranged at the front side of the bed plate frame, a supporting column is arranged below the two sides of one end of the bed plate frame, the other end of the bed plate frame is provided with a fixing frame which is arranged on the bedside side cabinet component, a corner cabinet component is arranged below the bed board frame, one end of the corner cabinet component is connected with the bedside side cabinet component in an embedded manner, the other end of the corner cabinet component is provided with a storage cabinet for supporting, the outer side of the bed board frame close to the support columns is detachably connected with a step cabinet, the support columns at two sides are connected through connecting rods, the connecting rod is provided with at least two mounting plates, the mounting plates are provided with first connecting holes, the bedside cabinet component comprises a steel frame, a wardrobe body is arranged on the steel frame, a connecting steel plate for erecting one end of the bed board frame is arranged above the wardrobe body, and a bedside table is arranged above one side of the connecting steel plate; the utility model aims to provide a student apartment bed which is compact in structure and stable.
Description
Technical Field
The utility model relates to the technical field of beds for furniture, in particular to a student apartment bed.
Background
In students' dormitories, student apartment beds are basically adopted, and a wardrobe and a desk are embedded below a bed body so as to facilitate students to place clothes and school supplies, but the student apartment beds are not provided with bedside cabinets and are inconvenient to place things; the four corners of the bedstead of the existing student apartment bed are provided with supporting columns to support the bedstead, a wardrobe and a desk are independently placed below the bedstead and are independently installed, the phenomenon of shaking is more in the process of using time, the life quality of students is reduced, and the student apartment beds are provided with crawling ladders on the bedstead, so that the students can get on the bed and sleep conveniently, and the shaking can be realized in the same way, and potential safety hazards exist.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects in the prior art, the utility model provides a student apartment bed which is compact and stable in structure, and solves the problems.
The technical scheme adopted by the utility model for solving the technical problems is as follows: the utility model provides a student apartment bed, includes the bed board frame, bed board frame front side is equipped with the baffle, the below of bed board frame one end both sides is equipped with support column other end mount and establishes on head of a bed limit cabinet subassembly, bed board frame below is equipped with corner cabinet subassembly, corner cabinet subassembly one end is connected with head of a bed limit cabinet subassembly embedding, and the other end is equipped with the locker that is used for the support, the outside dismantlement that the bed board frame is close to the support column is connected with the ladder cabinet.
In the student apartment bed, the support columns on two sides are connected through the connecting rod, the connecting rod is provided with at least two mounting plates, and the mounting plates are provided with first connecting holes.
In the student apartment bed, the bedside cabinet assembly comprises a steel frame, a wardrobe body is arranged on the steel frame, a connecting steel plate for erecting one end of the bed plate frame is arranged above the wardrobe body, a bedside cabinet is arranged above one side of the connecting steel plate, a backboard of the bedside cabinet and an outer side plate of the wardrobe body are of a steel plate integrated structure, and a fixing hole corresponding to the bed plate frame is formed in the other side of the connecting steel plate.
In the student apartment bed, an inner plate body is arranged on the inner side of the wardrobe body, an embedded steel seat is arranged on one side of the inner plate body, an embedded groove is formed in the embedded steel seat, and a first corner cabinet fixing hole is formed in the lower portion of the embedded groove.
In the student apartment bed, the step cabinet is in a step shape, at least one side of the step cabinet is provided with a second connecting hole corresponding to the mounting plate, and the front side of the step cabinet is provided with a plurality of drawer cabinets.
In the student apartment bed, the height of the step cabinet is the same as that of the support column.
In the student apartment bed, the corner cabinet assembly comprises an L-shaped deck plate, one end of the L-shaped deck plate is embedded in the embedded groove and provided with a second corner cabinet fixing hole corresponding to the first corner cabinet fixing hole, the storage cabinet is arranged below the other end of the L-shaped deck plate, and a bookshelf is arranged above a corner of the L-shaped deck plate.
In the student apartment bed, the upper panel of the storage cabinet is an L-shaped deck plate.
In the student apartment bed, the upper end of the support column is provided with the rod hole.
The utility model has the beneficial effects that: one end of the bed board frame is supported through the support column, the other end of the bed board frame is fixed on the bedside cabinet component, and a step cabinet is detachably connected to the outer side of the support column, so that the overall connectivity is improved, the structure is more compact and stable, the support surface of the bedside cabinet component is larger, the stability is improved, the function of the bedside cabinet can be provided, and the bedside cabinet is convenient for students to use; corner cabinet subassembly one end embedding is installed on bedside limit cabinet subassembly for it is whole more firm, prevent to appear rocking easily, and life is high.
Drawings

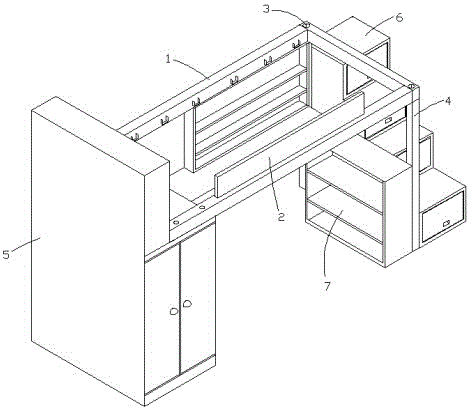

Fig. 1 is a schematic perspective view of the present invention.
Fig. 2 is a schematic view of the connection structure of the bed plate frame and the bedside cabinet assembly.
Fig. 3 is a first perspective view of the bedside cabinet assembly.
Fig. 4 is a perspective view of the bedside cabinet assembly.
Fig. 5 is a schematic structural diagram of the staircase cabinet.
FIG. 6 is a schematic view of a corner cabinet assembly.
In the figure: the bedside table comprises a bed plate frame 1, a baffle plate 2, a rod hole 3, a support column 4, a bedside cabinet component 5, a ladder cabinet 6, a corner cabinet component 7, a connecting rod 8, a mounting plate 9, a steel frame 10, a wardrobe body 11, a connecting steel plate 12, a fixing hole 13, a bedside table 14, an inner plate body 15, an embedded steel seat 16, an embedded groove 17, a first corner cabinet fixing hole 18, a drawer cabinet 19, a second connecting hole 20, an L-shaped table board 21, a bookshelf 22, a second corner cabinet fixing hole 23 and a storage cabinet 24.
Detailed Description
The following further describes embodiments of the present invention with reference to the drawings. It should be noted that the description of the embodiments is provided to help understanding of the present invention, but the present invention is not limited thereto. In addition, the technical features involved in the embodiments of the present invention described below may be combined with each other as long as they do not conflict with each other.
The student apartment bed shown in the combined drawings of fig. 1 and 2 comprises a bed plate frame 1, wherein a baffle 2 is arranged on the front side of the bed plate frame 1, a support column 4 is welded below two sides of one end of the bed plate frame 1, the other end of the bed plate frame is fixedly arranged on a bedside side cabinet component 5, a corner cabinet component 7 is arranged below the bed plate frame 1, one end of the corner cabinet component 7 is connected with the bedside side cabinet component 5 in an embedded manner, a storage cabinet 24 for supporting is arranged at the other end of the corner cabinet component 7, and a ladder cabinet 6 is detachably connected to the outer side, close to the support column 4, of the bed plate frame 1; one end of the bed board frame 1 is supported through the support column 4, the other end of the bed board frame is fixed on the bedside side cabinet component 5, the outer side of the support column 4 is detachably connected with the step cabinet 6, so that the overall connectivity is improved, the structure is more compact and stable, the support surface of the bedside side cabinet component 5 is larger, the stability is improved, the function of the bedside table can be provided, the use of students is facilitated, the step cabinet 6 is connected with the support column 4, the support effect of one end of the support column 4 is more stable, the step cabinet 6 is used for stairs, the use is convenient and safe, and the life quality of the students is improved; corner cabinet subassembly 7 one end embedding is installed on bedside limit cabinet subassembly 5 for it is whole more firm, prevent to appear rocking easily, and life is high.
Both sides be connected through connecting rod 8 between the support column 4, be equipped with two at least mounting panels 9 on this connecting rod 8, seted up first connecting hole on this mounting panel 9, be convenient for carry out the locking with ladder cabinet 6 and be connected, make the bed board frame 1 more firm.
As shown in fig. 3 and 4, the bedside cupboard assembly 5 includes a steel frame 10, a wardrobe body 11 is arranged on the steel frame 10, a connecting steel plate 12 for erecting one end of the bedside cupboard frame 1 is welded above the wardrobe body 11, a bedside cupboard 14 is arranged above one side of the connecting steel plate 12, a back plate of the bedside cupboard 14 and an outer side plate of the wardrobe body 11 are of a steel plate integrated structure, the overall stability is improved, the bedside cupboard 14 is prevented from shaking, and a fixing hole 13 corresponding to the bedside cupboard frame 1 is arranged on the other side of the connecting steel plate 12; wardrobe body 11 uses steelframe 10 as the frame, improves bedside cupboard limit cabinet subassembly 5's stability and support capacity, other faces of bedside cupboard 14 adopt the steel sheet equally, and long service life uses the bolt to fix the bed board frame 1 who erects through fixed orifices 13, prevents to appear shifting and breaks away from.
The wardrobe body 11 takes a steel frame 10 as a frame with four corners, a side steel plate is welded to form the wardrobe body, an inner plate body 15 is arranged on the inner side of the wardrobe body 11, an embedded steel seat 16 is arranged on one side of the inner plate body 15, an embedded groove 17 is formed in the embedded steel seat 16, and a first corner cabinet fixing hole 18 is formed below the embedded groove 17; be convenient for through embedded groove 17 installation corner cabinet subassembly 7 for holistic support capacity is better, prevents to appear rocking.
As shown in fig. 5, the step cabinet 6 is in a step shape, at least one side of the step cabinet 6 is provided with a second connecting hole 20 corresponding to the mounting plate 9, and the front side of the step cabinet 6 is provided with a plurality of drawer cabinets 19; the ladder cabinet 6 is used as a ladder, so that people can go to bed and have a rest conveniently, and the frame of the ladder cabinet 6 is welded by steel plates, so that the service life is long; the height of the ladder cabinet 6 is the same as that of the support column 4, so that students can get to bed for rest conveniently.
As shown in fig. 6, the corner cabinet assembly 7 includes an L-shaped table board 21, one end of the L-shaped table board 21 is inserted into the insertion slot 17, and a second corner cabinet fixing hole 23 corresponding to the first corner cabinet fixing hole 18 is formed, the storage cabinet 24 is disposed below the other end of the L-shaped table board 21, and a bookshelf 22 is disposed above a corner of the L-shaped table board 21; l type deck plate 21 can be better uses as the book platform, and the usage space is sufficient relatively, and L type deck plate 21 one end is installed in embedded groove 17 moreover, makes it form wholly with bedside limit cabinet subassembly 5, and the other end sets up locker 24, and the holding surface is big, improves stability, prevents to appear rocking.
The upper panel of the storage cabinet 24 is an L-shaped table panel 21, so that the structure is more compact and stable.
The upper end of the support column 4 is provided with a rod hole 3, so that students can conveniently install the mosquito net hanging rod, and the other end of the support column can be provided with a hook on the edge of the bedside table 14, so that the mosquito net can be conveniently installed.
It should be noted that the ladder cabinet 6 of the present invention is in a ladder shape, and the two sides of the ladder cabinet 6 can be respectively provided with the second connection holes 20 corresponding to the mounting plate 9, so as to facilitate the connection of the bed plate frame 1 at the two sides of the ladder cabinet 6.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the described embodiments. It will be apparent to those skilled in the art that various changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, and the scope of protection is still within the scope of the utility model.
Claims (9)
1. The utility model provides a student's apartment bed, includes bed board frame (1), bed board frame (1) front side is equipped with baffle (2), its characterized in that, the below of bed board frame (1) one end both sides is equipped with support column (4) other end mount and establishes on head of a bed limit cabinet subassembly (5), bed board frame (1) below is equipped with corner cabinet subassembly (7), corner cabinet subassembly (7) one end is connected with head of a bed limit cabinet subassembly (5) embedding, and the other end is equipped with deposit cabinet (24) that are used for supporting, the outside dismantlement that bed board frame (1) is close to support column (4) is connected with ladder cabinet (6).
2. A student apartment bed according to claim 1, characterised in that the support columns (4) on both sides are connected by a connecting rod (8), the connecting rod (8) being provided with at least two mounting plates (9), the mounting plates (9) being provided with a first connecting hole.
3. A student apartment bed according to claim 1, wherein the bedside cabinet assembly (5) comprises a steel frame (10), a wardrobe body (11) is disposed on the steel frame (10), a connecting steel plate (12) for erecting one end of the bedplate frame (1) is disposed above the wardrobe body (11), a bedside table (14) is disposed above one side of the connecting steel plate (12), a back plate of the bedside table (14) and an outer side plate of the wardrobe body (11) are of a steel plate integrated structure, and a fixing hole (13) corresponding to the bedplate frame (1) is disposed on the other side of the connecting steel plate (12).
4. A student apartment bed according to claim 3, wherein the wardrobe body (11) is provided with an inner plate (15) at an inner side thereof, the inner plate (15) is provided with an embedded steel seat (16) at one side thereof, the embedded steel seat (16) is provided with an embedded groove (17), and a first corner cabinet fixing hole (18) is provided at an inner lower portion of the embedded groove (17).
5. A student apartment bed according to claim 3, characterised in that the step cabinet (6) is stepped, and that at least one side of the step cabinet (6) is provided with a second connection hole (20) corresponding to the mounting plate (9), and that the step cabinet (6) is provided with a plurality of drawer cabinets (19) at the front side.
6. A student apartment bed according to claim 1, characterised in that the height of the step cabinets (6) is the same as the height of the support columns (4).
7. A student's apartment bed as claimed in claim 1, wherein the corner cabinet assembly (7) includes an L-shaped deck plate (21), one end of the L-shaped deck plate (21) is inserted into the insertion groove (17), and a second corner cabinet fixing hole (23) corresponding to the first corner cabinet fixing hole (18) is formed, the storage cabinet (24) is disposed under the other end of the L-shaped deck plate (21), and a bookshelf (22) is disposed above the corner of the L-shaped deck plate (21).
8. A student apartment bed according to claim 1, characterised in that the upper panel of the locker (24) is an L-shaped deck plate (21).
9. A student apartment bed according to claim 1, characterised in that the support columns (4) are provided with rod holes (3) at their upper ends.
