CN215669144U

CN215669144U - An electronic identification sign applied to line poles

Info

Publication number: CN215669144U
Application number: CN202122199384.2U
Authority: CN
Inventors: 杨伟全
Original assignee: Qingdao Orient Signs Co ltd
Current assignee: Qingdao Orient Signs Co ltd
Priority date: 2021-09-10
Filing date: 2021-09-10
Publication date: 2022-01-28
Anticipated expiration: 2031-09-10

Abstract

The utility model relates to the field of road traffic electronic identification signs, in particular to an electronic identification sign applied to utility poles, comprising a sign main body, a fixing block and a solar panel are arranged on the outer surface of the upper end of the sign main body, and a rear surface of the sign main body is provided with a fixing block and a solar panel. A battery is arranged on the outer surface of the end, and an installation component is arranged on the lower side of the battery. The first fixing ring and the second fixing ring in the installation component are movably connected, which is conducive to the installation of the main body of the sign on different types of poles , The solar panel can not only prevent the sign body from being exposed to the sun and rainwater to a certain extent, but also help to convert the solar energy into electrical energy for the sign body to use, save energy, and be more environmentally friendly.

Description

Electronic identification label applied to line pole

Technical Field

The utility model relates to the field of road traffic electronic identification signs, in particular to an electronic identification sign applied to a line pole.

Background

The road traffic electronic sign is a graphic symbol for displaying traffic laws and regulations and road information, can make the traffic laws and regulations be expressed visually, specifically and concisely, and also expresses the contents which are difficult to be described by characters, and is used for managing traffic and indicating the driving direction to ensure the facilities of road smoothness and driving safety; the highway is suitable for highways, urban roads and all special highways, has the property of law, and vehicles and pedestrians must obey the property.

The existing electronic identification label needs to be supplied with power for the label all the time in the use process, is not energy-saving enough, is influenced by natural conditions such as sunshine insolation and rainwater, is not long in service life, and is inconvenient to adjust according to the size of a line pole in a mounting structure of the label.

SUMMERY OF THE UTILITY MODEL

The present invention is directed to an electronic identification plate applied to a wire pole to solve the above problems.

In order to achieve the purpose, the utility model provides the following technical scheme:

the utility model provides an electronic identification sign for line pole, includes the sign main part, the upper end surface of sign main part is provided with fixed block and solar panel, the rear end surface of sign main part is provided with the battery, the downside of battery is provided with the installation component.

As a preferable aspect of the present invention, the mounting assembly includes an i-steel plate, a first fixing ring, a second fixing ring, a first fixing plate, and a second fixing plate, the i-steel plate is mounted on the rear side of the sign body, and the i-steel plate is fixedly welded to the outer surface of the rear side of the sign body.

As a preferable scheme of the present invention, the first fixing ring is fixedly welded to an outer surface of one side of the i-shaped steel plate, the second fixing ring is disposed inside the first fixing ring, and the second fixing ring is movably connected to the first fixing ring.

In a preferred embodiment of the present invention, the first fixing plate is fixedly welded to an outer surface of one end of the second fixing ring, and the second fixing plate is fixedly welded to an outer surface of one end of the first fixing ring.

As a preferable scheme of the present invention, the outer surfaces of the side ends of the first fixing ring and the second fixing ring are both provided with threaded holes, and the first fixing plate and the second fixing plate are both provided with through holes symmetrically distributed.

As a preferable scheme of the present invention, the fixing block is fixedly mounted at the upper end of the sign main body, the solar panel is fixedly mounted at one side of the fixing block and is fixedly connected with the sign main body, an included angle between the solar panel and the sign main body is 45 degrees, and the storage battery is fixedly mounted at the rear side of the sign main body.

Compared with the prior art, the utility model has the beneficial effects that:

1. according to the utility model, the solar panel and the storage battery are arranged, the solar panel can convert solar energy into electric energy to be stored in the storage battery, the storage battery outputs the electric energy for the sign main body, so that energy conservation and environmental protection are facilitated, and the sign main body can be prevented from being exposed to the sun and rainwater washing to a certain extent due to the fact that the solar panel is inclined at a certain angle on the sign main body.

2. According to the utility model, the installation component is arranged at the rear side of the label main body, and the first fixing ring and the second fixing ring in the installation component are movably connected, so that the size between the first fixing ring and the second fixing ring can be adjusted according to the thickness of the wire rod when the label main body is installed, and the label main body can be installed on the wire rods with different models.

Drawings

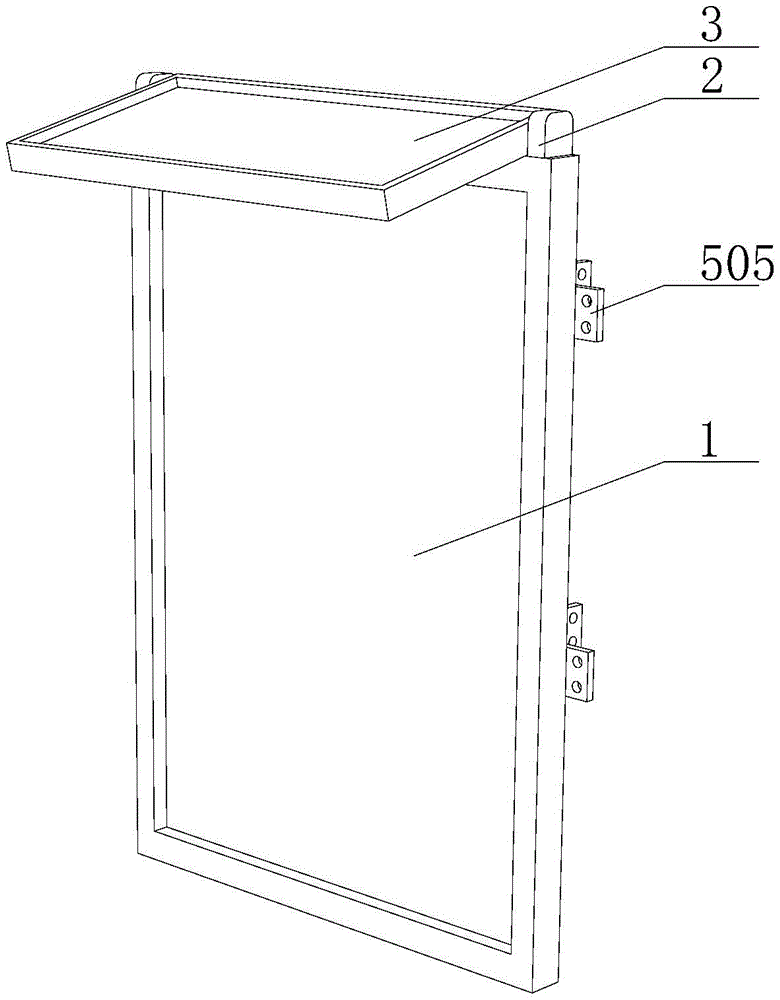

FIG. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic rear side view of the present invention;

fig. 3 is an overall view of the structure of the mounting assembly of the present invention.

In the figure: 1. a label body; 2. a fixed block; 3. a solar panel; 4. a storage battery; 5. mounting the component; 501. an I-shaped steel plate; 502. a first retaining ring; 503. a second retaining ring; 504. a first fixing plate; 505. a second fixing plate; 506. a threaded hole; 507. and a through hole.

Detailed Description

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without any creative work based on the embodiments of the present invention belong to the protection scope of the present invention.

While several embodiments of the present invention will be described more fully hereinafter with reference to the accompanying drawings, in order to facilitate an understanding of the utility model, the utility model may be embodied in many different forms and should not be construed as limited to the embodiments set forth herein, but rather should be construed to provide a more complete disclosure of the utility model.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present, that when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, and that the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the terms used herein in the specification of the present invention are for the purpose of describing particular embodiments only and are not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.

Referring to fig. 1-3, the present invention provides a technical solution:

the utility model provides an be applied to electronic identification sign of line pole, includes sign main part 1, and the upper end surface of sign main part 1 is provided with fixed block 2 and solar panel 3, and the rear end surface of sign main part 1 is provided with battery 4, and battery 4's downside is provided with installation component 5.

Example, referring to fig. 1, 2 and 3, the mounting assembly 5 includes an i-steel plate 501, a first fixing ring 502, a second fixing ring 503, a first fixing plate 504 and a second fixing plate 505, the i-steel plate 501 is mounted on the rear side of the sign body 1, the i-steel plate 501 is fixedly welded to the outer surface of the rear side of the sign body 1, and the i-steel plate 501 facilitates the connection between the sign body 1 and the first fixing ring 502, which can effectively enhance the strength of the sign body 1; the first fixing ring 502 is fixedly welded on the outer surface of one side of the I-shaped steel plate 501, the second fixing ring 503 is arranged inside the first fixing ring 502, the second fixing ring 503 is movably connected with the first fixing ring 502, and the first fixing ring 502 is movably connected with the second fixing ring 503, so that the label main body 1 can be conveniently installed on wire rods of different models; the first fixing plate 504 is fixedly welded on the outer surface of one end of the second fixing ring 503, the second fixing plate 505 is fixedly welded on the outer surface of one end of the first fixing ring 502, and the first fixing plate 504 and the second fixing plate 505 are fixedly connected with bolts, so that the signboard main body 1 can be fixed on a wire rod; the outer surfaces of the side ends of the first fixing ring 502 and the second fixing ring 503 are both provided with threaded holes 506, the first fixing plate 504 and the second fixing plate 505 are both provided with through holes 507 which are symmetrically distributed, and the threaded holes 506 are convenient for fixing the sizes of the first fixing ring 502 and the second fixing ring 503;

when installing sign main part 1 on the line pole, the staff is with first solid fixed ring 502 to be close to the line pole, the solid fixed ring 503 of second of drawing again, adjust the interval of first fixed plate 504 and second fixed plate 505, when first fixed plate 504 and second fixed plate 505 interval size are suitable for the construction bolt fixed, the staff is earlier in the screw hole 506 of screw in first solid fixed ring 502 and the solid fixed ring 503 side of second, fix the size of first solid fixed ring 502 and the solid fixed ring 503 of second, install the bolt on the through-hole 507 on first fixed plate 504 and the second fixed plate 505 again at last, through the size between the solid fixed ring 503 of adjustment first and the second, be favorable to installing sign main part 1 on the line pole of different models.

In the embodiment, referring to fig. 1 and 2, a fixing block 2 is fixedly mounted at the upper end of a sign main body 1, a solar panel 3 is fixedly mounted at one side of the fixing block 2 and is fixedly connected with the sign main body 1, an included angle between the solar panel 1 and the sign main body 1 is 45 degrees, a storage battery 4 is fixedly mounted at the rear side of the sign main body 1, and the solar panel 3 can convert solar energy into electric energy to be stored in the storage battery 4 for the sign main body 1 to use, so that energy is saved, and the sign main body 1 is prevented from being exposed to the sun and washed by rainwater to a certain extent;

after installing sign main part 1 on the line pole, because solar panel 3 slopes certain angle on sign main part 1 this moment, can avoid sign main part 1 to receive sun insolate and rainwash to a certain extent to solar panel 3 can turn into the electric energy with solar energy and then store in battery 4, and battery 4 is sign main part 1 output electric energy, thereby is favorable to the energy saving, comparatively environmental protection.

The working process of the utility model is as follows: when the sign main body 1 is installed on a line pole, a worker puts the first fixing ring 502 close to the line pole, pulls the second fixing ring 503, adjusts the distance between the first fixing ring 504 and the second fixing ring 505, when the distance between the first fixing ring 504 and the second fixing ring 505 is suitable for installing bolts, the worker firstly screws the bolts into the threaded holes 506 on the side surfaces of the first fixing ring 502 and the second fixing ring 503 to fix the size of the first fixing ring 502 and the second fixing ring 503, finally installs the bolts on the through holes 507 on the first fixing ring 504 and the second fixing ring 505, by adjusting the size between the first fixing ring 502 and the second fixing ring 503, the sign main body 1 can be installed on the line pole of different models, after the sign main body 1 is installed on the line pole, at this time, because the solar panel 3 is inclined at a certain angle on the sign main body 1, the sign main body 1 can be prevented from being exposed to the sun and washed by rainwater to a certain extent, and when illumination is sufficient, solar panel 3 turns into the electric energy with solar energy and then stores in battery 4, indirectly for the power supply of sign main part 1 to be favorable to the energy saving, comparatively environmental protection.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An electronic identification sign applied to a line pole, comprising a sign body (1), characterized in that: the outer surface of the upper end of the sign main body (1) is provided with a fixed block (2) and a solar panel (3), the outer surface of the rear end of the sign main body (1) is provided with a storage battery (4), and the lower side of the storage battery (4) is provided with an installation component (5).

2. An electronic identification sign applied to a pole as claimed in claim 1, wherein: installation component (5) include I-steel sheet (501), first solid fixed ring (502), the solid fixed ring of second (503), first fixed plate (504) and second fixed plate (505), I-steel sheet (501) are installed in the rear side of sign main part (1), I-steel sheet (501) fixed welding is in the rear side outer surface of sign main part (1).

3. An electronic identification sign applied to a pole as claimed in claim 2, wherein: first solid fixed ring (502) are fixed to be welded in one side surface of I-steel board (501), the solid fixed ring of second (503) sets up in the inside of first solid fixed ring (502), be swing joint between solid fixed ring of second (503) and first solid fixed ring (502).

4. An electronic identification sign applied to a pole as claimed in claim 2, wherein: the first fixing plate (504) is fixedly welded on the outer surface of one end of the second fixing ring (503), and the second fixing plate (505) is fixedly welded on the outer surface of one end of the first fixing ring (502).

5. An electronic identification sign applied to a pole as claimed in claim 2, wherein: threaded holes (506) are formed in the outer surfaces of the side ends of the first fixing ring (502) and the second fixing ring (503), and through holes (507) are formed in the first fixing plate (504) and the second fixing plate (505) and are symmetrically distributed.

6. An electronic identification sign applied to a pole as claimed in claim 1, wherein: fixed block (2) fixed mounting is in the upper end of sign main part (1), solar panel (3) fixed mounting in one side of fixed block (2), and with be fixed connection between sign main part (1), contained angle between solar panel (3) and sign main part (1) is 45 degrees, battery (4) fixed mounting is in the rear side of sign main part (1).
