本实用新型提供了一种留置针敷贴，属于医疗器械技术领域。它解决了现有的敷贴容易脱落等问题。包括敷贴和敷料，敷贴包括第一部和第二部，第一部用于固定留置针的针头，第二部设置有开口，开口用于供留置针的针柄穿出，第二部用于贴在留置针的针柄下方的皮肤上，敷料用于覆盖在敷贴上，敷料背离敷贴的一面设置有固定装置，固定装置用于固定敷料，敷料设置有观察口，观察口用于供人观察留置针情况。本实用新型具有能防止留置针松动等优点。
The utility model provides an indwelling needle applicator, which belongs to the technical field of medical devices. It solves the problem that the existing applicator is easy to fall off. Including an applicator and a dressing, the applicator includes a first part and a second part, the first part is used to fix the needle of the indwelling needle, the second part is provided with an opening, and the opening is used for the needle handle of the indwelling needle to pass through, and the second part It is used to stick to the skin under the needle handle of the indwelling needle. The dressing is used to cover the dressing. The side of the dressing facing away from the dressing is provided with a fixing device. The fixing device is used to fix the dressing. The dressing is provided with an observation port. For people to observe the situation of the indwelling needle. The utility model has the advantages of preventing the indwelling needle from loosening and the like.
Description
Technical Field
The utility model belongs to the technical field of medical instruments, and particularly relates to an indwelling needle application.
Background
The use of the indwelling needle can reduce the pain and the fear of injection of the sick child caused by repeated venipuncture, relieve the anxiety of parents, facilitate clinical medication, rescue medication of emergent and critical patients, reduce the workload of nurses, reduce the pain of the sick child, therefore, the vein indwelling needle is widely applied in clinic, and in the face of the special group of children patients, the length of the indwelling time of the vein indwelling needle and the comfort of the children patients become the most concerned problems for nurses and parents, because the sick children are easy to be fussy, cry, move and grab, the application edge is curled, the effect of fixing the remaining needle is reduced, thereby causing the remaining needle to loosen, bringing pain to the sick children, even having to puncture again when serious, and the needle handle of the indwelling needle is pressed on the skin of the infant for a long time, pressure sores are easily caused, and a cotton ball is padded below the needle handle in the existing method and easily slides down.
Disclosure of Invention
The present invention has been made keeping in mind the above problems occurring in the prior art, and an object of the present invention is to provide an indwelling needle dressing.
The purpose of the utility model can be realized by the following technical scheme: the indwelling needle application is characterized by comprising an application and a dressing, wherein the application comprises a first part and a second part, the first part is used for fixing a needle head of an indwelling needle, the second part is provided with an opening for a needle handle of the indwelling needle to penetrate out, the second part is used for being pasted on skin below the needle handle of the indwelling needle, the dressing is used for covering the application, a fixing device is arranged on the side, away from the application, of the dressing, the fixing device is used for fixing the dressing, the dressing is provided with an observation port, and the observation port is used for a person to observe the condition of the indwelling needle.
The working principle of the utility model is as follows: when medical personnel carry out indwelling needle venipuncture, insert the indwelling needle earlier, medical personnel will apply ointment or plaster the laminating in the injection port top of infant through first portion earlier, be used for fixing the needle body part of indwelling needle, wear out the needle handle of indwelling needle from the opening part of second portion, paste the second portion of applying ointment or plaster on the skin of the needle handle below of indwelling needle, prevent that the needle handle from oppressing for a long time and forming pressure sore on infant's skin, aim at the position of indwelling needle with the observation port after fixed applying ointment or plaster, cover dressing on the needle handle of applying ointment or plaster and indwelling needle, the dressing bottom is provided with pastes the layer, the area of pasting the layer is greater than applying ointment or plaster, be used for pasting on applying ointment or infant's skin, form the second layer and fix, make the dressing can be fixed the needle handle of indwelling needle, fix the dressing on infant's skin through fixing device at last, form the third layer and fix, through multiple fixation, make indwelling needle fixed more firm and medical personnel can observe through the observation port whether indwelling needle takes off and take off And whether the dropping and injection are smooth.
In the above-mentioned indwelling needle application, the opening is located in the middle of the second portion.
In the above-mentioned indwelling needle application, the application is a transparent sterile application.
In the indwelling needle application, the fixing means includes a plurality of adhesive tapes, one end of which is stuck to the dressing, and the other end of which is provided with a protective layer for preventing the adhesive tapes from decreasing in adhesiveness.
In the indwelling needle application, the dressing is provided with a writing area for medical staff to record characters.
Compared with the prior art, the utility model has the advantage of preventing the remaining needle from loosening.
Drawings

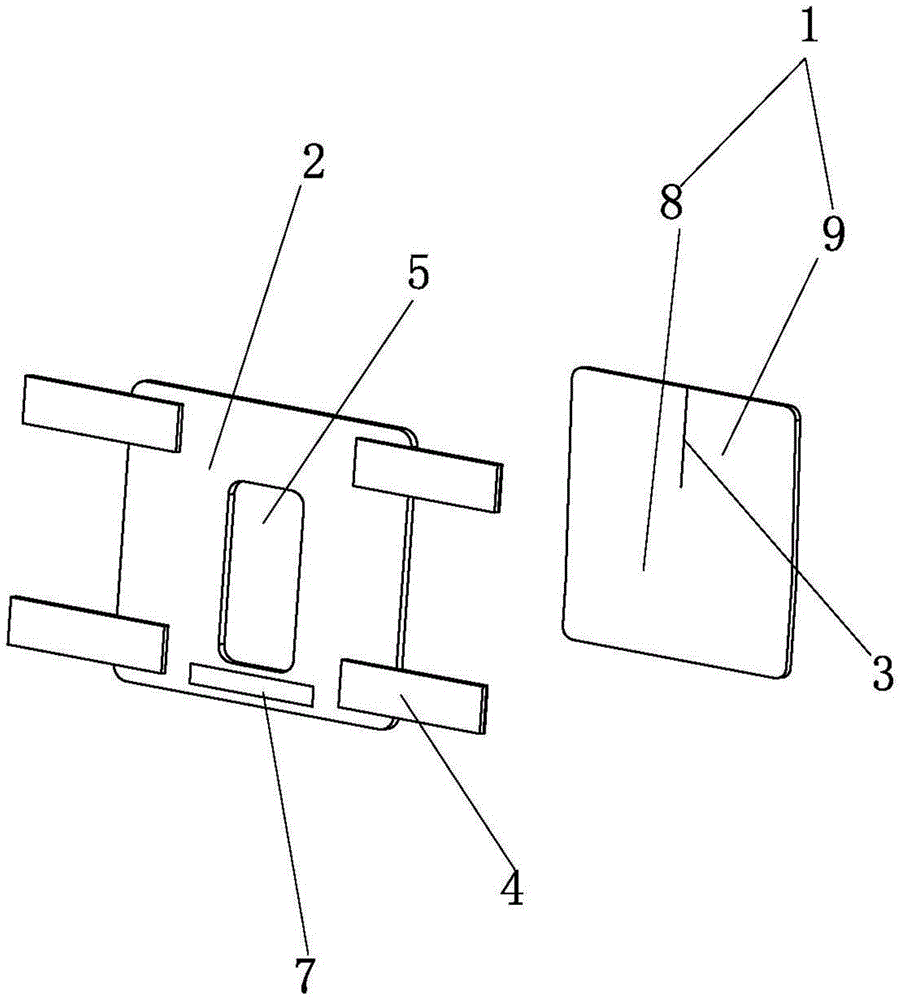

FIG. 1 is a schematic illustration of an explosive structure according to the present invention;
figure 2 is a schematic cross-sectional view of the present invention in use.
In the figure, 1, applying; 2. a dressing; 3. an opening; 4. a fixing device; 5. a viewing port; 6. a protective layer; 7. a writing area; 8. a first part; 9. a second part.
Detailed Description
The following are specific embodiments of the present invention and are further described with reference to the drawings, but the present invention is not limited to these embodiments.
As shown in figures 1-2, an indwelling needle application comprises an application 1 and a dressing 2, wherein the application 1 comprises a first part 8 and a second part 9, the first part 8 is used for fixing a needle head of an indwelling needle, the second part 9 is provided with an opening 3, the opening 3 is used for allowing a needle handle of the indwelling needle to penetrate out, the second part 9 is used for being attached to the skin below the needle handle of the indwelling needle, the dressing 2 is used for covering the application 1, a fixing device 4 is arranged on the side, away from the application 1, of the dressing 2, the fixing device 4 is used for fixing the dressing 2, the dressing 2 is provided with an observation port 5, and the observation port 5 is used for a person to observe the condition of the indwelling needle.
In more detail, the opening 5 is located in the middle of the second portion 9, the opening 5 needs to be aligned with the needle handle of the indwelling needle to facilitate the indwelling needle to pass out, and the opening 5 is not located in the middle, which may cause the indwelling needle to be insecure.
Further saying in detail, applying ointment or plaster 1 adopts transparent aseptic applying ointment or plaster 1, is difficult for arousing the contact site allergy, and can not adhere with the wound, chooses transparent aseptic applying ointment or plaster 1 for use, makes things convenient for medical personnel to see through viewing aperture 5 and observes the condition of keeping somewhere the needle.
Further saying in detail, fixing device 4 includes a plurality of sticky tapes, and sticky tape one end is pasted on dressing 2, and the sticky tape other end is provided with protective layer 6, further fixes dressing 2, prevents to keep somewhere that the needle is not hard up, is provided with the viscidity that protective layer 6 can the protection sticky tape.
In further detail, the dressing 2 is provided with a writing area 8, the writing area 8 is used for medical staff to record characters, and before the dressing 2 is used, the date, the dropping speed, the name and the like are written in the writing area 8.
The specific embodiments described herein are merely illustrative of the spirit of the utility model. Various modifications or additions may be made to the described embodiments or alternatives may be employed by those skilled in the art without departing from the spirit or ambit of the utility model as defined in the appended claims.
Although a large number of terms are used here more, the possibility of using other terms is not excluded. These terms are used merely to more conveniently describe and explain the nature of the present invention; they are to be construed as being without limitation to any additional limitations that may be imposed by the spirit of the present invention.
