Abstract
本实用新型公开了一种鼻饲灌注装置，包括第一储液瓶以及第二储液瓶；第一储液瓶可拆卸连接有第一瓶盖，第一瓶盖设置有供滴管连接的出料口；第二储液瓶设置有连通管，连通管一端与第一储液瓶连接，另一端与第二储液瓶连接。利用本装置进行鼻饲操作时，将鼻饲滴管连入到出料口处，此时即可进行鼻饲，全程操作极为简便，即使是行动不便的使用人群，亦可以独自操作，具有极强的实用性，第二储液瓶的连通，令第二储液瓶内的水能够对第一储液瓶、鼻饲滴管及胃管起到冲洗、冲刷的作用，提高粘稠状的鼻饲液体的滴管效率，避免食物残留在胃管内发酵或变质。
The utility model discloses a nasal feeding perfusion device, comprising a first liquid storage bottle and a second liquid storage bottle; the first liquid storage bottle is detachably connected with a first bottle cap, and the first bottle cap is provided with an outlet for connecting a dropper. The second liquid storage bottle is provided with a communication pipe, one end of the communication pipe is connected with the first liquid storage bottle, and the other end is connected with the second liquid storage bottle. When using this device for nasal feeding operation, connect the nasal feeding dropper to the discharge port, and then the nasal feeding can be carried out. The whole operation is extremely simple, and even people with inconvenient mobility can operate alone, which is extremely practical. The connection of the second liquid storage bottle enables the water in the second liquid storage bottle to flush and flush the first liquid storage bottle, the nasal feeding dropper and the gastric tube, and improve the dripping of the viscous nasal feeding liquid. Tube efficiency, avoiding food residues in the stomach tube for fermentation or spoilage.
Description
Technical Field
The utility model relates to a nasal feeding perfusion device.
Background
Nasal feeding, also known as nasogastric feeding, gastrointestinal decompression, is a method of supplying nutrition or decompressing by passing a tube from a nasal cavity to a stomach, and the nasal feeding tube is mainly suitable for patients who are in coma, have no or no swallowing reflex, are tracheotomized, are not suitable for oral feeding after certain oral and throat operations, and the like, and not only are the needs of the patients, but also many old people have diseases of different degrees with the aging of China, such as: it can be used by elderly people with dysphagia, apoplexy, botanicals, refusal to eat, etc. Can be administered by nasal feeding to provide enteral nutrition to human body and prevent aspiration. Some patients are discharged with nasal feeding tubes, and the patients and family members need to perform nasal feeding perfusion operation.
Most of the existing nasal feeding irrigators feed by manual propulsion, and when no other person assists, the operation of feeding by one person is difficult.
Disclosure of Invention
An object of an embodiment of the present invention is to provide a nasal feeding infusion device with the advantage of easy feeding.
In order to achieve the above object, an embodiment of the present invention provides a nasal feeding perfusion apparatus, including a first liquid storage bottle and a second liquid storage bottle;
the first liquid storage bottle is detachably connected with a first bottle cap, and the first bottle cap is provided with a discharge hole for connecting a dropper;
the second liquid storage bottle is provided with a communicating pipe, one end of the communicating pipe is connected with the first liquid storage bottle, and the other end of the communicating pipe is connected with the second liquid storage bottle.
Compared with the prior art, when utilizing this device to carry out nasal feeding operation, put into first stock solution bottle with nasal feeding liquid, wash into the second stock solution bottle with the drinking water in, hang first stock solution bottle and second stock solution bottle and establish the eminence afterwards, the second stock solution bottle communicates through communicating pipe and second stock solution bottle this moment. The nasal feeding dropper is connected to the discharge port, nasal feeding can be performed at the moment, the whole operation is very simple and convenient, even the user groups who are inconvenient to move can also operate independently, and the nasal feeding dropper has extremely strong practicability. Avoiding food residue in the stomach tube to ferment or deteriorate, causing gastroenteritis or blocking the tube cavity.
As an improvement of the scheme, the first bottle cap is in threaded connection with the first liquid storage bottle.
As an improvement of the scheme, a filter screen is arranged in the first bottle cap.
As an improvement of the scheme, the filter screen is arranged in an arc shape.
As an improvement of the scheme, an external connecting pipe is arranged on the first liquid storage bottle, one end of the external connecting pipe is communicated with the first liquid storage bottle, and an external port for connecting an injector is arranged at the other end of the external connecting pipe.
As an improvement of the scheme, the external connecting pipe is arranged on the side part of the first liquid storage bottle.
As an improvement of the scheme, the first liquid storage bottle and the second liquid storage bottle are both provided with liquid level graduations.
As an improvement of the scheme, a duckbill valve is arranged at one end, inserted into the first liquid storage bottle, of the communication pipe.
As an improvement of the scheme, one end of the communicating pipe is positioned at one side of the first liquid storage bottle close to the first bottle cap.
Other beneficial effects are as follows:
1. substances with larger particles may exist in the nasal feeding liquid, if the substances enter the dropper through the discharge hole, the risk of blockage exists, and the arrangement of the filter screen can avoid the situation and play a role in ensuring the efficiency of the dropper of the device;
2. the first bottle cap and the first liquid storage bottle are detachably connected, so that the maintenance and cleaning operation of the filter screen can be more convenient, the first bottle cap can be detached after the nasal feeding is finished, and then the filter screen in the first bottle cap is cleared;
3. in order to improve the filtering efficiency of the filter screen, in this embodiment, the filter screen is disposed in an arc shape. The arc arrangement can increase the filtering area of the filter screen, thereby improving the overall filtering efficiency;
4. when the burette flow speed appears and slows down, even when blockking up, medical personnel accessible external connector connects the syringe, utilizes the syringe to exert pressure in to first stock solution bottle, improves the pressure in the first stock solution bottle, promotes the nasal feeding liquid in the burette, plays the effect of mediation to the burette.
5. In order to observe the liquid amount conveniently, liquid level graduations are arranged on the first liquid storage bottle and the second liquid storage bottle.
Drawings

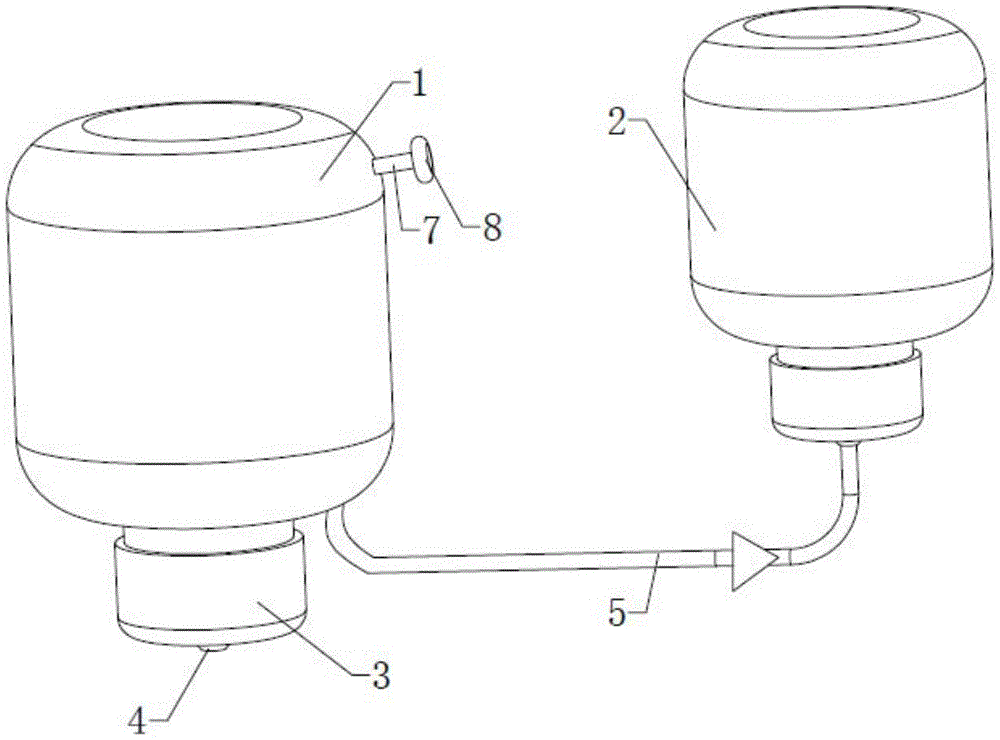

FIG. 1 is a schematic diagram of a specific structure of an embodiment of the present invention;
fig. 2 is a schematic structural diagram of a first bottle cap according to an embodiment of the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present invention.
Nasal feeding, also known as nasogastric feeding, gastrointestinal decompression, is a method of supplying nutrition or decompressing by passing a tube from a nasal cavity to a stomach, and the nasal feeding tube is mainly suitable for patients who are in coma, have no or no swallowing reflex, are tracheotomized, are not suitable for oral feeding after certain oral and throat operations, and the like, and not only are the needs of the patients, but also many old people have diseases of different degrees with the aging of China, such as: it can be used by elderly people with dysphagia, apoplexy, botanicals, refusal to eat, etc. Can be administered by nasal feeding to provide enteral nutrition to human body and prevent aspiration. Some patients are discharged with nasal feeding tubes, and the patients and family members need to perform nasal feeding perfusion operation.
Most of the existing nasal feeds are fed by manual pushing, the pushing speed is difficult to keep constant, and the existing nasal feeds need long time for repeated suction and pushing. When no other person assists, the feeding operation by one person is difficult. The utility model discloses a nasal feeding perfusion device, which has the following specific scheme:
referring to fig. 1 and fig. 2, fig. 1 is a schematic structural diagram of an embodiment of the present invention, and fig. 2 is a schematic structural diagram of a first bottle cap 3 of an embodiment of the present invention.
A nasal feeding perfusion device comprises a first liquid storage bottle 1 and a second liquid storage bottle 2. Wherein, first stock solution bottle 1 can be dismantled and be connected with first bottle lid 3, and first bottle lid 3 is provided with the discharge gate 4 that supplies the burette to connect, specifically, in this embodiment, first bottle lid 3 realizes dismantling with first stock solution bottle 1 through threaded connection and is connected. The second liquid storage bottle 2 is provided with a communicating pipe 5, one end of the communicating pipe 5 is connected with the first liquid storage bottle 1, and the other end is connected with the second liquid storage bottle 2.
In the present embodiment, the communication pipe 5 is provided with an on-off valve for opening and closing the pipe.
Exemplarily, when utilizing this device to carry out nasal feeding operation, put into first stock solution bottle 1 with nasal feeding liquid, wash into second stock solution bottle 2 with the drinking water in, hang first stock solution bottle 1 and second stock solution bottle 2 afterwards and establish the eminence, second stock solution bottle 2 is through communicating pipe 5 and second stock solution bottle 2 intercommunication this moment. Even go into discharge gate 4 departments with nasal feed burette, can carry out nasal feed this moment, whole journey operation is very simple and convenient, even be the use crowd of action inconvenience, can also operate alone, have extremely strong practicality, the intercommunication of second stock solution bottle 2, make the water in the second stock solution bottle 2 can play to first stock solution bottle 1, nasal feed burette and stomach tube and wash, the effect of scouring, improve the burette efficiency of the nasal feed liquid of thick form, avoid food to remain fermentation or rotten in the stomach tube, arouse gastroenteritis or block up the lumen, convenient self-operation, it is even to fill speed, and is laborsaving, the prevention blocks up the stomach tube.
More preferably, in this embodiment, a filter screen 6 is provided in the first bottle cap 3.
It should be noted that there may be large-particle substances in the nasal feeding liquid, and if the substances enter the dropper through the discharge port 4, there is a risk of blockage, and the arrangement of the filter screen 6 can avoid the above situation, and plays a role in ensuring the efficiency of the dropper of the device. In addition, first bottle lid 3 and the detachable connection mode of first stock solution bottle 1 make the clean operation of maintenance of filter screen 6 can be more convenient, treat after nasal feeding, can dismantle first bottle lid 3 out, clear stifled the filter screen 6 in the first bottle lid 3 afterwards.
Preferably, in order to improve the filtering efficiency of the filter 6, in the present embodiment, the filter 6 is disposed in an arc shape. The arc arrangement enables the filtering area of the filter screen 6 to be increased, thereby improving the overall filtering efficiency.
More preferably, in this embodiment, be provided with external pipe 7 on the first stock solution bottle 1, external pipe 7 one end and first stock solution bottle 1 intercommunication, the other end is provided with the external tapping 8 that supplies the syringe to connect.
It should be noted that, when the burette flow rate slows down, even blocks up, medical personnel accessible external connection 8 connects the syringe, utilizes the syringe to exert pressure in the first stock solution bottle 1, improves the pressure in the first stock solution bottle 1, promotes the nasal feeding liquid in the burette, plays the effect of mediation to the burette. In the present embodiment, the external connection tube 7 is disposed at the side of the first liquid storage bottle 1.
More preferably, in this embodiment, in order to facilitate observation of the amount of liquid, liquid level scales are provided on both the first liquid storage bottle 1 and the second liquid storage bottle 2.
More preferably, in this embodiment, a duckbill valve is disposed at one end of the communication pipe 5 inserted into the first liquid storage bottle 1. Meanwhile, one end of the communicating pipe is positioned at one side of the first liquid storage bottle close to the first bottle cap.
It should be noted that the duckbill valve is made of elastic neoprene and artificial fiber through special processing, and the shape is similar to that of a duckbill, so the duckbill valve is called. Under the condition of no internal pressure, the duckbill outlet is closed under the self elastic action; the duckbill outlet is gradually enlarged as the internal pressure is gradually increased, keeping the liquid able to drain at high flow rates. Correspondingly, when the liquid of first stock solution bottle 1 is more, pressure in the first stock solution bottle 1 differs less with the pressure of second stock solution bottle 2, the duckbill valve is the closed condition under the effect of self elasticity, liquid when in the first stock solution bottle 1 discharges gradually, pressure in the second stock solution bottle 2 will be greater than the pressure in the first stock solution bottle 1 this moment, water pressure will be under the effect of overcoming duckbill valve elastic pressure and wash away the duckbill valve, play the effect that automatic erodees to first stock solution bottle 1, the burette efficiency of this device has further been improved.
While the foregoing is directed to the preferred embodiment of the present invention, it will be understood by those skilled in the art that various changes and modifications may be made without departing from the spirit and scope of the utility model.
